REAR WHEEL HUB AND HOUSING

REMOVAL AND INSTALLATION

REAR WHEEL HUB AND HOUSING

Exploded View

INFOID:0000000012196561

Removal and Installation

INFOID:0000000012196562

REMOVAL

1. Remove tires with power tool. Refer to

WT-39, "Removal and Installation"

.

2. Remove wheel sensor. Refer to

BRC-150, "REAR WHEEL SENSOR : Removal and Installation"

.

3. Remove caliper assembly. Hang caliper assembly in a place where it will not interfere with work. Refer to

BR-64, "BRAKE CALIPER ASSEMBLY : Removal and Installation"

.

CAUTION:

Never depress brake pedal while brake caliper is removed.

4. Remove disc rotor. If disc rotor cannot be removed, remove as follows.

CAUTION:

• Parking brake completely in the released position.

• Put matching marks (A) on the wheel hub assembly and

the disc rotor before removing the disc rotor.

• Never drop disc rotor.

a. Fix the disc rotor with wheel nuts and remove the adjusting hole

plug.

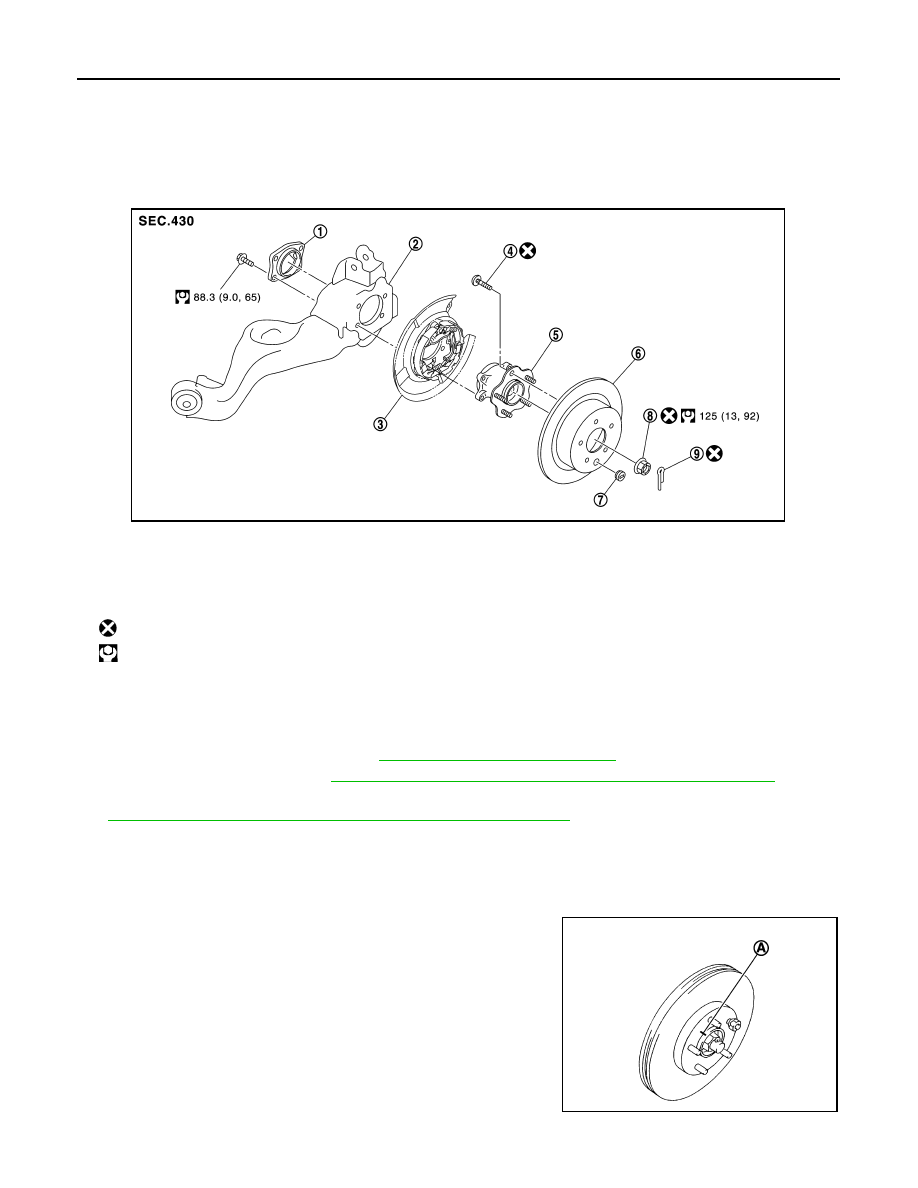

1.

Axle housing

2.

Suspension arm

3.

Parking brake assembly

4.

Hub bolt

5.

Wheel hub assembly (Bearing-inte-
grated type)

6.

Disc rotor

7.

Plug

8.

Wheel hub lock nut

9.

Cotter pin

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

JPDIG0202GB

JPDIG0066ZZ

REAR WHEEL HUB AND HOUSING

RAX-17

< REMOVAL AND INSTALLATION >

[AWD]

C

E

F

G

H

I

J

K

L

M

A

B

RAX

N

O

P

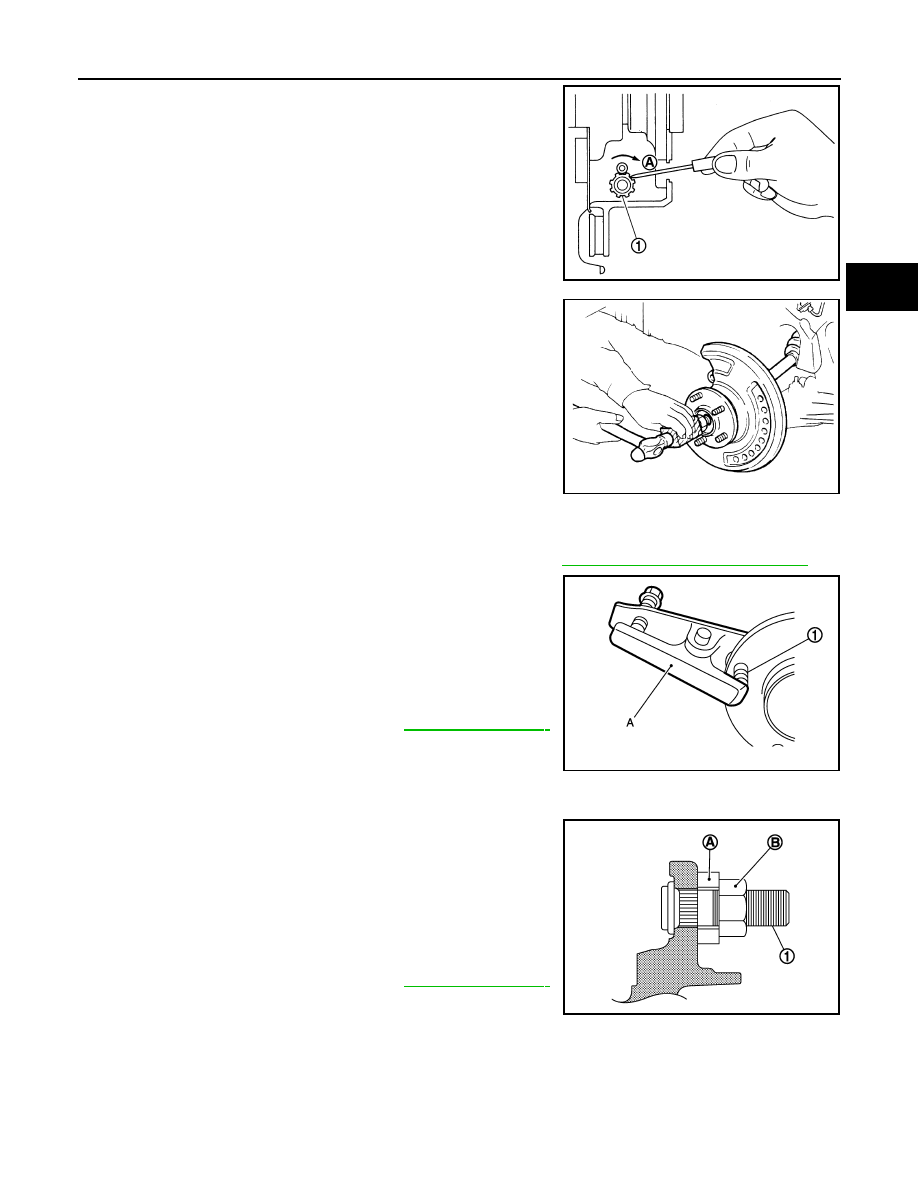

b. Using suitable tool, rotate adjuster (1) in the direction (A) to

retract and loosen brake shoe.

c. Remove disc rotor.
5. Remove cotter pin, and then loosen wheel hub lock nut with

power tool.

6. Patch wheel hub lock nut with a piece of wood. Hammer the

wood to disengage wheel hub assembly from drive shaft.

CAUTION:

• Never place drive shaft joint at an extreme angle. Also be

careful not to overextend slide joint.

• Never allow drive shaft to hang down without support for

joint sub-assembly, shaft and the other parts.

NOTE:

Use suitable puller, if wheel hub assembly and drive shaft can-

not be separated even after performing the above procedure.

7. Remove wheel hub lock nut.
8. Remove wheel hub assembly.

CAUTION:

Never remove parking brake assembly. Protect it from falling.

9. If axle housing need to be removed, remove drive shaft. Refer to

RAX-19, "Removal and Installation"

.

10. Remove hub bolts (1) from wheel hub assembly, using the ball

joint remover (A) (commercial service tool).

CAUTION:

• Remove hub bolt only when necessary.

• Never hammer the hub bolt to avoid impact to the wheel

hub assembly.

• Pull out the hub bolt in a direction perpendicular to the

wheel hub assembly.

11. Perform inspection after removal. Refer to

RAX-17, "Inspection"

.

INSTALLATION

Note the following, and install in the reverse order of the removal.

• Place a washer (A) as shown in the figure to install the hub bolts

(1) by using the tightening force of the nut (B).

CAUTION:

• Check that there is no clearance between wheel hub assem-

bly and hub bolt.

• Never reuse hub bolt.

• Never reuse wheel hub lock nut and cotter pin.

• Align the matching marks that have been made during removal

when reusing the disc rotor.

• Perform inspection after installation. Refer to

RAX-17, "Inspection"

.

Inspection

INFOID:0000000012196563

INSPECTION AFTER REMOVAL

Check wheel hub assembly for wear, cracks, and damage. Replace if necessary.

INSPECTION AFTER INSTALLATION

JPDIG0204ZZ

JPDIG0070ZZ

JPDIF0299ZZ

JPDIF0300ZZ

RAX-18

< REMOVAL AND INSTALLATION >

[AWD]

REAR WHEEL HUB AND HOUSING

1. Check wheel sensor harness for proper connection.

BRC-148, "REAR WHEEL SENSOR : Exploded

View"

.

2. Adjust parking brake operation (stroke). Refer to

PB-4, "Inspection and Adjustment"

.

3. Check wheel alignment. Refer to

RSU-7, "Inspection"

.

4. Adjust neutral position of steering angle sensor. Refer to

BRC-63, "Work Procedure"

.

REAR DRIVE SHAFT

RAX-19

< REMOVAL AND INSTALLATION >

[AWD]

C

E

F

G

H

I

J

K

L

M

A

B

RAX

N

O

P

REAR DRIVE SHAFT

Exploded View

INFOID:0000000012196564

Removal and Installation

INFOID:0000000012196565

REMOVAL

1. Remove tires with power tool. Refer to

WT-39, "Removal and Installation"

.

2. Remove wheel sensor. Refer to

BRC-150, "REAR WHEEL SENSOR : Removal and Installation"

.

3. Remove caliper assembly. Hang caliper assembly in a place where it will not interfere with work. Refer to

BR-64, "BRAKE CALIPER ASSEMBLY : Removal and Installation"

.

CAUTION:

Never depress brake pedal while brake caliper is removed.

4. Remove disc rotor. Refer to

RAX-16, "Removal and Installation"

.

5. Remove cotter pin, and then loosen wheel hub lock nut with power tool. Refer to

RAX-16, "Removal and

Installation"

.

6. Patch wheel hub lock nut with a piece of wood. Hammer the

wood to disengage wheel hub assembly from drive shaft.

CAUTION:

• Never place drive shaft joint at an extreme angle. Also be

careful not to overextend slide joint.

• Never allow drive shaft to hang down without support for

joint sub-assembly, shaft and the other parts.

NOTE:

Use suitable puller, if wheel hub assembly and drive shaft can-

not be separated even after performing the above procedure.

7. Remove wheel hub lock nut.
8. Set jack under suspension arm.

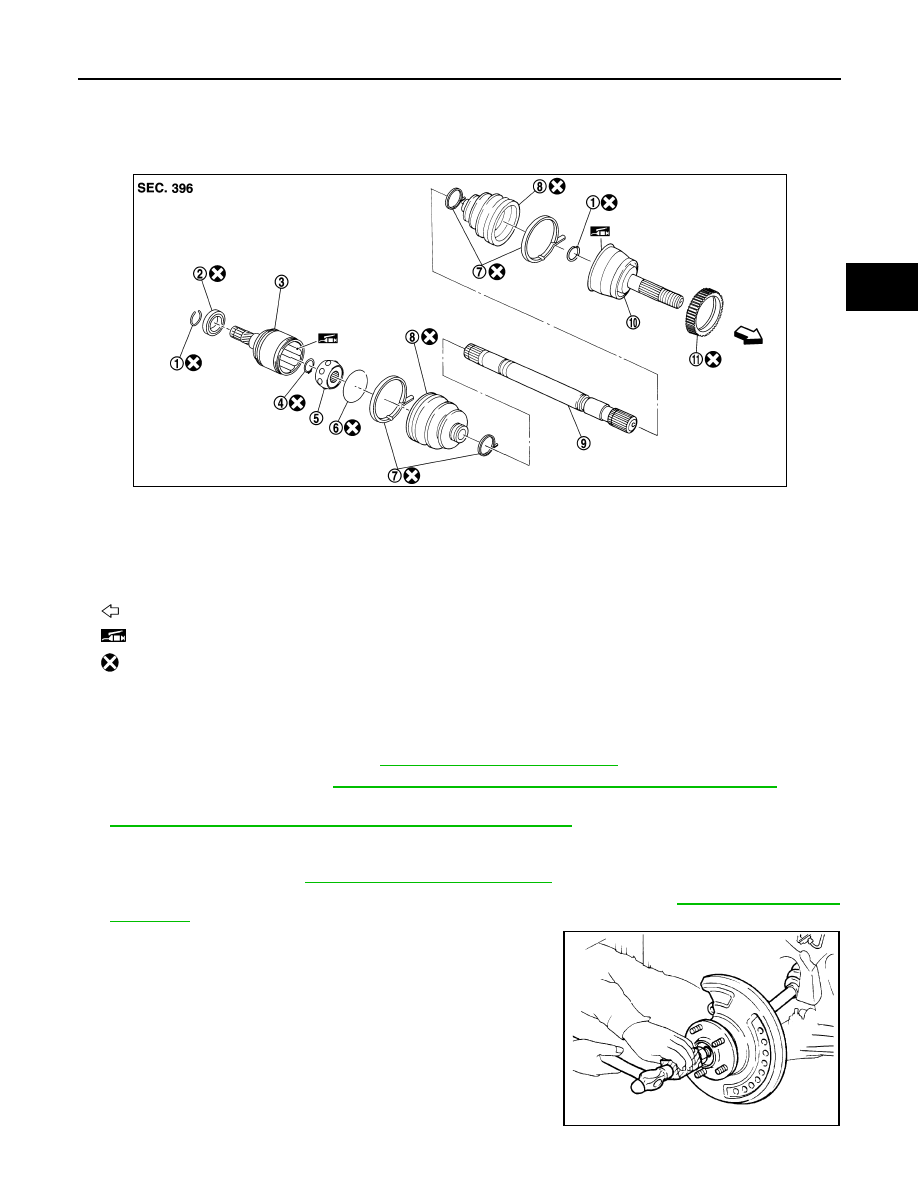

1.

Circular clip

2.

Dust shield

3.

Housing

4.

Snap ring

5.

Ball cage/steel ball/inner race as-
sembly

6.

Stopper ring

7.

Boot band

8.

Boot

9.

Shaft

10. Joint sub-assembly

11. Sensor rotor

: Wheel side

: Fill NISSAN genuine grease or an equivalent.

: Always replace after every disassembly.

JPDIG0207ZZ

JPDIG0070ZZ
