PRECAUTIONS

PWC-5

< PRECAUTION >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

• Turbocharger cooling pump may operate in a few minutes after the ignition switch is turned OFF.

• Example of high-load driving

- Driving for 30 minutes or more at 140 km/h (86 MPH) or more.

- Driving for 30 minutes or more on a steep slope.

• For vehicles with the 2-batteries, be sure to connect the main battery and the sub battery before turning ON

the ignition switch.

NOTE:

If the ignition switch is turned ON with any one of the terminals of main battery and sub battery discon-

nected, then DTC may be detected.

• After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:

The removal of 12V battery may cause a DTC detection error.

PWC-6

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

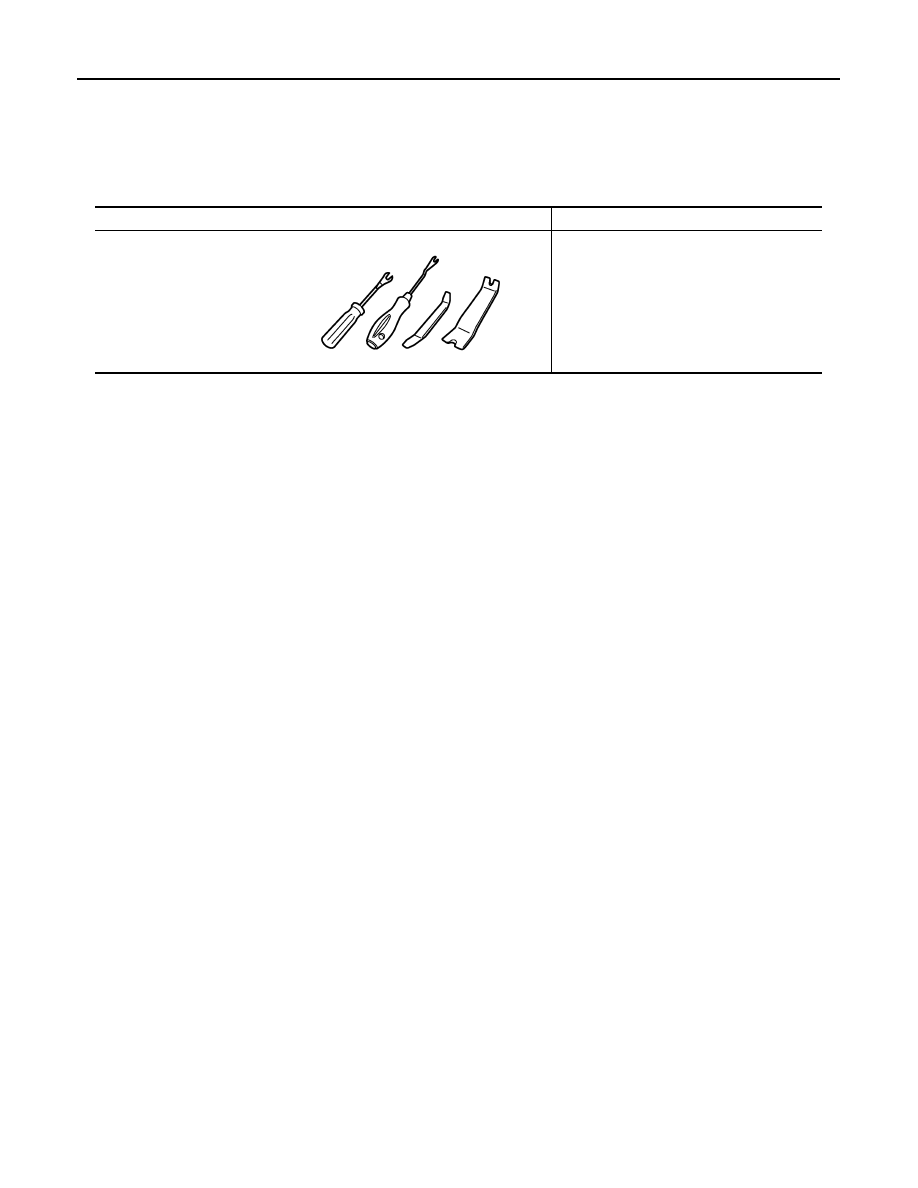

Commercial Service Tools

INFOID:0000000012196894

Tool name

Description

Remover tool

Removes the clips, pawls and metal clips

JMKIA3050ZZ

COMPONENT PARTS

PWC-7

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

SYSTEM DESCRIPTION

COMPONENT PARTS

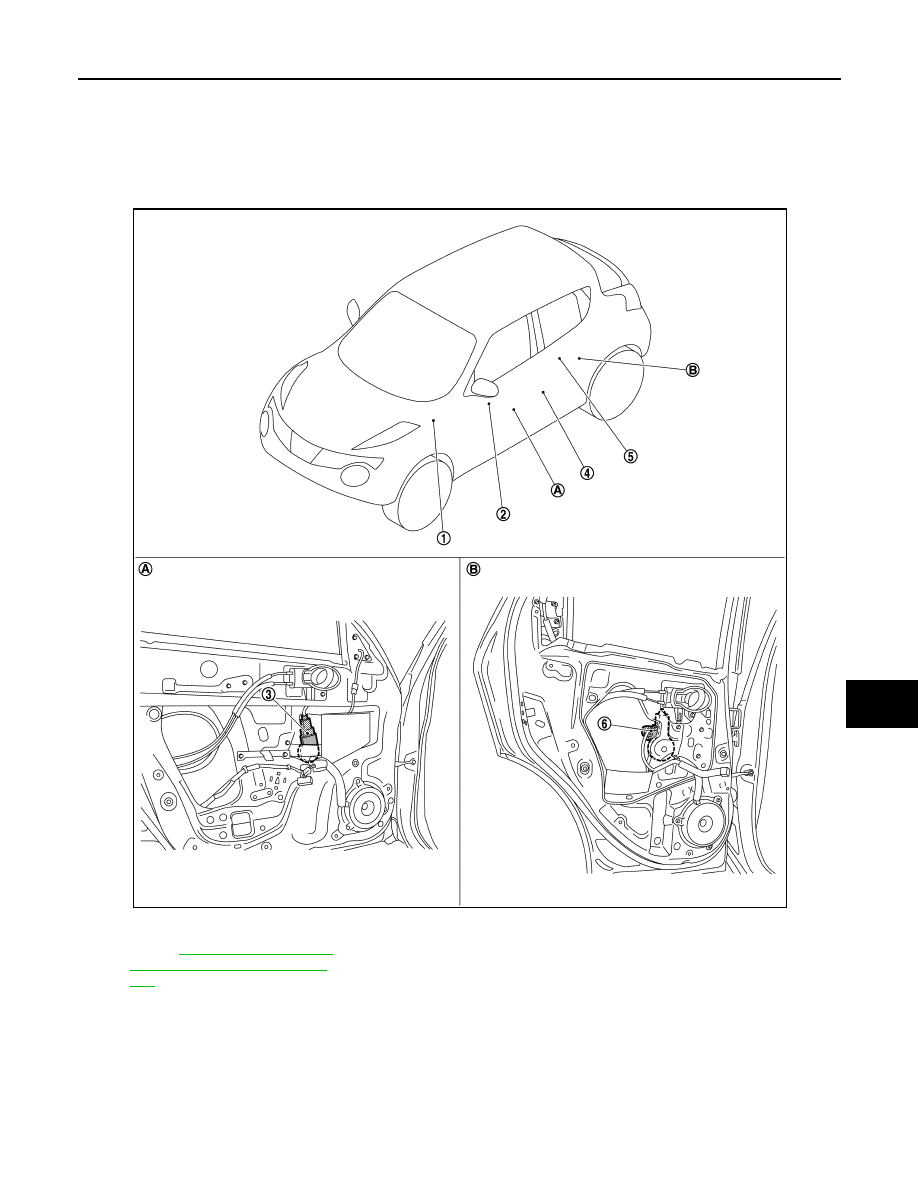

Component Parts Location

INFOID:0000000012196895

1.

BCM
Refer to

BCS-5, "BODY CONTROL

SYSTEM : Component Parts Loca-
tion"



2.

Power window main switch

3.

Front power window motor (driv-
er side)

4.

Front door switch (driver side)

5.

Rear power window switch LH

6.

Rear power window motor LH

A.

View with front door finisher removed B.

View with rear door finisher removed

JMKIA6075ZZ

PWC-8

< SYSTEM DESCRIPTION >

COMPONENT PARTS

Component Description

INFOID:0000000012196896

Component parts

Description

BCM

• Supplies power supply to power window switch.
• Controls retained power.

Power window main switch

• Directly controls all power window motor of all doors.
• Controls anti-pinch operation of power window.

Front power window switch (passenger side) Controls power window motor of front passenger side door.

Rear power window switch (LH & RH)

Controls power window motor of rear door (LH & RH).

Front power window motor (driver side)

• Integrates the encoder and power window motor.
• Operates with signals from power window main switch.
• Transmits front power window motor (driver side) rotation as a pulse signal to

power window main switch.

Front power window motor (passenger side)

Operates with signals from power window main switch and front power window
switch (passenger side).

Rear power window motor (LH & RH)

Operates with signals from power window main switch and rear power window
switch (LH & RH).

Encoder

Detects condition of the front power window motor (driver side) operation and
transmits to power window main switch as pulse signal.

Front door switch

Detects door open/close condition and transmits to BCM.
