Nissan Juke F15. Manual - part 1061





PG-104

< BASIC INSPECTION >

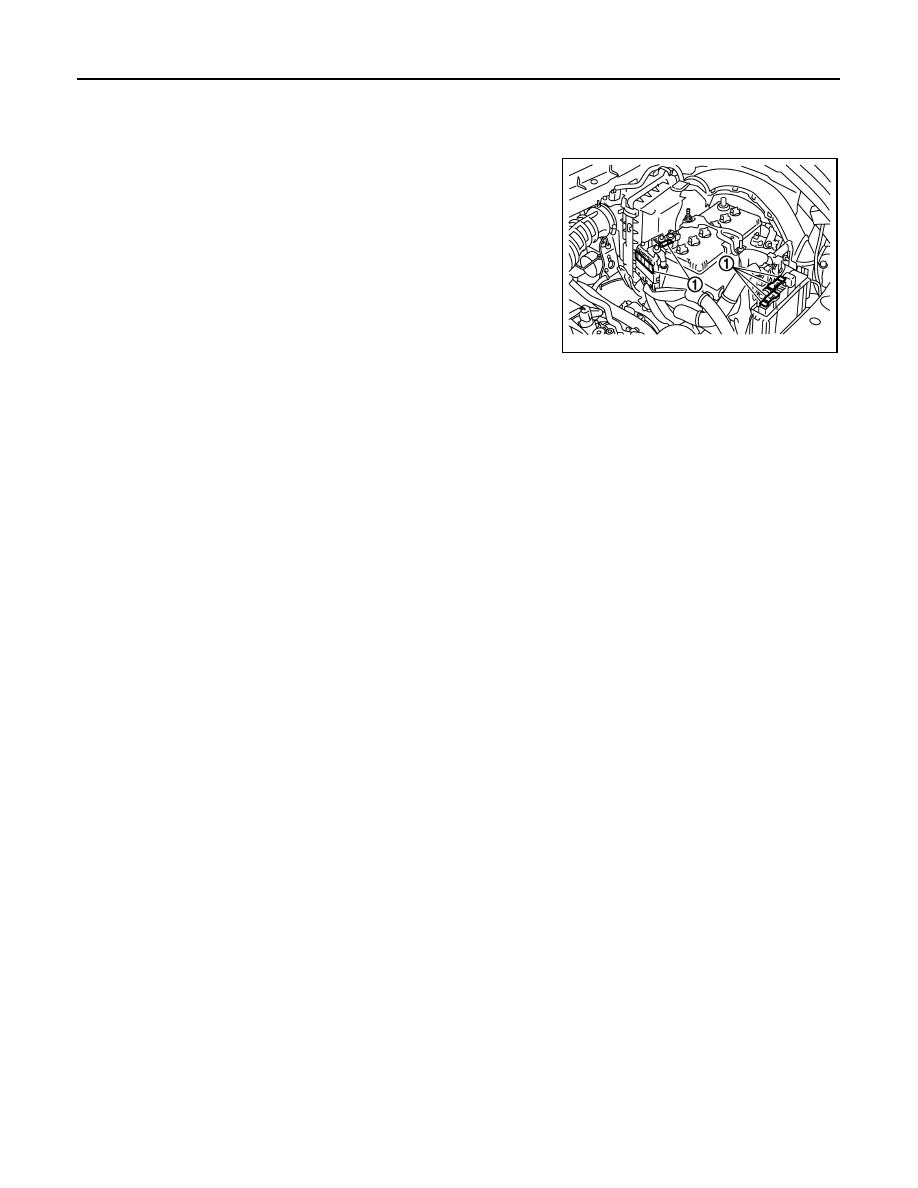

FUSIBLE LINK INSPECTION

FUSIBLE LINK INSPECTION

How To Check

INFOID:0000000012199815

A melted fusible link can be detected either by visual inspection or by

feeling with finger tip. If its condition is questionable, use circuit

tester or test lamp.

CAUTION:

• If fusible link should melt, it is possible that critical circuit

(power supply or large current carrying circuit) is shorted. In

such a case, carefully check and eliminate cause of malfunc-

tion.

• Never wrap outside of fusible link with vinyl tape. Important:

Never let fusible link touch any other wiring harness, vinyl or

rubber parts.

1

: Fusible link

JSMIA0352ZZ

PG

BATTERY

PG-105

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

REMOVAL AND INSTALLATION

BATTERY

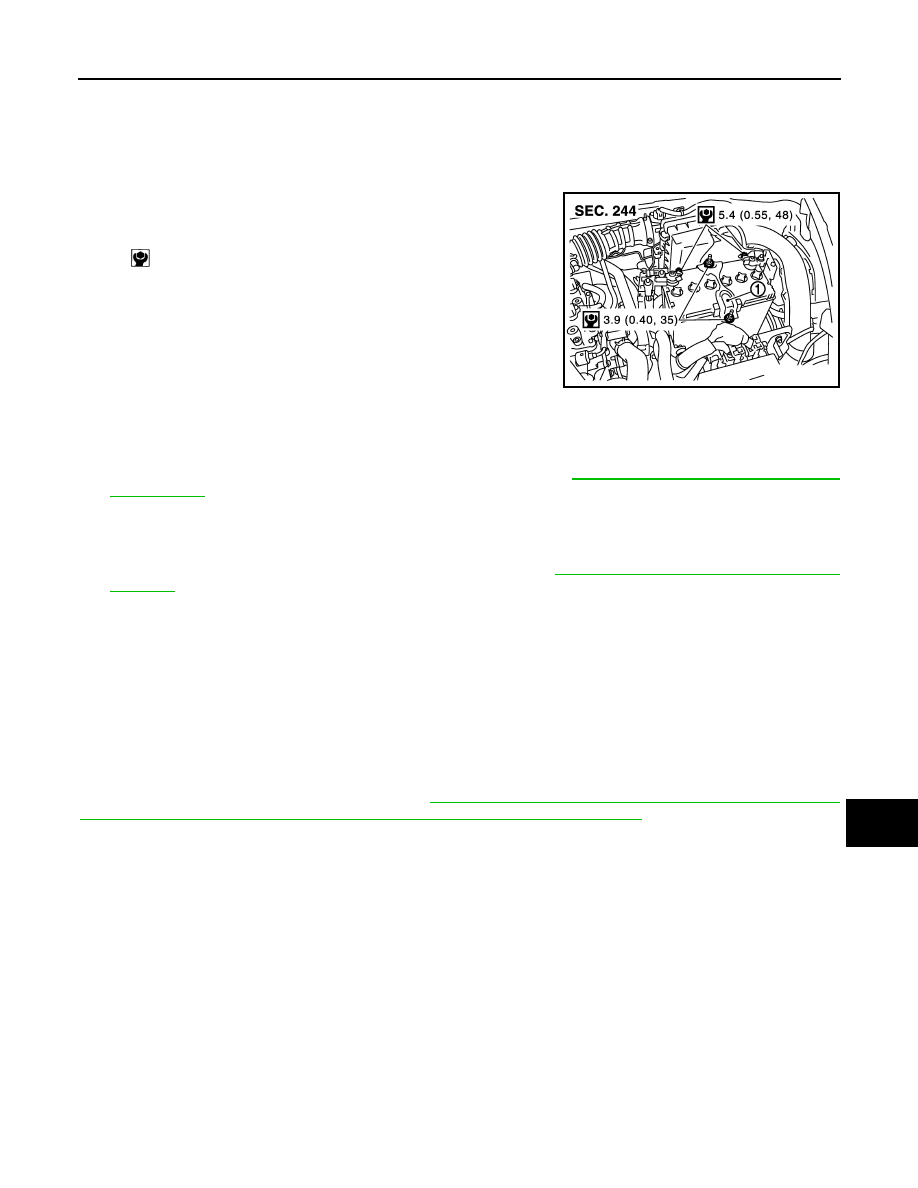

Exploded View

INFOID:0000000012199816

Removal and Installation

INFOID:0000000012199817

REMOVAL

1. Disconnect the battery cable from the negative terminal. Refer to

PG-3, "Precautions for Removing Bat-

tery Terminal"

.

CAUTION:

When disconnecting, disconnect the battery cable from the negative terminal first.

2. Remove cover of battery positive terminal.
3. Disconnect the battery cable from the positive terminal. Refer to

PG-3, "Precautions for Removing Battery

Terminal"

.

4. Remove battery fix frame mounting nuts and battery fix frame.
5. Remove battery.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

To install the battery, carefully read the following instructions.

• When connecting, connect the battery cable to the positive terminal first.

• After connecting battery cables, ensure that they are tightly clamped to battery terminals for good

contact.

• Check battery terminal for poor connection caused by corrosion.

Reset electronic systems as necessary. Refer to

GI-62, "ADDITIONAL SERVICE WHEN REMOVING BAT-

TERY NEGATIVE TERMINAL : Required Procedure After Battery Disconnection"

.

1

: Battery fix frame

: N·m (kg-m, in-lb)

JSMIA0353GB

PG-106

< REMOVAL AND INSTALLATION >

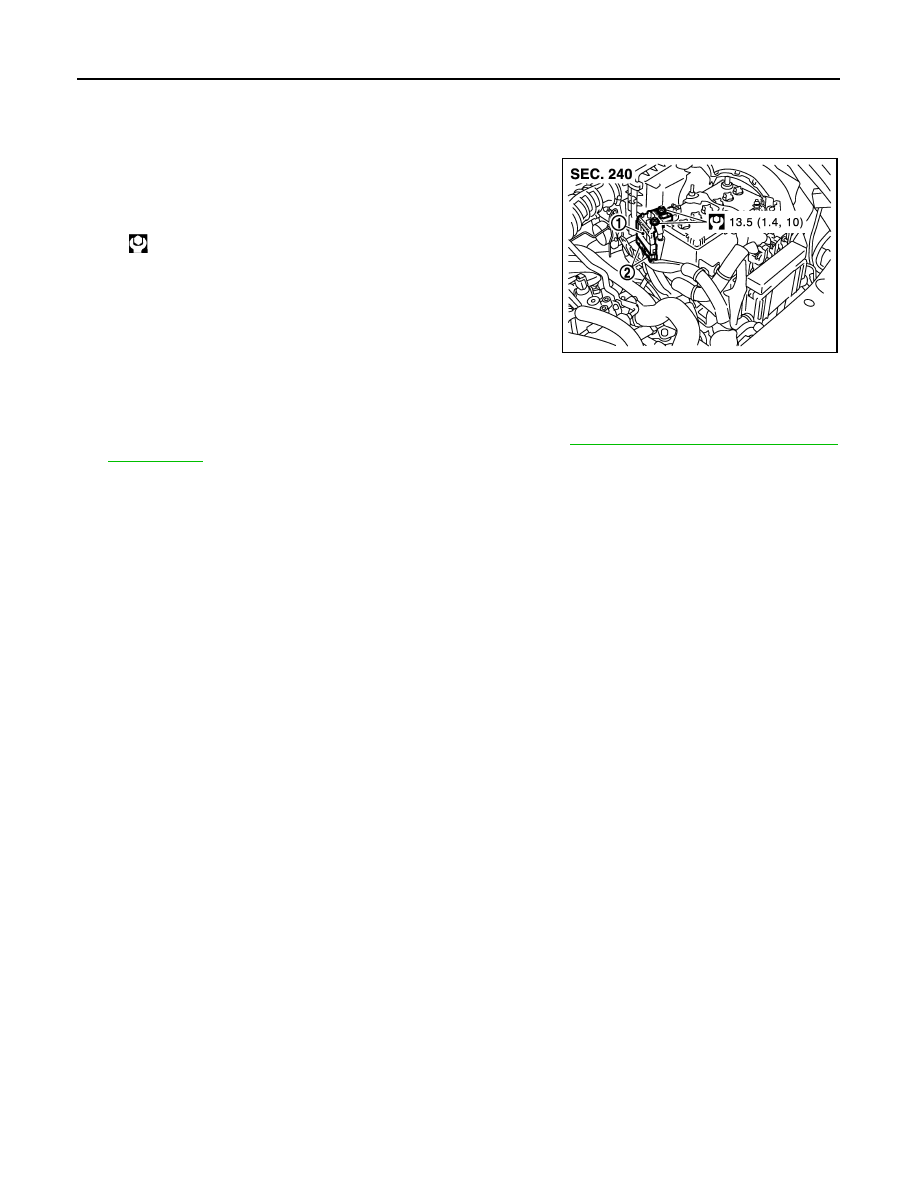

BATTERY TERMINAL WITH FUSIBLE LINK

BATTERY TERMINAL WITH FUSIBLE LINK

Exploded View

INFOID:0000000012199818

Removal and Installation

INFOID:0000000012199819

REMOVAL

1. Disconnect the battery cable from the negative terminal. Refer to

PG-3, "Precautions for Removing Bat-

tery Terminal"

.

2. Remove cover of battery positive terminal.
3. Remove harness mounting nut and battery terminal with fusible link mounting nut.
4. Disconnect harness connector and remove battery terminal with fusible link.

INSTALLATION

Install in the reverse order of removal.

1

: Battery terminal with fusible link

2

: Harness connector

: N·m (kg-m, ft-lb)

JSMIA0354GB

PG

SERVICE DATA AND SPECIFICATIONS (SDS)

PG-107

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Battery

INFOID:0000000012199820

Type

80D23L-HR

20 hour rate capacity

[V – Ah]

12 – 62

Cold cranking current (For reference value)

[A]

570
