Nissan Juke F15. Manual - part 1060





PG-100

< BASIC INSPECTION >

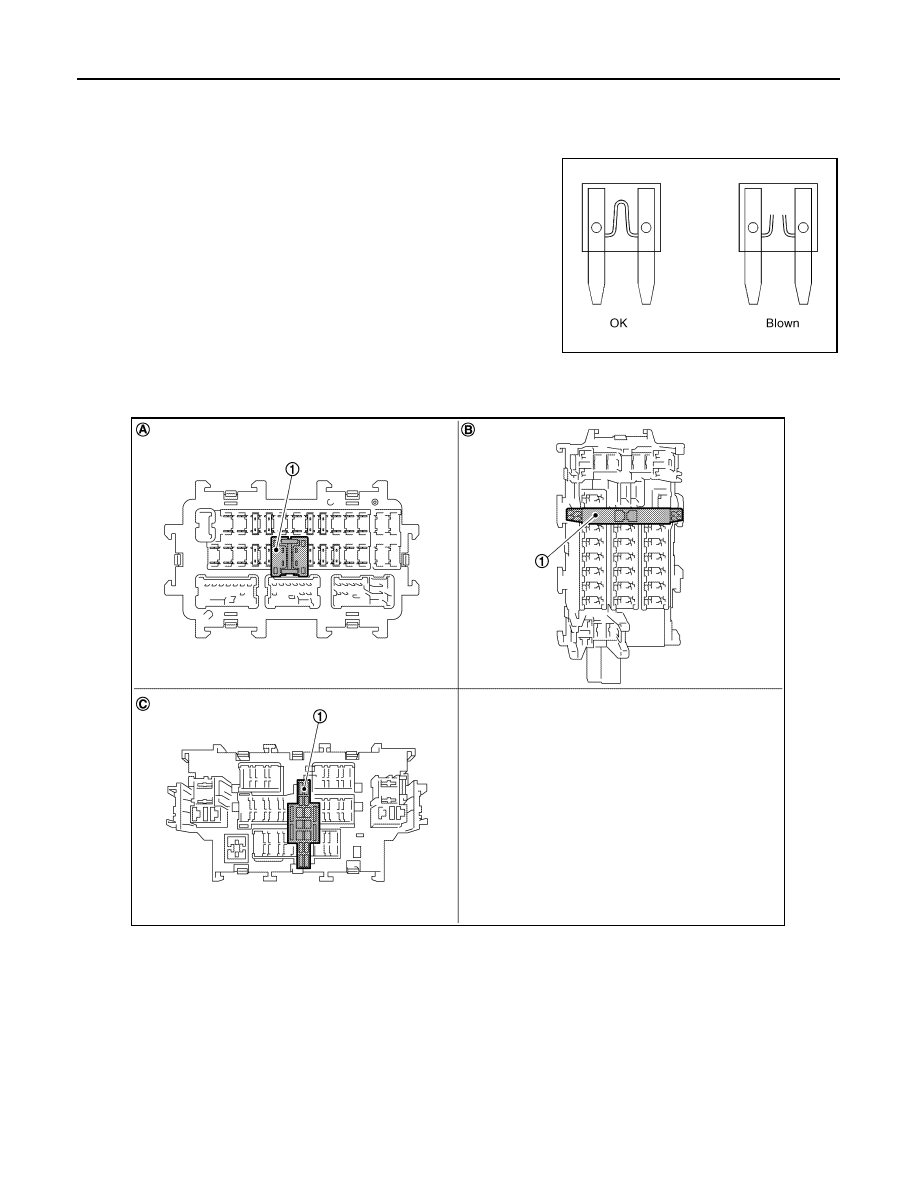

FUSE INSPECTION

FUSE INSPECTION

How To Check

INFOID:0000000012199814

• If fuse is blown, be sure to eliminate cause of malfunction before

installing new fuse.

• Use fuse of specified rating. Never use fuse of more than specified

rating.

• Do not partially install fuse; always insert it into fuse holder prop-

erly.

• Remove fuse for “ELECTRICAL PARTS (BAT)” if vehicle is not

used for a long period of time.

EXTENDED STORAGE FUSE SWITCH (IF EQUIPPED)

The following switch may be mounted on the fuse block (Junction Box) for transportation and storage.

• Remove the extended storage fuse switch when replacing the fuse of extended storage fuse switch.

• Remove the extended storage fuse switch if it causes the interference when the fuse or the other fuses is

checked.

How To Extended Storage Fuse Switch ON/OFF

CAUTION:

• Turn the ignition switch OFF when operating the extended storage fuse switch.

• Under normal conditions, keep the extended storage fuse switch in ON state. Never operate the

extended storage fuse switch except when necessary.

CEL083

1.

Extended storage fuse switch

A.

Type A

B.

Type B

C.

Type C

JSMIA0793ZZ

PG

FUSE INSPECTION

PG-101

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

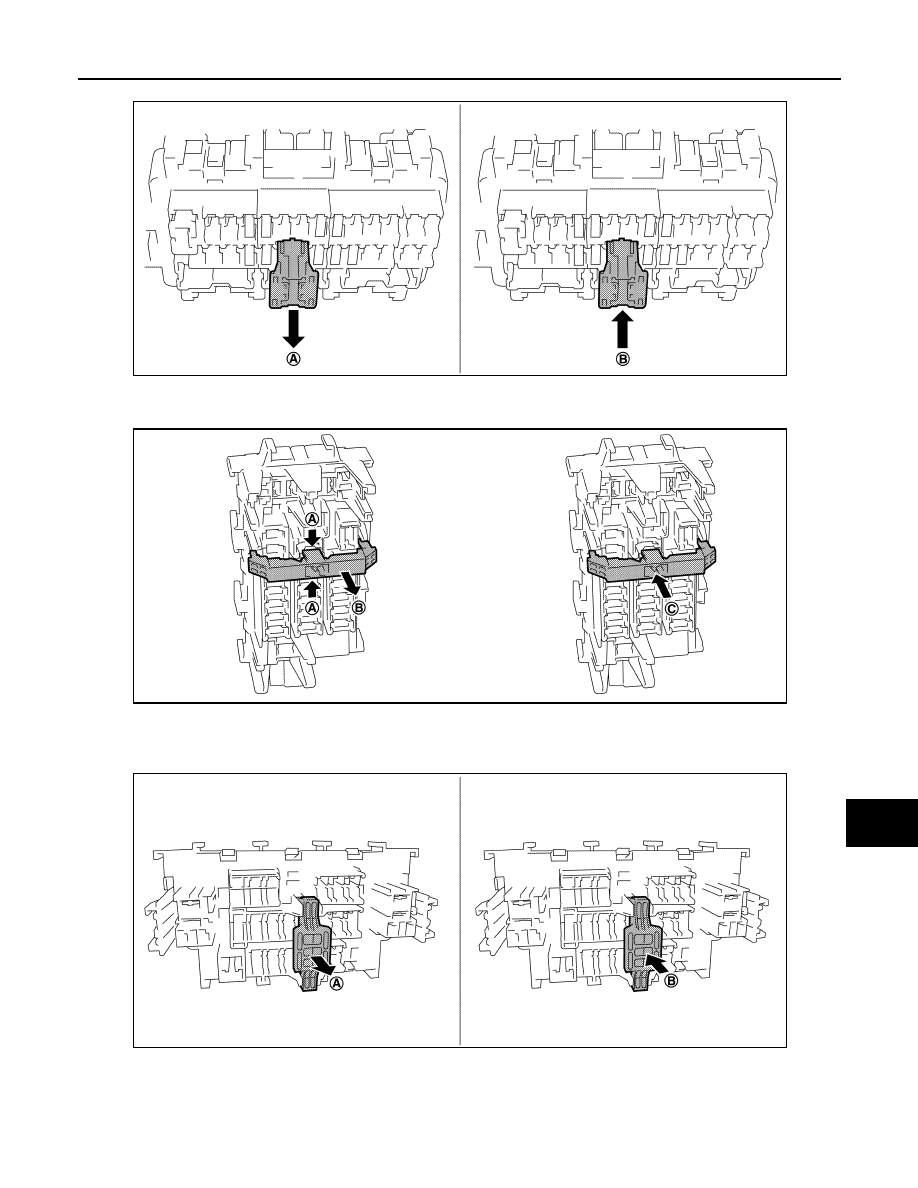

• Type A

- To turn the extended storage fuse switch OFF, pull it up in (A) direction as shown in the figure.

- To turn the extended storage fuse switch ON, press it in (B) direction as shown in the figure.

• Type B

- To turn the extended storage fuse switch OFF, hold (A) of the switch and pull up in (B) direction as shown in

the figure.

- To turn the extended storage fuse switch ON, press it in (C) direction as shown in the figure.

• Type C

- To turn the extended storage fuse switch OFF, pull it up in (A) direction as shown in the figure.

- To turn the extended storage fuse switch ON, press it in (B) direction as shown in the figure.

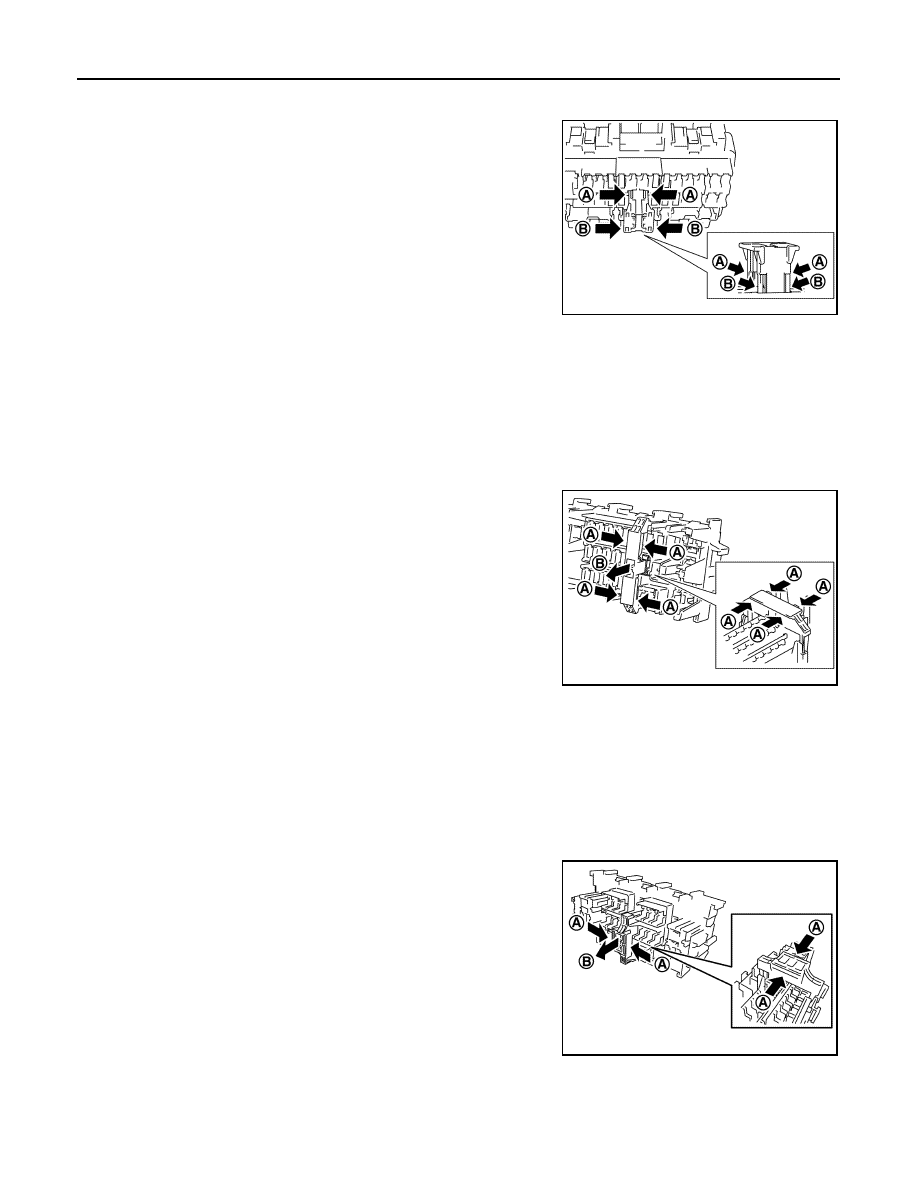

How To Remove Extended Storage Fuse Switch

Type A

JSMIA0472ZZ

JSMIA0473ZZ

JSMIA0794ZZ

PG-102

< BASIC INSPECTION >

FUSE INSPECTION

1. Turn the ignition switch OFF.

2. Turn the extended storage fuse switch OFF.

3. Press pawl (A) and tilt to disengage the extended storage fuse

switch. Press pawl (B) and tilt to remove the extended storage

fuse switch.

NOTE:

• Extended storage fuse switch and fuse are removed together. Remove fuse from extended storage fuse

switch, if necessary.

• Extended storage fuse switch is for transportation and storage. Reinstallation is not required after the

removal.

Type B

1. Turn the ignition switch OFF.

2. Turn the extended storage fuse switch OFF.

3. Hold (A) and pull up the extended storage fuse switch hard in

(B) direction.

NOTE:

• Extended storage fuse switch and fuse may be removed together. Remove fuse from extended storage

fuse switch, if necessary.

• Extended storage fuse switch is for transportation and storage. Reinstallation is not required after the

removal.

Type C

1. Turn the ignition switch OFF.

2. Turn the extended storage fuse switch OFF.

3. Hold (A) and pull up the extended storage fuse switch hard in

(B) direction.

NOTE:

• Extended storage fuse switch and fuse are removed together. Remove fuse from extended storage fuse

switch, if necessary.

JSMIA0476ZZ

JSMIA0477ZZ

JSMIA0795ZZ

PG

FUSE INSPECTION

PG-103

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

• Extended storage fuse switch is for transportation and storage. Reinstallation is not required after the

removal.
