Nissan Juke F15. Manual - part 1058

PG-92

< WIRING DIAGRAM >

HARNESS LAYOUT

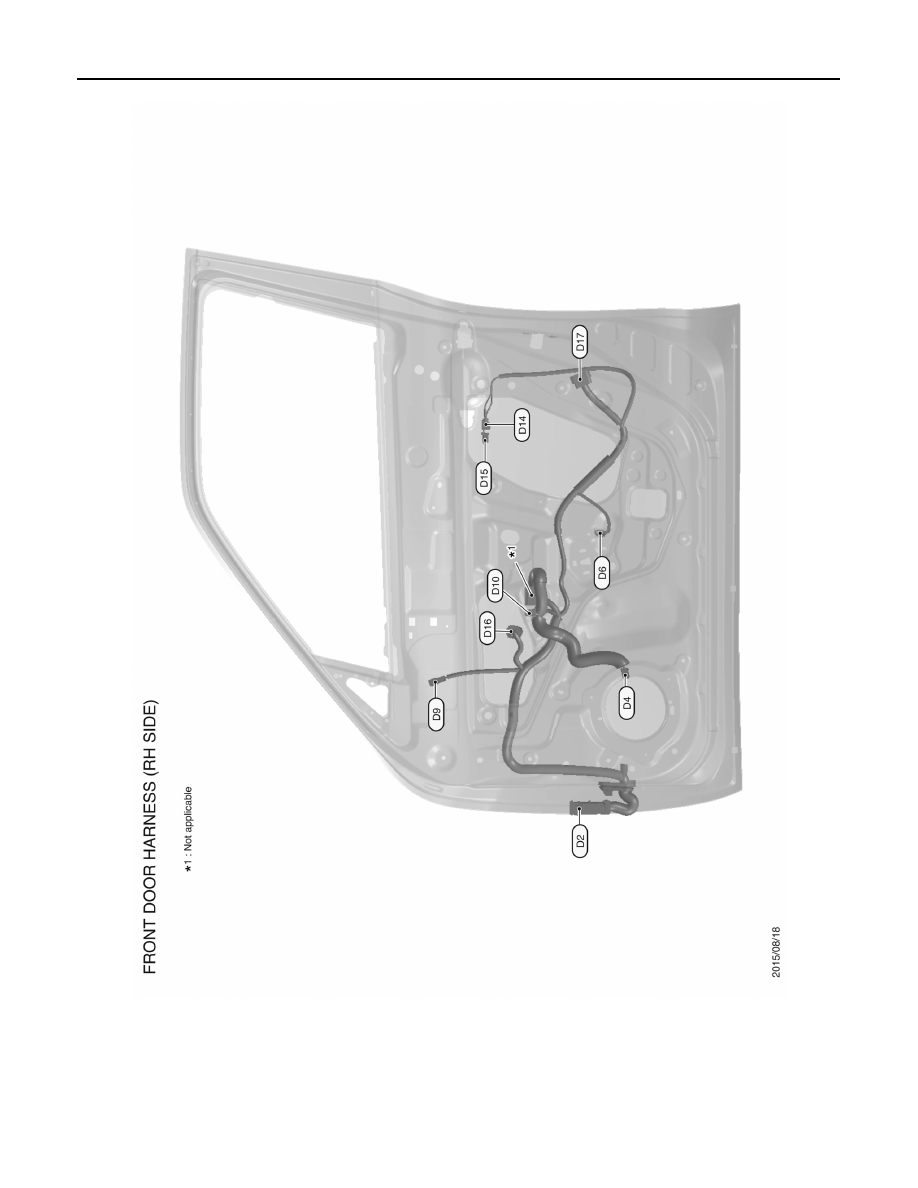

FRONT DOOR HARNESS (RH SIDE)

JRMIC6921GB

PG

HARNESS LAYOUT

PG-93

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

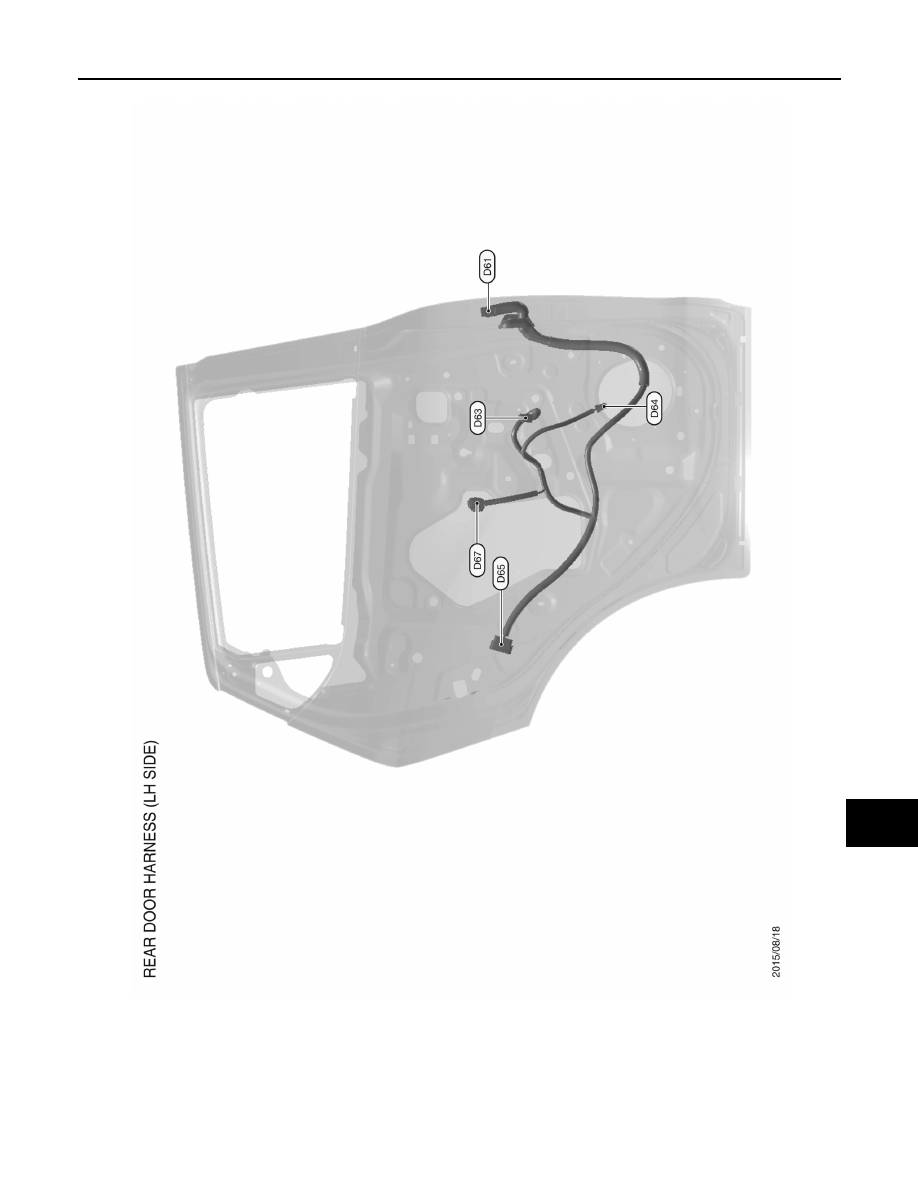

REAR DOOR HARNESS (LH SIDE)

JRMIC6922GB

PG-94

< WIRING DIAGRAM >

HARNESS LAYOUT

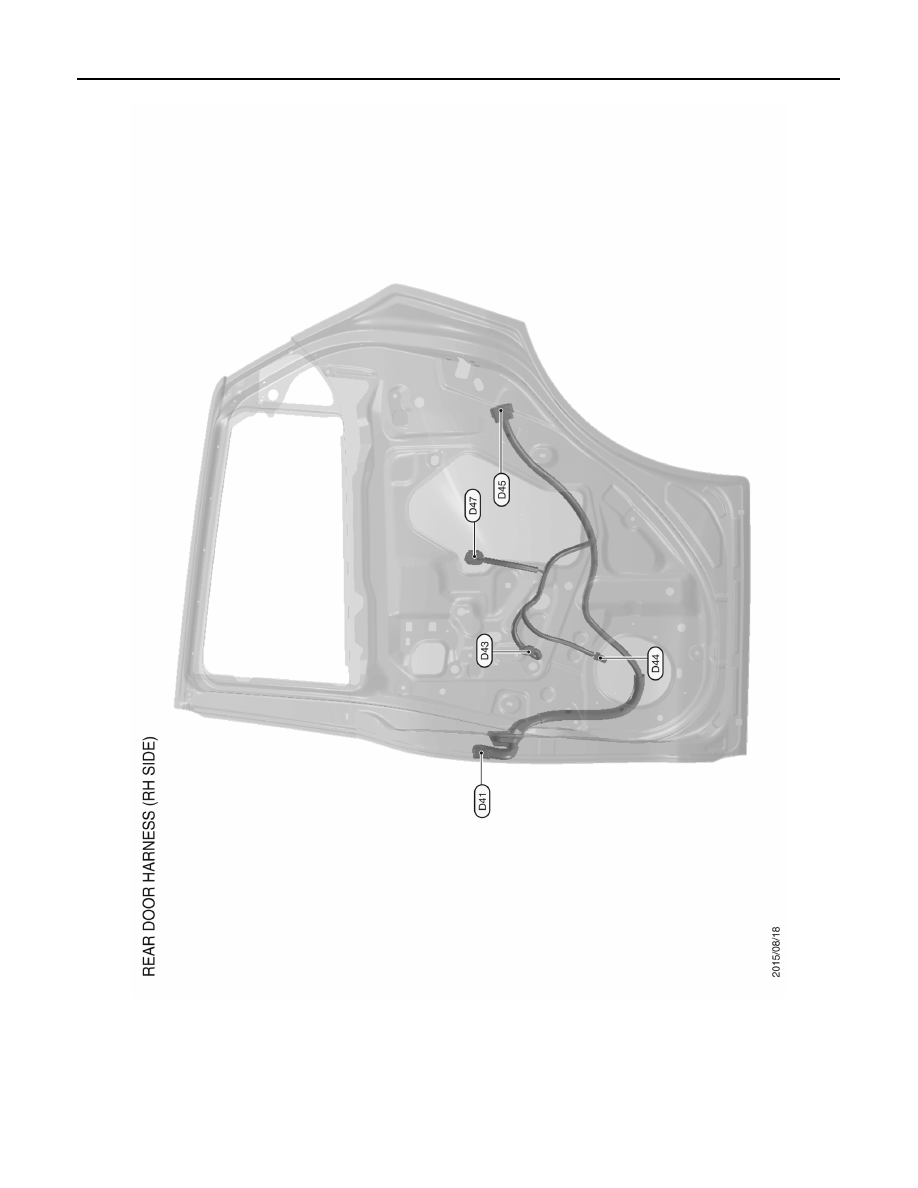

REAR DOOR HARNESS (RH SIDE)

JRMIC6923GB

PG

HARNESS LAYOUT

PG-95

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

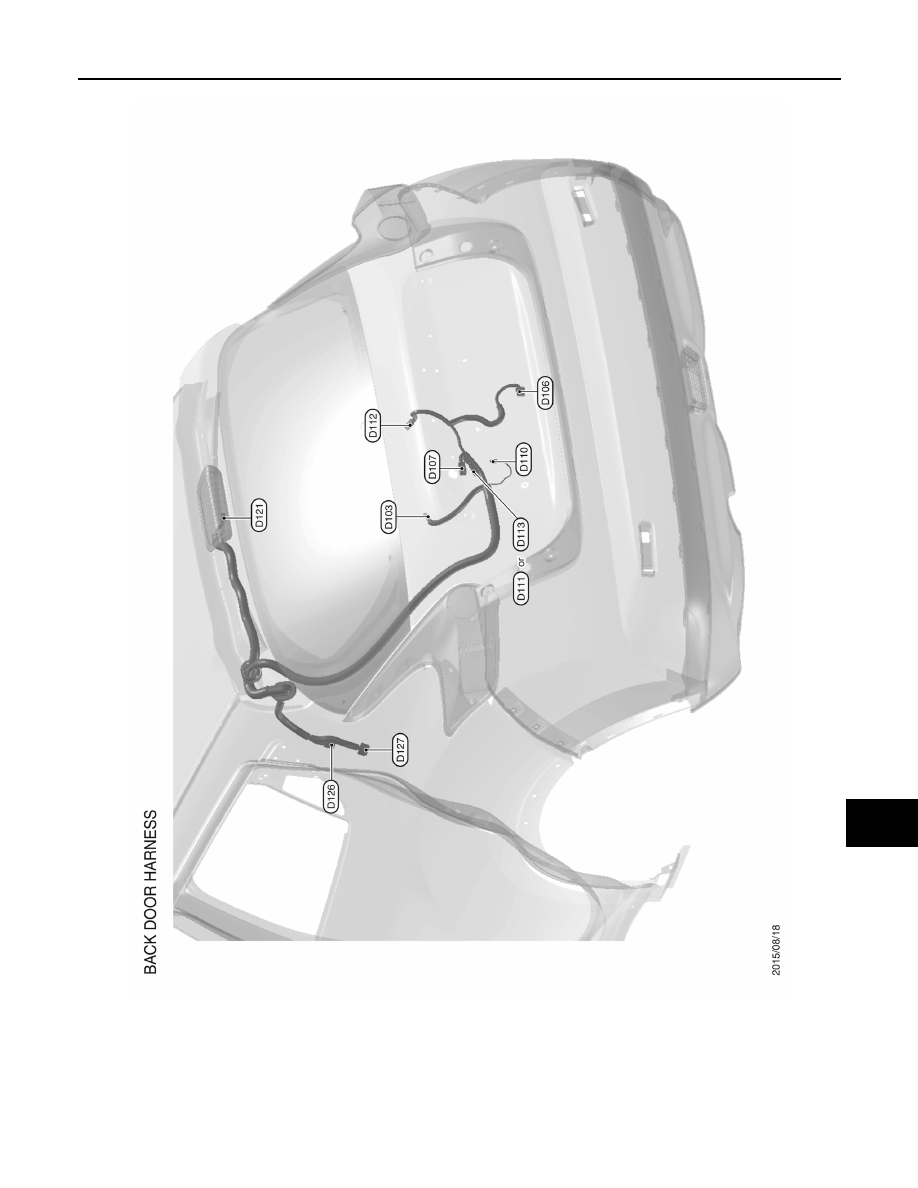

BACK DOOR HARNESS

JRMIC6924GB
