Nissan Juke F15. Manual - part 1052

PG-68

< WIRING DIAGRAM >

GROUND DISTRIBUTION

JRMWI5211GB

PG

GROUND DISTRIBUTION

PG-69

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

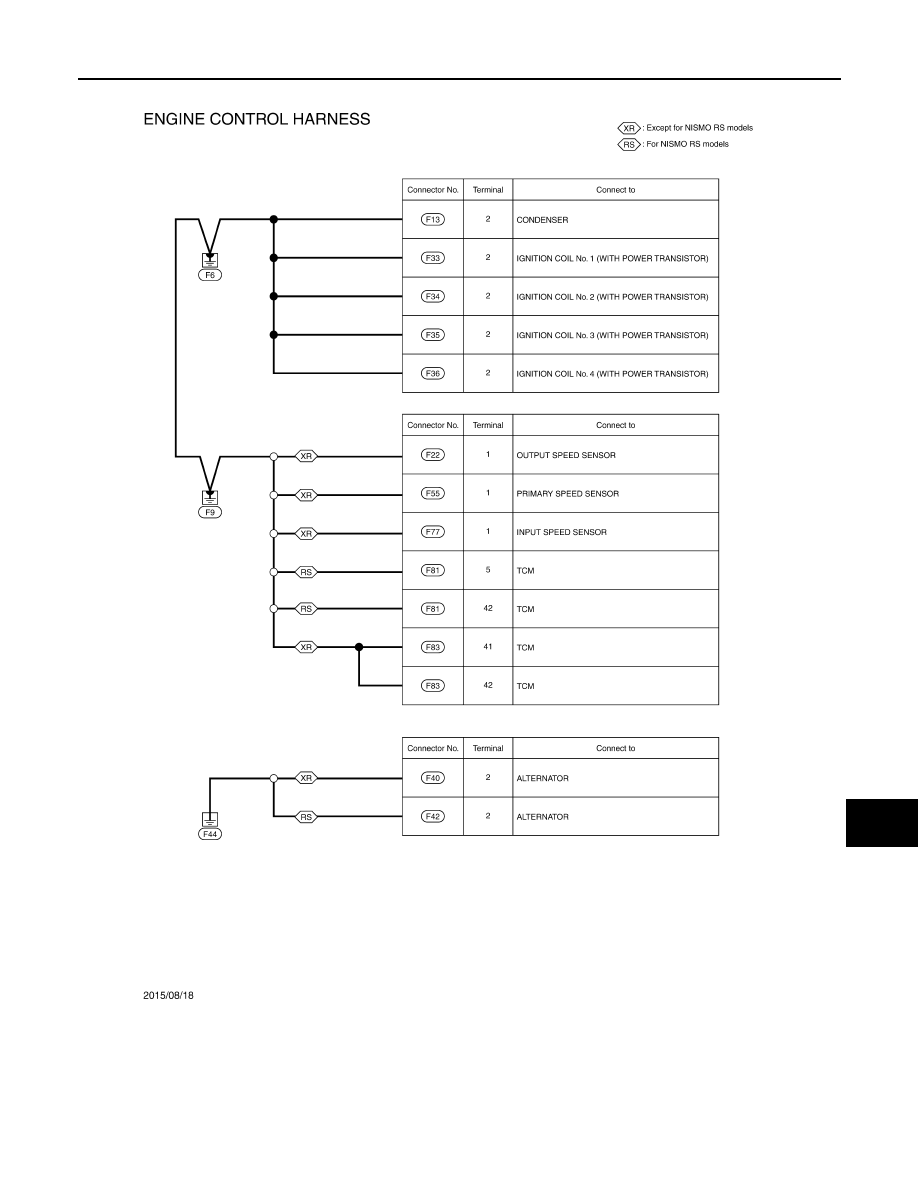

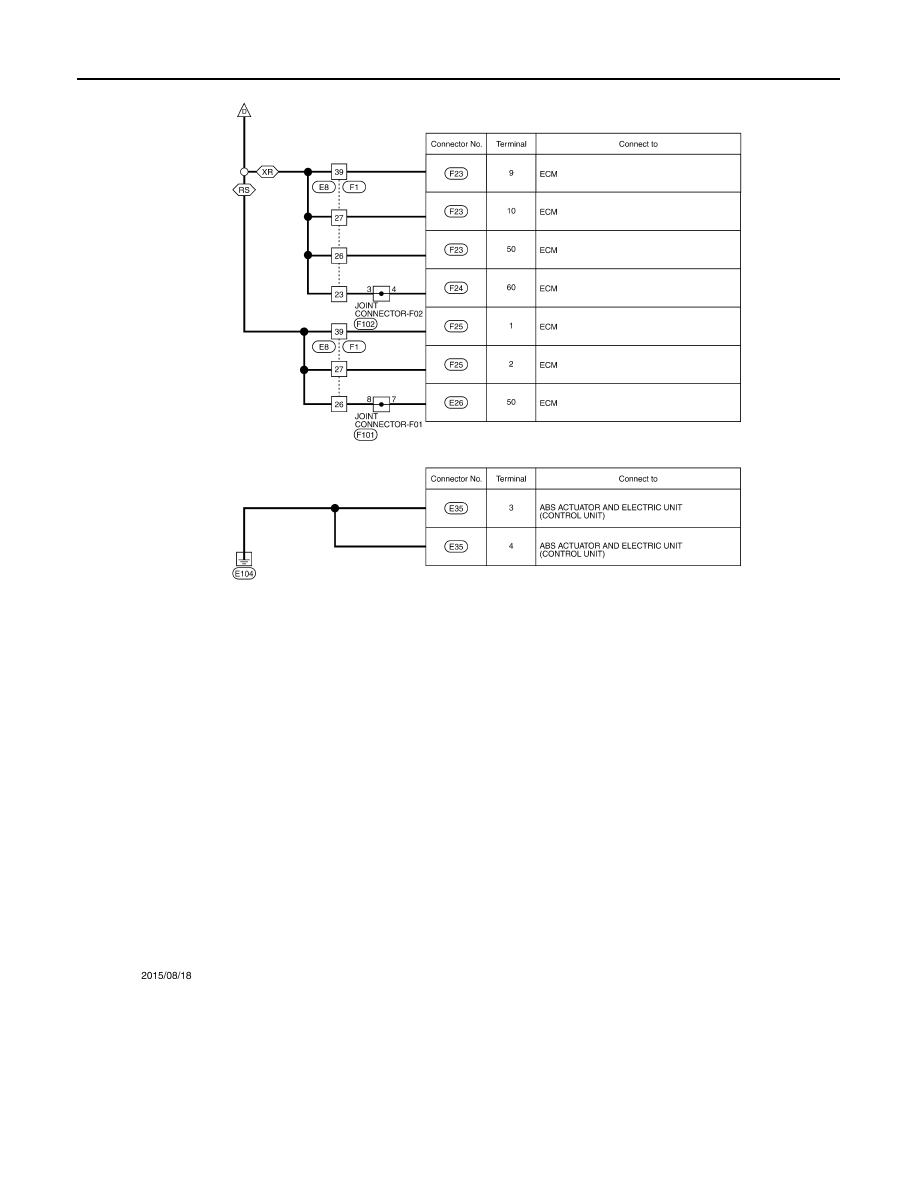

Engine Control Harness

INFOID:0000000012199790

JRMWI5212GB

PG-70

< WIRING DIAGRAM >

GROUND DISTRIBUTION

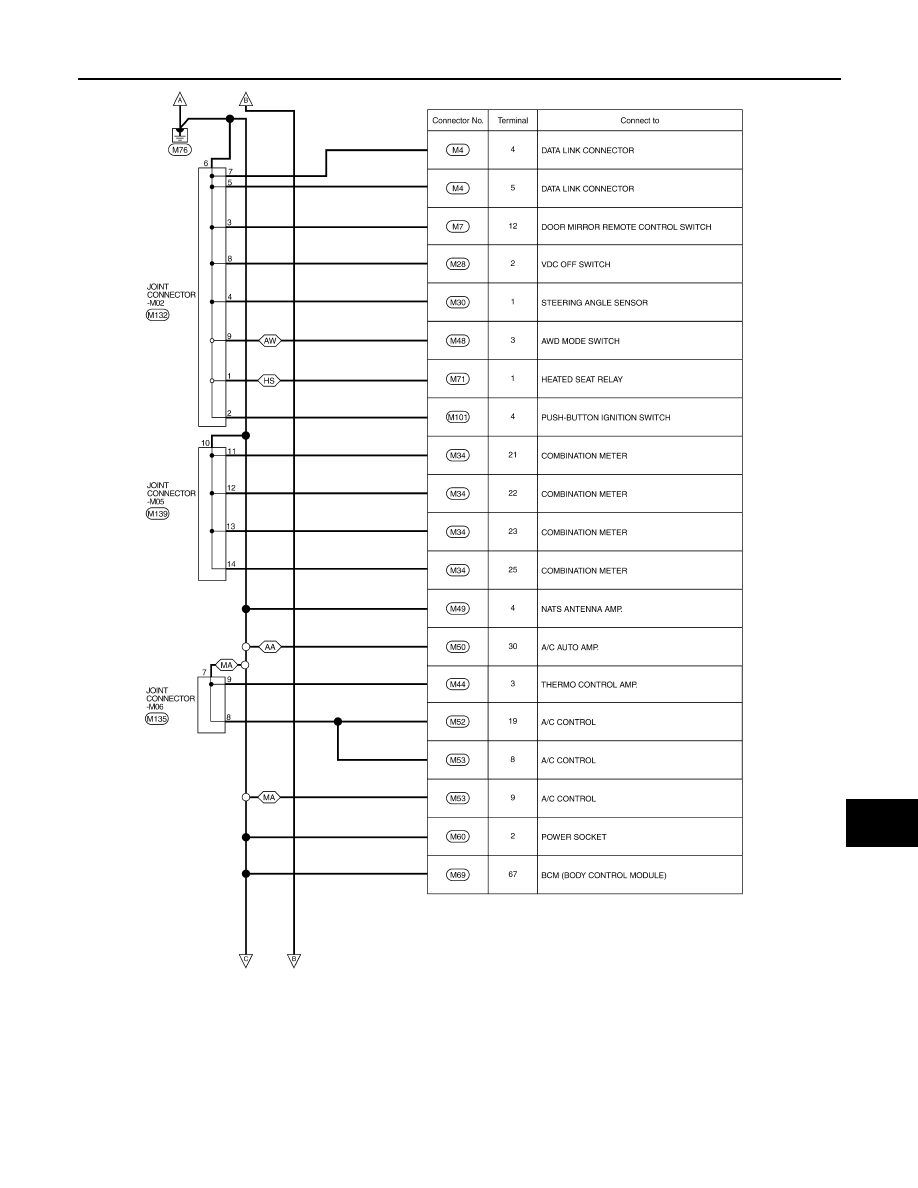

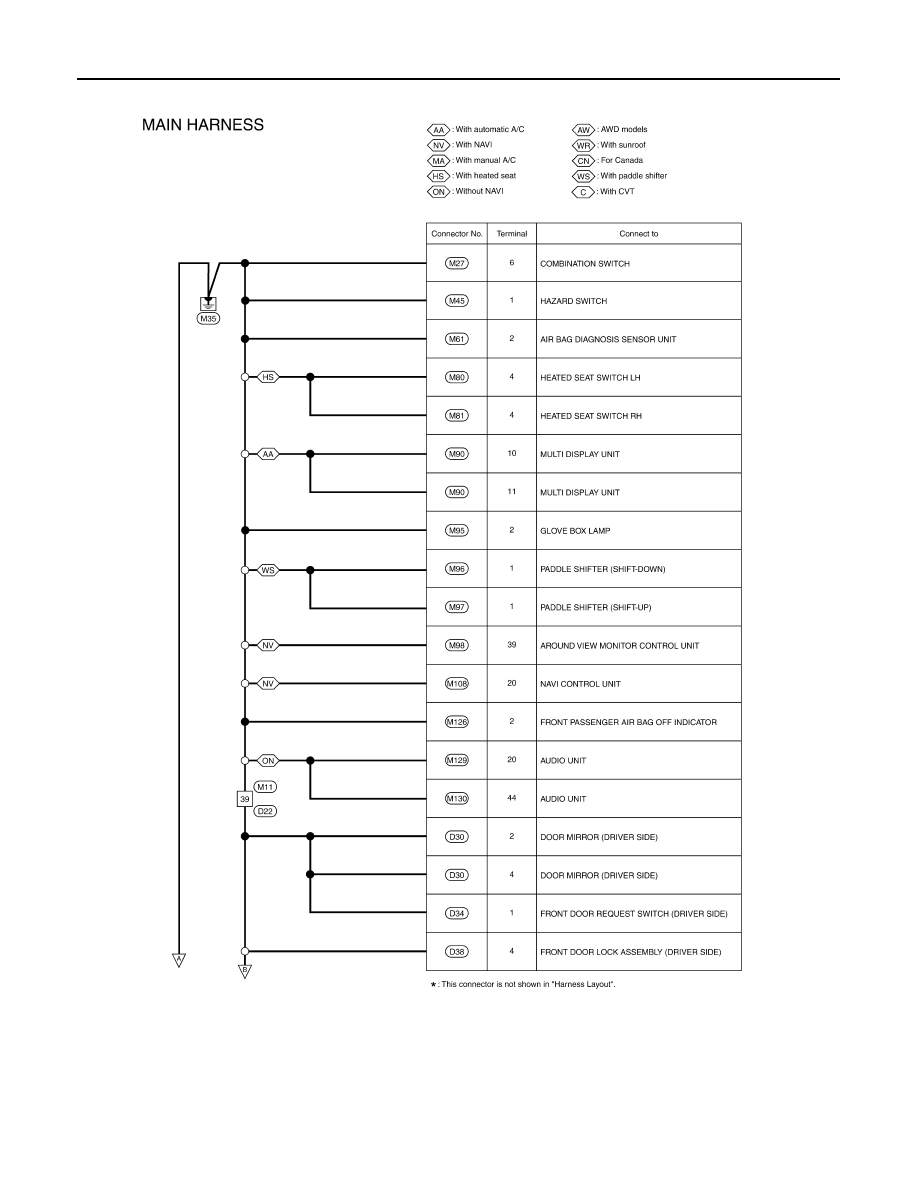

Main Harness

INFOID:0000000012199791

JRMWI5206GB

PG

GROUND DISTRIBUTION

PG-71

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JRMWI5207GB
