Nissan Juke F15. Manual - part 1050

PG-60

< WIRING DIAGRAM >

POWER SUPPLY ROUTING CIRCUIT

JRMWI5199GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-61

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

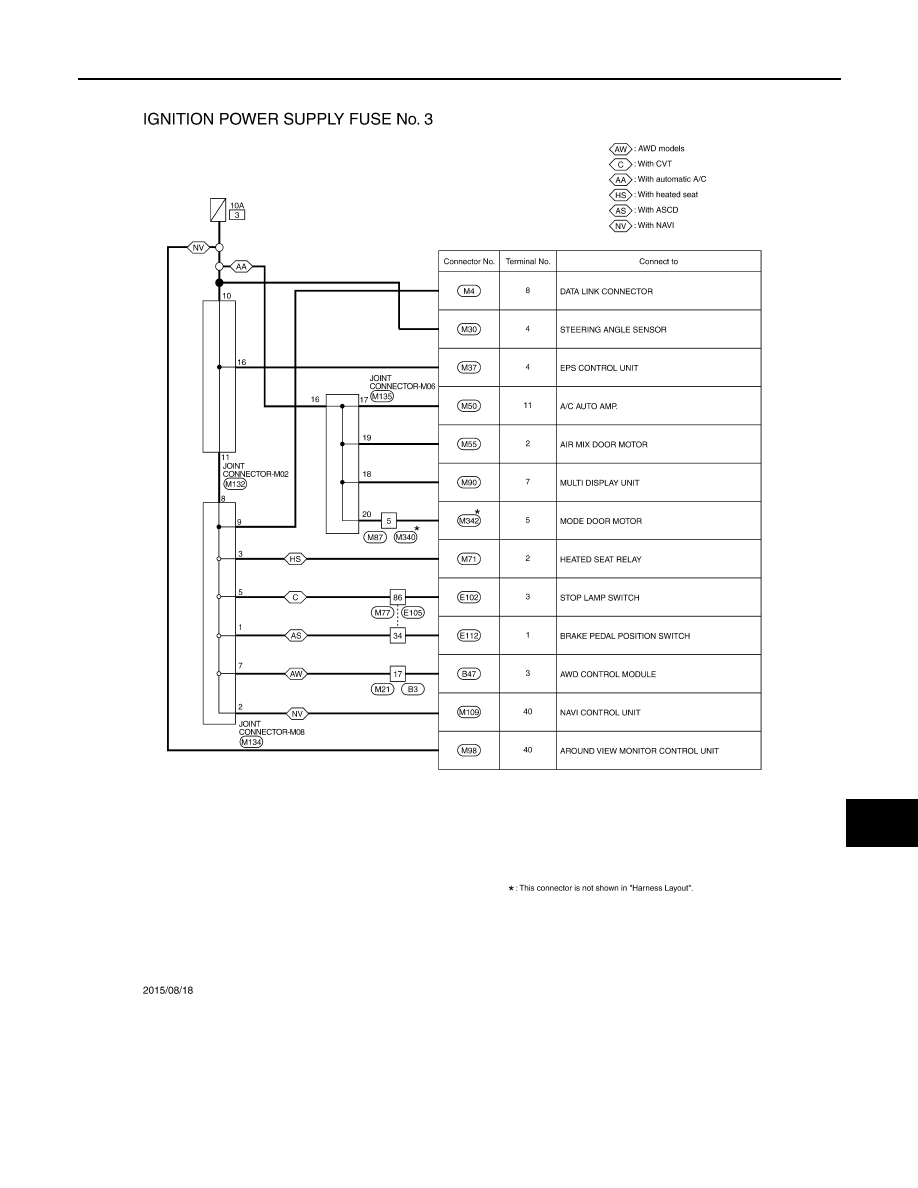

Wiring Diagram - IGNITION POWER SUPPLY FUSE No.3 -

INFOID:0000000012199784

JRMWI5200GB

PG-62

< WIRING DIAGRAM >

POWER SUPPLY ROUTING CIRCUIT

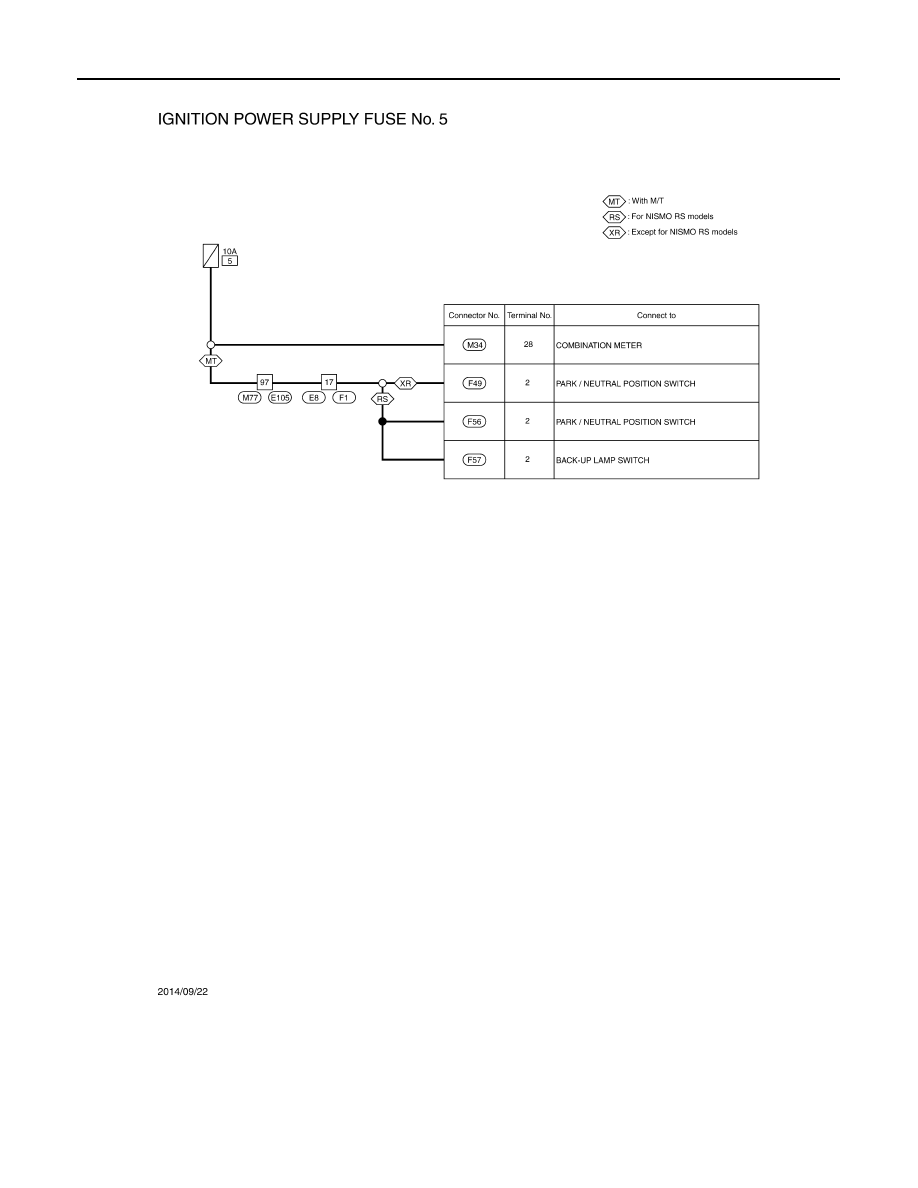

Wiring Diagram - IGNITION POWER SUPPLY FUSE No.5 -

INFOID:0000000012199785

JRMWG7077GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-63

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

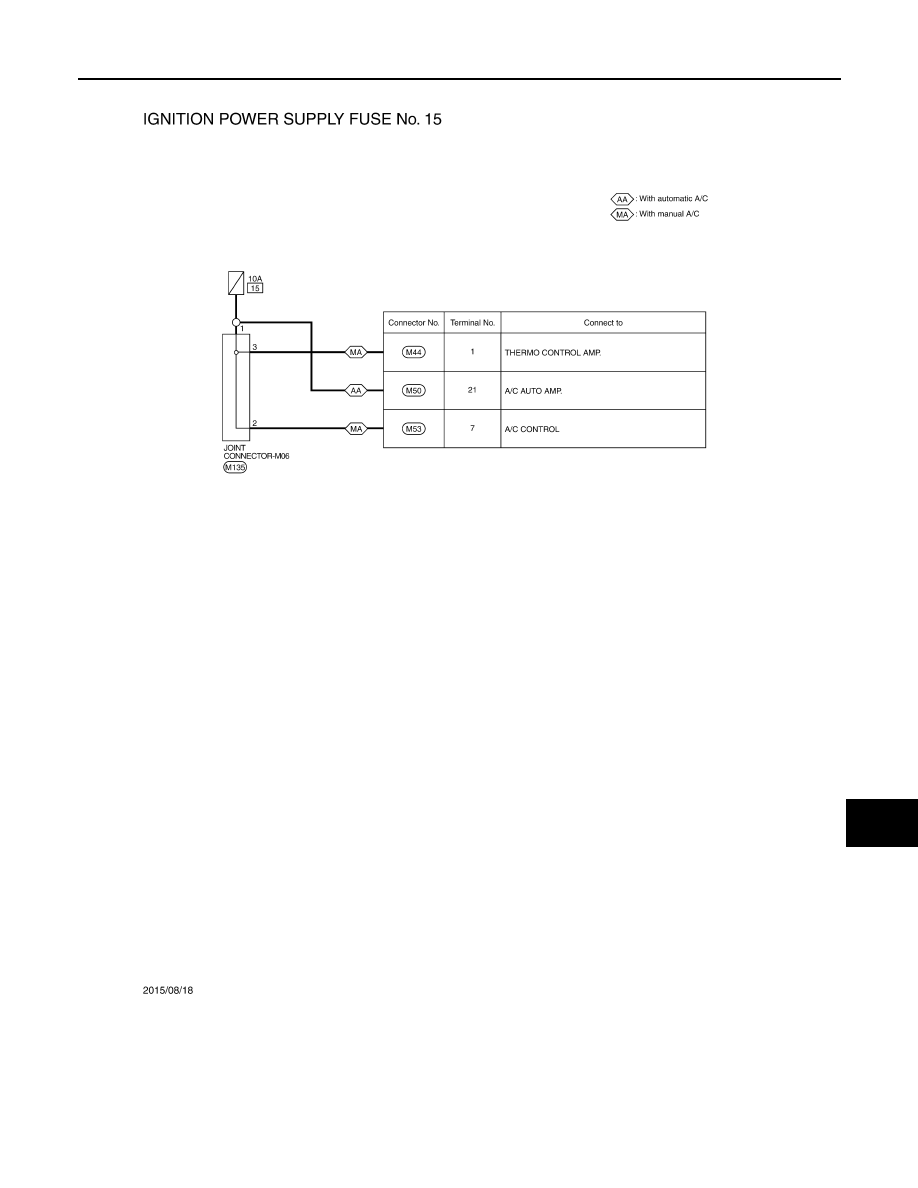

Wiring Diagram - IGNITION POWER SUPPLY FUSE No.15 -

INFOID:0000000012199786

JRMWI5201GB
