< WIRING DIAGRAM >

POWER SUPPLY ROUTING CIRCUIT

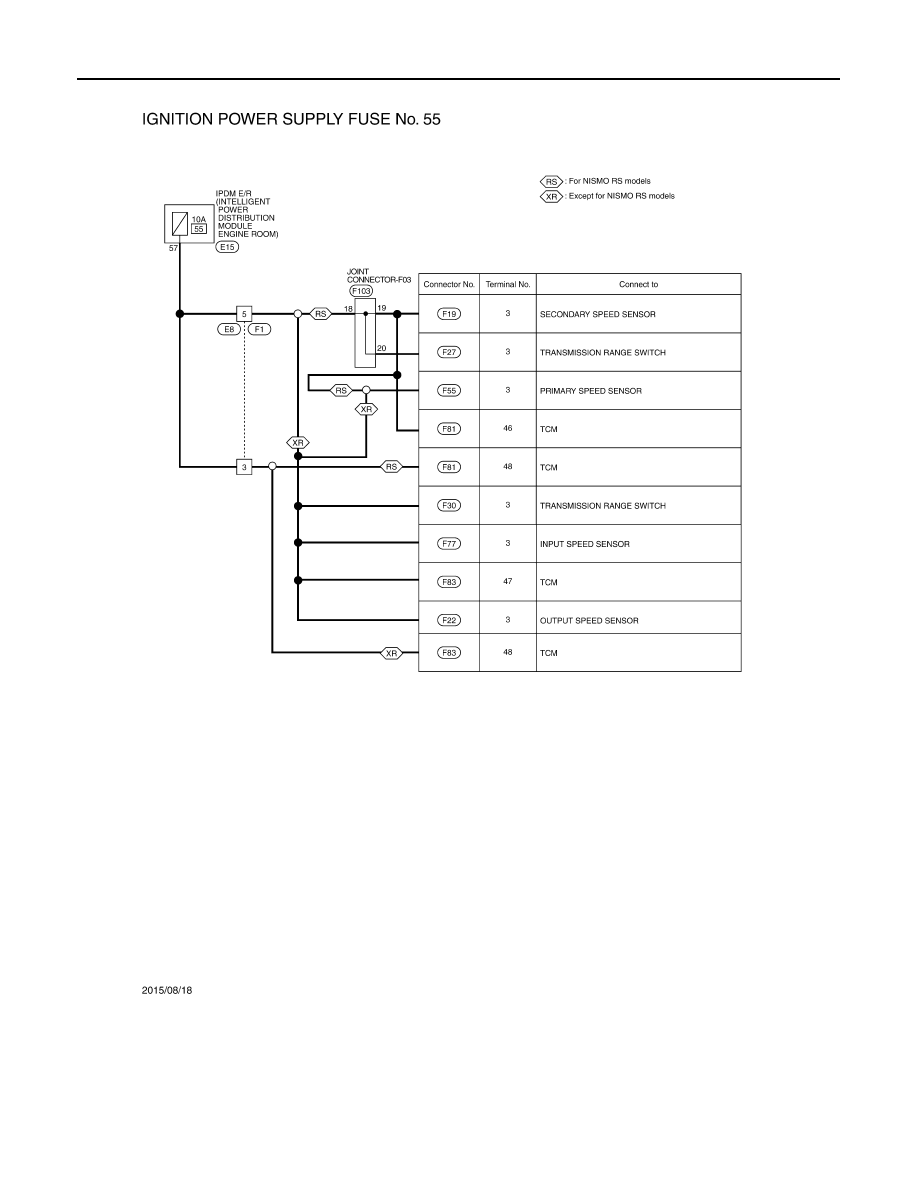

Wiring Diagram - IGNITION POWER SUPPLY FUSE No.55 -

INFOID:0000000012199787

JRMWI5202GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-65

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

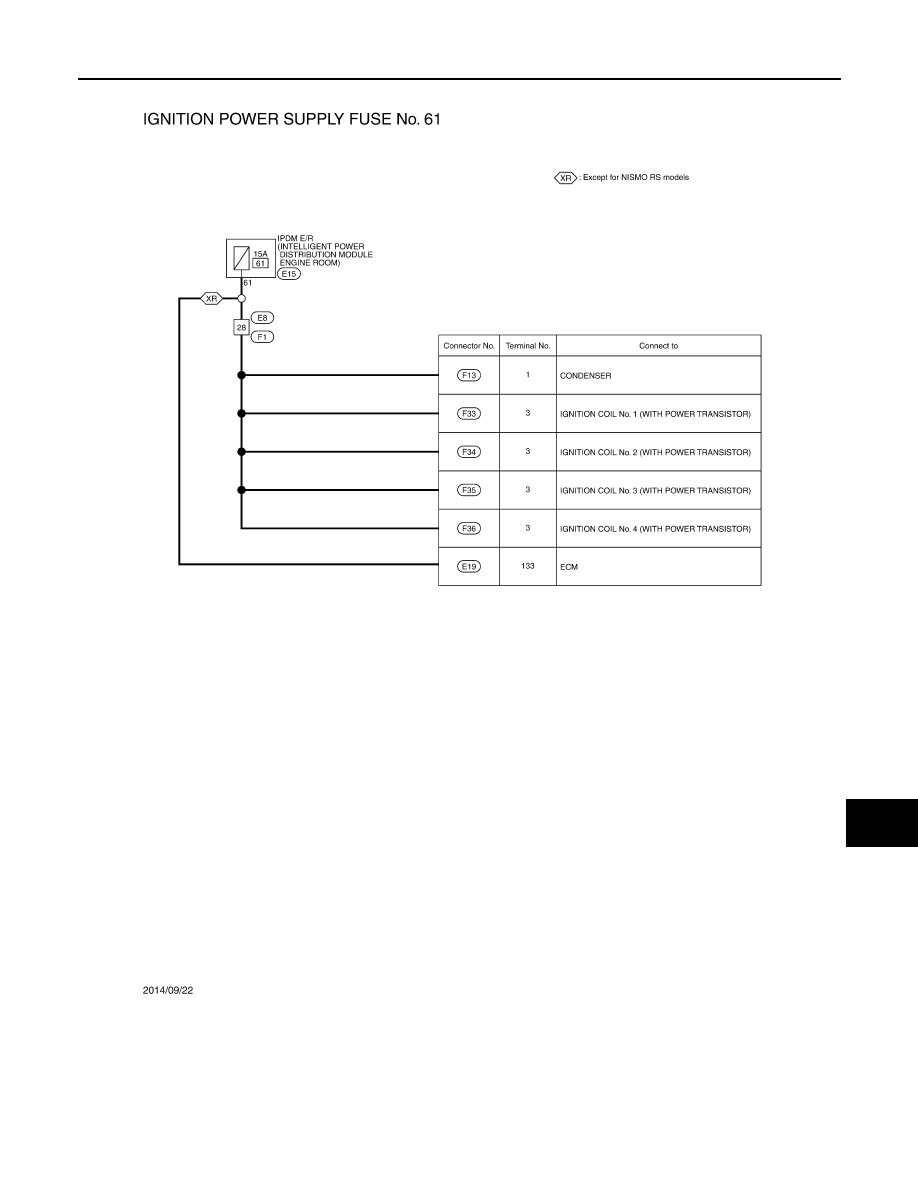

Wiring Diagram - IGNITION POWER SUPPLY FUSE No.61 -

INFOID:0000000012199788

JRMWG7079GB

PG-66

< WIRING DIAGRAM >

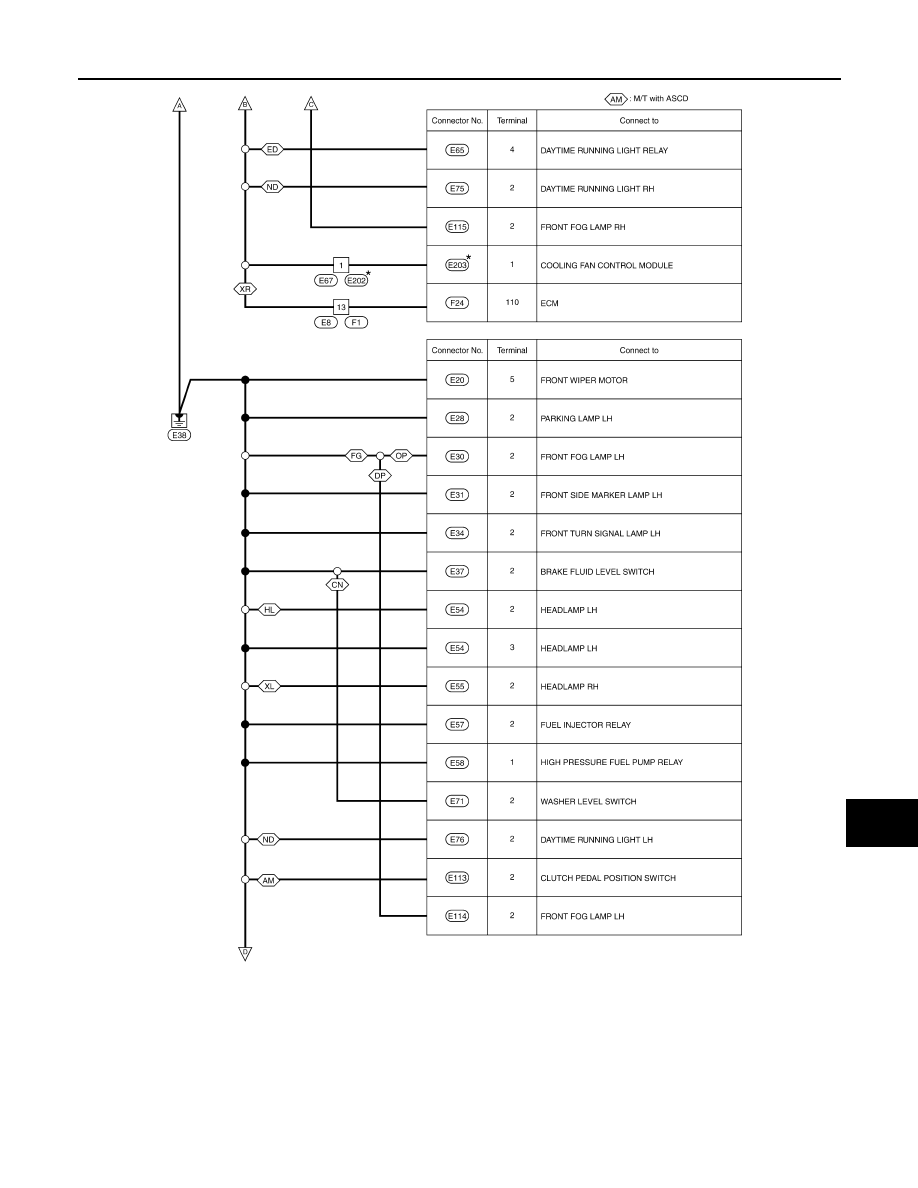

GROUND DISTRIBUTION

GROUND DISTRIBUTION

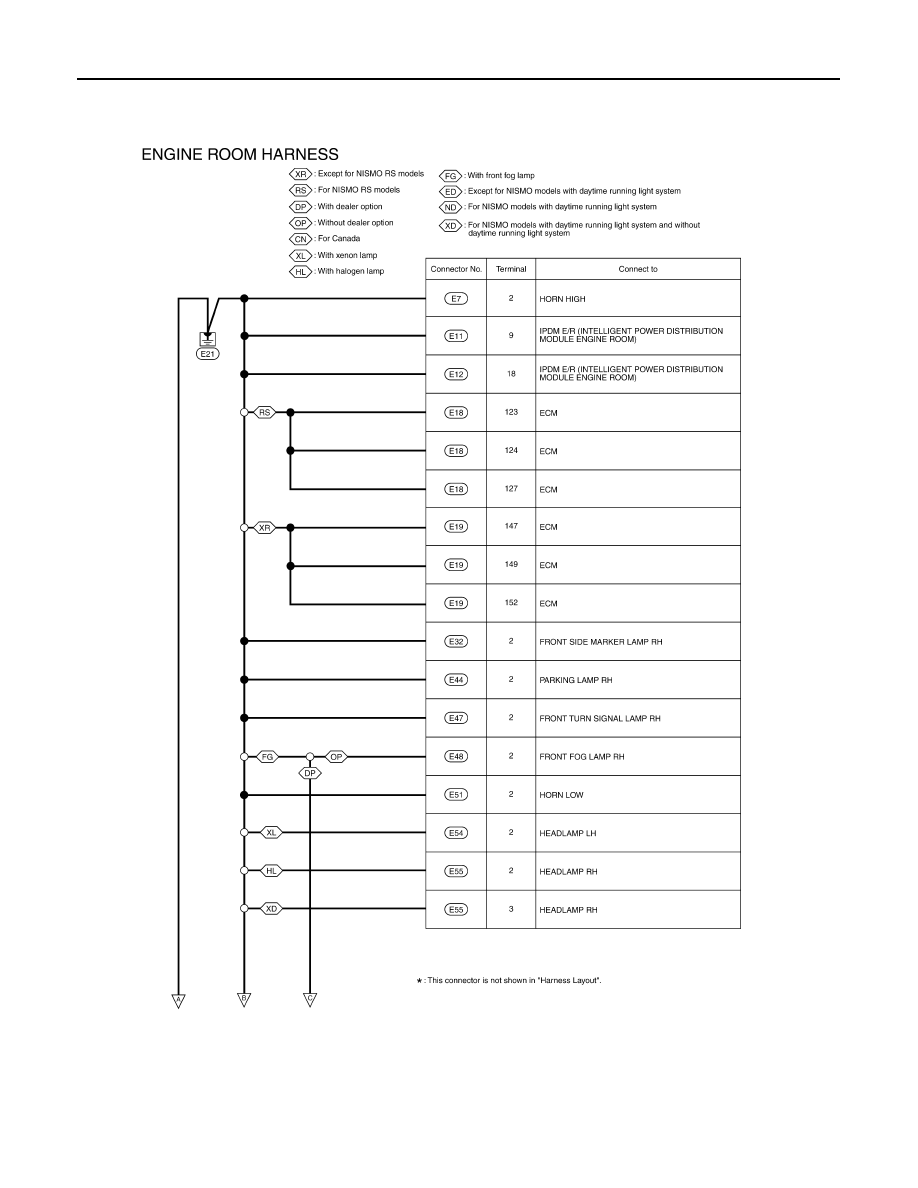

Engine Room Harness

INFOID:0000000012199789

JRMWI5209GB

PG

GROUND DISTRIBUTION

PG-67

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JRMWI5210GB
