PARKING BRAKE SHOE

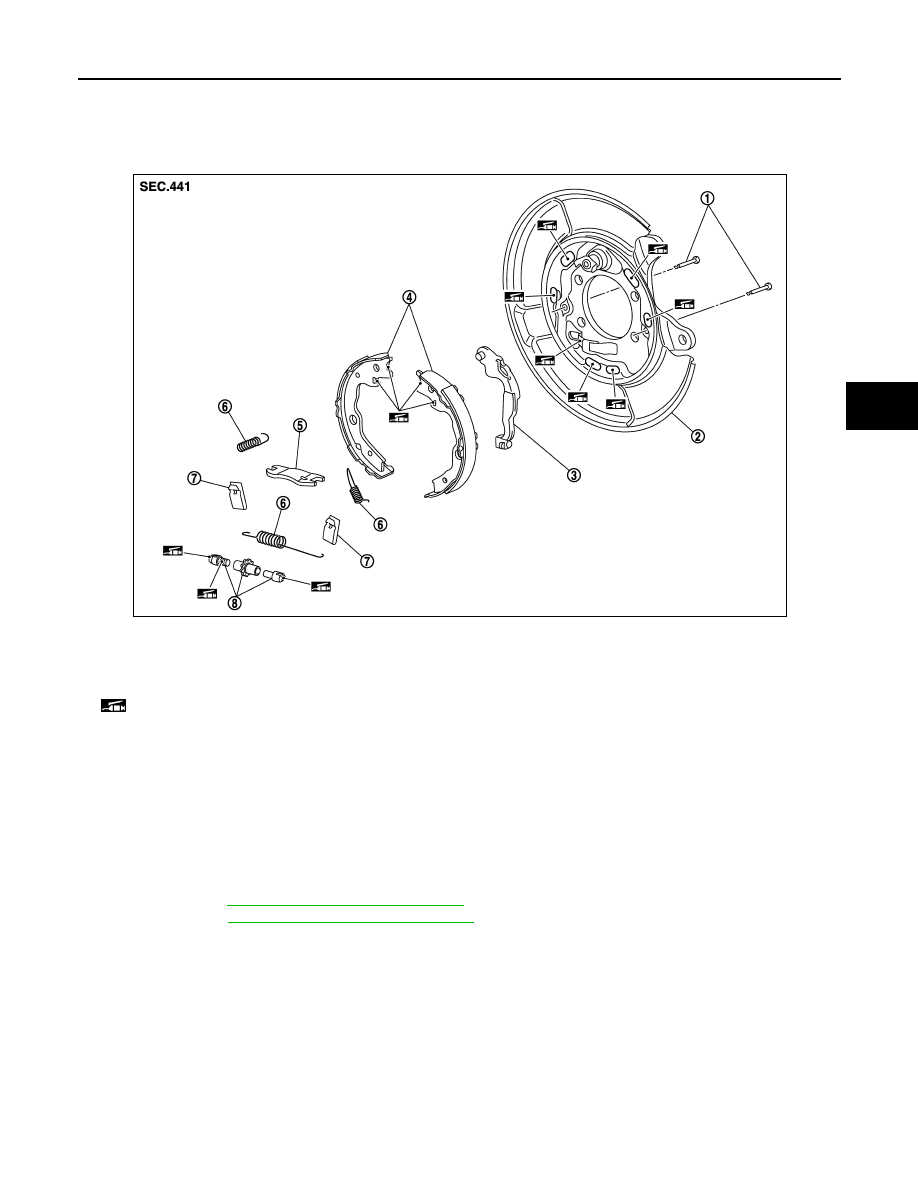

Exploded View

INFOID:0000000012200169

Removal and Installation

INFOID:0000000012200170

REMOVAL

WARNING:

Since dust covering the parking brake has an affect on human body, the dust must be removed with a

dust collector. Never splatter the dust with an air blow gun.
1. Remove rear tires with power tool.
2. Remove disc rotor.

• 2WD: Refer to

RAX-7, "Removal and Installation"

.

• AWD: Refer to

RAX-16, "Removal and Installation"

.

CAUTION:

Parking brake completely in the released position.

1.

Anti-rattle pin

2.

Back plate

3.

Toggle lever

4.

Parking brake shoe

5.

Brake strut

6.

Return spring

7.

Spring

8.

Adjuster

: Apply PBC (Poly Butyl Cuprysil) grease or silicone-based grease.

JPFIB0086ZZ

PB-10

< REMOVAL AND INSTALLATION >

PARKING BRAKE SHOE

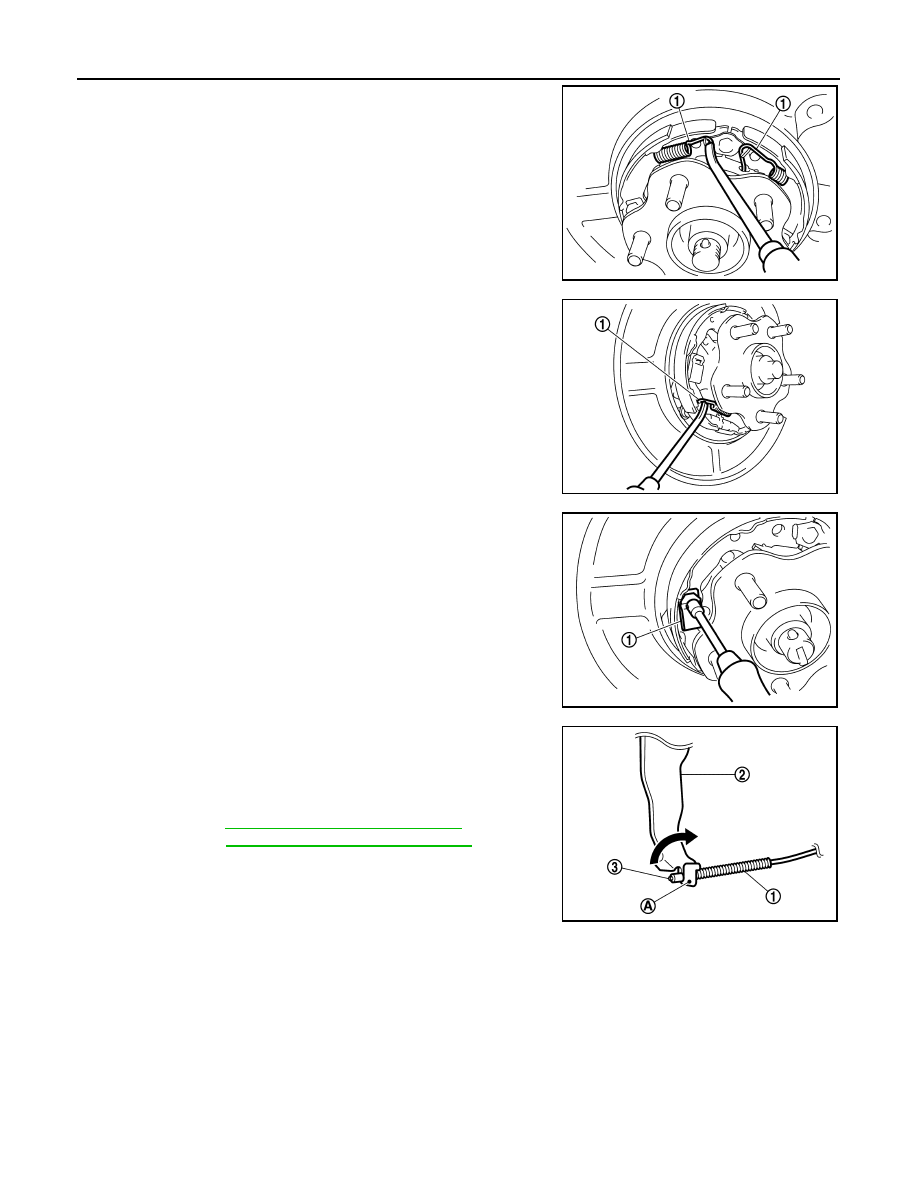

3. Remove return spring (1) of the upper side.

4. Remove return spring (1) of the lower side.

5. Remove spring (1).

CAUTION:

Never drop the removed parts.

6. Remove parking brake shoes, adjuster, brake strut and toggle

lever.

CAUTION:

• The parking brake shoes for the front wheels are made of

different materials from those for the rear wheels. Never

misidentify them when removing.

• Never drop the removed parts.

7. Press the rear cable spring (1) against spring tension to remove

rear cable (3) from the clamp (A) of toggle lever (2).

CAUTION:

Never bend rear cable.

8. For the removal of back plate.

• 2WD: Refer to

RAX-7, "Removal and Installation"

.

• AWD: Refer to

RAX-16, "Removal and Installation"

.

INSTALLATION

Note the following, install in the reverse order of removal.

• Apply PBC (Poly Butyl Cuprysil) grease or silicone-based grease to the back plate and brake shoe.

CAUTION:

The parking brake shoes for the front wheels are made of different materials from those for the rear

wheels. Never misidentify them when removing and replacing.

JSFIA0485ZZ

JSFIA0486ZZ

JSFIA0487ZZ

JSFIA0488ZZ

PARKING BRAKE SHOE

PB-11

< REMOVAL AND INSTALLATION >

C

D

E

G

H

I

J

K

L

M

A

B

PB

N

O

P

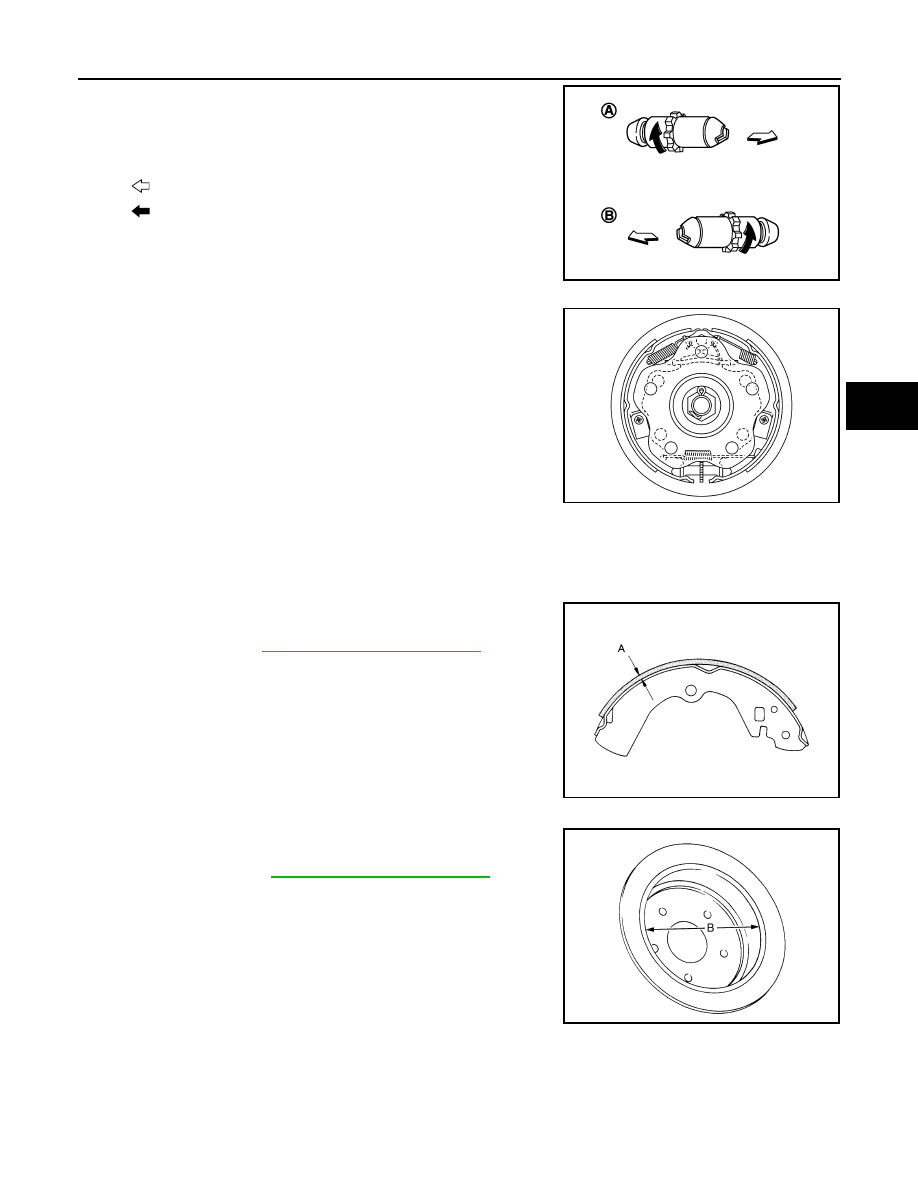

• Assemble adjusters so that threaded part is expanded when rotat-

ing it in the direction shown by arrow.

• Shorten adjuster by rotating it.

• When disassembling apply PBC (Poly Butyl Cuprysil) grease or sil-

icone-based grease to threads.

• Check that the component parts of the parking brake shoe are

properly installed.

• Check brake shoe sliding surface and drum inner surface for

grease. Wipe it off if it adhere on the surfaces.

Inspection and Adjustment

INFOID:0000000012200171

INSPECTION AFTER REMOVAL

Lining Thickness Inspection

• Check thickness (A) of lining.

Drum Inner Diameter Inspection

• Check inner diameter (B) of drum.

Other Inspections

Check the following items, and replace the parts if necessary.

• Lining for excessive wear, damage, and peeling.

• Brake shoe sliding surface for excessive wear and damage.

• Anti-rattle pin for excessive wear, damage and rust.

• Return spring and spring for settling, excessive wear, damage, and rust.

A : For right side brake
B : For left side brake

: Vehicle front

: Adjuster expands

JPFIB0087ZZ

JSFIA0489ZZ

A

: Refer to

PB-13, "Parking Drum Brake"

.

SBR021A

B

: Refer to

PB-13, "Parking Drum Brake"

.

JPFIB0008ZZ

PB-12

< REMOVAL AND INSTALLATION >

PARKING BRAKE SHOE

• Adjuster for smoothness.

• Toggle lever and brake strut for excessive wear, damage and rust.

• Visually check inside of the drum for excessive wear, cracks, and damage with a pair of vernier calipers.

ADJUSTMENT AFTER INSTALLATION

1. Adjust the parking brake lever stroke. Refer to

PB-4, "Inspection and Adjustment"

.

2. Rotate the disc rotor to check that there is no drag. Install the plug. If any drag is found, follow the proce-

dure described below.

a. Adjust parking brake stroke again.
b. Check rear disc brake. Refer to

BR-67, "BRAKE CALIPER ASSEMBLY : Inspection"

.

3. Adjust the parking brake shoe. Refer to

PB-5, "Adjustment"

.
