PARKING BRAKE SHOE

Adjustment

INFOID:0000000012200165

1. Adjust parking brake lever stroke. Refer to

PB-4, "Inspection and Adjustment"

.

2. Perform parking brake break-in (drag on) operation by driving vehicle under the following conditions:

• Drive forward

• Vehicle speed: Approx. 43 km/h (27 MPH) set (constant and forward)

• Parking brake operating force: 125 N (12.8 kg, 28.1 lb) set contact

• Time: Approx. 8 sec.

CAUTION:

To prevent lining from getting too hot, allow a cool off period of approximately 5 minutes after

every break-in operation.

3. After the break-in procedure, check parking brake lever stroke of parking brake.

CAUTION:

If it is out of the specification, adjust again. Refer to

PB-4, "Inspection and Adjustment"

.

PB-6

< REMOVAL AND INSTALLATION >

PARKING BRAKE CONTROL

REMOVAL AND INSTALLATION

PARKING BRAKE CONTROL

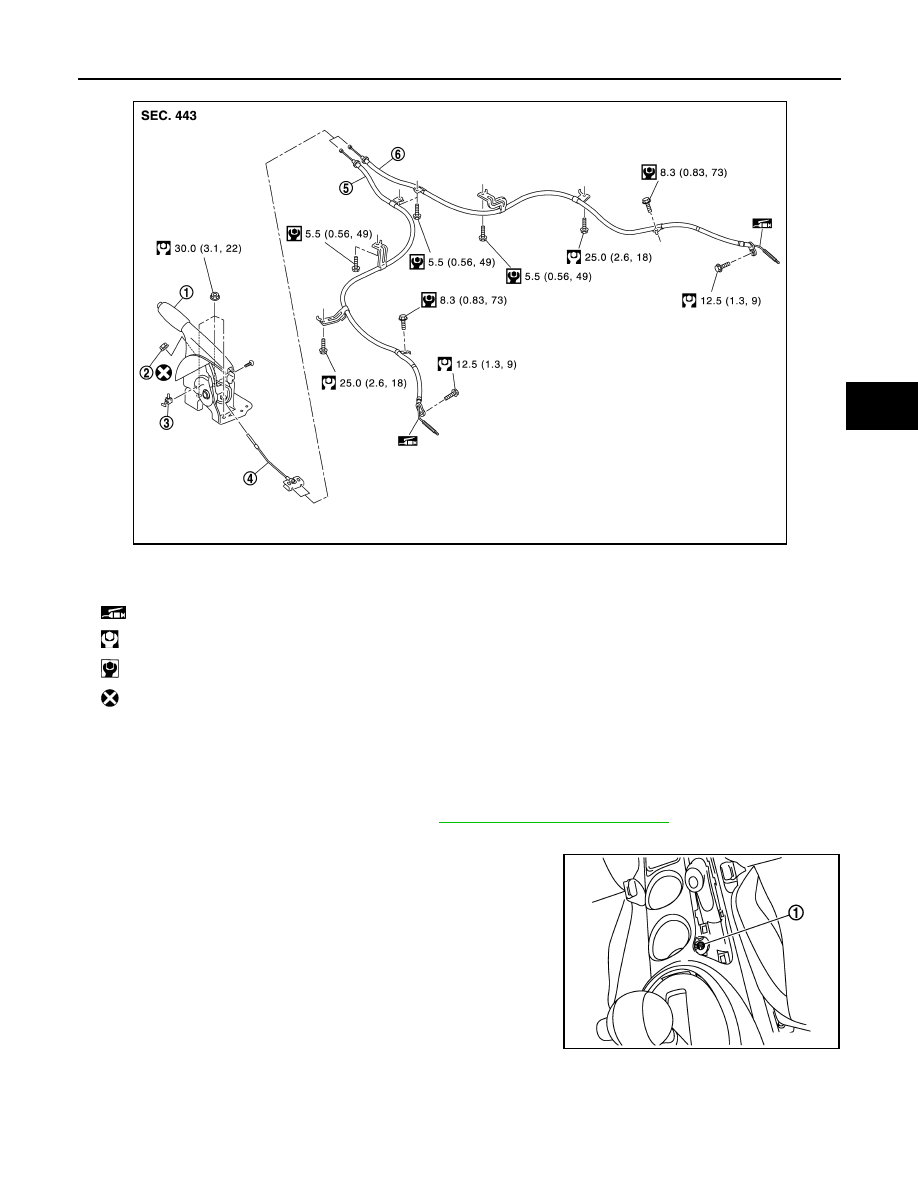

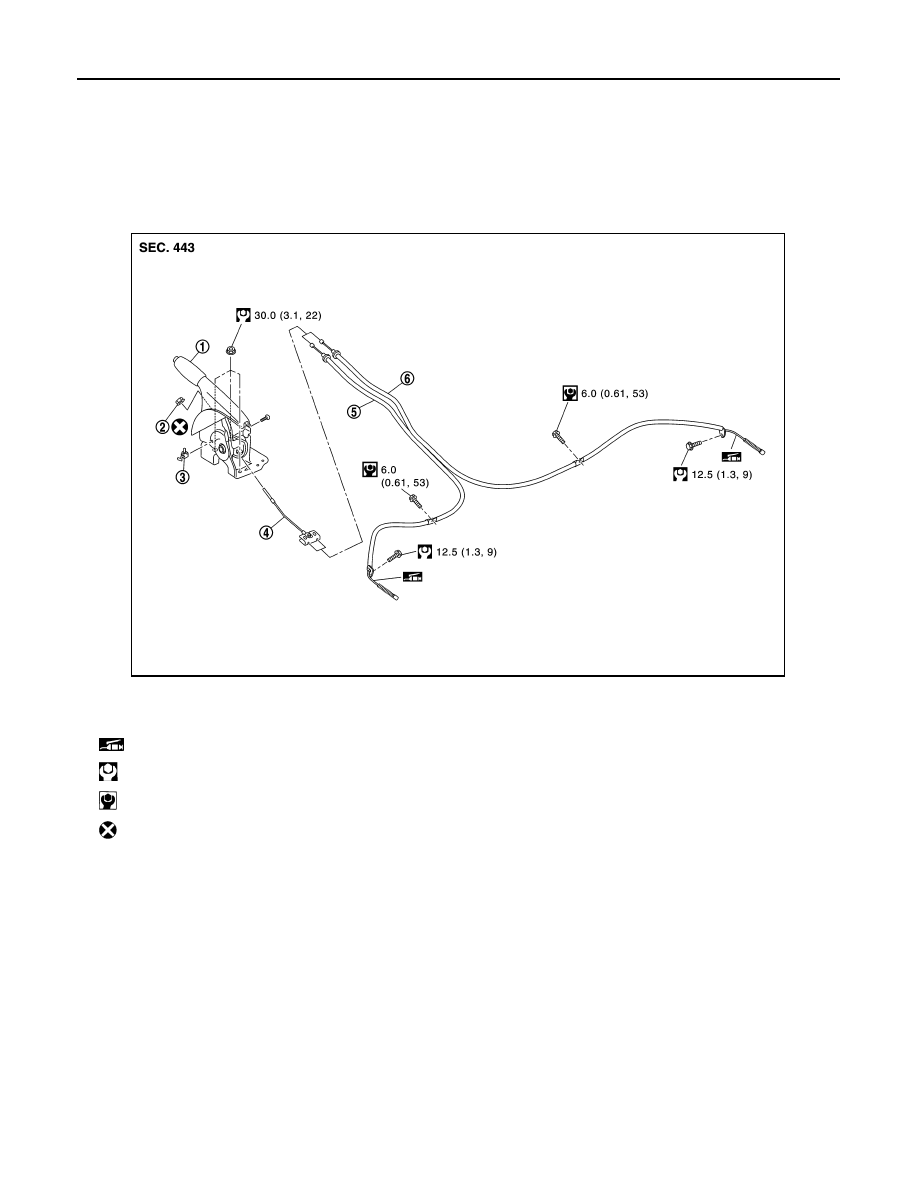

Exploded View

INFOID:0000000012200166

2WD

AWD

1.

Parking brake lever assembly

2.

Adjusting nut

3.

Parking brake switch

4.

Front cable

5.

Rear cable (LH)

6.

Rear cable (RH)

: Apply multi-purpose grease.

: N·m (kg-m, ft-lb)

: N·m (kg-m, in-lb)

: Always replace after every disassembly.

JSFIA0603GB

PARKING BRAKE CONTROL

PB-7

< REMOVAL AND INSTALLATION >

C

D

E

G

H

I

J

K

L

M

A

B

PB

N

O

P

Removal and Installation

INFOID:0000000012200167

REMOVAL

1. Remove rear tires with power tool.
2. Remove the center console assembly. Refer to

IP-24, "Removal and Installation"

.

3. Disconnect the parking brake switch harness connector.
4. Remove adjusting nut (1) and loosen front cable.
5. Remove the parking brake lever assembly.

1.

Parking brake lever assembly

2.

Adjusting nut

3.

Parking brake switch

4.

Front cable

5.

Rear cable (LH)

6.

Rear cable (RH)

: Apply multi-purpose grease.

: N·m (kg-m, ft-lb)

: N·m (kg-m, in-lb)

: Always replace after every disassembly.

JSFIA0466GB

JPFIB0131ZZ

PB-8

< REMOVAL AND INSTALLATION >

PARKING BRAKE CONTROL

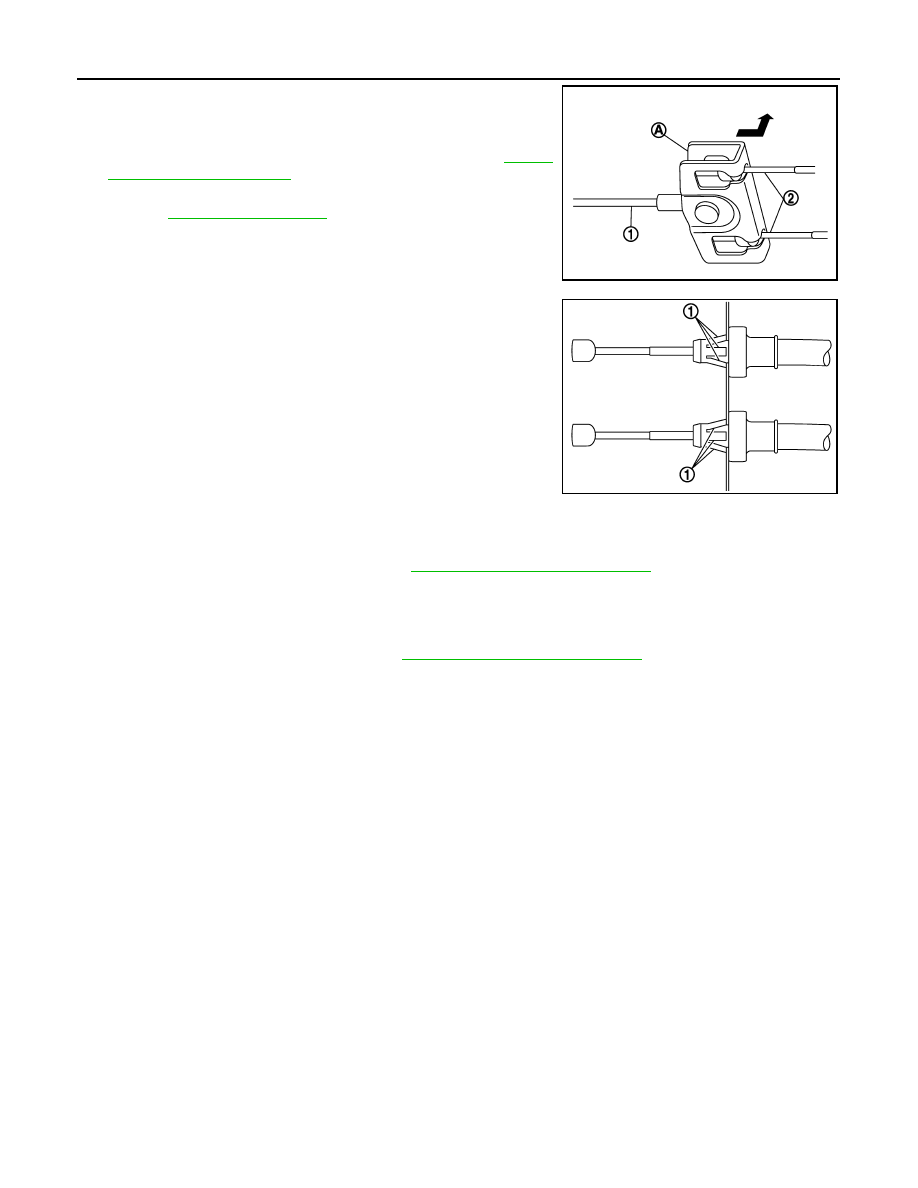

6. Remove rear cable with the following procedure.
a. Pull equalizer (A) of the front cable (1) in a rearward direction.
b. Push the equalizer upward to remove the rear cable (2).
7. Remove center muffler and heat plate. Refer to

EX-10,

"Removal and Installation"

.

8. Remove brake shoe, and remove rear cable from toggle lever.

Refer to

PB-9, "Exploded View"

.

9. Remove rear cable mounting bolts, pull out rear cable from vehi-

cle.

10. Press the pawl (1) to remove the rear cable from the vehicle.

INSTALLATION

Note the following, install in the reverse order of the removal.

• Never reuse adjusting nut.

• Perform adjustment after installation. Refer to

PB-4, "Inspection and Adjustment"

.

Adjustment

INFOID:0000000012200168

ADJUSTMENT AFTER INSTALLATION

Adjust the parking brake lever stroke. Refer to

PB-4, "Inspection and Adjustment"

.

JPFIB0129ZZ

JPFIB0130ZZ
