AV-194

< REMOVAL AND INSTALLATION >

[AUDIO WITH NAVIGATION]

STEERING ANGLE SENSOR

STEERING ANGLE SENSOR

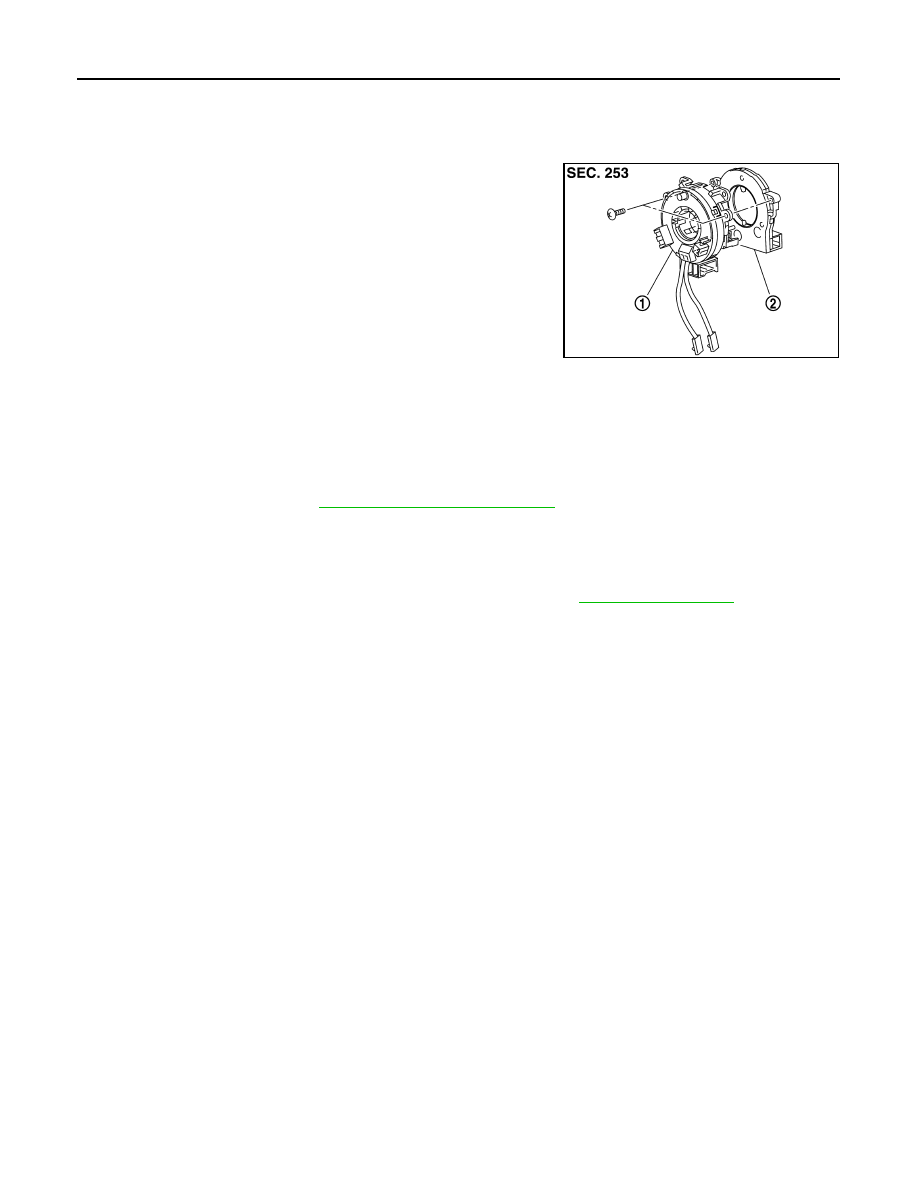

Exploded View

INFOID:0000000012202604

DISASSEMBLY

Removal and Installation

INFOID:0000000012202605

REMOVAL

1. Remove spiral cable. Refer to

SR-15, "Removal and Installation"

.

2. Remove steering angle sensor from spiral cable.

INSTALLATION

1. Install in the reverse order of removal.
2. Perform steering angle sensor neutral position adjustment. Refer to

BRC-63, "Description"

.

JSNIA0135ZZ

1.

Spiral cable

2.

Steering angle sensor

AV

STEERING SWITCH

AV-195

< REMOVAL AND INSTALLATION >

[AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

STEERING SWITCH

Exploded View

INFOID:0000000012202606

Refer to

SR-12, "Exploded View"

.

Removal and Installation

INFOID:0000000012202607

REMOVAL

Refer to

ST-9, "Removal and Installation"

.

INSTALLATION

Install in the reverse order of removal.

AV-196

< REMOVAL AND INSTALLATION >

[AUDIO WITH NAVIGATION]

USB CONNECTOR AND AUX JACK

USB CONNECTOR AND AUX JACK

Removal and Installation

INFOID:0000000012202608

REMOVAL

1. Remove cluster tray. Refer to

IP-13, "Removal and Installation"

.

2. Push the pawl from the back of cluster tray to remove USB connector and AUX jack.

INSTALLATION

Install in the reverse order of removal.

AV

ANTENNA FEEDER

AV-197

< REMOVAL AND INSTALLATION >

[AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

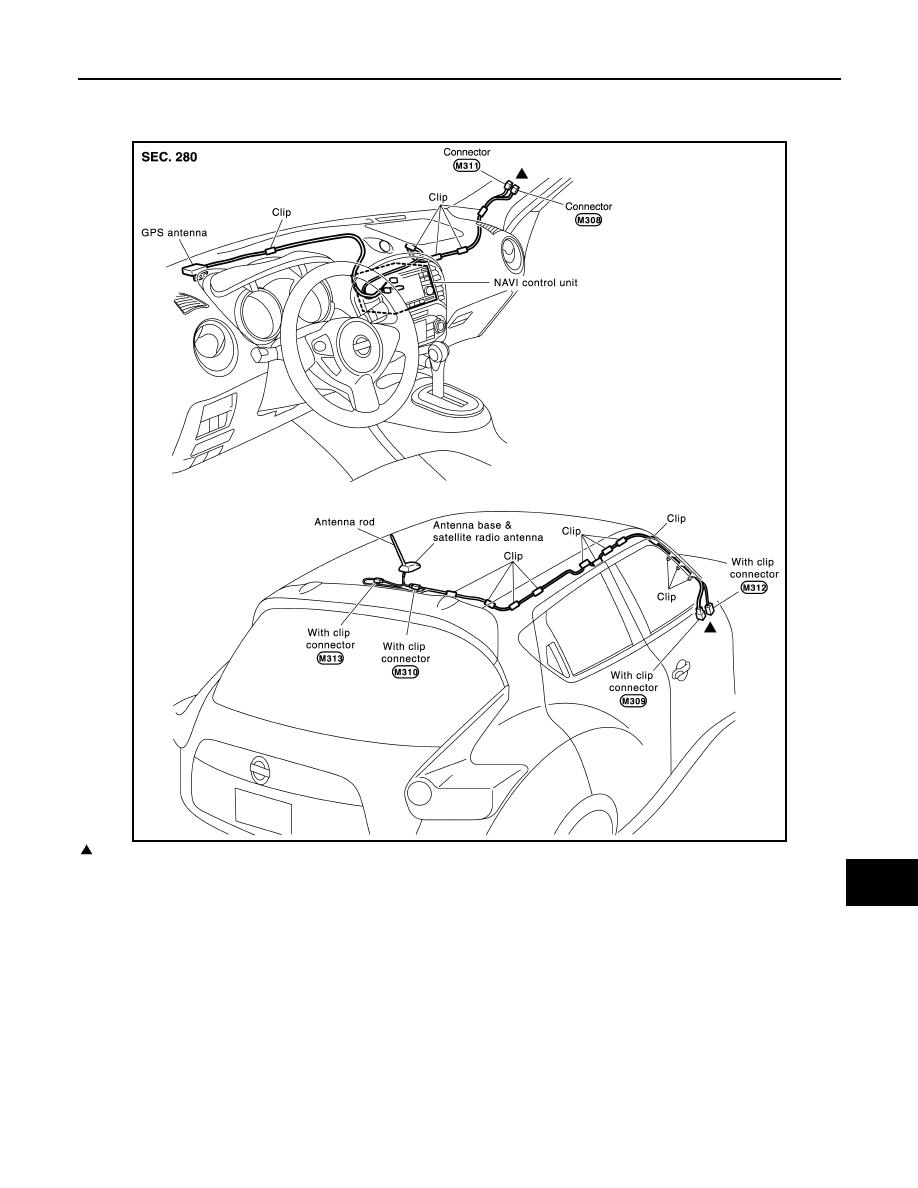

ANTENNA FEEDER

Feeder Layout

INFOID:0000000012202609

: Indicates that the part is connected at points with same symbol in actual vehicle.

JSNIA3605GB
