AV-186

< REMOVAL AND INSTALLATION >

[AUDIO WITH NAVIGATION]

WOOFER

WOOFER

Removal and Installation

INFOID:0000000012202595

REMOVAL

1. Remove luggage side lower finisher LH. Refer to

INT-35, "LUGGAGE SIDE LOWER FINISHER :

Removal and Installation"

.

2. Disconnect woofer connector.
3. Remove woofer screws to remove woofer.

INSTALLATION

Install in the reverse order of removal.

AV

ANTENNA BASE

AV-187

< REMOVAL AND INSTALLATION >

[AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

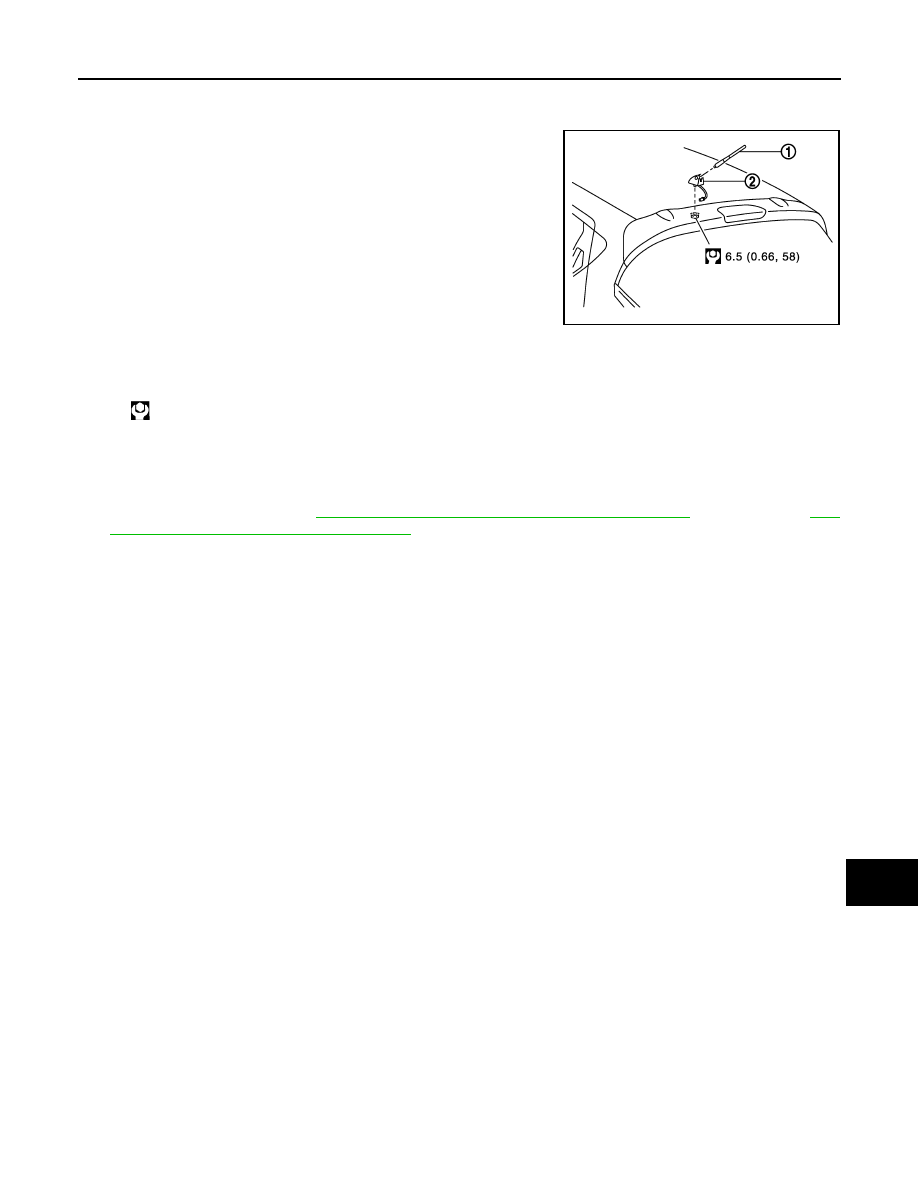

ANTENNA BASE

Exploded View

INFOID:0000000012202596

Removal and Installation

INFOID:0000000012202597

REMOVAL

1. Remove headlining. Refer to

INT-27, "NORMAL ROOF : Removal and Installation"

 (normal roof) or

INT-

30, "SUNROOF : Removal and Installation"

 (sunroof).

2. Disconnect antenna feeder connector.
3. Remove nut to remove antenna base.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

If the antenna base mounting nut is tightened looser than the specified torque, then this will lower the

sensitivity of the antenna. On the other hand, if the nut is tightened tighter than the specified torque,

then this will deform the roof panel.

JSNIA3161GB

1.

Antenna rod

2.

Antenna base

:

N·m (kg-m, in-fb)

AV-188

< REMOVAL AND INSTALLATION >

[AUDIO WITH NAVIGATION]

GPS ANTENNA

GPS ANTENNA

Removal and Installation

INFOID:0000000012202598

REMOVAL

1. Remove instrument panel. Refer to

IP-13, "Removal and Installation"

.

2. Remove antenna feeder clip, then remove GPS antenna screw and remove GPS antenna.

INSTALLATION

Install in the reverse order of removal.

AV

MICROPHONE

AV-189

< REMOVAL AND INSTALLATION >

[AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

MICROPHONE

Removal and Installation

INFOID:0000000012202599

REMOVAL

1. Remove headlining. Refer to

INT-27, "NORMAL ROOF : Removal and Installation"

 (normal roof) or

INT-

30, "SUNROOF : Removal and Installation"

 (sunroof).

2. Remove microphone connector and pawl to remove microphone.

INSTALLATION

Install in the reverse order of removal.
