AROUND VIEW MONITOR CONTROL UNIT

AROUND VIEW MONITOR CONTROL UNIT

Removal and Installation

INFOID:0000000012202600

REMOVAL

CAUTION:

Before replacing around view monitor control unit, perform “Read/Write Configuration” to save or

print current vehicle specification. For details, refer to

AV-113, "ADDITIONAL SERVICE WHEN

REPLACING AROUND VIEW MONITOR CONTROL UNIT : Description"

.

1. Remove globe box assembly. Refer to

IP-13, "Removal and Installation"

.

2. Remove harness clip mounted to the bracket.

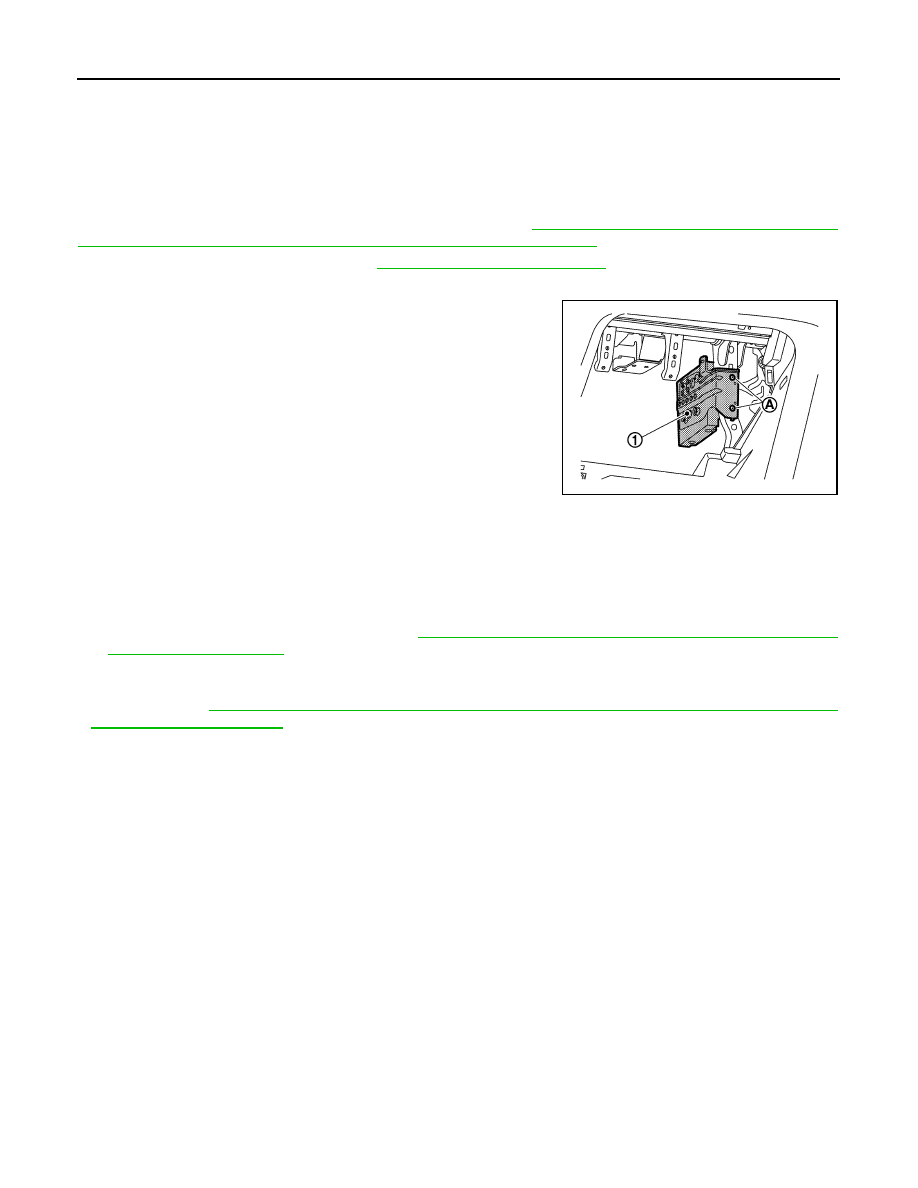

3. Remove the mounting screws (A) and pull the around view mon-

itor control unit (1) together with the bracket.

4. Disconnect connectors to remove around view monitor control unit and bracket from the vehicle as a sin-

gle unit.

5. Remove bracket screws to remove around view monitor control unit.

INSTALLATION

1. Install in the reverse order of removal.
2. Perform camera image calibration. Refer to

AV-116, "CALIBRATING CAMERA IMAGE (AROUND VIEW

MONITOR) : Description"

.

CAUTION:

• Be sure to perform “Read/Write Configuration” when replacing around view monitor control unit. For

details, refer to

AV-113, "ADDITIONAL SERVICE WHEN REPLACING AROUND VIEW MONITOR CON-

TROL UNIT : Description"

.

• Perform the calibration and perform the writing to the around view monitor control unit when remov-

ing and replacing each camera, removing the camera mounting parts (front grille, door mirror, etc.)

and replacing the around view monitor control unit.

JSNIA8056ZZ

AV

FRONT CAMERA

AV-191

< REMOVAL AND INSTALLATION >

[AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

FRONT CAMERA

Removal and Installation

INFOID:0000000012202601

REMOVAL

1. Remove front grille. Refer to

EXT-26, "Removal and Installation"

.

2. Remove front camera mounting screws to remove front camera from front grille.

INSTALLATION

1. Install in the reverse order of removal.
2. Perform camera image calibration. Refer to

AV-116, "CALIBRATING CAMERA IMAGE (AROUND VIEW

MONITOR) : Description"

.

CAUTION:

Perform the calibration and perform the writing to the around view monitor control unit when remov-

ing and replacing each camera, removing the camera mounting parts (front grille, door mirror, etc.)

and replacing the around view monitor control unit.

AV-192

< REMOVAL AND INSTALLATION >

[AUDIO WITH NAVIGATION]

REAR CAMERA

REAR CAMERA

Removal and Installation

INFOID:0000000012202602

REMOVAL

1. Remove back door lower finisher. Refer to

INT-39, "BACK DOOR LOWER FINISHER : Removal and

Installation"

.

2. Remove connector to remove rear view camera.

INSTALLATION

1. Install in the reverse order of removal.

2. Perform camera image calibration. Refer to

AV-116, "CALIBRATING CAMERA IMAGE (AROUND VIEW

MONITOR) : Description"

.

CAUTION:

Perform the calibration and perform the writing to the around view monitor control unit when remov-

ing and replacing each camera, removing the camera mounting parts (front grille, door mirror, etc.)

and replacing the around view monitor control unit.

AV

SIDE CAMERA

AV-193

< REMOVAL AND INSTALLATION >

[AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SIDE CAMERA

Removal and Installation

INFOID:0000000012202603

REMOVAL

1. Remove door mirror under cover from door mirror. Refer to

MIR-18, "DOOR MIRROR ASSEMBLY : Dis-

assembly and Assembly"

.

2. Remove screws to remove side camera from door mirror under cover.

INSTALLATION

1. Install in the reverse order of removal.
2. Perform camera image calibration. Refer to

AV-116, "CALIBRATING CAMERA IMAGE (AROUND VIEW

MONITOR) : Description"

.

CAUTION:

Perform the calibration and perform the writing to the around view monitor control unit when remov-

ing and replacing each camera, removing the camera mounting parts (front grille, door mirror, etc.)

and replacing the around view monitor control unit.
