IP-18

< SERVICE INFORMATION >

INSTRUMENT PANEL ASSEMBLY

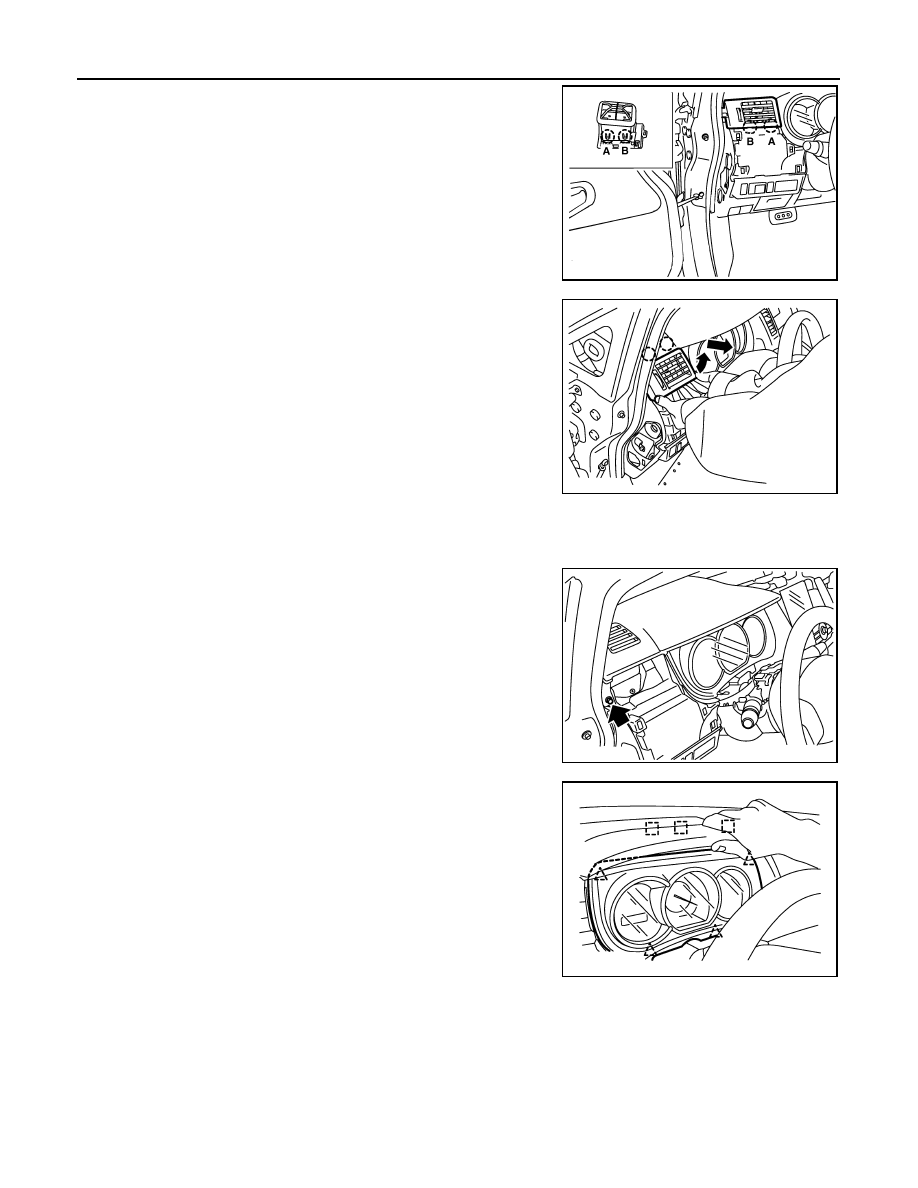

8.

Insert suitable tool into the bottom gap of side ventilator assem-
bly after removing the instrument side mask, push against A and
B as shown to disengage the pawls.

9.

Lift the side ventilator up from the bottom, pull backward while
disengaging the side ventilator assembly's upper pawls, and
then remove the side ventilator.

10. Remove screws, and disengage pawls.

11. Remove steering column cover upper.

12. Remove screws from instrument upper panel right side.

13. Lift the instrument upper panel up, disengage metal clips.
14. Pull backward and disengage clips.

15. Remove cluster lid A.

Installation

Installation is in the reverse order of removal.

CLUSTER LID C

Removal

WIIA1226E

PIIB3976E

PIIB3969E

PIIB2880E

INSTRUMENT PANEL ASSEMBLY

IP-19

< SERVICE INFORMATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

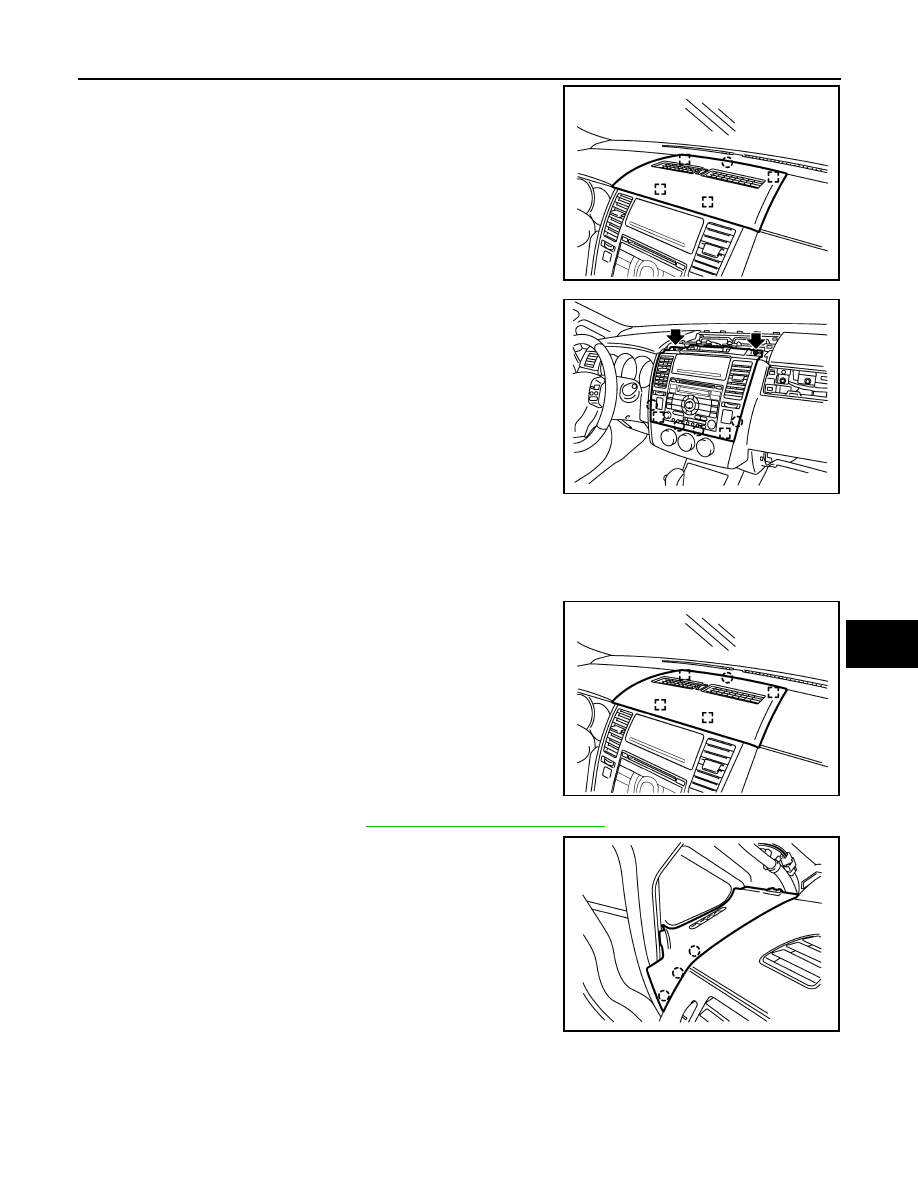

1.

Pull instrument finisher E backward by approximately 30
degrees while disengaging the metal clips and pawl.

2.

Remove screws.

3.

Pull back, and disengage pawls and metal clips.

4.

Disconnect harness connector, and then remove cluster lid C.

Installation

Installation is in the reverse order of removal.

COMBINATION METER

Removal

1.

Pull instrument finisher E backward by approximately 30
degrees while disengaging the metal clips and pawl.

2.

Remove front pillar garnish. Refer to

INT-20, "Removal and Installation"

.

3.

Pull up instrument side panel and disengage pawls.

4.

Remove instrument side panel.

WIIA1224E

WIIA1225E

WIIA1224E

PIIB2439J

IP-20

< SERVICE INFORMATION >

INSTRUMENT PANEL ASSEMBLY

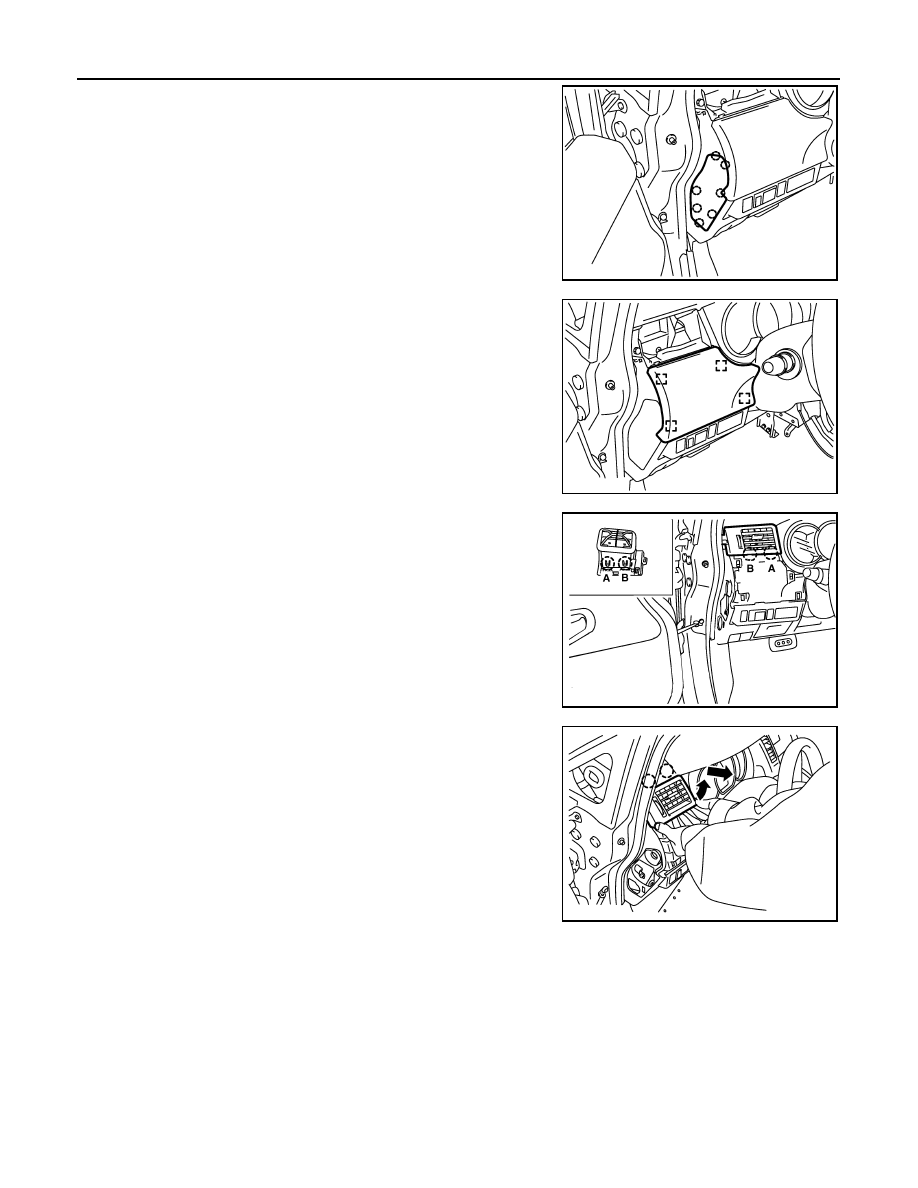

5.

Remove LH instrument panel side cover.

a.

Using a suitable tool insert into upper space of instrument panel
side cover.

b.

Disengage pawls, and then remove instrument panel side cover.

6.

Insert a remover into space of instrument side finisher.

7.

Disengage metal clips, and then remove instrument side fin-
isher.

8.

Insert suitable tool into the bottom gap of side ventilator assem-
bly after removing the instrument side mask, push against A and
B as shown to disengage the pawls.

9.

Lift the side ventilator up from the bottom, pull backward while
disengaging the side ventilator assembly's upper pawls, and
then remove the side ventilator.

10. Remove screws, and disengage pawls.
11. Remove steering column cover upper.

PIIB2448E

PIIB2440E

WIIA1226E

PIIB3976E

INSTRUMENT PANEL ASSEMBLY

IP-21

< SERVICE INFORMATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

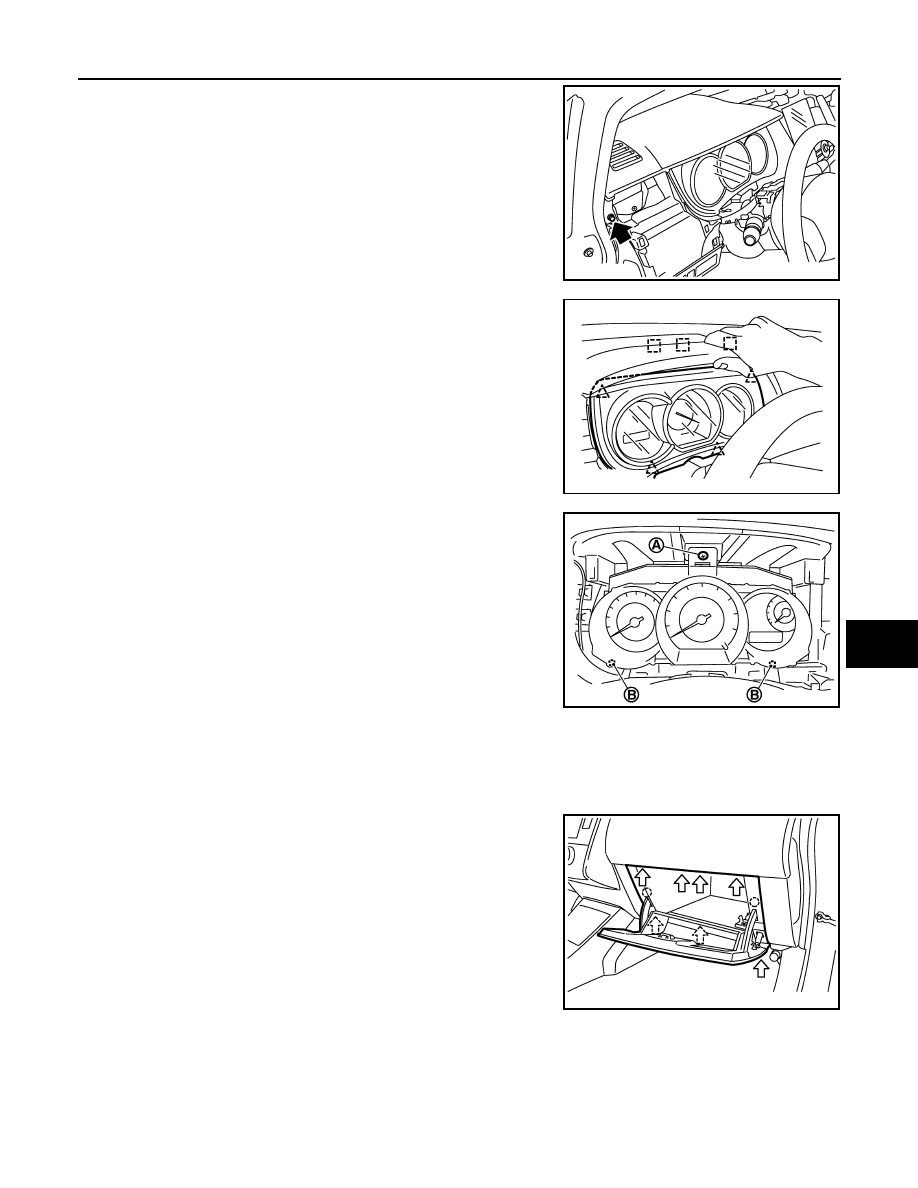

12. Remove screws from instrument upper panel right side.

13. Lift the instrument upper panel up, disengage metal clips.
14. Pull backward and disengage clips.

15. Remove cluster lid A.

16. Remove screws (A) and metal clip (B), and remove combination

meter.

Installation

Installation is in the reverse order of removal.

GLOVE BOX ASSEMBLY

Removal

1.

Remove the glove box screws.

2.

Pull backward while disengaging the glove box assembly pawls.

3.

Disconnect lamp harness connector, and then remove glove box
assembly.

Installation

Installation is in the reverse order of removal.

INSTRUMENT LOWER FINISHER

Removal

PIIB3969E

PIIB2880E

PKIC0703E

PIIB3404E
