INSTRUMENT PANEL ASSEMBLY

INSTRUMENT PANEL ASSEMBLY

Component Parts

INFOID:0000000001523317

1.

Instrument upper mask

2.

Instrument upper panel assembly

3.

Instrument side panel (LH)

4.

Combination meter

5.

Instrument finisher E

6.

Cluster lid A

7.

Instrument panel side cover (LH)

8.

Instrument panel & pad

9.

Side ventilator assembly (LH)

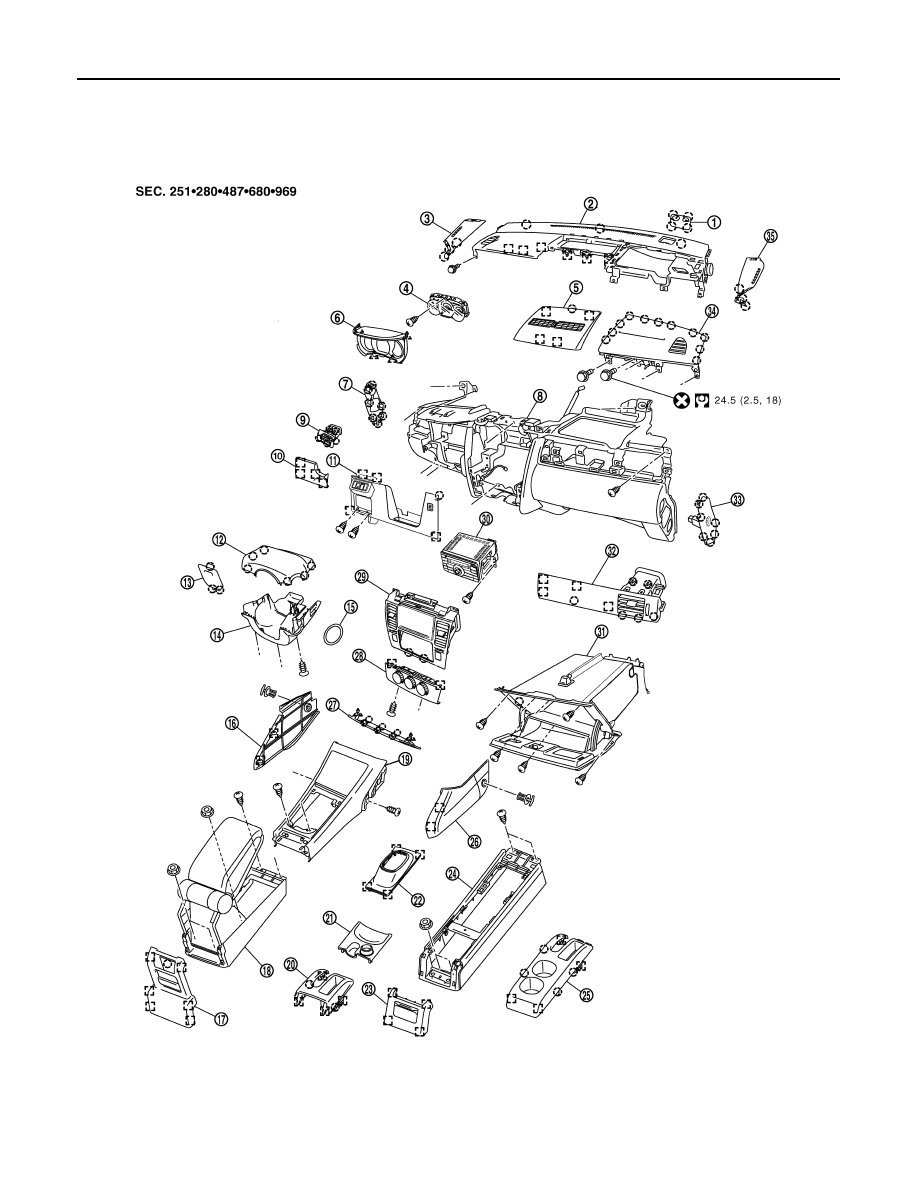

ALJIA0097ZZ

INSTRUMENT PANEL ASSEMBLY

IP-11

< SERVICE INFORMATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

NOTE:
The LHD model shown, RHD similar.

Removal and Installation

INFOID:0000000001523318

NOTE:
The LHD model shown, RHD model similar.

WORK STEPS

When removing instrument panel & pad, cluster lid A, cluster lid C, passenger air bag module assembly and
center console assembly, follow steps in the order shown.

CAUTION:

• Disconnect both battery cables.
• Never tamper with or force air bag lid open, as this may adversely affect air bag performance.
• Be careful not to scratch pad and other parts.

10.

Instrument side finisher

11.

Instrument lower finisher

12.

Steering column cover upper

13.

Fuse block lid

14.

Steering column cover lower

15.

Steering lock escutcheon

16.

Instrument lower cover (LH)

17.

Console rear finisher (with armrest)

18.

Console body assembly (with arm-
rest)

19.

Center console

20.

Console mask cover (with armrest)

21.

Console mask

22.

A/T console finisher / M/T console
boot / CVT console finisher

23.

Console rear finisher (without armrest)

24.

Console body assembly (without
armrest)

25.

Rear cup holder (without armrest)

26.

Instrument lower cover (RH)

27.

Instrument finisher D

28.

Controller

29.

Cluster lid C

30.

Audio unit

31.

Glove box assembly

32.

Side ventilator assembly (RH)

33.

Instrument panel side cover (RH)

34.

Passenger air bag module assembly 35.

Instrument side panel (RH)

Pawl

Clip

Metal clip

Parts

Reference

page

Instrument

panel and pad

Cluster lid A

Cluster lid C

Passenger air

bag module

assembly

Center      con-
sole assembly

Instrument finisher E

"Remov-

al"

[ 1 ]

[ 1 ]

[ 1 ]

Cluster lid C

"CLUS-

TER LID

C"

[ 2 ]

[ 2 ]

Audio unit

AV-23

[ 3 ]

Front pillar garnish (LH/RH)

IP-11

[ 4 ]

[ 2 ]

[ 1 ]

Instrument side panel (LH/RH)

IP-11

[ 5 ]

[ 3 ]

[ 2 ]

Instrument panel side covers (LH/RH)

IP-11

[ 6 ]

[ 4 ]

[ 3 ]

Instrument side finisher

IP-11

[ 7 ]

[ 5 ]

Side ventilator assembly (LH)

IP-10

[ 8 ]

[ 6 ]

Steering lock escutcheon

IP-10

[ 9 ]

Steering column cover upper

IP-10

[ 10 ]

[ 7 ]

Steering column cover lower

IP-10

[ 11 ]

Cluster lid A

"CLUS-

TER LID

A"

[ 12 ]

[ 8 ]

Combination meter

IP-11

[ 13 ]

Instrument lower finisher

"INSTRU-

MENT

LOWER
FINISH-

ER"

[ 14 ]

IP-12

< SERVICE INFORMATION >

INSTRUMENT PANEL ASSEMBLY

[ ]: Number indicates step in removal procedures.

INSTRUMENT PANEL ASSEMBLY

Removal

1.

Pull instrument finisher E backward by approximately 30
degrees while disengaging the instrument finisher E metal clips
and pawl.

Glove box assembly

"GLOVE

BOX AS-

SEMBLY"

[ 15 ]

Side ventilator assembly (RH)

IP-10

[ 16 ]

[ 4 ]

Passenger air bag module assembly

SR-9

[ 17 ]

[ 5 ]

Instrument upper mask

IP-10

[ 18 ]

Instrument finisher D

IP-10

[ 19 ]

Controller

TM-674

[ 20 ]

Instrument upper panel assembly

IP-11

[ 21 ]

Console mask

"Remov-

al"

[ 22 ]

[ 1 ]

CVT, A/T console finisher

IP-23

[ 23 ]

[ 2 ]

M/T console boot

IP-23

[ 23 ]

[ 2 ]

Console rear finisher

IP-23

[ 24 ]

[ 3 ]

Console mask cover  (with arm rest)

IP-23

[ 25 ]

[ 4 ]

Rear cup holder (without arm rest)

IP-23

[ 25 ]

[ 4 ]

Console body assembly

IP-23

[ 26 ]

[ 5 ]

Instrument lower cover (LH/RH)

"INSTRU-

MENT

LOWER
FINISH-

ER"

[ 27 ]

[ 6 ]

Center console assembly

"CEN-

TER

CON-

SOLE AS-

SEMBLY"

[ 28 ]

[ 7 ]

Fuse block lid

IP-10

[ 29 ]

Lighting and turn signal switch

EXL-101

[ 30 ]

Wiper & washer switch

WW-76

[ 31 ]

Instrument panel & pad

IP-10

[ 32 ]

Parts

Reference

page

Instrument

panel and pad

Cluster lid A

Cluster lid C

Passenger air

bag module

assembly

Center      con-
sole assembly

WIIA1224E

INSTRUMENT PANEL ASSEMBLY

IP-13

< SERVICE INFORMATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

2.

Remove cluster lid C.

a.

Remove cluster lid C screws.

b.

Pull back and disengage pawls and cluster lid C metal clips.

c.

Disconnect harness connector and then remove cluster lid C.

3.

Remove audio unit. Refer to

AV-23, "Removal and Installation"

.

4.

Remove front pillar garnish. Refer to

IP-10, "Component Parts"

.

5.

Remove the side panel (LH/RH).

a.

Pull up instrument side panel and disengage pawls.

b.

Remove instrument side panel.

6.

Remove LH instrument panel side cover.

a.

Using a suitable tool insert into upper space of instrument panel
side cover.

b.

Disengage pawls, and then remove instrument panel side cover.

7.

Remove the instrument panel side cover (1) pawls, using a suit-
able tool.

a.

Lift the instrument panel side cover upward and away from the
instrument panel to remove.

b.

Disconnect the passenger air bag deactivation switch harness
connector.

WIIA1225E

PIIB2439J

PIIB2448E

ALHIA0045ZZ
