INSTRUMENT PANEL ASSEMBLY

1.

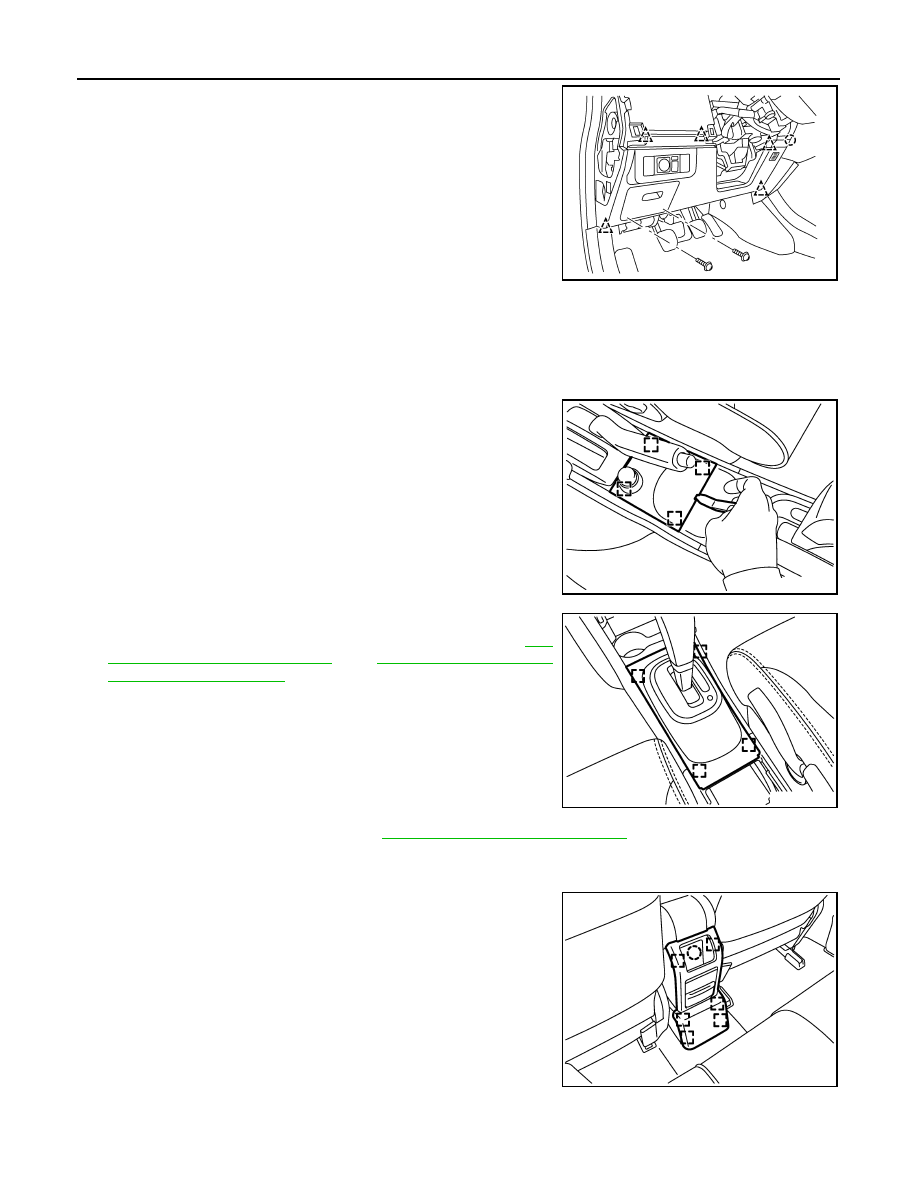

Remove the instrument lower finisher.

a.

Disengage pawls and remove fuse block lid.

b.

Remove the screws.

c.

Pull backward while disengaging the instrument lower finisher
clip and pawls.

d.

Disconnect the harness connectors, and then remove instru-
ment lower finisher.

Installation

Installation is in the reverse order of removal.

CENTER CONSOLE ASSEMBLY

Removal

1.

Insert a suitable tool into front side space of console mask, and
disengage metal clips.

2.

Disconnect harness connector, and then remove console mask.

3.

Place the selector lever in "D" position (A/T and MT only).

4.

Remove selector lever knob (A/T and MT only). Refer to

TM-

674, "Removal and Installation"

 MT),

TM-200, "Control Device

Removal and Installation"

 (A/T).

5.

Pull up and disengage A/T and MT console finisher metal clips
(A/T and MT only).

6.

Remove A/T and MT console finisher (A/T and MT only).

7.

Remove shift knob (M/T only). Refer to

TM-674, "Removal and Installation"

.

8.

Pull up and disengage M/T console boot metal clips (M/T only).

9.

Remove M/T console boot (M/T only).

10. Disengage console rear finisher metal clips and pawl.

11. Remove console rear finisher.

ALJIA0096ZZ

PIIB6386E

PIIB2454J

PIIB2452J

INSTRUMENT PANEL ASSEMBLY

IP-23

< SERVICE INFORMATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

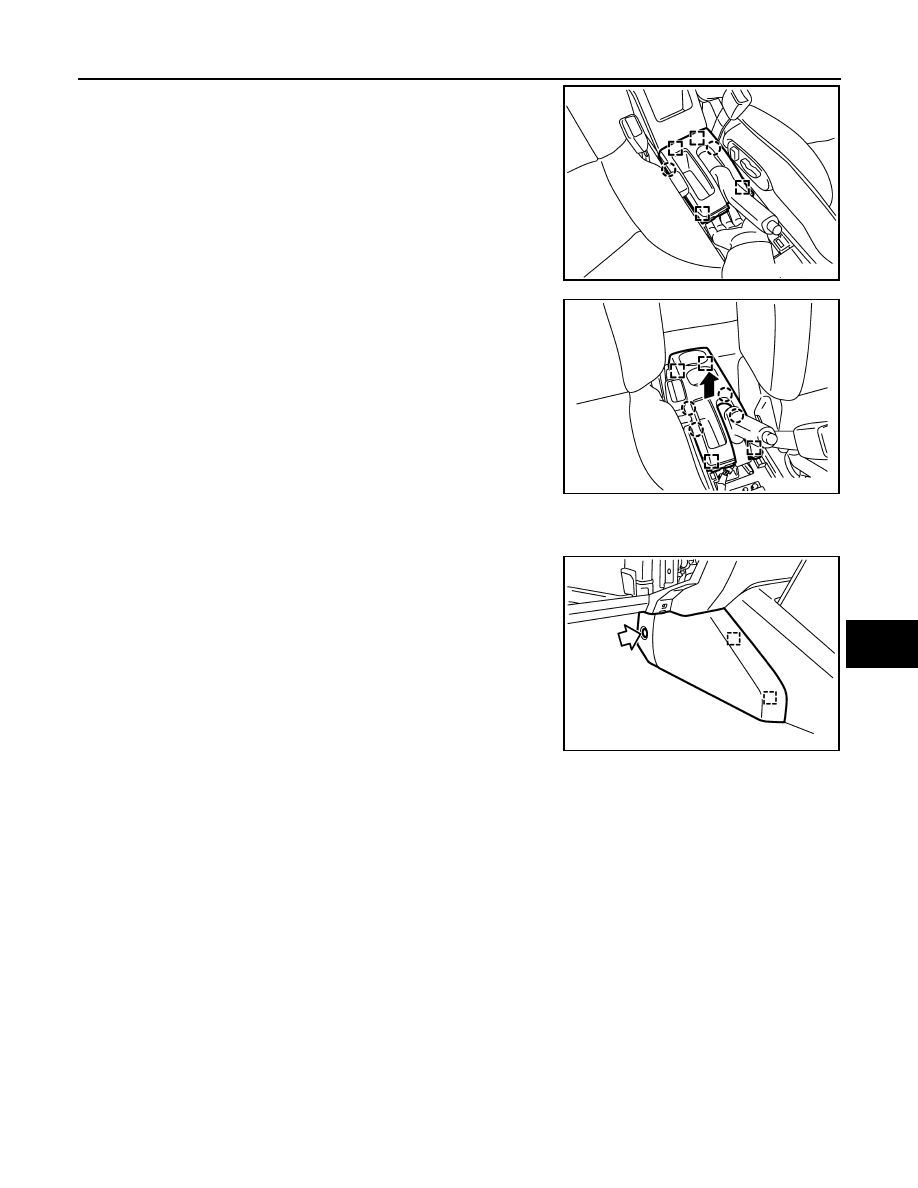

12. Disengage console mask cover metal clips and pawls, and then

remove console mask cover (with armrest).

13. Disengage rear cup holder metal clips and pawls (without arm-

rest).

14. Remover rear cup holder (without armrest).

15. Remove console body assembly screws and nuts.

16. Disconnect harness connector, and then remove console body assembly.

17. Remove both of the instrument lower cover LH and RH (CS101)

clips.

18. Disengage instrument lower cover LH and RH metal clips and

remove both of the instrument lower cover LH and RH.

19. Remove the screws and then remove the center console.

Installation

Installation is in the reverse order of removal.

Disassembly and Assembly

INFOID:0000000001523319

NOTE:
The LHD model shown, RHD similar.

GLOVE BOX ASSEMBLY

PIIB6387E

PIIB6388E

PIIB2882J

IP-24

< SERVICE INFORMATION >

INSTRUMENT PANEL ASSEMBLY

Disassembly

1.

Remove screws of damper, and then remove damper.

2.

Remove screws of glove box striker, and then remove glove box striker.

3.

Remove screws of glove box latch, and then remove glove box latch.

Assembly

Assembly is in the reverse order of disassembly.

CENTER CONSOLE ASSEMBLY

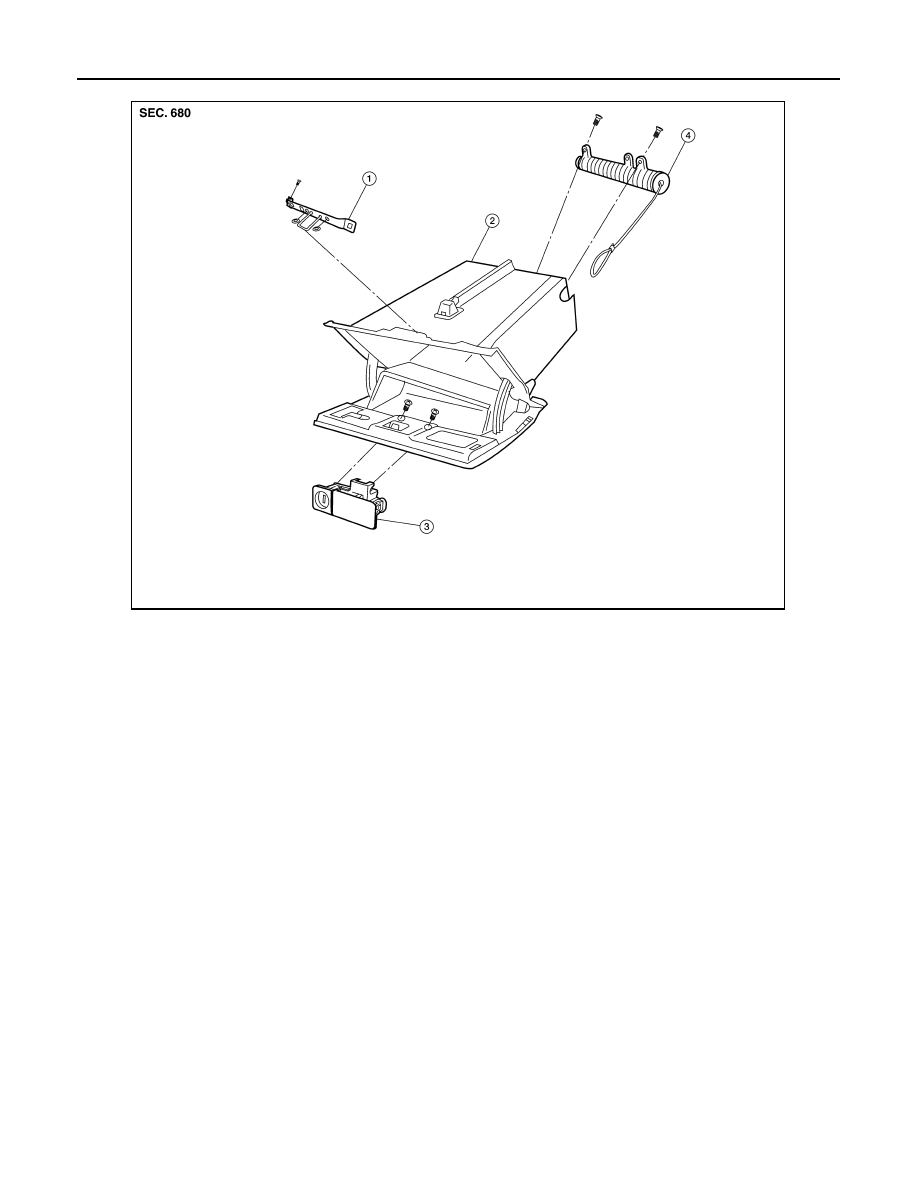

1.

Glove box striker

2.

Glove box

3.

Glove box latch

4.

Damper

LIIA2555E

INSTRUMENT PANEL ASSEMBLY

IP-25

< SERVICE INFORMATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

Disassembly

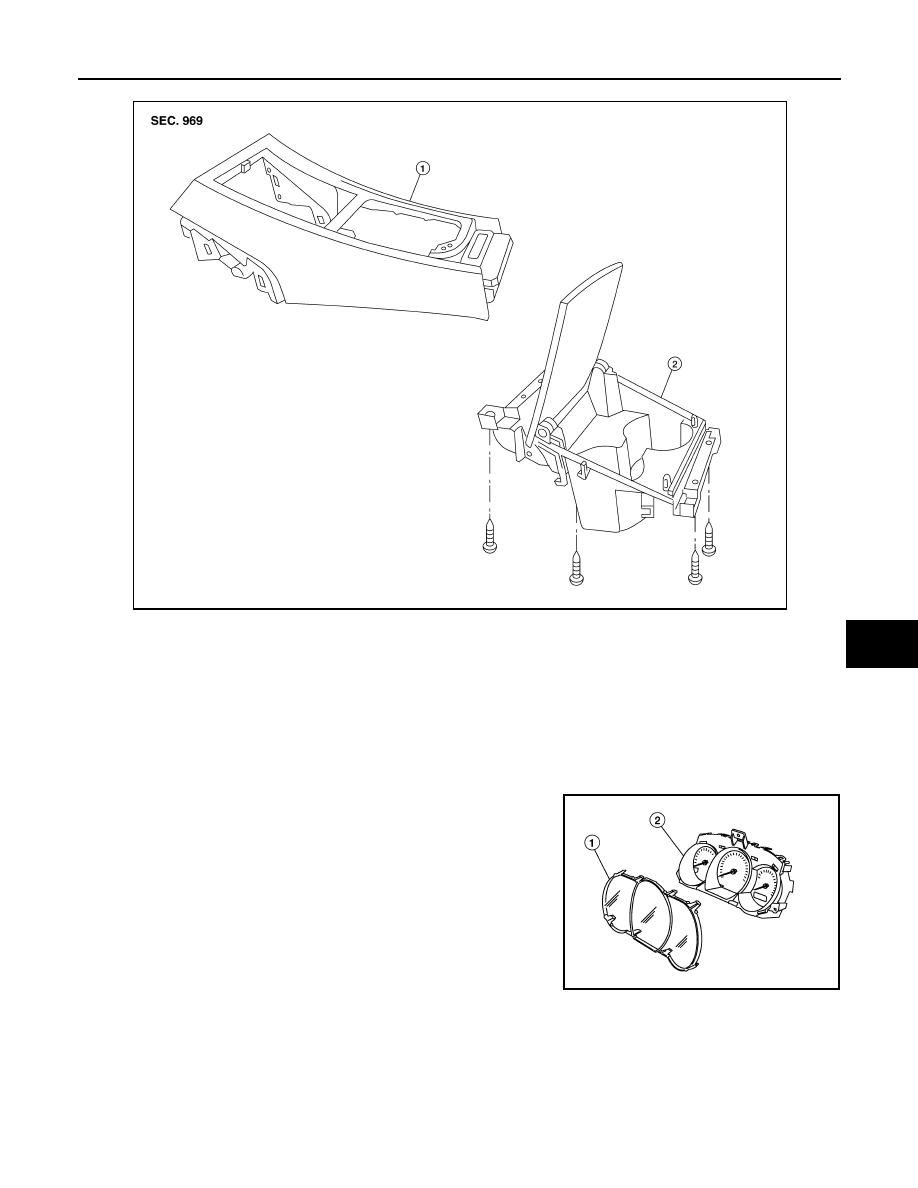

Remove the four screws, and then remove front cup holder from center console.

Assembly

Assembly is in the reverse order of disassembly.

COMBINATION METER

Disassembly

Disengage the eight tabs to separate front cover (1) from the unified
meter control unit assembly (2).

Assembly

Assembly is in the reverse order of disassembly.

1.

Center console

2.

Front cup holder

ALJIA0098ZZ

LIIA2582E
