INT-30

< ON-VEHICLE REPAIR >

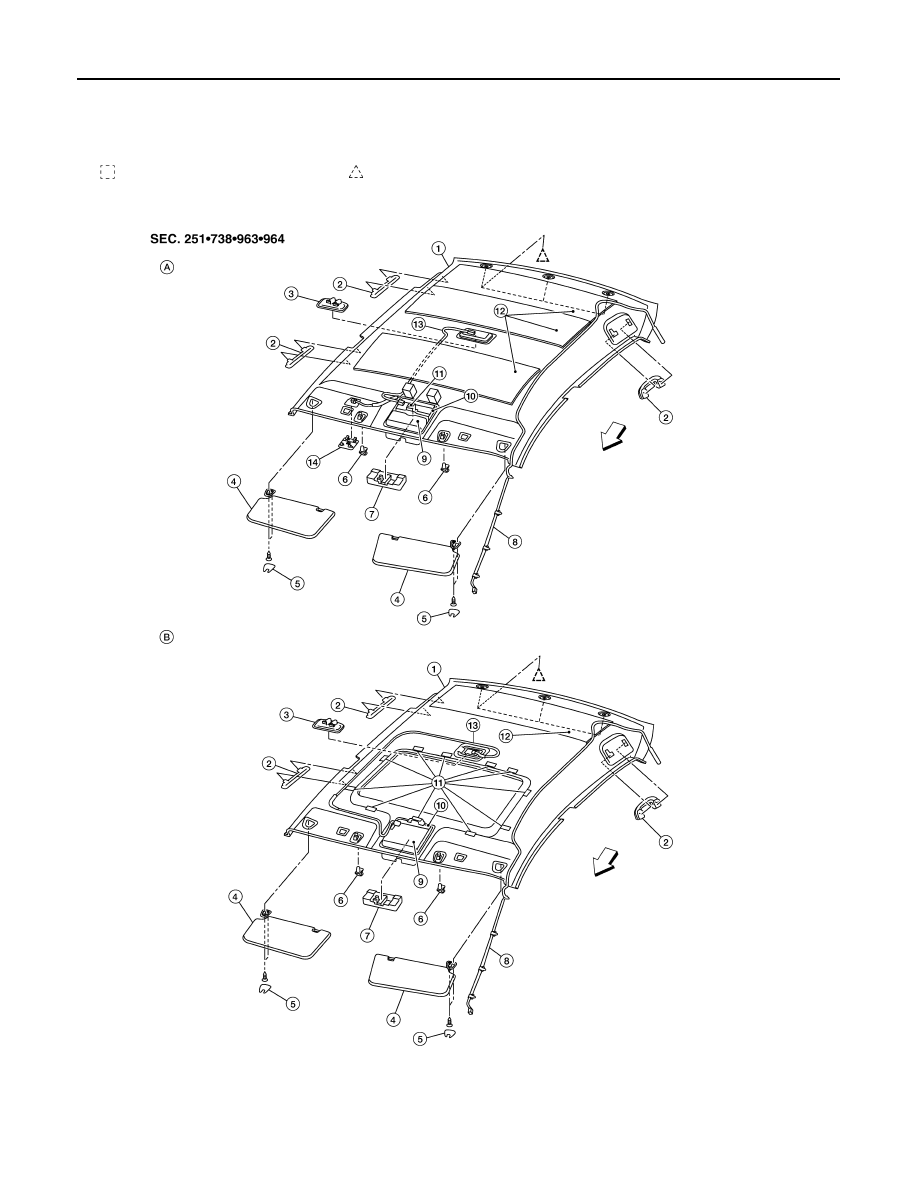

HEADLINING

LHD Sedan Models Shown, RHD Similar

7.

Roof console/map lamp assembly (if
equipped)

8.

Antenna feeder cable

9.

Room lamp

10. Dual lock fastener

11. Room lamp harness

12. Insulator

13. Finisher

A.

With sunroof

B.

Without sunroof

Metal clip

Clip C103

⇐

Vehicle front

LIIA2925E

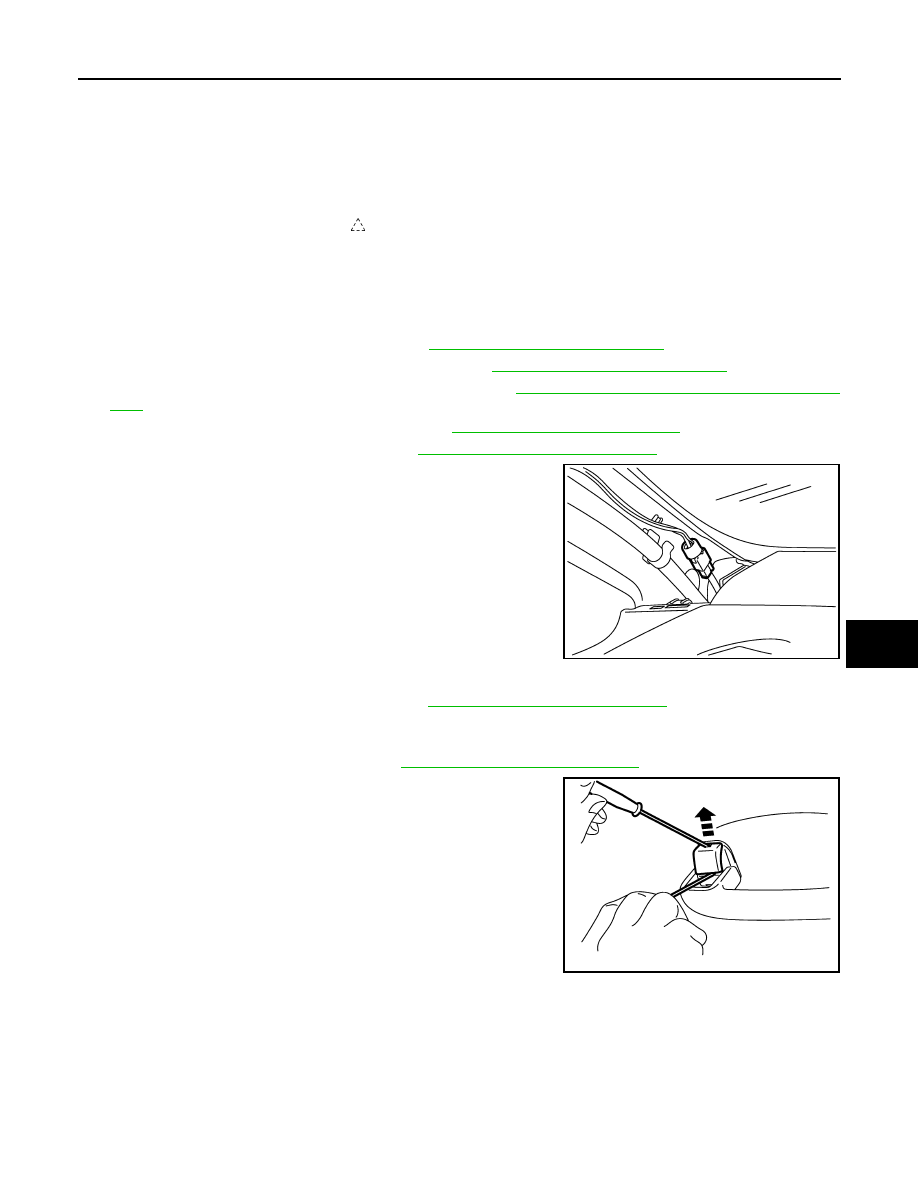

HEADLINING

INT-31

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

Removal and Installation - Hatchback

INFOID:0000000001329056

REMOVAL

1.

Remove the negative and positive battery cables.

2.

Remove front seat assembly RH/LH. Refer to

SE-14, "Removal and Installation"

.

3.

Remove rear seat cushion and rear seatback. Refer to

SE-18, "Removal and Installation"

.

4.

Remove front seat belt shoulder anchor RH/LH. Refer to

SB-6, "Removal and Installation of Front Seat

Belt"

.

5.

Remove center console body assembly. Refer to

IP-11, "Removal and Installation"

.

6.

Remove front pillar garnish RH/LH. Refer to

INT-20, "Removal and Installation"

.

7.

Remove antenna feeder cable clip, then disconnect antenna
feeder cable connector.

8.

Remove front and rear kicking plate inner RH/LH, center pillar lower garnish, center pillar upper garnish,
front and rear body side welt RH/LH. Refer to

INT-20, "Removal and Installation"

.

WARNING:

Do not reuse center pillar upper garnish if removed.

9.

Remove back door weatherstrip. Refer to

INT-18, "Removal and Installation"

.

10. Release the clips using a suitable tool, then remove the front

and rear assist grips.

11. Remove the sunvisor caps and screws, then remove sunvisor RH/LH.

1.

Headlining

2.

Assist grip

3.

Room lamp

4.

Sunvisor

5.

Cap

6.

Sunvisor holder

7.

Map lamp assembly (if equipped)

8.

Antenna feeder cable

9.

Roof console assembly (if
equipped)

10. Roof plate (if equipped)

11. Dual lock fastener

12. Insulator

13. Room lamp harness

14. Cover

A.

With sunroof

B.

Without sunroof

Clip C103

⇐

Vehicle front

PIIB2583J

PIIB2584J

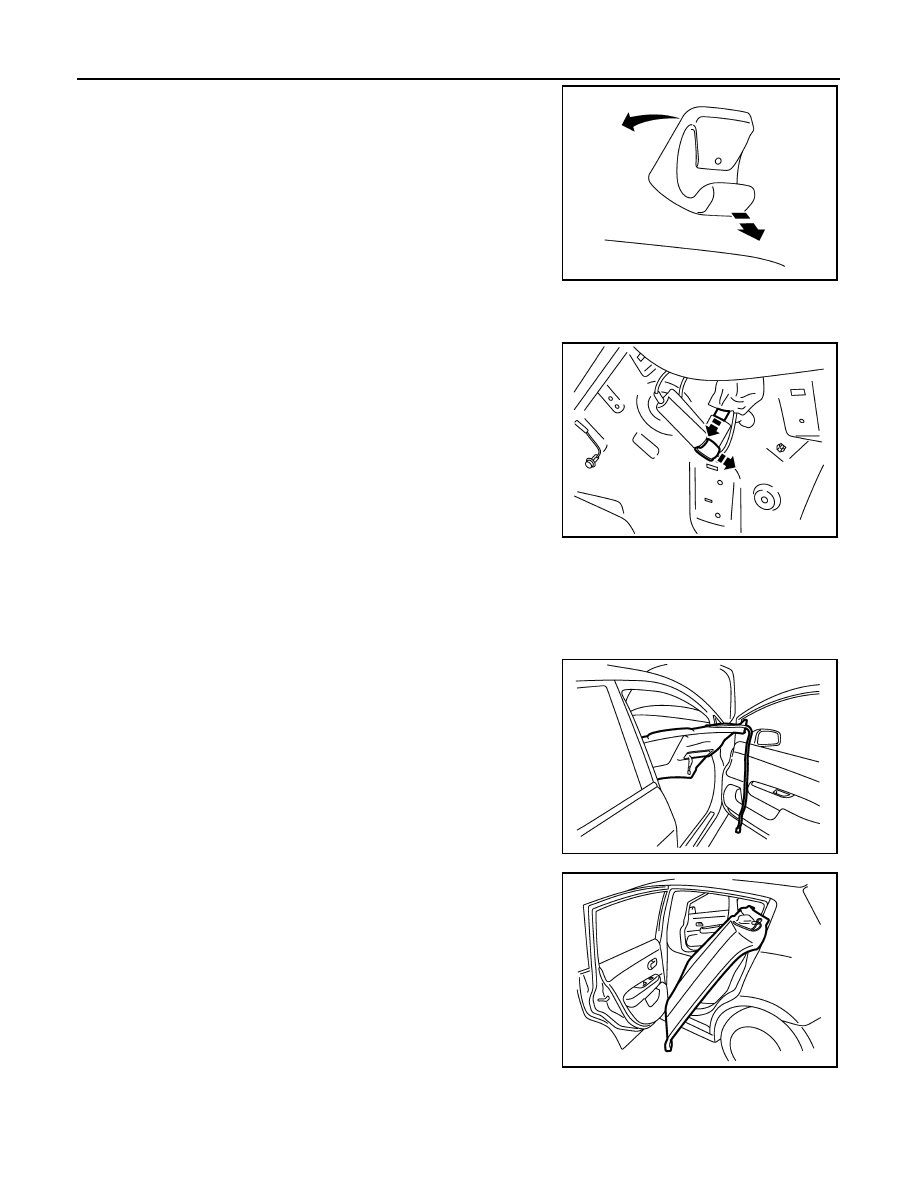

INT-32

< ON-VEHICLE REPAIR >

HEADLINING

12. Remove sunvisor holders RH/LH by rotating 45 degrees, then

pulling outward.

13. Release the metal clips, then remove the roof console/map lamp assembly (if equipped).
14. Release remaining headlining clips.

15. Disconnect antenna feeder cable near rear pillar finisher LH.

16. Disengage the dual lock fastener on the backside of headlining.

• Insert a suitable tool into the edge of dual lock fastener, then move the tool side to side horizontally to

release it.

CAUTION:

Excessive up and down force may cause roof panel damage.

17. Position the headlining so the front edge goes through the open-

ing of the right side front door.

18. Position the headlining so the rear edge goes through the open-

ing of the left rear door, then remove headlining.

CAUTION:

• 2 technicians should be used to avoid damage when remov-

ing or replacing headlining.

• During headlining removal and installation, cover the center

console finisher upper surface to prevent damage.

• Set A/T shift lever to the D position, and make a space to

remove front end of headlining right side.

• Do not bend headlining when removing.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

PIIB3982J

PIIB2586J

PIIB6049E

PIIB6050E

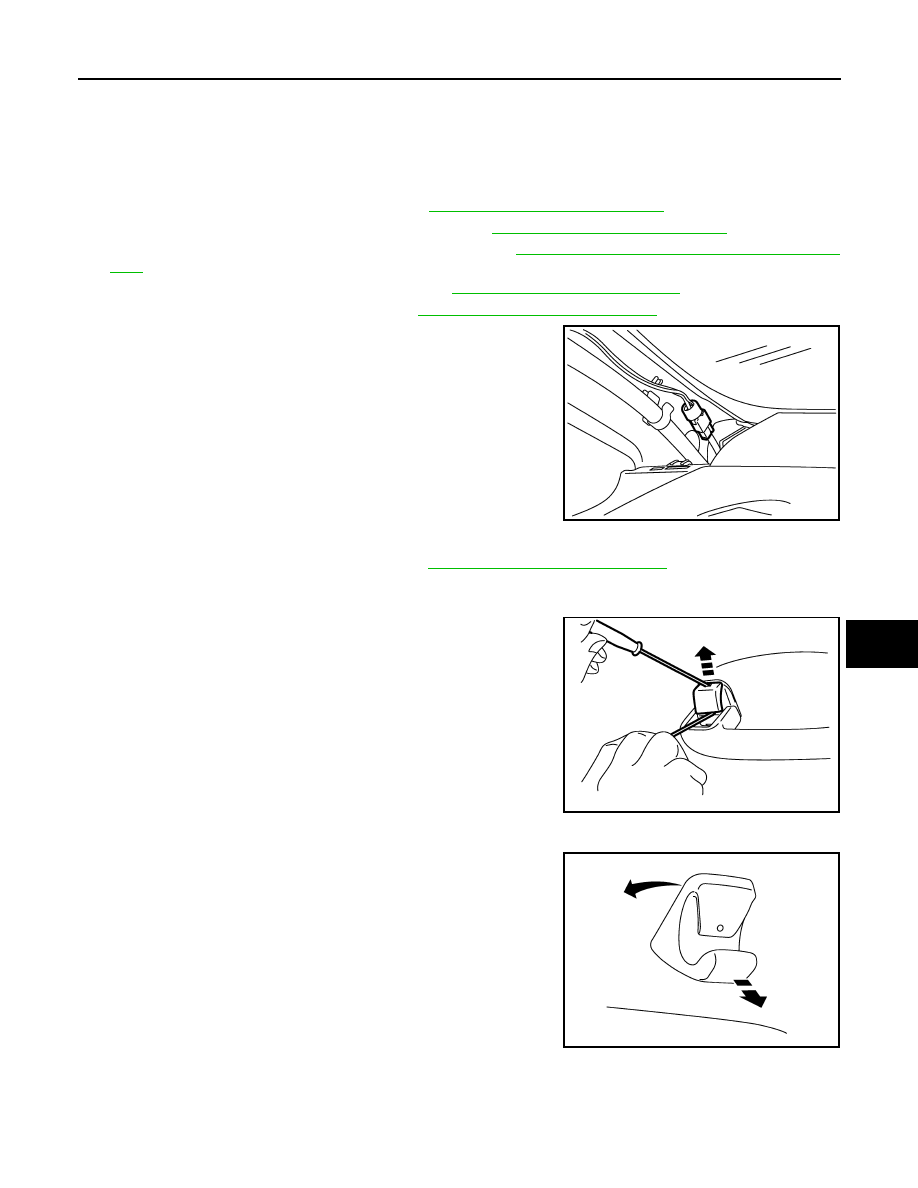

HEADLINING

INT-33

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

Avoid headlining damage when installing by inserting rear clips first during assembly.

Removal and Installation - Sedan

INFOID:0000000001329057

REMOVAL

1.

Remove the negative and positive battery cables.

2.

Remove front seat assembly RH/LH. Refer to

SE-14, "Removal and Installation"

.

3.

Remove rear seat cushion and rear seatback. Refer to

SE-18, "Removal and Installation"

.

4.

Remove front seat belt shoulder anchor RH/LH. Refer to

SB-6, "Removal and Installation of Front Seat

Belt"

.

5.

Remove center console body assembly. Refer to

IP-11, "Removal and Installation"

.

6.

Remove front pillar garnish RH/LH. Refer to

INT-20, "Removal and Installation"

.

7.

Remove antenna feeder cable clip, then disconnect antenna
feeder cable connector.

8.

Remove front and rear kicking plate inner RH/LH, center pillar lower garnish, center pillar upper garnish,
front and rear body side welt RH/LH. Refer to

INT-20, "Removal and Installation"

.

WARNING:

Do not reuse center pillar upper garnish if removed.

9.

Release the clips using a suitable tool, then remove the front
and rear assist grips.

10. Remove the sunvisor caps and screws, then remove sunvisor RH/LH.

11. Remove sunvisor holders RH/LH by rotating 45 degrees, then

pulling outward.

12. Release the metal clips, then remove the roof console/map lamp assembly (if equipped).

13. Release remaining headlining clips.

PIIB2583J

PIIB2584J

PIIB3982J
