INT-26

< ON-VEHICLE REPAIR >

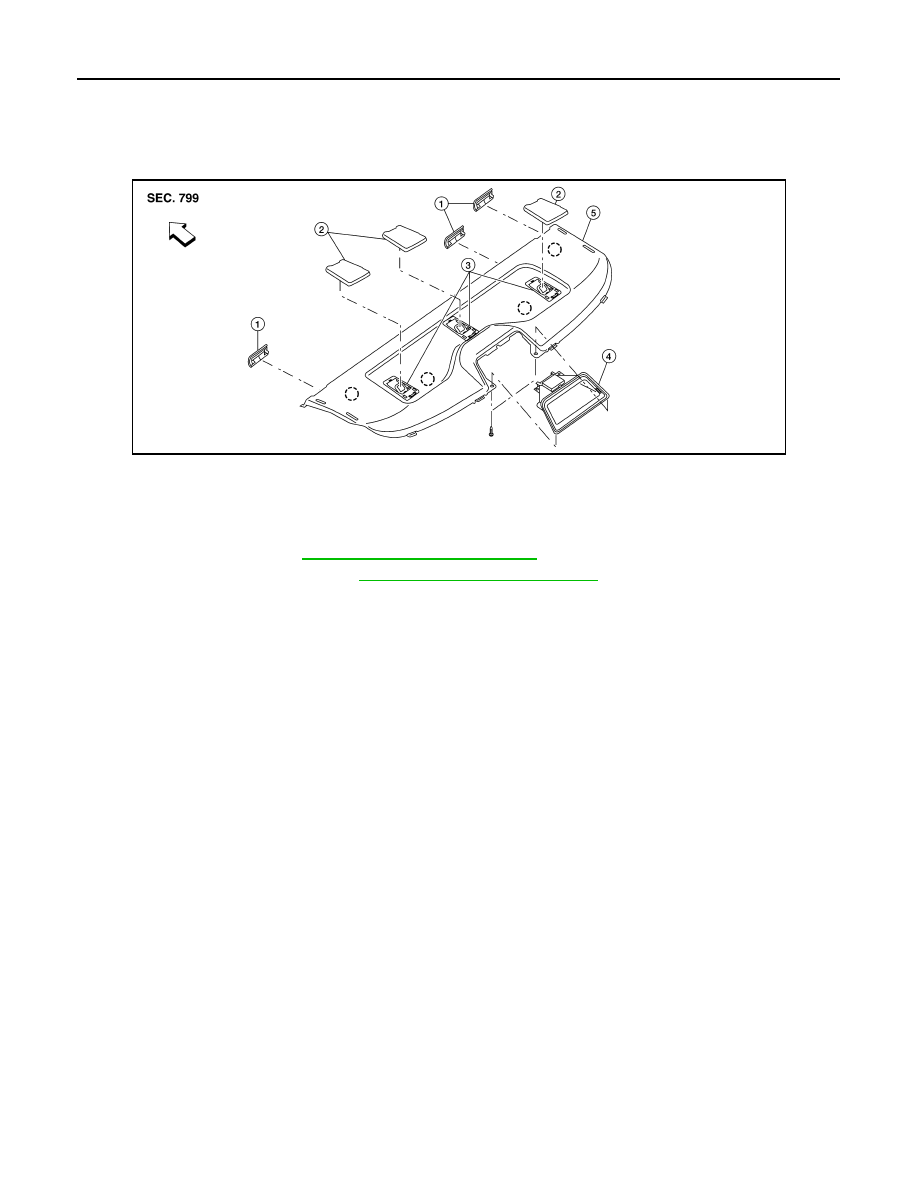

REAR PARCEL SHELF FINISHER

REAR PARCEL SHELF FINISHER

Removal and Installation

INFOID:0000000001329053

REMOVAL

1.

Remove rear seat. Refer to

SE-18, "Removal and Installation"

.

2.

Remove rear pillar finisher. Refer to

INT-20, "Removal and Installation"

.

3.

Remove high mounted stop lamp and disconnect connector.

4.

Remove rear parcel shelf finisher.

INSTALLATION

Installation is in the reverse order of removal.

LIIA2923E

1.

Rear seat belt shoulder anchor cover 2.

Child anchor cover

3.

Child anchor cover base

4.

High mounted stop lamp

5.

Rear parcel shelf finisher

⇐

Vehicle front

FLOOR TRIM

INT-27

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

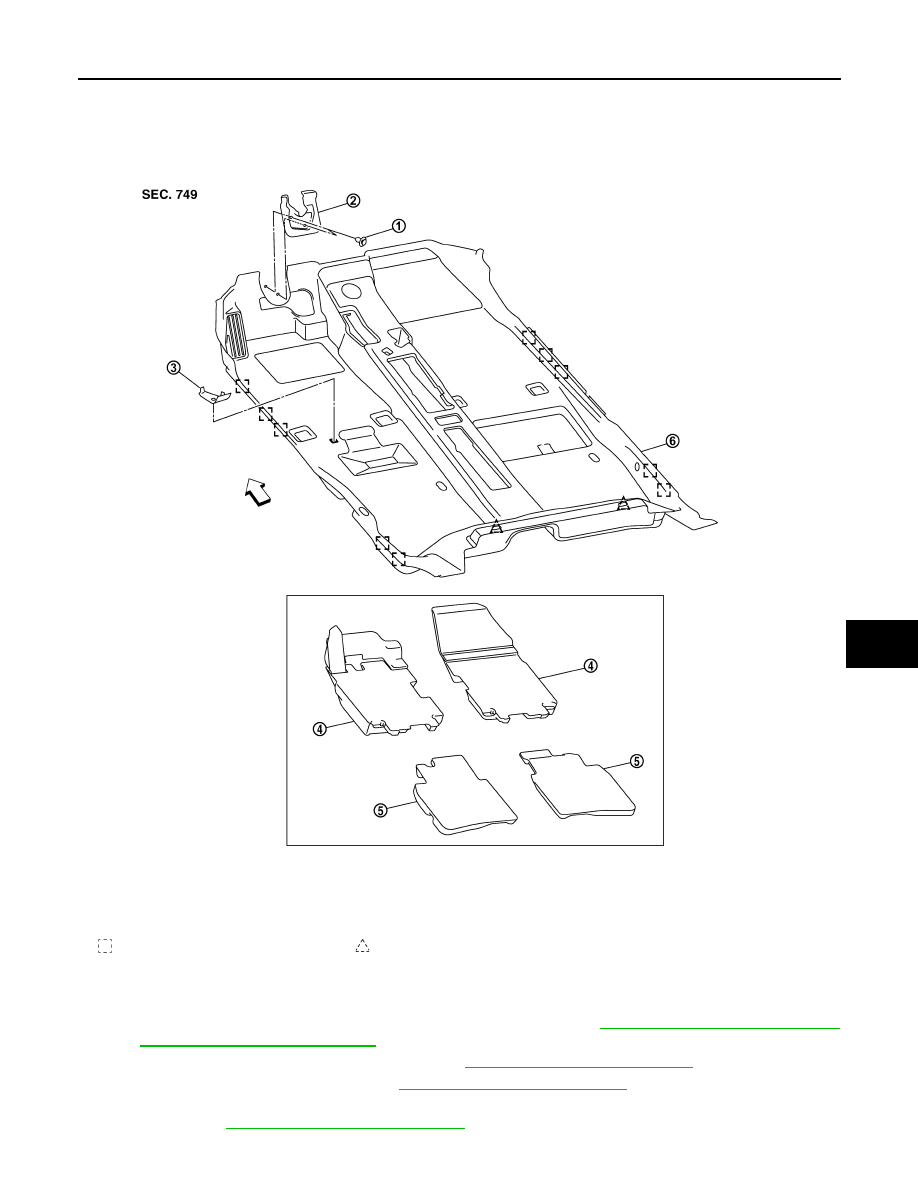

FLOOR TRIM

Removal and Installation

INFOID:0000000001329054

LHD Shown, RHD Similar

REMOVAL

1.

Disconnect both the negative and positive battery cables, then wait at least 3 minutes.

2.

Remove front seat assembly RH/LH and rear seat cushion. Refer to

SE-14, "Removal and Installation"

and

SE-18, "Removal and Installation"

.

3.

Remove center console and floor bracket. Refer to

IP-11, "Removal and Installation"

.

4.

Remove instrument lower cover. Refer to

IP-11, "Removal and Installation"

.

5.

Remove front kicking plate inner RH/LH, center pillar lower garnish RH/LH, and rear kicking plate inner
RH/LH. Refer to

INT-20, "Removal and Installation"

.

LIIA2575E

1.

Clip C101

2.

Steering column shaft cover

3.

Floor carpet hook

4.

Front floor spacer

5.

Rear floor spacer

6.

Floor trim

Metal clip

Clip CF110

⇐

Vehicle front

INT-28

< ON-VEHICLE REPAIR >

FLOOR TRIM

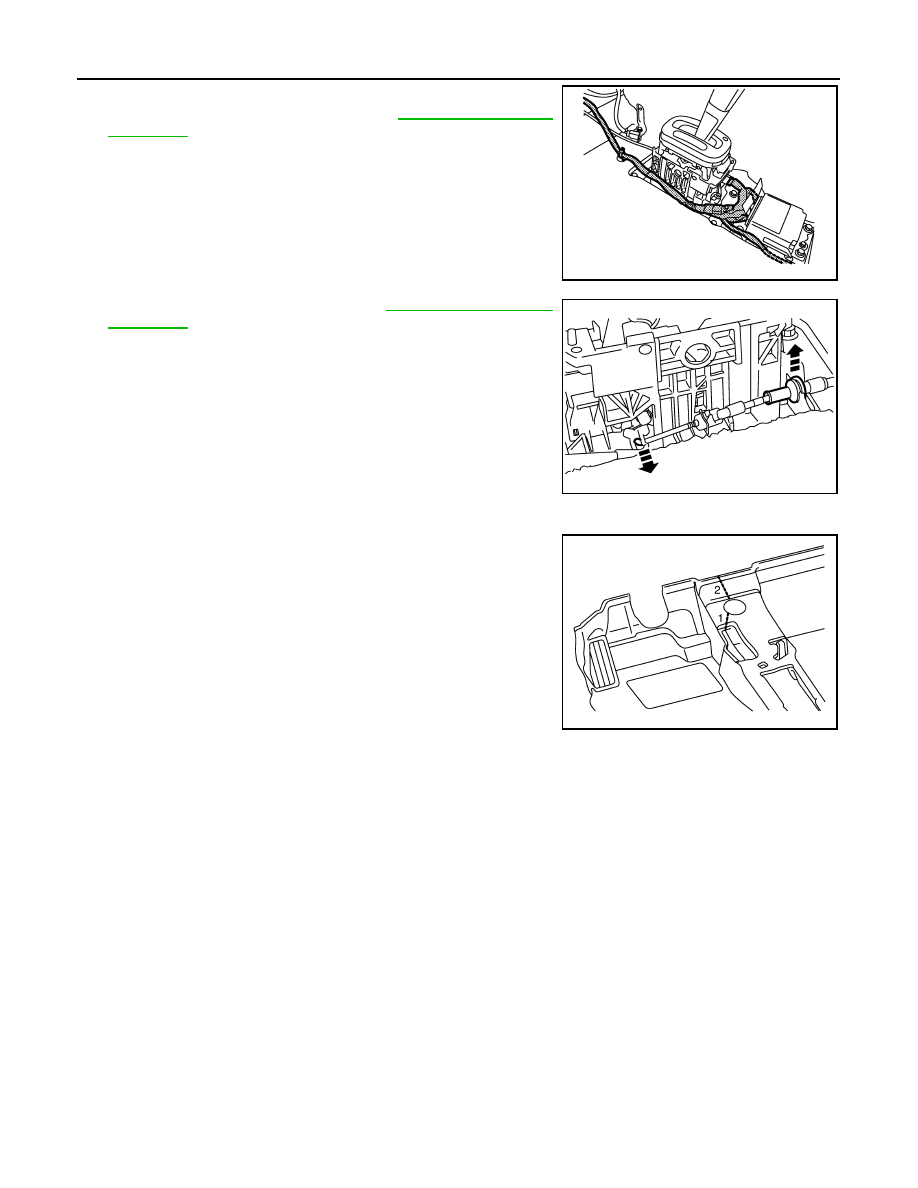

6.

Disconnect floor harness connector.

7.

Remove diagnosis sensor unit. Refer to

SR-15, "Removal and

Installation"

.

8.

Remove key interlock cable. Refer to

TM-206, "Removal and

Installation"

.

9.

Remove floor carpet hook.

10. Cut floor trim using a blade knife first between openings (1),

then at front edge (2) as shown.
NOTE:
LHD shown, RHD similar

11. Release floor trim metal clips after cutting, then pull out floor trim through door opening.
12. Remove floor spacer RH/LH.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

When replacing the floor trim with a new one, prepare for installation by cutting it like the old one.
Make sure there is a quality fit between floor trim and instrument lower cover by tucking the cut edge
completely.

PIIB6046E

PIIB2580J

PIIB6047E

HEADLINING

INT-29

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

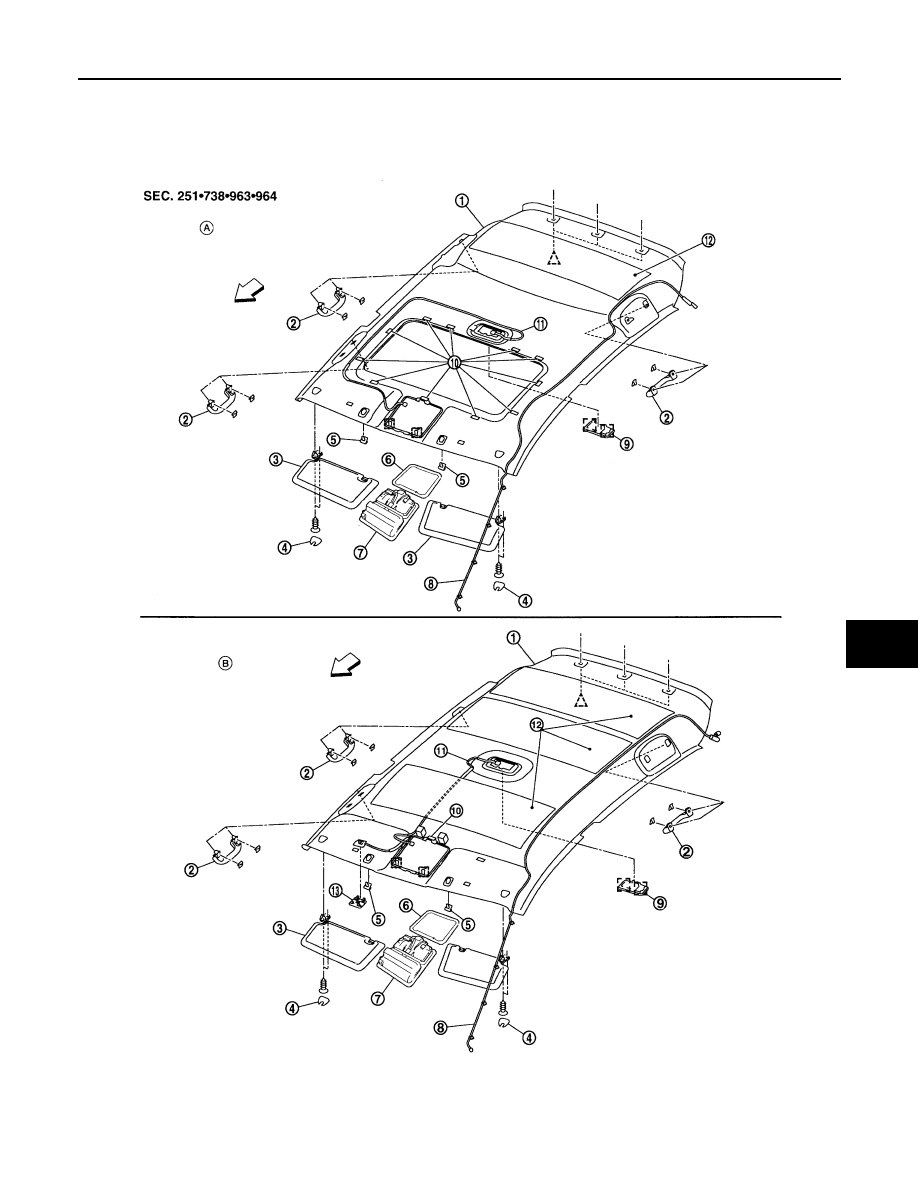

HEADLINING

Component

INFOID:0000000001329055

LHD Hatchback Models Shown, RHD Similar

LIIA2576E

1.

Headlining

2.

Assist grip

3.

Sunvisor

4.

Cap

5.

Sunvisor holder

6.

Roof console retainer
