BACK DOOR TRIM

BACK DOOR TRIM

Removal and Installation

INFOID:0000000001329114

REMOVAL

CAUTION:

• Insert a suitable tool between panel on vehicle and clips (as

indicated with arrow) to release clips.

• Use a suitable tool when removing metal clips from garnishes.
• Be careful not to damage the body while prying to release

clips.

• Make sure clips are properly aligned in panel holes on body

when installing, then press them in completely.

1.

Open back door.

2.

Release the clips, then lift upward to release the pawls and
remove the back door finisher lower.

3.

Release the clips, then remove back door side garnish RH/LH.

4.

Release the clips, then remove back door finisher upper from the back door.

INSTALLATION

Installation is in the reverse order of removal.

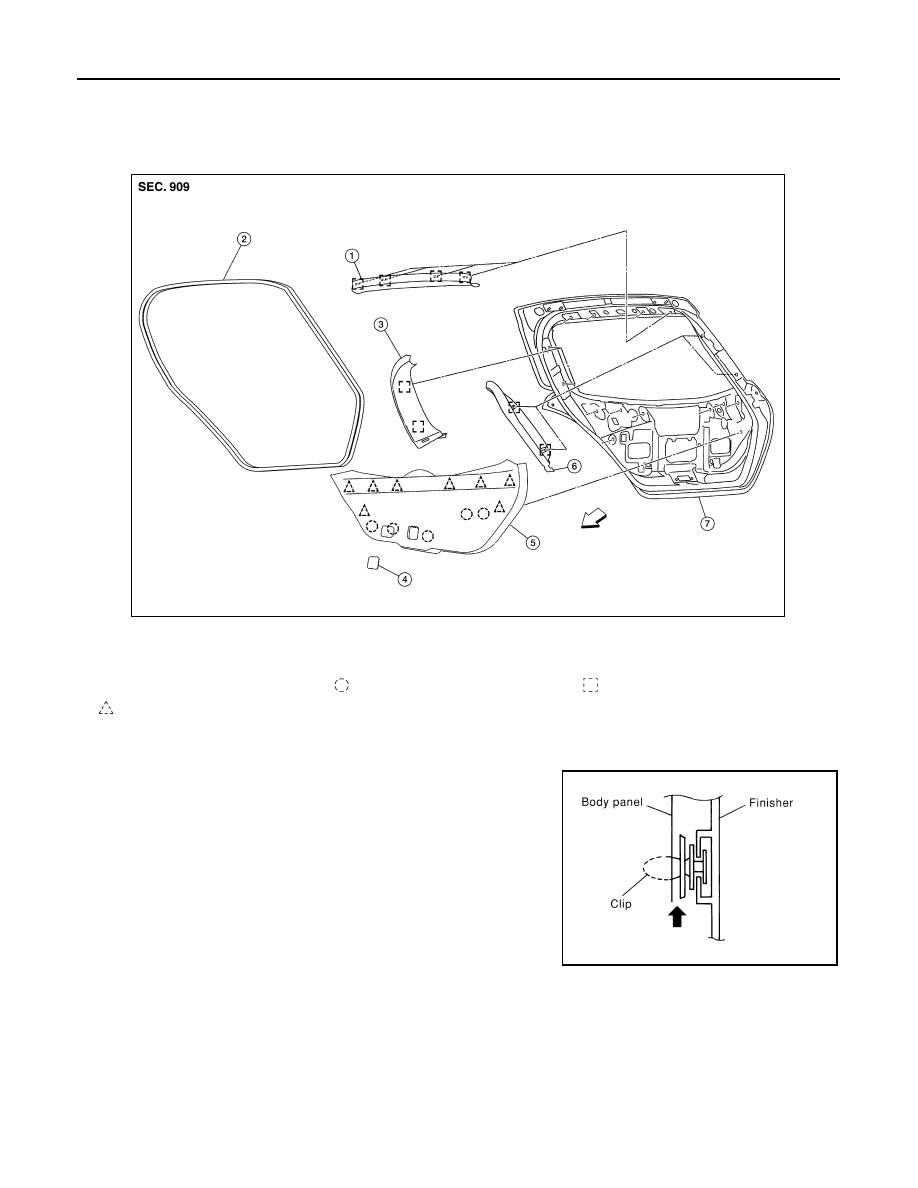

1.

Back door finisher upper

2.

Back door weatherstrip

3.

Back door side garnish (RH)

4.

Cover

5.

Back door finisher lower

6.

Back door side garnish (LH)

7.

Back door

Pawl

Metal clip

Clip C101

⇐

Vehicle front

LIIA2577E

SIIA0810E

BODY SIDE TRIM

INT-19

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

BODY SIDE TRIM

Component

INFOID:0000000001329051

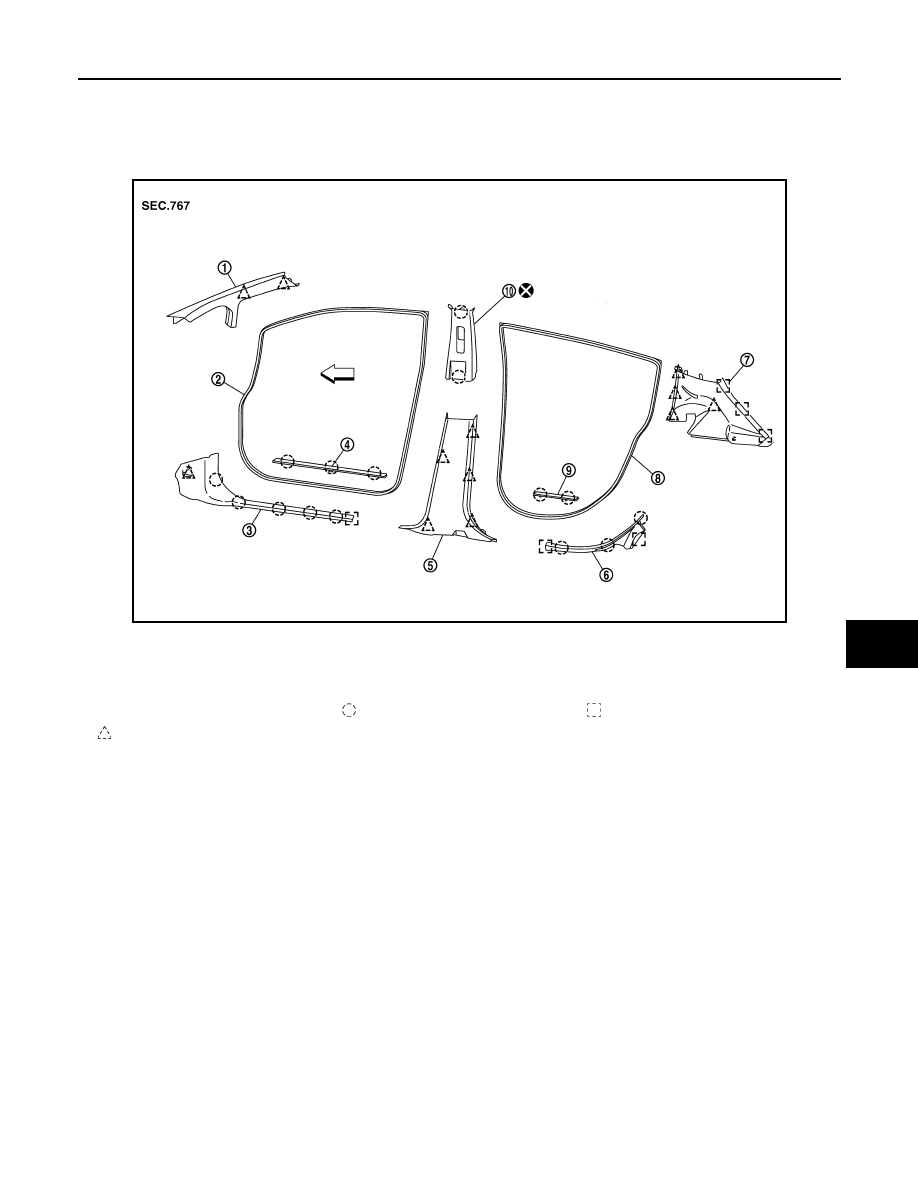

Hatchback Models

AWJIA0060ZZ

1.

Front pillar garnish

2.

Front body side welt

3.

Front kicking plate inner

4.

Front kicking plate outer

5.

Center pillar lower garnish

6.

Rear kicking plate inner

7.

Rear pillar finisher

8.

Rear body side welt

9.

Rear kicking plate outer

10. Center pillar upper garnish

Pawl

Metal clip

Clip

⇐

Vehicle front

INT-20

< ON-VEHICLE REPAIR >

BODY SIDE TRIM

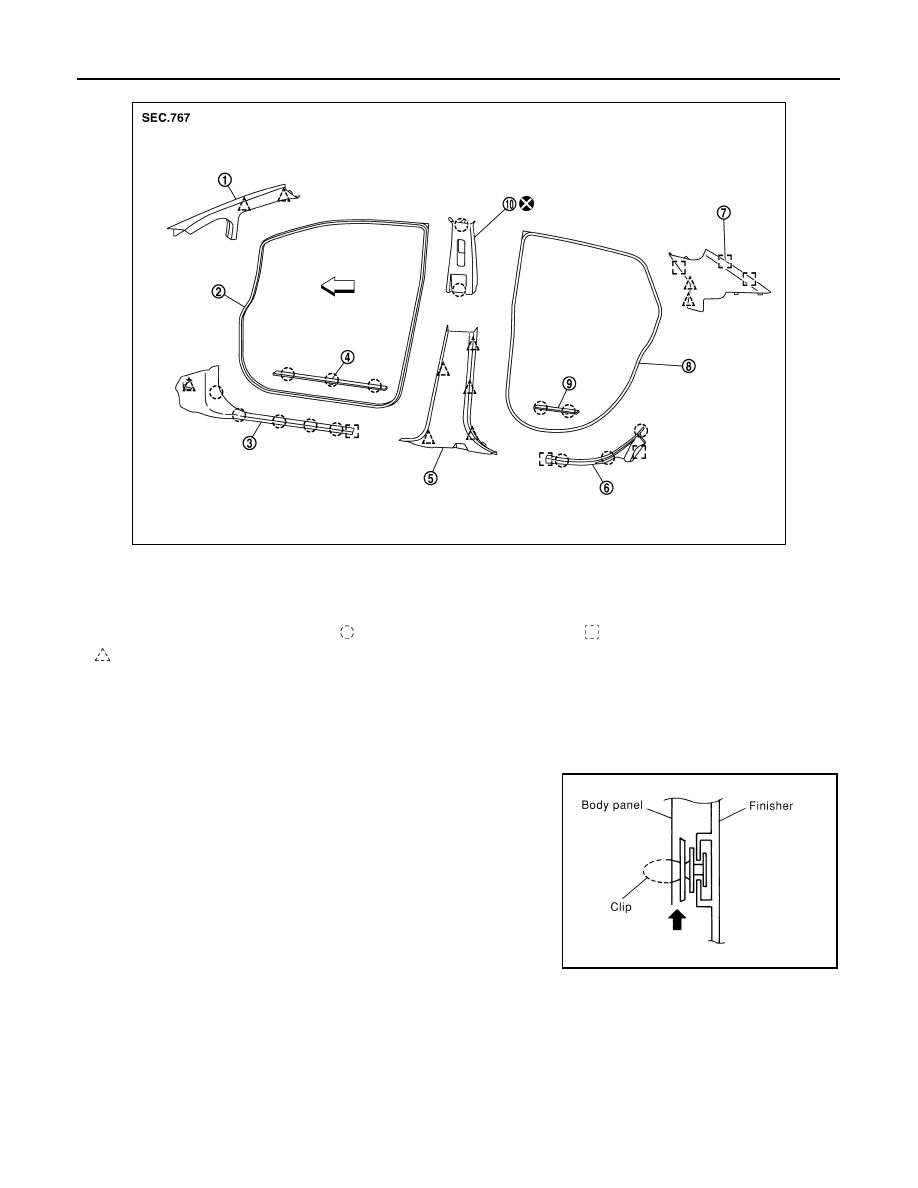

Sedan Models

Removal and Installation

INFOID:0000000001329052

WARNING:

Do not reuse center pillar upper garnish if removed.

CAUTION:

• Insert a suitable tool between panel on vehicle and clips (as

indicated with arrow) to release clips.

• Use a suitable tool when removing metal clips from garnishes.
• Be careful not to damage the body while prying to release

clips.

• Make sure clips are properly aligned in panel holes on body

when installing, then press them in completely.

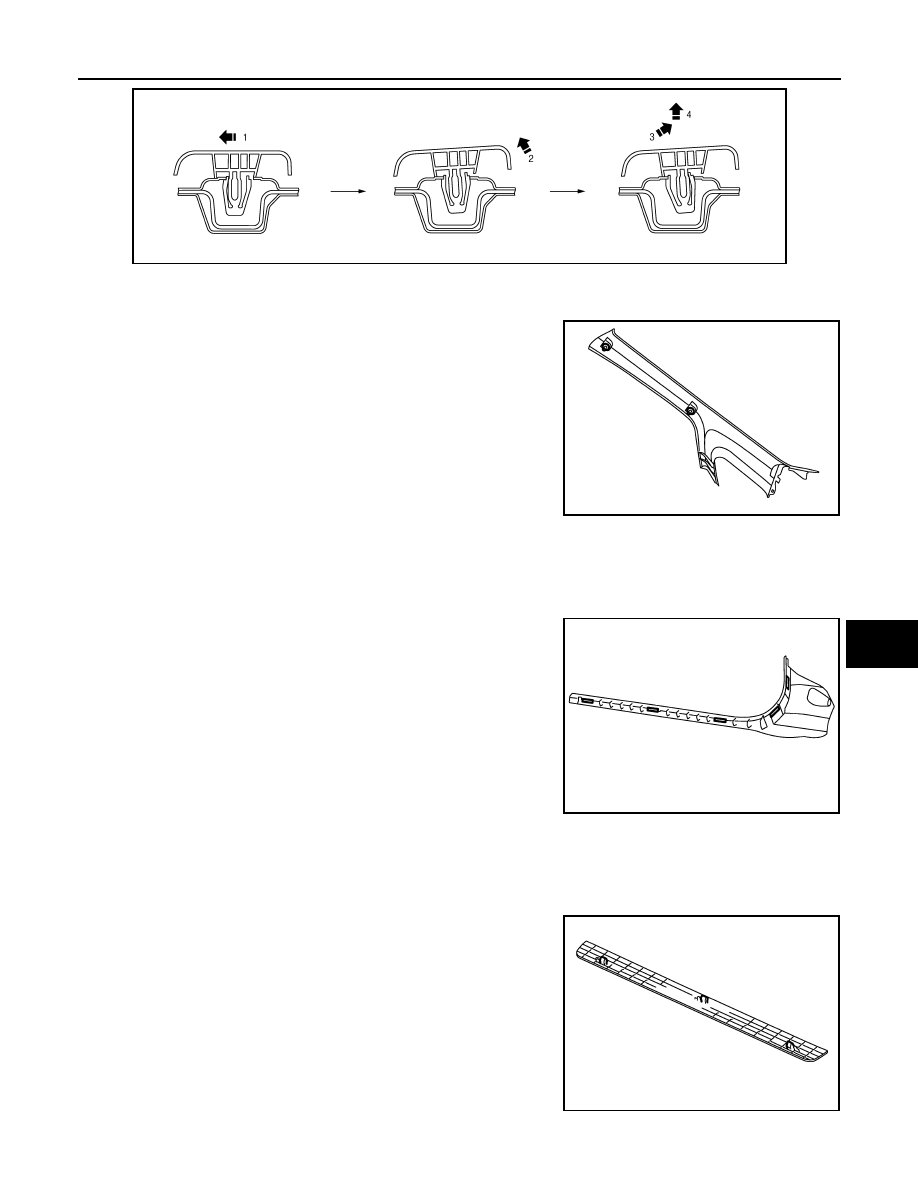

• When releasing molded-in pawls or resin clips, follow the

steps below to prevent garnish or clip damage.

AWJIA0061ZZ

1.

Front pillar garnish

2.

Front body side welt

3.

Front kicking plate inner

4.

Front kicking plate outer

5.

Center pillar lower garnish

6.

Rear kicking plate inner

7.

Rear pillar finisher

8.

Rear body side welt

9.

Rear kicking plate outer

10. Center pillar upper garnish

Pawl

Metal clip

Clip

⇐

Vehicle front

SIIA0810E

BODY SIDE TRIM

INT-21

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

FRONT PILLAR GARNISH

Removal

Release the clips, then remove front pillar garnish.

Installation

Installation is in the reverse order of removal.

FRONT KICKING PLATE INNER

Removal

Release the clips, then remove front kicking plate inner.

Installation

Installation is in the reverse order of removal.

FRONT KICKING PLATE OUTER

Removal

Release the clips, then remove front kicking plate outer.

Installation

PIIB2600J

PIIB2569J

PIIB2570J

PIIB2571J
