DOOR OUTSIDE MOLDING

EXT-27

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

4.

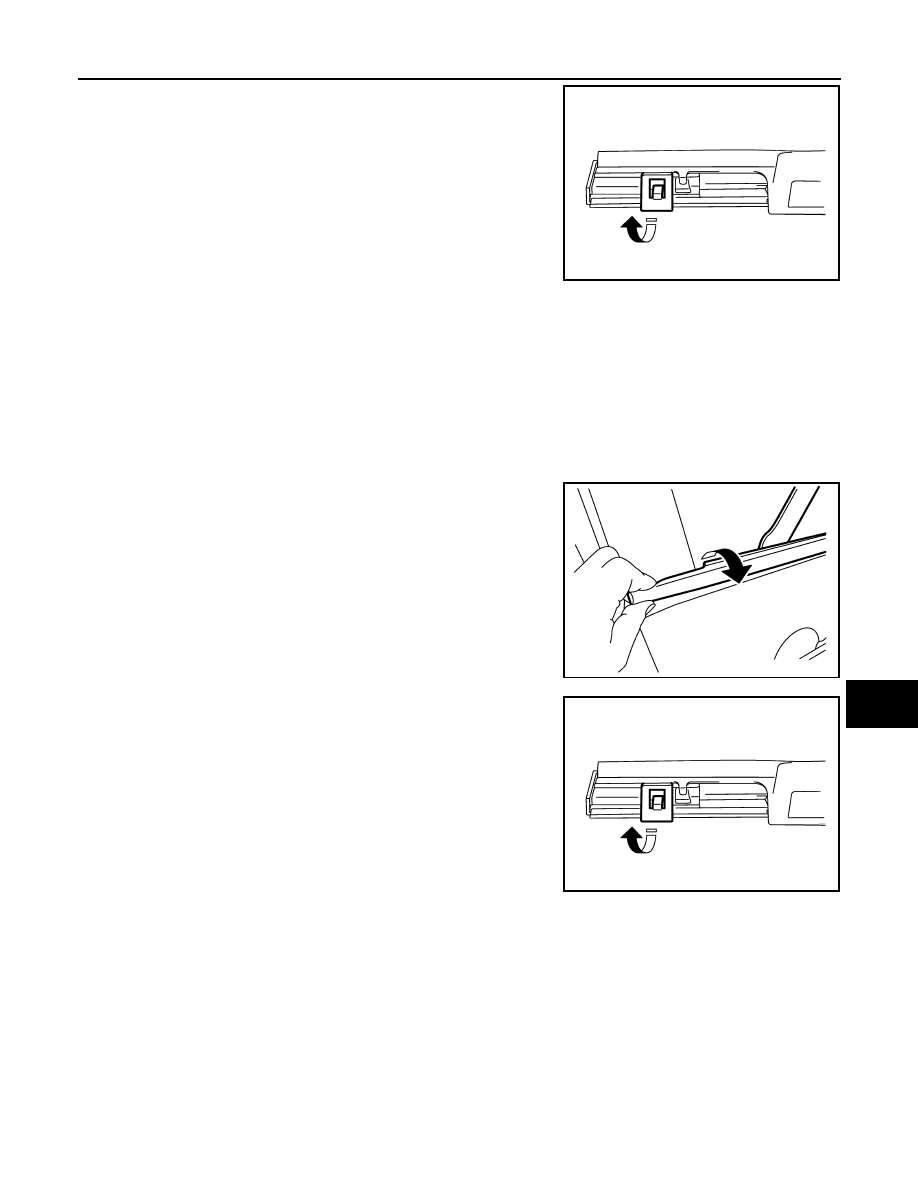

Twist the lower edge of the molding away from the door at the
rear to gain access to the locking tab.

5.

Insert a suitable tool behind the molding pressing the center of
the tab inward to release.

6.

Remove front door outside molding while pulling up after disen-
gaging.

Installation

Installation is in the reverse order of removal.

CAUTION:

• Use care while removing to avoid permanent damage to part from excessive force during removal.
• After removal, visually inspect molding; replace if deformed or damaged.

REAR DOOR OUTSIDE MOLDING

Removal

1.

Open rear door window.

2.

Remove rear door outside molding screw.

3.

While pulling up on rear of rear door outside molding, insert a
suitable tool beneath the molding and release it from the door
top edge.

4.

Twist the lower edge of the molding away from the door at the
front to gain access to the locking tab.

5.

Insert a suitable tool behind the molding pressing the center of
the tab inward to release.

6.

Remove rear door outside molding while pulling up after disen-
gaging.

Installation

Installation is in the reverse order of removal.

CAUTION:

• Use care while removing to avoid permanent damage to part from excessive force during removal.
• After removal, visually inspect molding; replace if deformed or damaged.

REAR DOOR CORNER COVER

Removal

Using a suitable tool, release the clips while pulling outward and remove the rear door corner cover.

Installation

Installation is in the reverse order of removal.

PIIB3388J

PIIB3386J

PIIB3388J

EXT-28

< ON-VEHICLE REPAIR >

CENTER MUD GUARD

CENTER MUD GUARD

Removal and Installation

INFOID:0000000001568937

REMOVAL

1.

Remove center mud guard clips (C205), front and rear.

2.

Remove center mud guard bolts at bottom edge and release double-faced adhesive tape from body side.

3.

Open front and rear doors, then using a suitable tool, detach the clips (C101) and remove the center mud
guard from the body side.

4.

Release the sill cover cap clips, then remove sill cover cap.

INSTALLATION

Installation is in the reverse order of removal.
NOTE:
• Always replace double-faced adhesive tape on back of center mud guard when installing.
• Do not wash vehicle within 24 hours after installation.

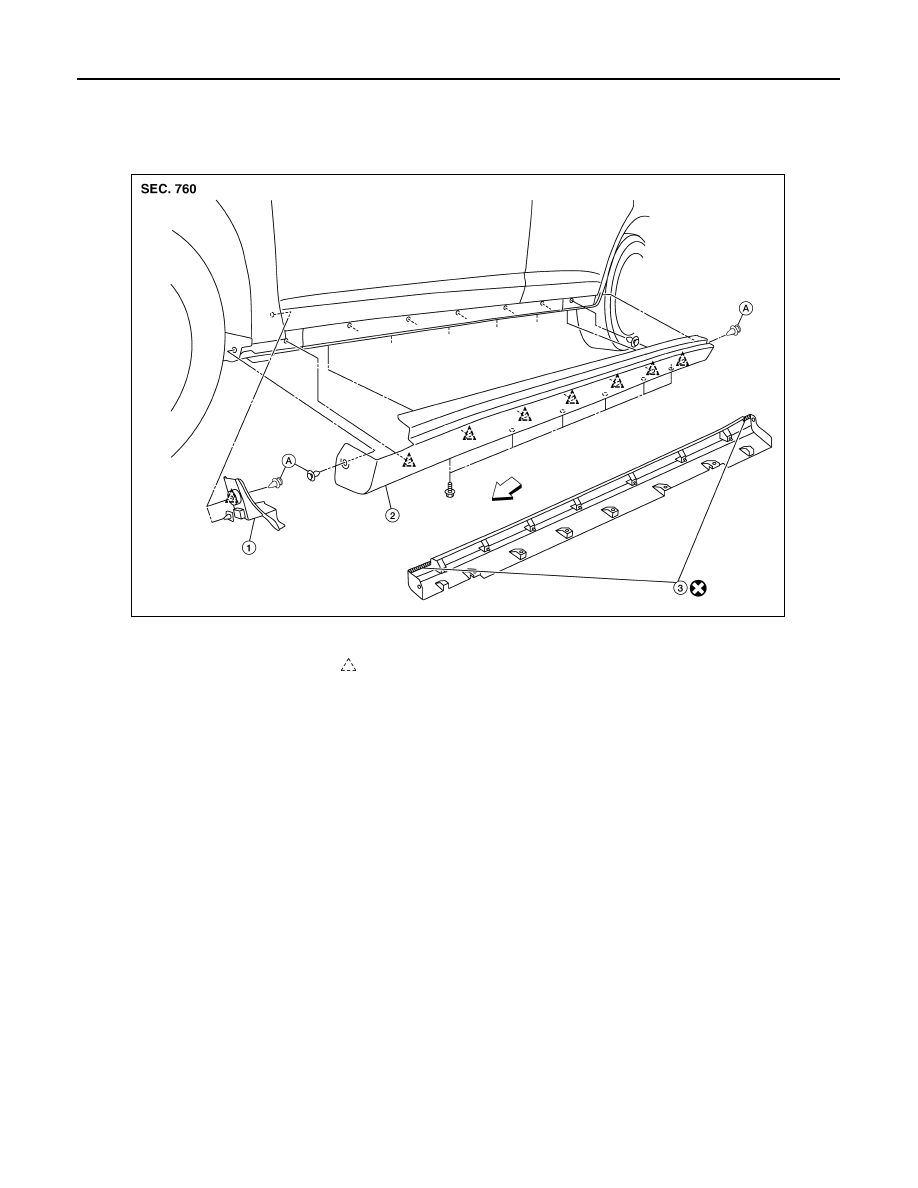

1.

Sill cover cap

2.

Center mud guard

3.

Double-faced adhesive tape

A.

Clip C205

Clip C101

⇐

Vehicle front

AWKIA0099ZZ

TRUNK LID FINISHER

EXT-29

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

TRUNK LID FINISHER

Removal and Installation

INFOID:0000000001568938

REMOVAL

1.

Disconnect the negative and positive battery terminals.

2.

Open trunk lid, remove the trunk lid finisher inner. Refer to

INT-17, "Removal and Installation"

.

3.

Remove the trunk lid finisher outer nuts.

4.

Disconnect the trunk lid opener switch connector and trunk opener request switch connector, then remove
the trunk lid finisher outer.

5.

Release the clips, then pull the trunk lid finisher outer away from the trunk lid.

INSTALLATION

Installation is in the reverse order of removal.
NOTE:
During installation, make sure switch harness grommet is fully seated into trunk lid opening prior to final to
trunk lid finisher replacement.

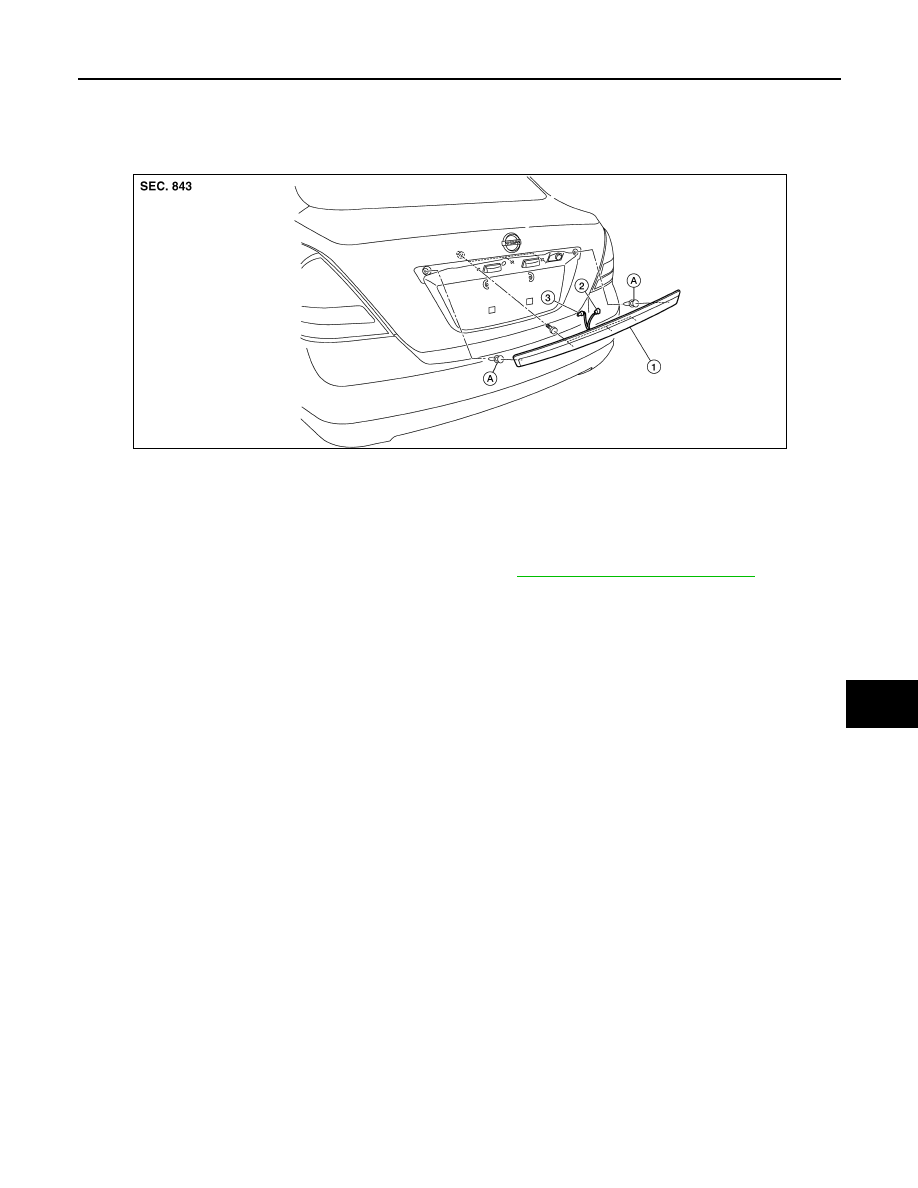

1.

Trunk lid finisher outer

2.

Trunk lid opener switch connector

3.

Trunk opener request switch connector

A.

Clip C101

WIIA1413E

EXT-30

< ON-VEHICLE REPAIR >

REAR AIR SPOILER

REAR AIR SPOILER

Removal and Installation

INFOID:0000000001568939

Removal

1.

Disconnect the negative and positive battery cables.

2.

Remove back door finisher upper. Refer to

INT-35, "Removal and Installation"

.

3.

Disconnect high mounted stop lamp connector.

4.

Remove the nuts and carefully lift the rear air spoiler from the back door.

CAUTION:

Use care not to damage painted surfaces during removal of, or releasing adhesive backed foam
tapes if equipped.

5.

Release the high mounted stop lamp harness grommet from back door, then remove rear air spoiler.

Installation

Installation is in the reverse order of removal.
NOTE:
• Before installing rear air spoiler, clean the surface where it will be mounted with isopropyl alcohol or equiva-

lent to degrease the surface.

• Before installing, be sure there are no gaps or waves in the foam tape (if equipped) where the surfaces

meet.

• During installation, be sure grommet of high mounted stop lamp harness is fully seated into back door open-

ing prior to final rear air spoiler placement.

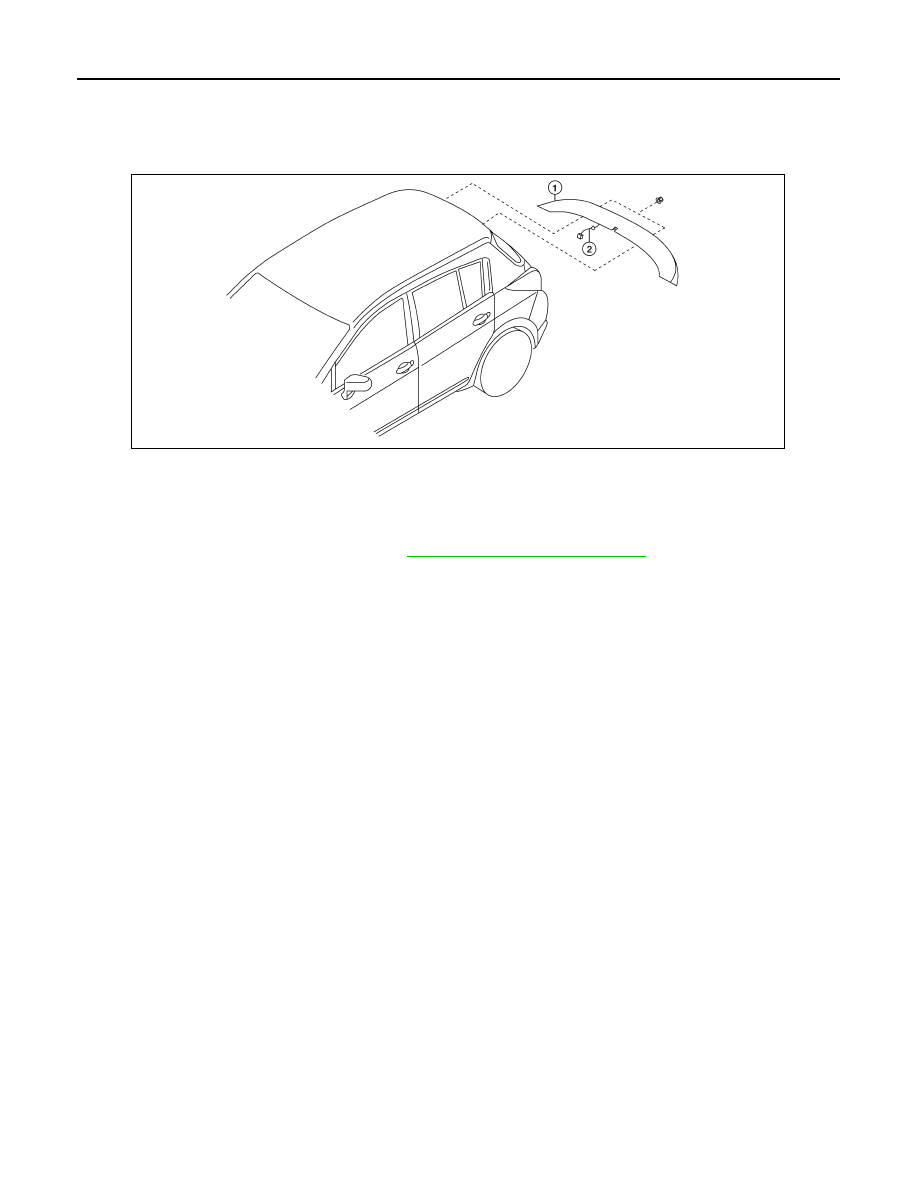

1.

Rear air spoiler assembly

2.

High mounted stop lamp harness

LIIA2922E
