Nissan Tiida C11. Manual - part 781





FRONT GRILLE

EXT-19

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

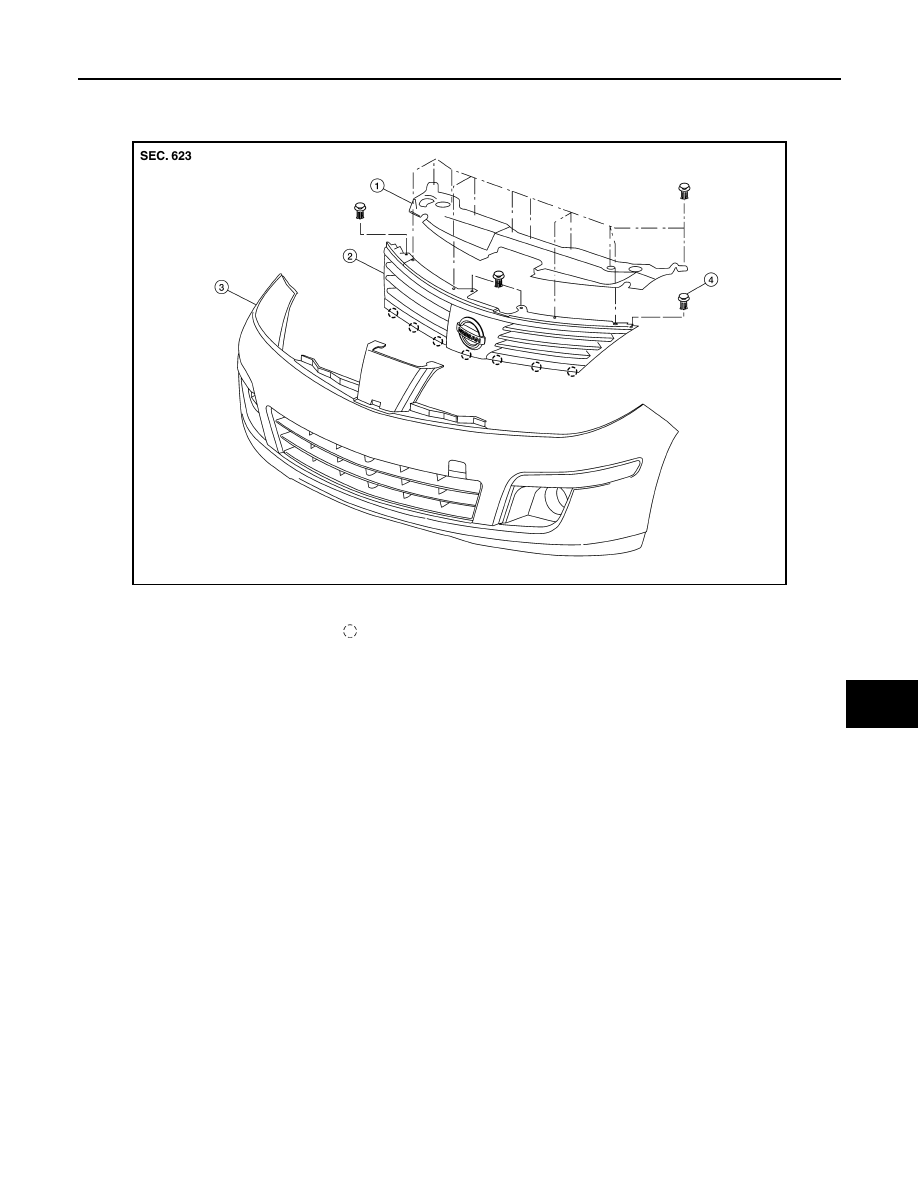

FRONT GRILLE

Removal and Installation

INFOID:0000000001568929

REMOVAL

1.

Open hood assembly.

2.

Remove the clips, then remove upper radiator cover.

3.

Remove the upper clips and release the lower pawls, then pull outward to remove the front grille.

INSTALLATION

Installation is in the reverse order of removal.

LIIA2564E

1.

Upper radiator cover

2.

Front grille

3.

Front bumper fascia

4.

Clip C205

Pawl

EXT-20

< ON-VEHICLE REPAIR >

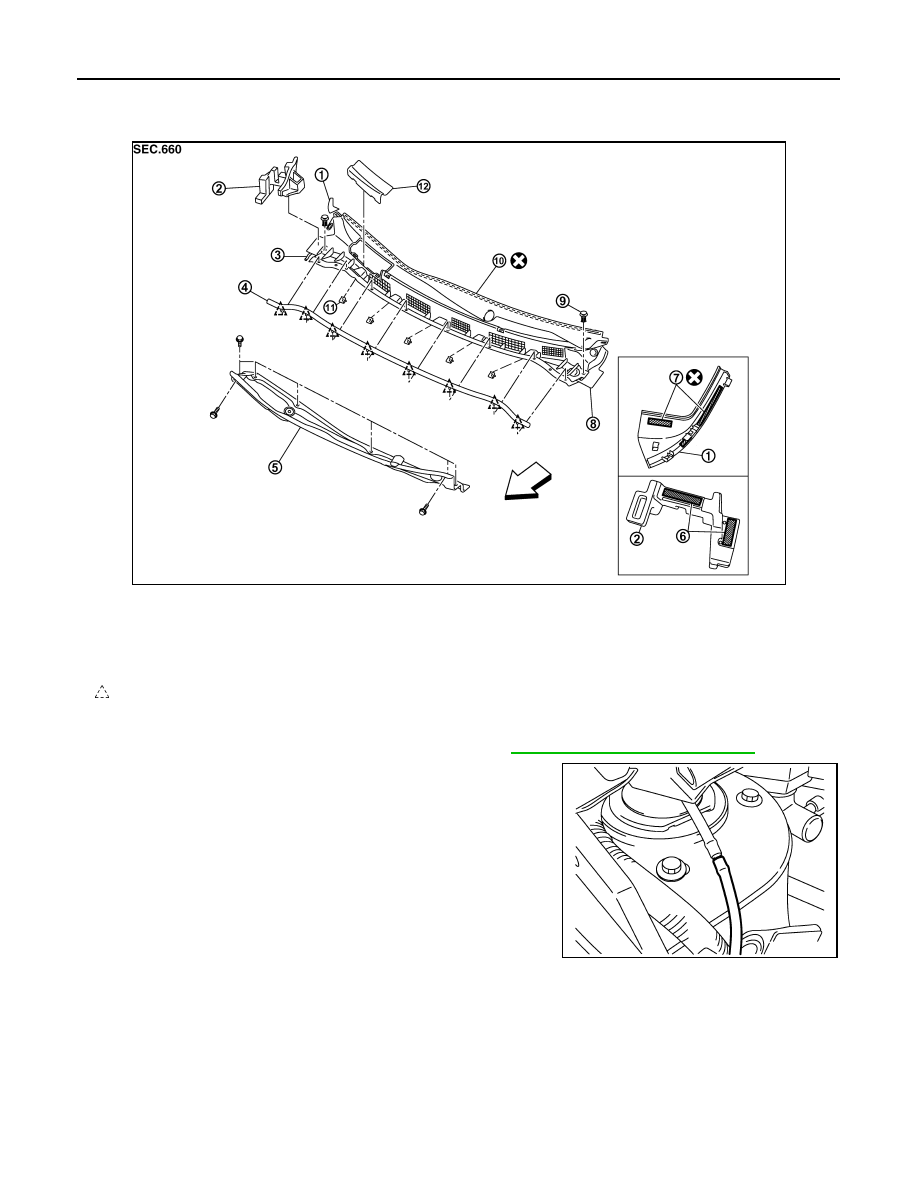

COWL TOP

COWL TOP

Removal and Installation

INFOID:0000000001568930

REMOVAL

1.

Remove the front wiper arm RH/LH from vehicle. Refer to

WW-70, "Removal and Installation"

.

2.

Disconnect the washer tube.

3.

Remove the fender seal and fender cover RH/LH.

4.

Release the cowl top seal clips, then remove the cowl top seal.

LIIA2565E

1.

Fender cover

2.

Fender seal

3.

Washer tube

4.

Cowl top seal

5.

Cowl extension panel

6.

Dual lock fastener

7.

Double-faced adhesive tape

8.

Cowl top cover

9.

Clip C205

10. EPT sealer

11. Cowl extension clip

12. Cover

Clip CE103

Vehicle front

PIIB2555J

COWL TOP

EXT-21

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

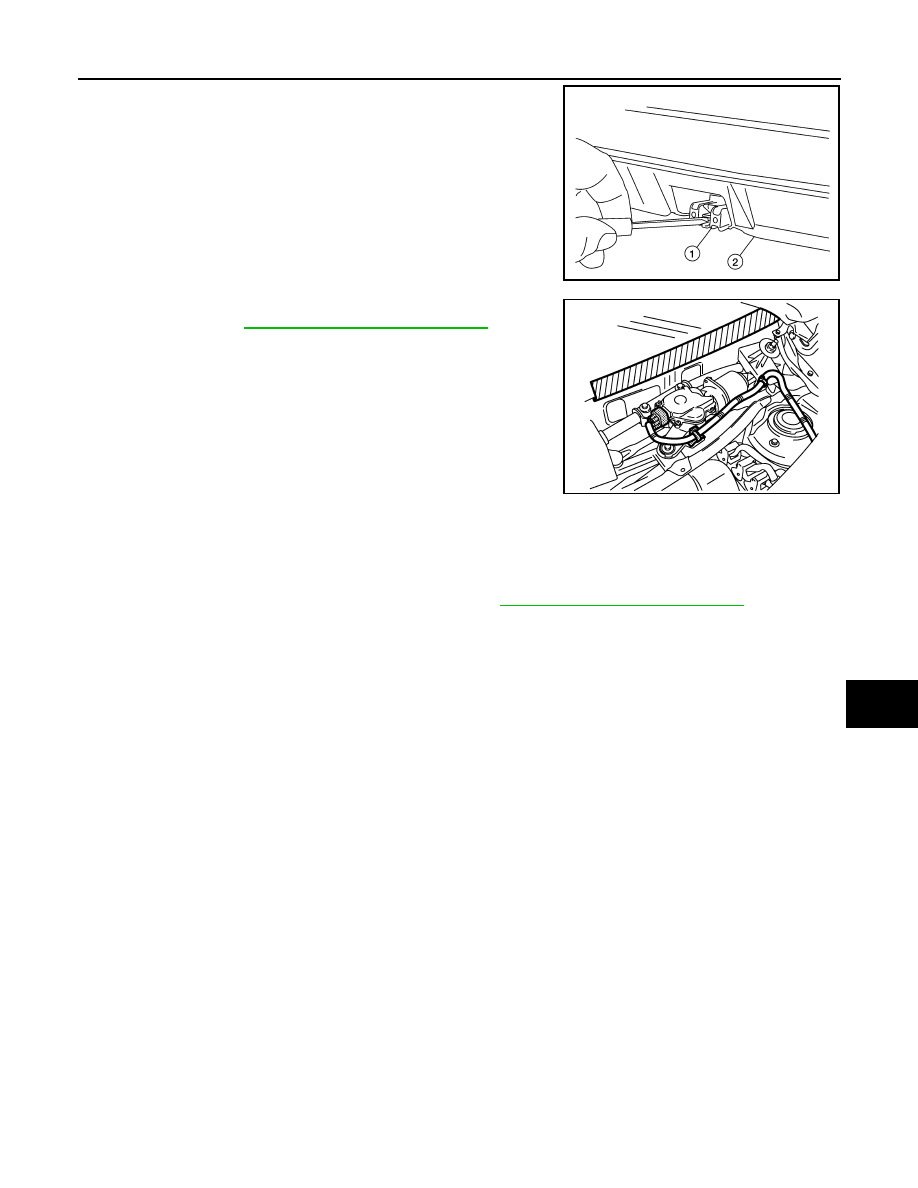

5.

Release the cowl extension clip (1) by prying the center pawls
apart and pulling clip outward. Remove the remaining clips, then
remove the cowl top cover (2).

6.

Disconnect and remove the front wiper motor and linkage
assembly. Refer to

WW-73, "Removal and Installation"

.

CAUTION:

To avoid damage, make sure to cover the lower edge of
windshield with suitable protection material.

7.

Remove the cowl extension panel bolts, then remove the cowl extension panel.

INSTALLATION

Installation is in the reverse order of removal.
NOTE:
• For wiper arm RH/LH installation and adjustment, Refer to

WW-70, "Removal and Installation"

.

• Always replace EPT sealer and double-faced adhesive tape when installing cowl top cover.

LIIA2566E

PIIB6038E

EXT-22

< ON-VEHICLE REPAIR >

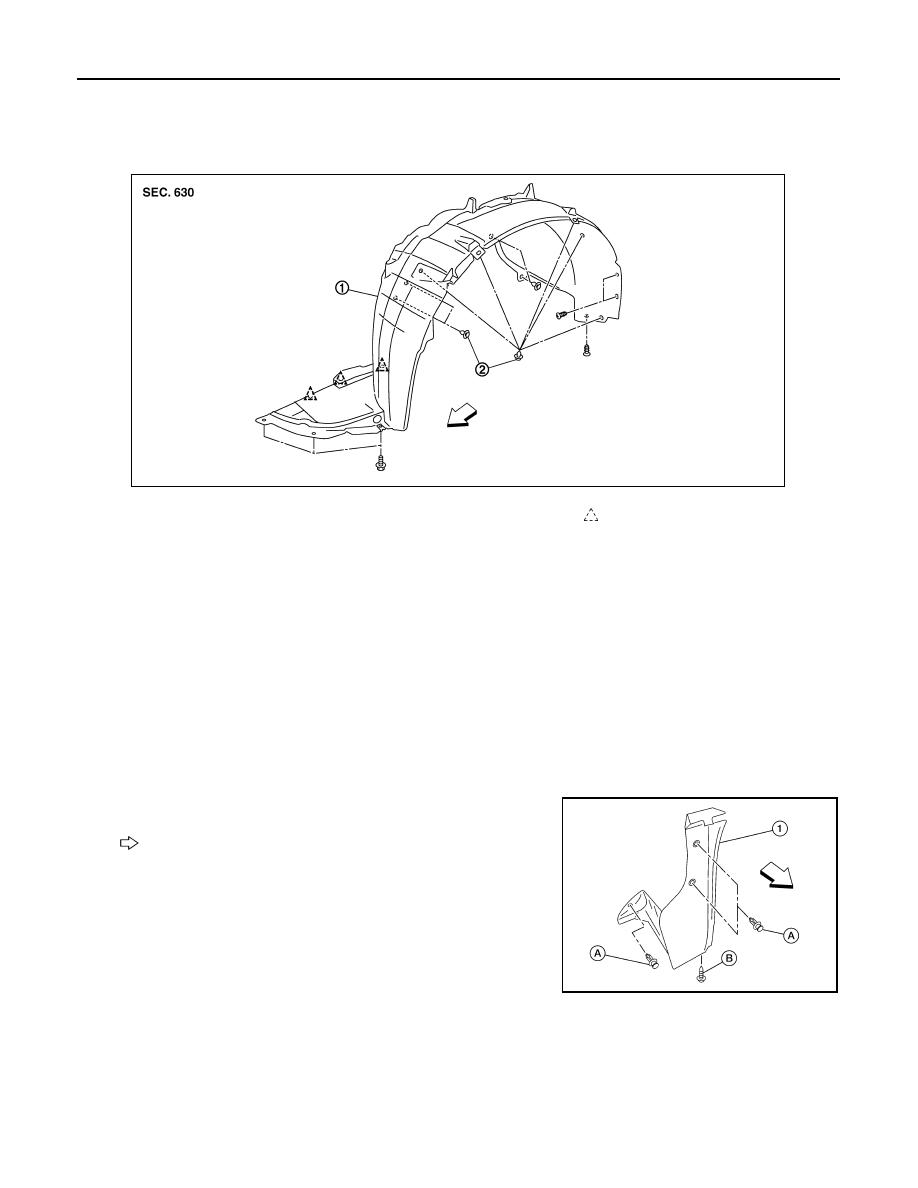

FENDER PROTECTOR

FENDER PROTECTOR

Component

INFOID:0000000001568931

Removal and Installation

INFOID:0000000001568932

FRONT FENDER PROTECTOR

Removal

1.

Remove the front fender protector bolts and clips.

2.

Remove the front fender protector.

Installation

Installation is in the reverse order of removal.

REAR FENDER PROTECTOR

Removal

1.

Remove the rear fender protector bolt (B) and clips (A) (C205).

2.

Remove the rear fender protector (1).

: Front

Installation

Installation is in the reverse order of removal.

1.

Front fender protector

2.

Clip C205

Clip C103

Vehicle front

AWKIA0101ZZ

AWKIA0100ZZ
