REAR BUMPER

EXT-15

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

REAR BUMPER

Component

INFOID:0000000001568926

Hatchback Models

Removal and Installation - Hatchback

INFOID:0000000001568927

REMOVAL

1.

Open back door.

2.

Remove rear combination lamp RH/LH. Refer to

EXL-93, "Removal and Installation"

.

3.

Remove rear bumper fascia spring nuts and screws RH/LH.

4.

Remove rear fender protector. Refer to

EXT-22, "Removal and Installation"

.

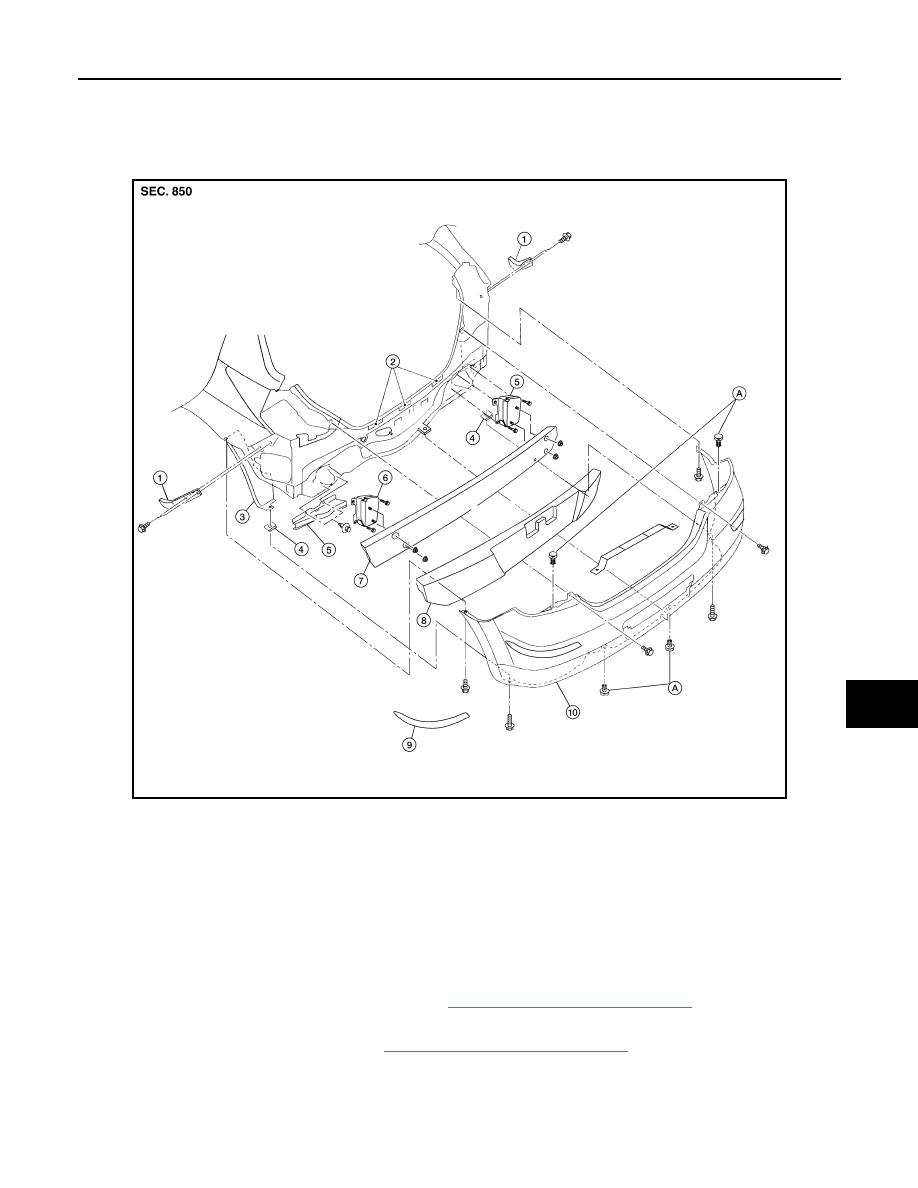

AWKIA0102ZZ

1.

Bumper side bracket

2.

Rear bumper upper retainer

3.

Rear fender protector

4.

Spring nut

5.

Lower panel

6.

Rear bumper bracket

7.

Rear bumper reinforcement

8.

Energy absorbing foam

9.

Rear bumper molding RH/LH

10. Rear bumper fascia

A.

Clip C205

EXT-16

< ON-VEHICLE REPAIR >

REAR BUMPER

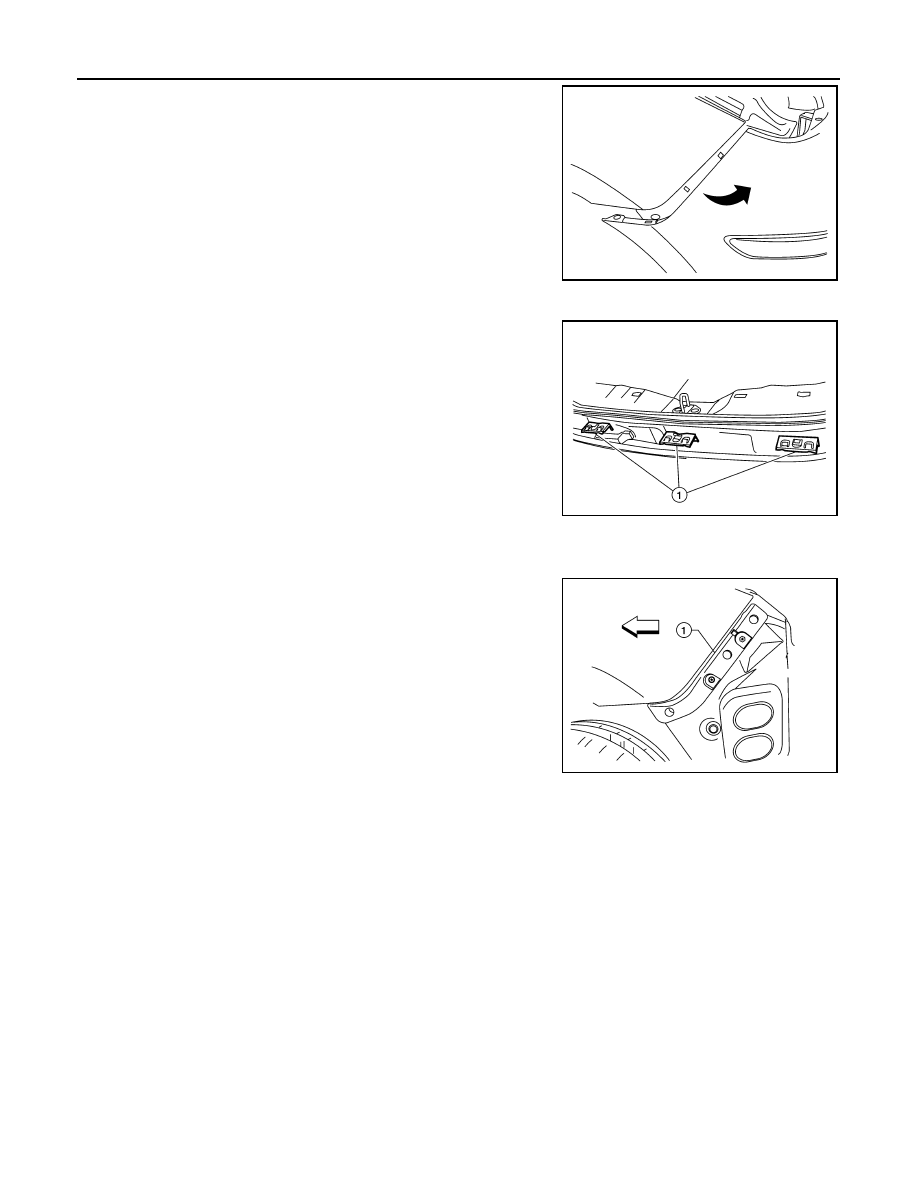

5.

Pull the rear bumper fascia side outward and release the
bumper side bracket.

6.

Remove rear bumper fascia upper clips and screws.

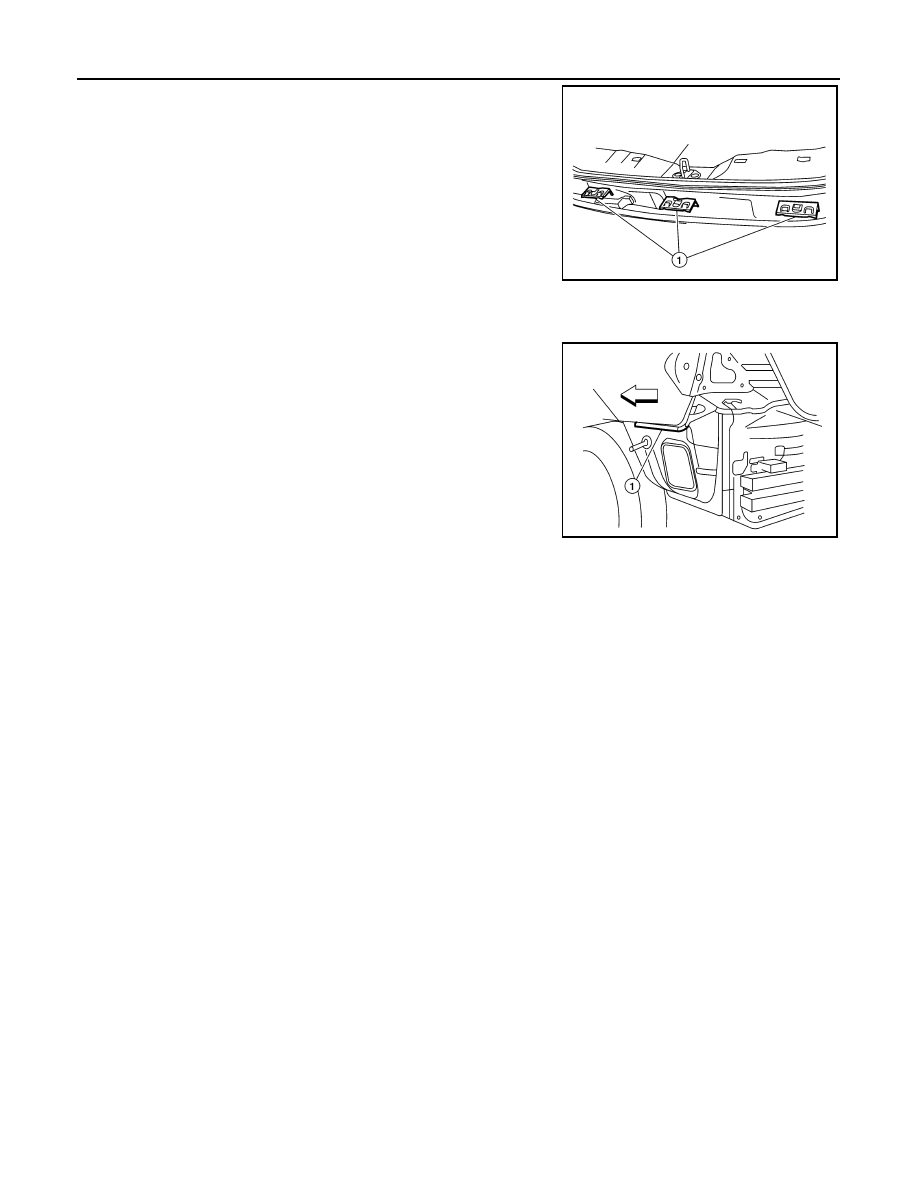

7.

Release rear bumper upper retainer (1), then pull rear bumper
fascia outward away from rear of vehicle.

8.

Disconnect license lamp connector.

9.

Remove energy absorbing foam and rear bumper reinforcement.

10. Remove the bumper side bracket (1) RH/LH.

INSTALLATION

Installation is in the reverse order of removal.

LIIA2579E

LIIA2580E

LIIA2581E

REAR BUMPER

EXT-17

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

Removal and Installation - Sedan

INFOID:0000000001568928

Sedan Models

REMOVAL

1.

Open trunk lid.

2.

Remove rear combination lamp RH/LH. Refer to

EXL-93, "Removal and Installation"

.

3.

Remove rear bumper fascia spring nuts and screws RH/LH.

4.

Remove rear fender protector. Refer to

EXT-22, "Removal and Installation"

.

5.

Pull the rear bumper fascia side outward and release the bumper side bracket.

6.

Remove rear bumper fascia upper clips and screws.

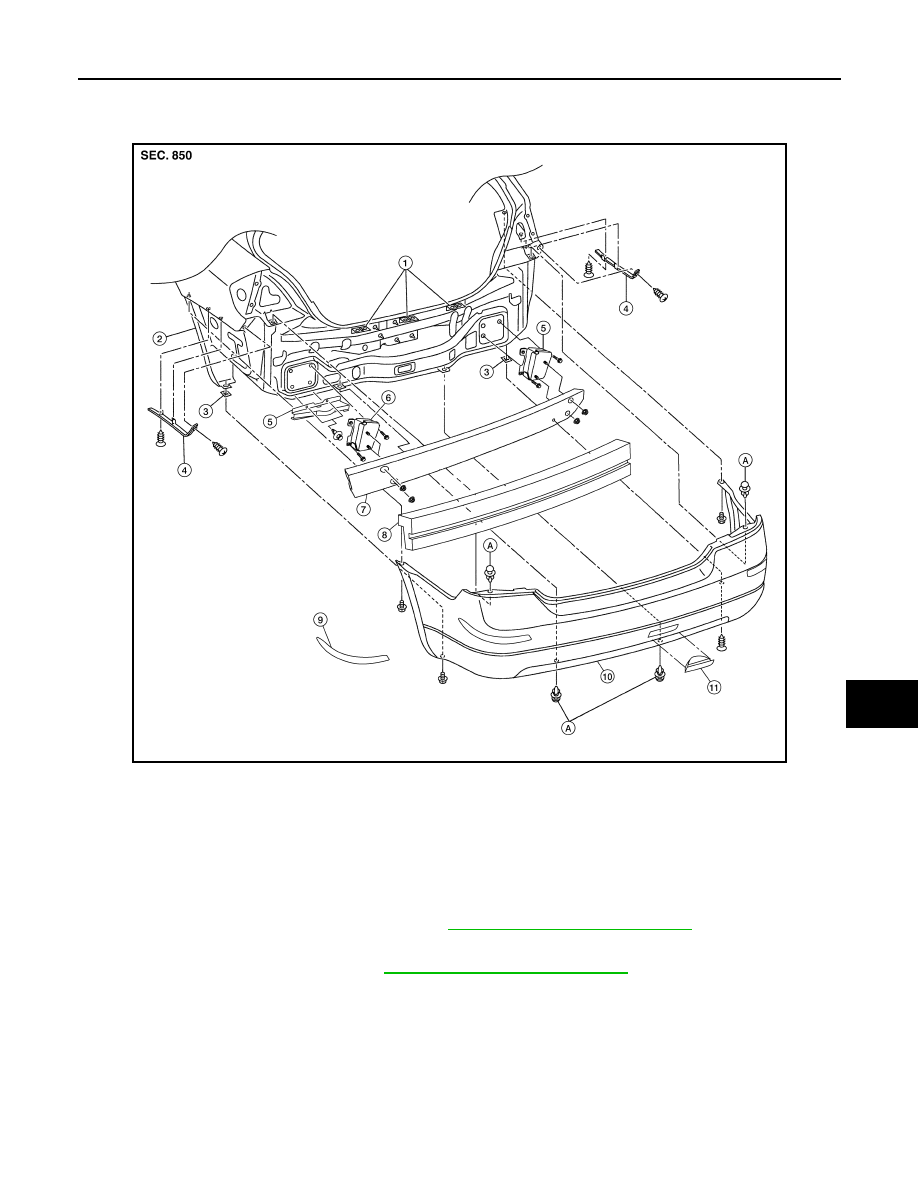

AWKIA0103ZZ

1.

Rear bumper upper retainer

2.

Rear fender protector

3.

Spring nut

4.

Bumper side bracket

5.

Lower panel

6.

Bumper reinforcement bracket

7.

Rear bumper reinforcement

8.

Energy absorbing foam

9.

Rear bumper molding RH,LH

10. Rear bumper fascia

11.

Rear bumper fog lamp (if equipped)

A.

Clip C205

EXT-18

< ON-VEHICLE REPAIR >

REAR BUMPER

7.

Release rear bumper upper retainer (1), then pull rear bumper
fascia outward away from rear of vehicle.

8.

Disconnect the rear fog lamp harness and remove the rear fog lamp.

9.

Remove energy absorbing foam and rear bumper reinforcement.

10. Remove the bumper side bracket (1) RH/LH.

INSTALLATION

Installation is in the reverse order of removal.

LIIA2580E

LIIA2921E
