EXL-102

< ON-VEHICLE REPAIR >

HAZARD SWITCH

HAZARD SWITCH

Removal and Installation

INFOID:0000000001529305

REMOVAL

1.

Remove the cluster lid C. Refer to

IP-11, "Removal and Installation"

.

2.

Disconnect the hazard switch connector.

3.

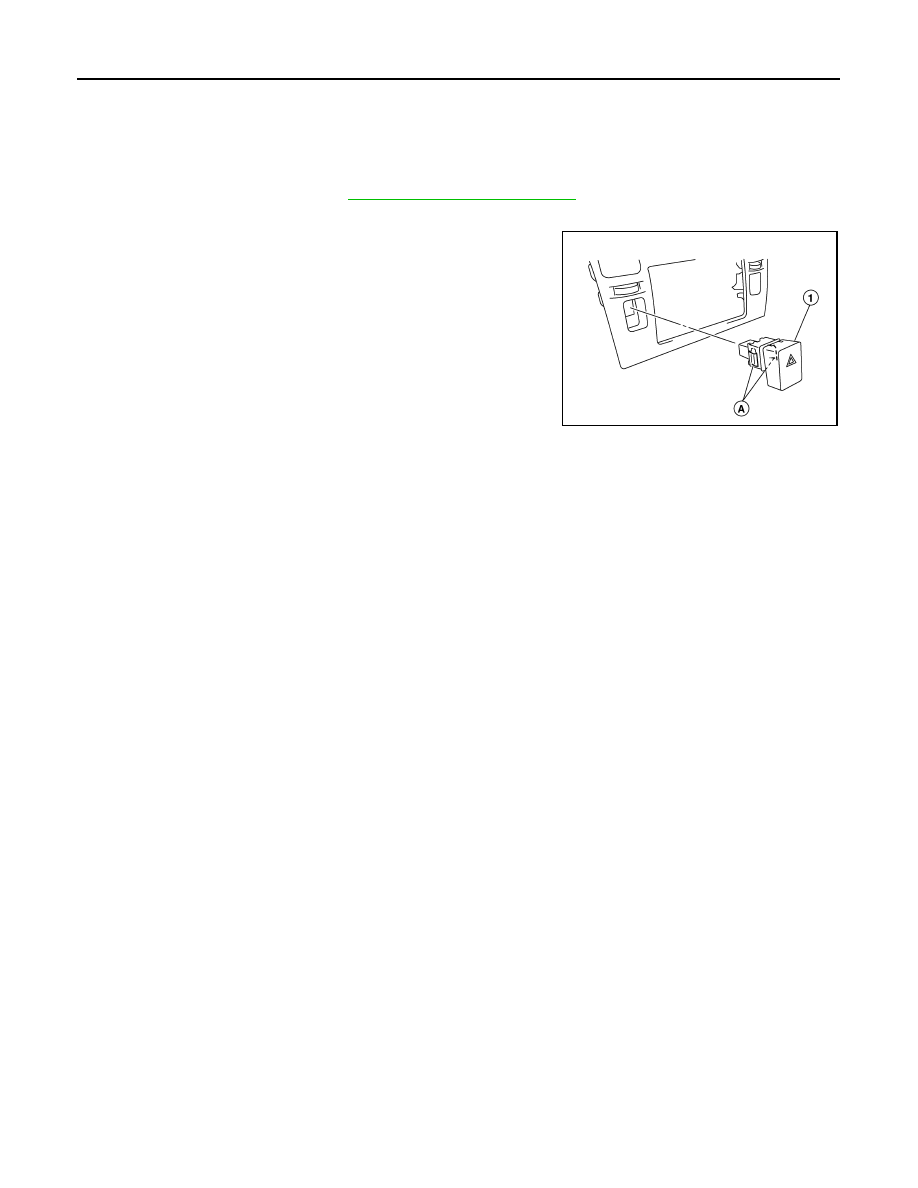

Press in on pawl (A) on the back of the hazard switch (1), and
remove the hazard switch (1).

INSTALLATION

Installation is in the reverse order of removal.

WKIA5421E

BULB SPECIFICATIONS

EXL-103

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

BULB SPECIFICATIONS

Headlamp

INFOID:0000000001529358

Exterior Lamp

INFOID:0000000001529359

Item

Wattage

High/Low (Halogen type)

60/55 (H4)

High/Low (Xenon type)

35

Item

Wattage (description)

Front combination lamp

Turn signal lamp

21 (amber)

Parking (clearance) lamp

5 (white)

Front fog lamp (Halogen type)

35 (H8)

Side turn signal lamp

5 (amber)

Rear combination lamp

Stop/Tail lamp

21/5 (white)

Turn signal lamp

21 (amber)

Back-up lamp

21 (white)

Rear fog lamp

21 (white)

High-mounted stop lamp

Hatchback

LED

Sedan

18 (white)

License plate lamp

5 (white)

EXT-1

BODY EXTERIOR, DOORS, ROOF & VEHICLE SECURITY

C

D

E

F

G

H

I

J

L

M

SECTION

EXT

A

B

EXT

N

O

P

CONTENTS

EXTERIOR

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

2

Precaution .................................................................

2

PREPARATION ............................................

3

PREPARATION ...................................................

3

Special Service Tool  .................................................

3

Commercial Service Tool  ..........................................

3

ON-VEHICLE MAINTENANCE .....................

4

SQUEAK AND RATTLE TROUBLE DIAGNO-
SIS .......................................................................

4

Work Flow  .................................................................

4

Generic Squeak and Rattle Troubleshooting  ............

6

Diagnostic Worksheet  ...............................................

8

ON-VEHICLE REPAIR .................................

10

CLIP AND FASTENER .......................................

10

Description ..............................................................

10

FRONT BUMPER  ...............................................

13

Removal and Installation .........................................

13

REAR BUMPER  ................................................

15

Component ..............................................................

15

Removal and Installation - Hatchback  .....................

15

Removal and Installation - Sedan ............................

17

FRONT GRILLE  ................................................

19

Removal and Installation  .........................................

19

COWL TOP  .......................................................

20

Removal and Installation  .........................................

20

FENDER PROTECTOR  ....................................

22

Component ..............................................................

22

Removal and Installation  .........................................

22

ROOF SIDE MOLDING  .....................................

23

Component ..............................................................

23

Removal and Installation  .........................................

23

DOOR OUTSIDE MOLDING  .............................

25

Component ..............................................................

25

Removal and Installation  .........................................

26

CENTER MUD GUARD .....................................

28

Removal and Installation  .........................................

28

TRUNK LID FINISHER ......................................

29

Removal and Installation  .........................................

29

REAR AIR SPOILER .........................................

30

Removal and Installation  .........................................

30

EXT-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000001568917

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SRS section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

Precaution

INFOID:0000000001568918

• When removing or disassembling any part, be careful not to damage or deform it. Protect parts which may

get in the way with cloth.

• When removing parts with a screwdriver or other tool, protect parts by wrapping them with vinyl or tape.
• Keep removed parts protected with cloth.
• If a clip is deformed or damaged, replace it.
• If an unreusable part is removed, replace it with a new one.
• Tighten bolts and nuts firmly to the specified torque.
• After re-assembly has been completed, make sure each part functions correctly.
• Remove stains in the following way.
- Water-soluble stains:

Dip a cloth in warm water, and squeeze tightly. After wiping the stain, wipe with a soft dry cloth.

- Oil stain:

Dissolve a synthetic detergent in warm water (density of 2 to 3% or less), dip the cloth, then clean off the
stain with the cloth. Next, dip the soft cloth in fresh water, and then squeeze it tightly. Then clean off the
detergent completely. Then wipe the area with a soft dry cloth.

• Do not use any organic solvent, such as thinner or benzine.

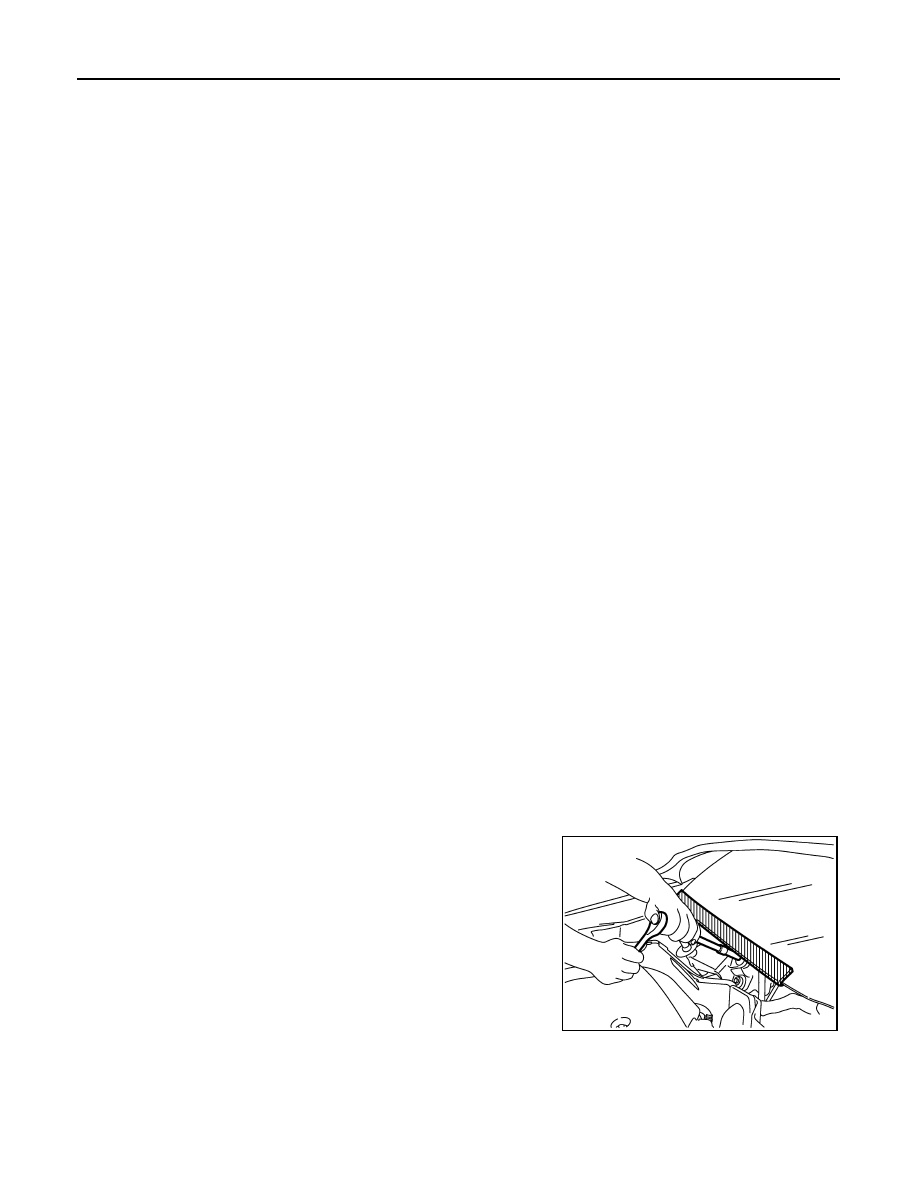

• When performing procedures that require removal of the cowl top,

cover the lower end of the windshield with a suitable protection
material.

PIIB3706J
