Nissan Tiida C11. Manual - part 774

EXL-94

< ON-VEHICLE REPAIR >

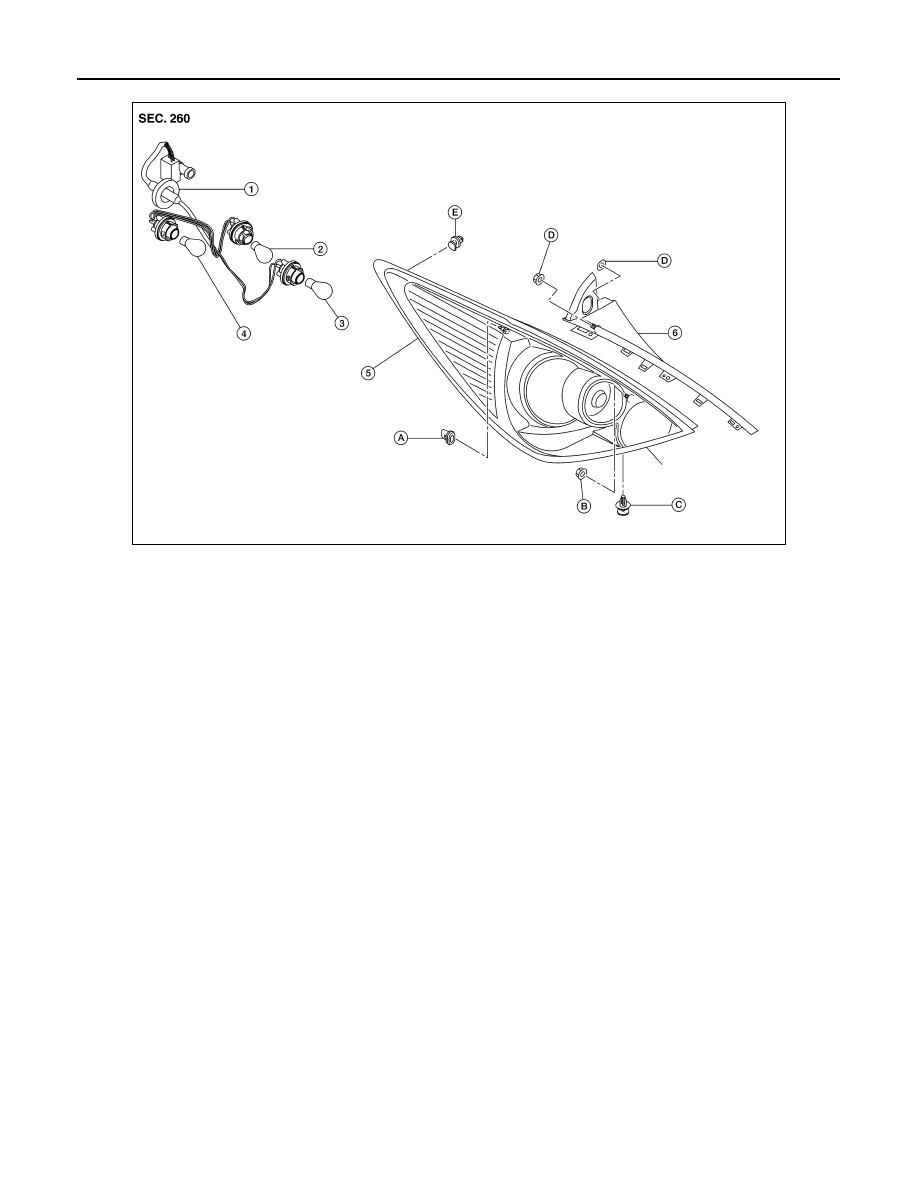

REAR COMBINATION LAMP

Hatchback

LKIA0760E

1.

Rear combination lamp harness

2.

Turn signal lamp bulb

3.

Back-up lamp bulb

4.

Stop/tail lamp bulb

5.

Rear combination lamp housing assembly

6.

Bumper stay

A.

Grommet

B.

Nut

C.

Clip

D.

Nuts

E.

Clip

REAR COMBINATION LAMP

EXL-95

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

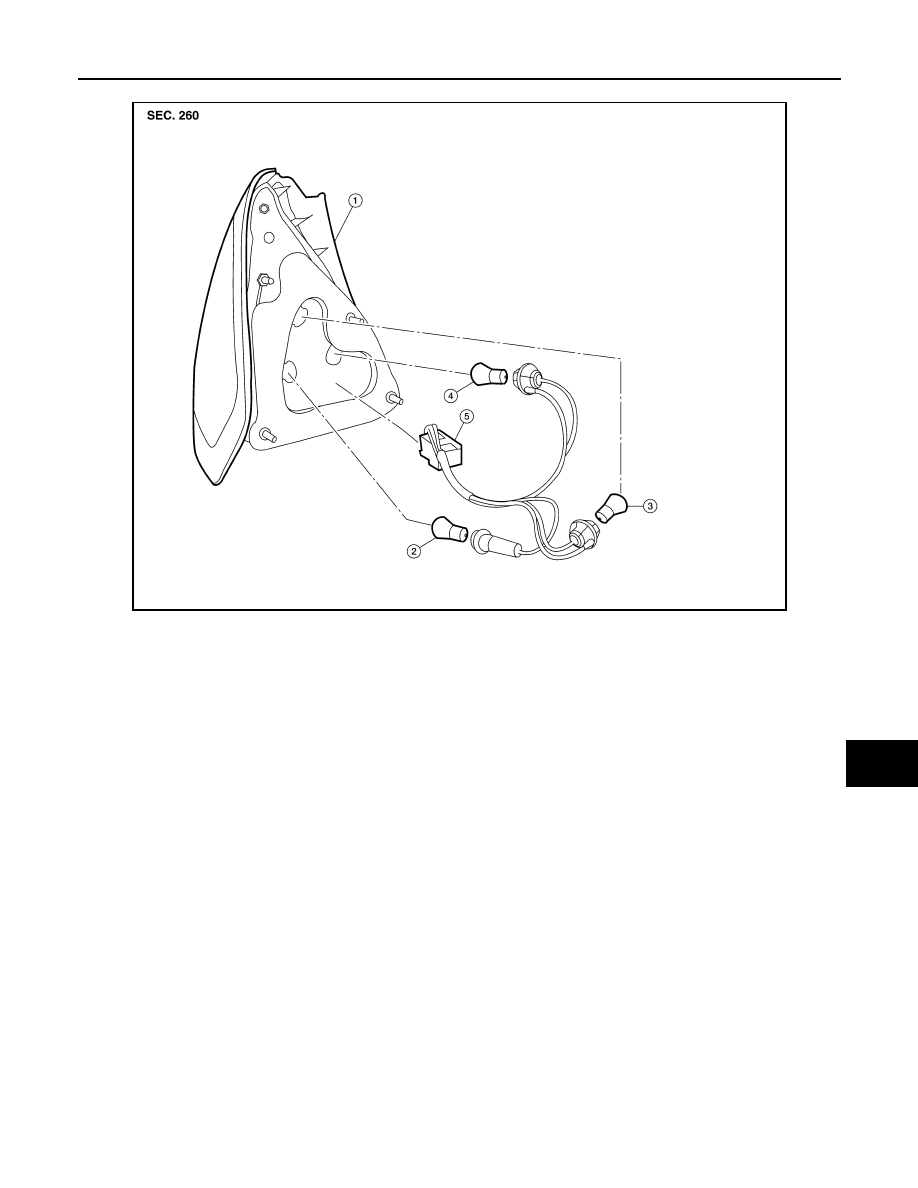

Sedan

DISSASEMBLY

1.

Remove the rear combination lamp harness.

2.

Remove the bulbs from the rear combination lamp harness, as necessary.

3.

Remove the bumper stay (hatchback only).

4.

Remove the rear combination lamp seal (sedan only).

ASSEMBLY

Assembly is in the reverse order of disassembly.

ALLIA0316ZZ

1.

Rear combination lamp

2.

Back-up lamp bulb

3.

Turn signal lamp bulb

4.

Stop/tail lamp bulb

5.

Rear combination lamp harness

EXL-96

< ON-VEHICLE REPAIR >

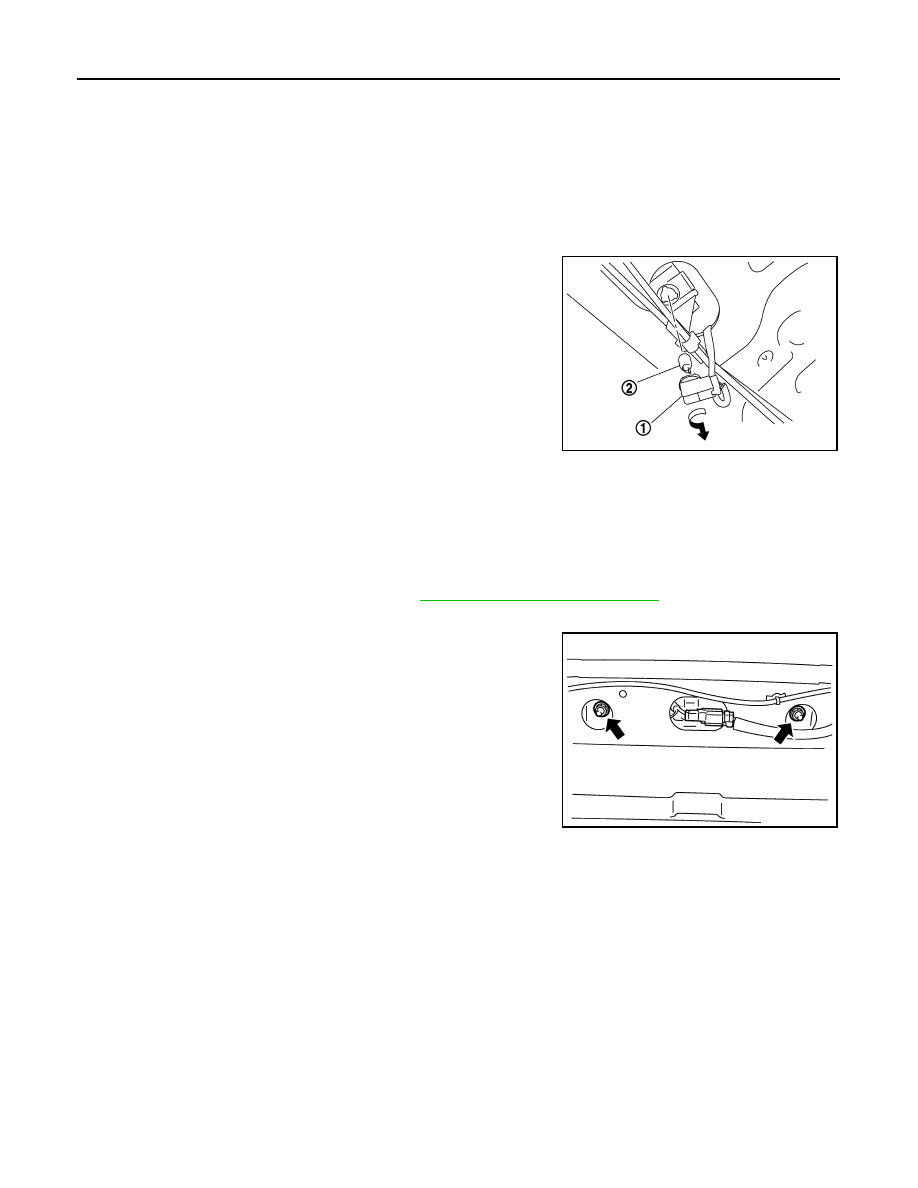

HIGH-MOUNTED STOP LAMP

HIGH-MOUNTED STOP LAMP

Bulb Replacement

INFOID:0000000001530528

HATCHBACK

The LED element is not serviced separately, the high-mounted stop lamp must be replaced as an assembly.

SEDAN

1.

Open the luggage compartment lid to access the high-mounted stop lamp.

2.

Remove the high-mounted stop lamp bulb socket (1) and
remove the high-mounted stop lamp (2).

3.

Installation is in the reverse order of removal.

Removal and Installation

INFOID:0000000001530529

HATCHBACK

Removal

1.

Remove the rear hatch finish panel. Refer to

INT-18, "Removal and Installation"

.

2.

Disconnect the high-mounted stop lamp connector.

3.

Remove the high-mounted stop lamp nuts as shown.

4.

Remove the high-mounted stop lamp from the rear hatch.

Installation

Installation is in the reverse order of removal.

CAUTION:

Properly seal the high-mounted stop lamp base to the rear hatch to prevent water leaks.

SEDAN

Removal

1.

Open the luggage compartment lid to access the high-mounted stop lamp.

PKIC1021E

SKIB7594E

HIGH-MOUNTED STOP LAMP

EXL-97

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

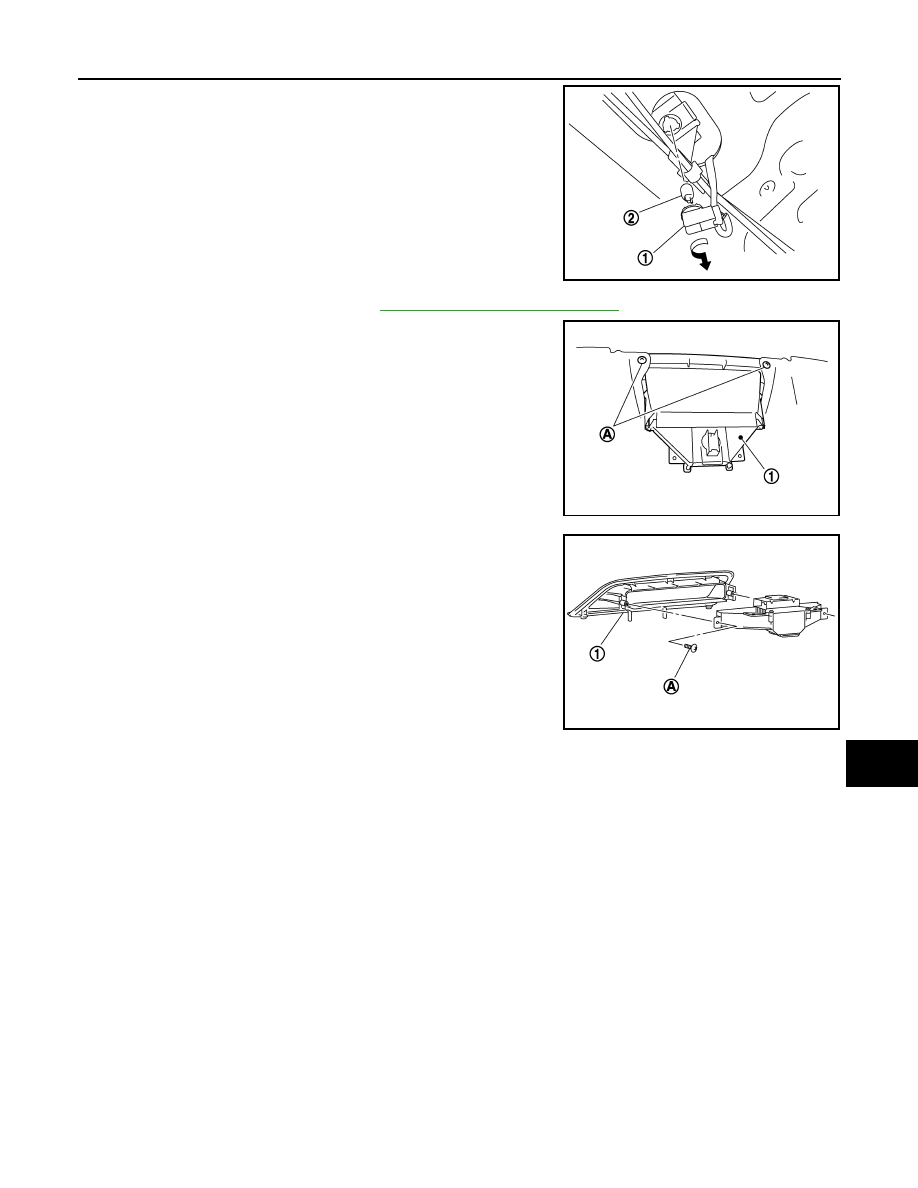

2.

Remove the high-mounted stop lamp bulb socket (1) and
remove the high-mounted stop lamp (2).

3.

Remove the rear parcel shelf. Refer to

INT-26, "Removal and Installation"

.

4.

Remove the high-mounted stop lamp screws (A) and remove
the high-mounted stop lamp (1).

5.

Remove the high-mounted stop lamp finisher screws (A) and
remove the high-mounted stop lamp finisher (1).

Installation

Installation is in the reverse order of removal.

PKIC1021E

PKIC1022E

PKIC1023E
