LICENSE PLATE LAMP

LICENSE PLATE LAMP

Bulb Replacement

INFOID:0000000001530532

HATCHBACK

1.

Remove the license plate lamp. Refer to

INT-35, "Removal and Installation"

.

2.

Turn the bulb socket counterclockwise to unlock it.

3.

Remove the bulb from the socket.

4.

Installation is in the reverse order of removal.

SEDAN

1.

Remove the trunk lid finisher. Refer to

INT-35, "Removal and Installation"

.

2.

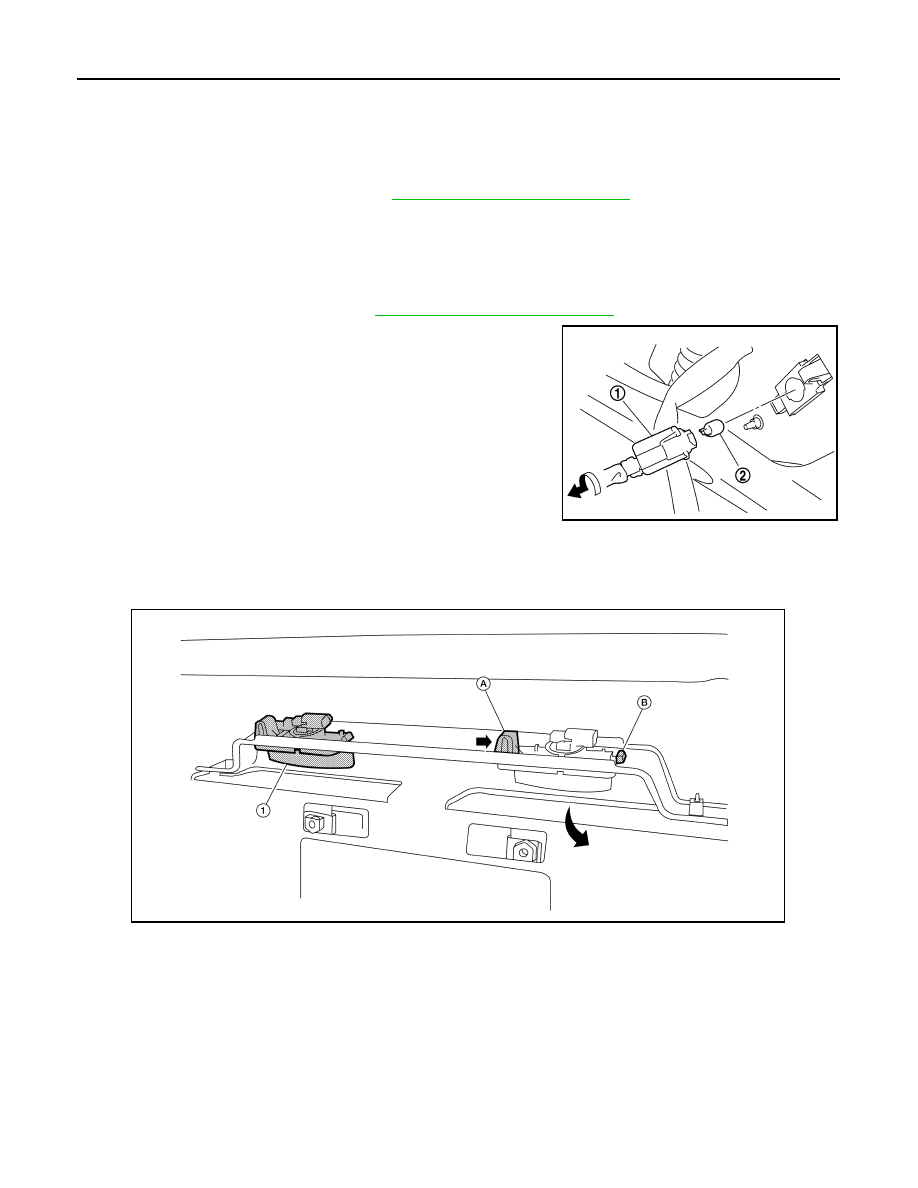

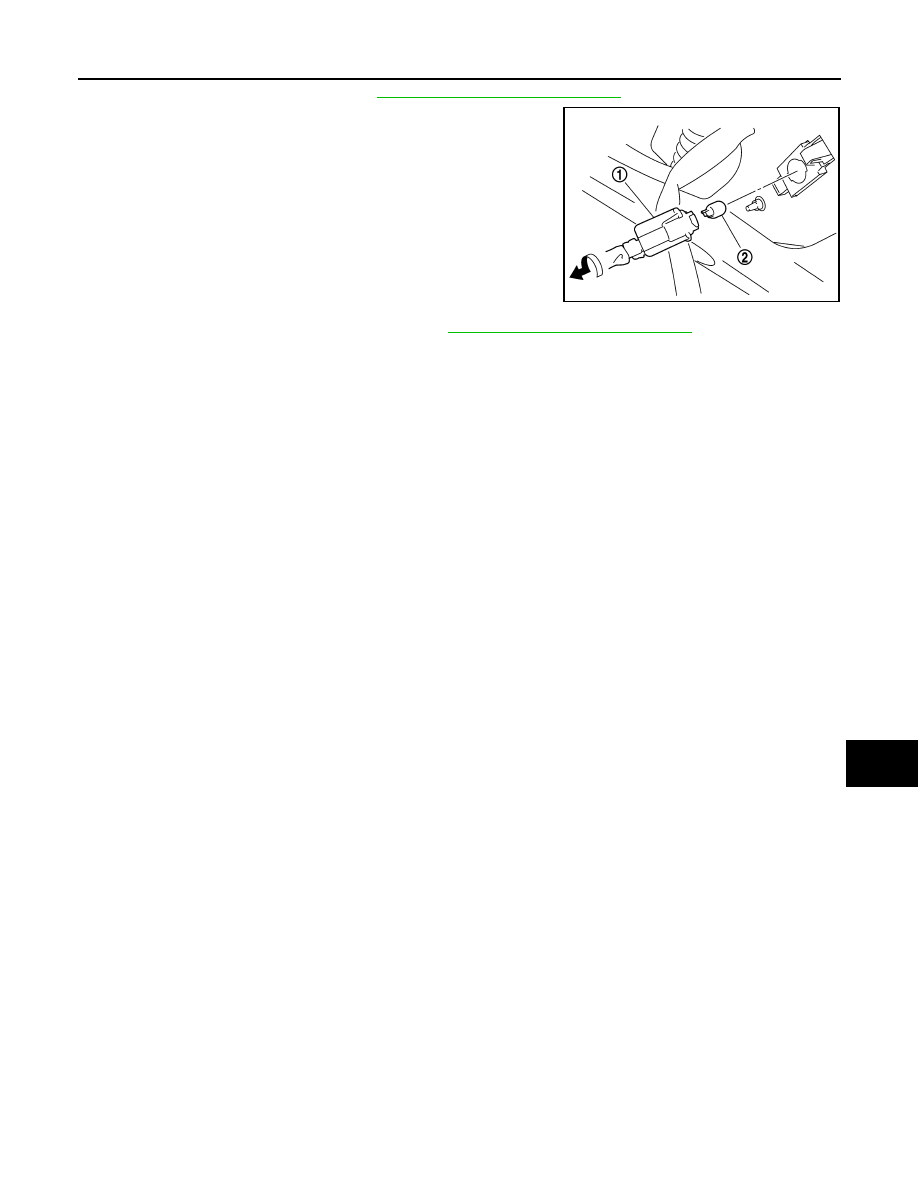

Remove the license plate lamp bulb socket (1) and remove the
license plate lamp bulb (2).

3.

Installation is in the reverse order of removal.

Removal and Installation

INFOID:0000000001530533

HATCHBACK

Removal

1.

Press the license plate lamp pawl on the side of the rear bumper fascia, then swing the license plate lamp
down to release the license plate lamp hook from the rear bumper fascia.

2.

Disconnect the license plate lamp connector and remove the licence plate lamp.

Installation

Installation is in the reverse order of removal.

SEDAN

Removal

PKIC1055E

1.

License plate lamp

A.

Pawl

B.

Hook

LKIA0759E

LICENSE PLATE LAMP

EXL-99

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

1.

Remove the trunk lid finisher. Refer to

EXT-29, "Removal and Installation"

.

2.

Remove the license plate lamp bulb socket (1).
• License plate lamp bulb (2).

3.

Remove the license plate lamp finisher. Refer to

EXT-29, "Removal and Installation"

.

4.

Remove the license plate lamp assembly.

Installation

Installation is in the reverse order of removal.

PKIC1055E

EXL-100

< ON-VEHICLE REPAIR >

REAR FOG LAMP

REAR FOG LAMP

Bulb Replacement

INFOID:0000000001530536

1.

Remove the clips for the rear bumper fascia lower side. Refer to

EXT-17, "Removal and Installation -

Sedan"

.

2.

Disconnect the rear fog lamp connector.

3.

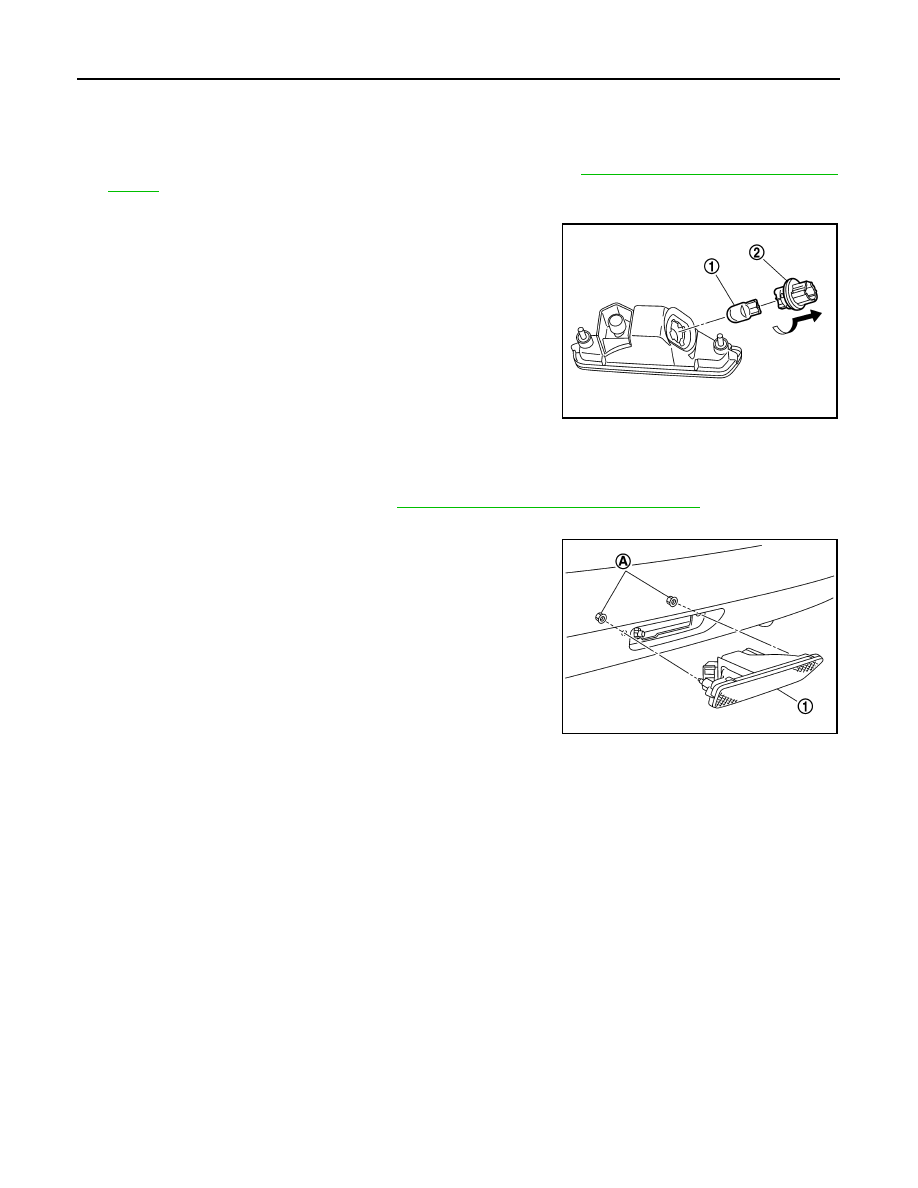

Turn the bulb socket (2) counterclockwise to unlock it.

4.

Remove bulb (1) from the socket.

5.

Installation is in the reverse order of removal.

Removal and Installation

INFOID:0000000001530537

REMOVAL

1.

Remove the rear bumper fascia. Refer to

EXT-17, "Removal and Installation - Sedan"

.

2.

Disconnect the rear fog lamp connector.

3.

Remove the rear fog lamp nuts (A) and remove rear fog lamp
(1).

INSTALLATION

Installation is in the reverse order of removal.

PKIC0948E

PKIC0947E

Rear fog lamp nuts

: 5.1 N·m (0.52 kg-m, 45 in-lb)

LIGHTING & TURN SIGNAL SWITCH

EXL-101

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

LIGHTING & TURN SIGNAL SWITCH

Removal and Installation

INFOID:0000000001529304

NOTE:
The lighting and turn signal switch is located on the LH side of the steering column for both the LHD and RHD
models.

REMOVAL

1.

Remove the upper and lower steering column covers. Refer to

IP-11, "Removal and Installation"

.

2.

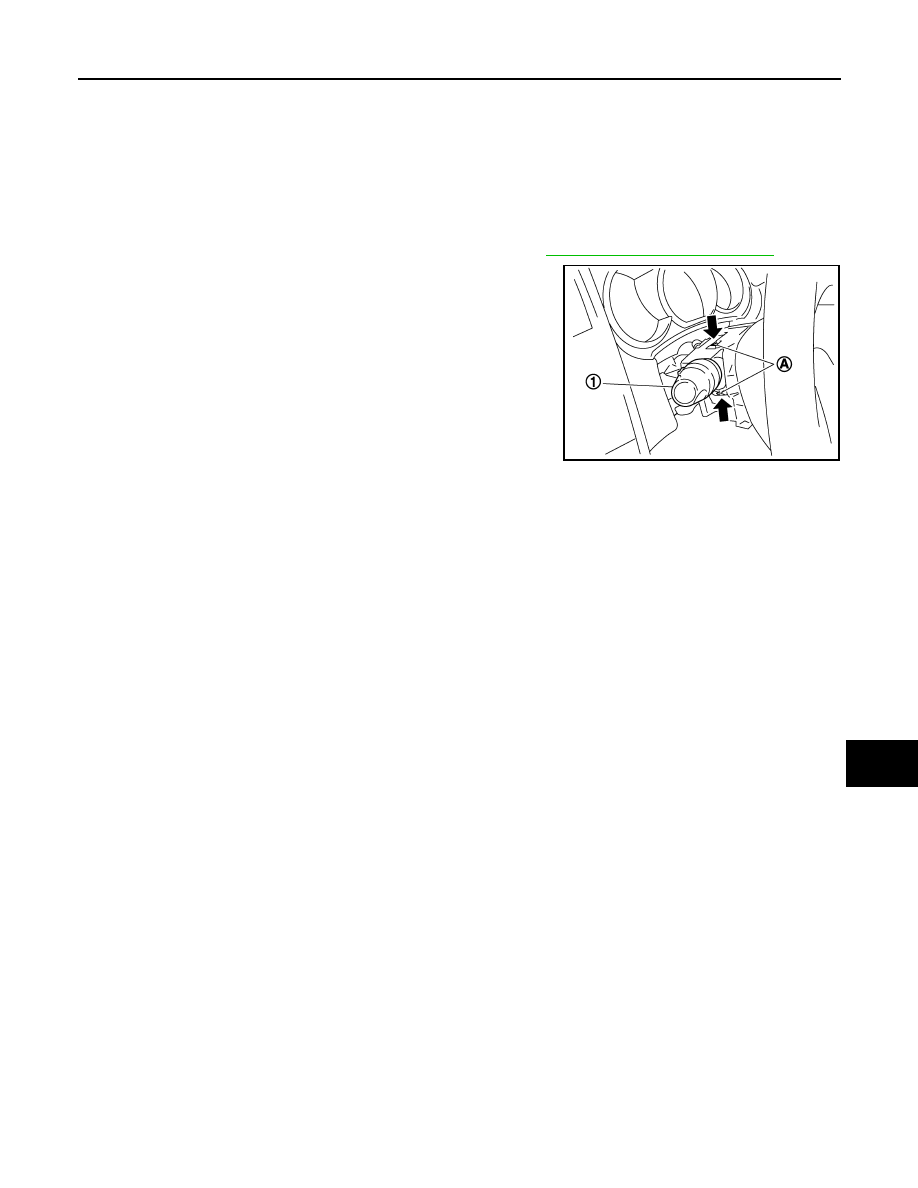

While pressing in on the pawls (A) as shown, pull the lighting
and turn signal switch (1) straight out to disconnect from the
base and remove.
NOTE:
LHD shown, RHD similar.

INSTALLATION

Installation is in the reverse order of removal.

PKIC1018E
