EXL-30

< FUNCTION DIAGNOSIS >

DIAGNOSIS SYSTEM (IPDM E/R)

DIAGNOSIS SYSTEM (IPDM E/R)

CONSULT - III Function (IPDM E/R)

INFOID:0000000001523254

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with IPDM E/R.

DATA MONITOR

Monitor item

ACTIVE TEST

Test item

Diagnosis mode

Description

SELF-DIAG RESULTS

Displays the diagnosis results judged by IPDM E/R.

DATA MONITOR

Displays the real-time input/output data from IPDM E/R input/output data.

ACTIVE TEST

IPDM E/R can provide a drive signal to electronic components to check their operations.

CAN DIAG SUPPORT MONITOR

The results of transmit/receive diagnosis of CAN communication can be read.

Monitor Item

[Unit]

MAIN SIG-

NALS

Description

HL LO REQ
[Off/On]

×

Displays the status of the low beam request signal received from BCM via CAN
communication.

HL HI REQ
[Off/On]

×

Displays the status of the high beam request signal received from BCM via CAN
communication.

FR FOG REQ
[Off/On]

×

Displays the status of the front fog light request signal received from BCM via
CAN communication.

TAIL & CLR REQ
[Off/On]

x

Displays the status of the tail and clearance lamp request signal received from
BCM via CAN communication.

DTRL REQ
[Off]

NOTE:
The item is indicated, but not monitored.

Test item

Operation

Description

EXTERNAL LAMPS

Off

OFF

TAIL

Operates the tail lamp relay.

Lo

Operates the headlamp low relay.

Hi

Operates the headlamp low relay and ON/OFF the headlamp high relay at 1 sec-
ond intervals.

Fog

Operates the front fog lamp relay.

DIAGNOSIS SYSTEM (HEADLAMP LEVELIZER)

EXL-31

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

DIAGNOSIS SYSTEM (HEADLAMP LEVELIZER)

CONSULT-III Function

INFOID:0000000001530336

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with IPDM E/R.

SELF-DIAG RESULTS

DATA MONITOR

Monitor item

ACTIVE TEST

Test item

WORK SUPPORT

Support item

Diagnosis mode

Description

SELF-DIAG RESULTS

Displays the diagnosis results judged by IPDM E/R.

DATA MONITOR

Displays the real-time input/output data from IPDM E/R input/output data.

ACTIVE TEST

IPDM E/R can provide a drive signal to electronic components to check their operations.

CAN DIAG SUPPORT MONITOR

The results of transmit/receive diagnosis of CAN communication can be read.

Error item

Description

Possible cause/Action to take

PARA NOT PROG [B208A]

Height sensor not initialized

Initialize sensor using CONSULT-III

INITIAL NOT DONE [B2081]

Height sensor not initialized

Monitor Item

[Unit]

MAIN SIG-

NALS

Description

INT SEN VALUE
[%]

ACT OUTPUT
[%]

ACT MEASURED
[%]

SPEED SIG
[km/h]

Displays the vehicle speed as received from the combination meter.

LIGHT SIGNAL
[V]

Displays voltage of the parking lamps ON signal as received from the IPDM E/R

INT SEN VOLT
[V]

Displays voltage available to the height sensor.

EXT SEN VOLT
[V]

EXT SEN SIG
[V]

Test item

Operation

Description

LAMP TEST

MIN

Operates aiming motor to lowest axis.

MID

Operates aiming motor to middle axis.

MAX

Operates aiming motor to highest axis.

Test item

Description

SENSOR INITIALISE

Adjust sensor and store initial height setting.

EXL-32

< COMPONENT DIAGNOSIS >

POWER SUPPLY AND GROUND CIRCUIT

COMPONENT DIAGNOSIS

POWER SUPPLY AND GROUND CIRCUIT

BCM (BODY CONTROL MODULE)

BCM (BODY CONTROL MODULE) : Diagnosis Procedure

INFOID:0000000001523255

For BCM power supply and ground circuit information, refer to

XX-XX, "*****"

.

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM) : Di-
agnosis Procedure

INFOID:0000000001523256

For IPDM E/R power supply and ground circuit information, refer to

XX-XX, "*****"

 .

HEADLAMP (HI) CIRCUIT

EXL-33

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

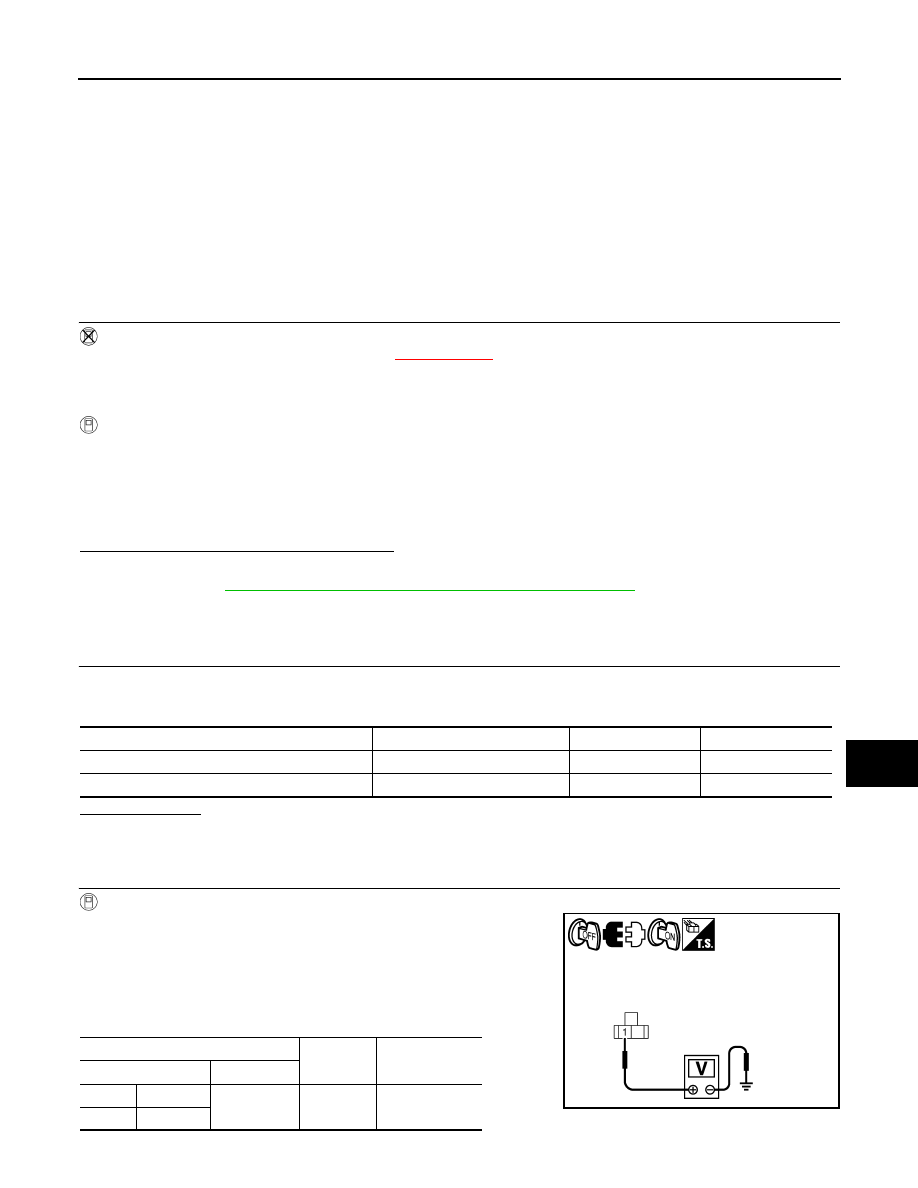

HEADLAMP (HI) CIRCUIT

HEADLAMP (HALOGEN)

HEADLAMP (HALOGEN) : Description

INFOID:0000000001523259

The IPDM E/R (intelligent power distribution module engine room) controls the headlamp high relay based on
inputs from the BCM via the CAN communication lines. When the headlamp high relay is energized, power
flows through fuses 34 and 35, located in the IPDM E/R. Power then flows to the front combination lamps to
the headlamp high beam.

HEADLAMP (HALOGEN) : Component Function Check

INFOID:0000000001523260

1.

CHECK HEADLAMP (HI) OPERATION

WITHOUT CONSULT-III

1.

Start IPDM E/R auto active test. Refer to

XX-XX, "*****"

.

2.

Check that the headlamp switches to the high beam.
NOTE:
HI/LO is repeated 1 second each when using the IPDM E/R auto active test.

CONSULT-III

1.

Select "EXTERNAL LAMP" of IPDM E/R active test item.

2.

With operating the test items, check that the headlamp switches to the high beam.

Does the headlamp switch to the high beam?

YES

>> Headlamp (HI) circuit is normal.

NO

>> Refer to

EXL-33, "HEADLAMP (HALOGEN) : Diagnosis Procedure"

.

HEADLAMP (HALOGEN) : Diagnosis Procedure

INFOID:0000000001523261

1.

CHECK HEADLAMP (HI) FUSES

1.

Turn the ignition switch OFF.

2.

Check that the following fuses are not open.

Is the fuse open?

YES

>> Repair the harness and replace the fuse.

NO

>> GO TO 2

2.

CHECK HEADLAMP (HI) OUTPUT VOLTAGE

CONSULT-III ACTIVE TEST

1.

Turn the ignition switch OFF.

2.

Disconnect the front combination lamp connector.

3.

Turn the ignition switch ON.

4.

Select "EXTERNAL LAMP" of IPDM E/R active test item.

5.

With EXTERNAL LAMP ON, check the voltage between the
combination lamp connector and ground.

HI

: Headlamp switches to the high beam.

OFF

: Headlamp OFF

Unit

Location

Fuse No.

Capacity

Headlamp HI (LH) IPDM E/R

35

10A

Headlamp HI (RH) IPDM E/R

34

10A

(+)

(

−

)

Voltage

Connector

Terminal

LH

E25

1

Ground

Battery voltage

RH

E26

PKIC0960E
