EXL-22

< FUNCTION DIAGNOSIS >

TURN SIGNAL AND HAZARD WARNING LAMPS

TURN SIGNAL AND HAZARD WARNING LAMPS

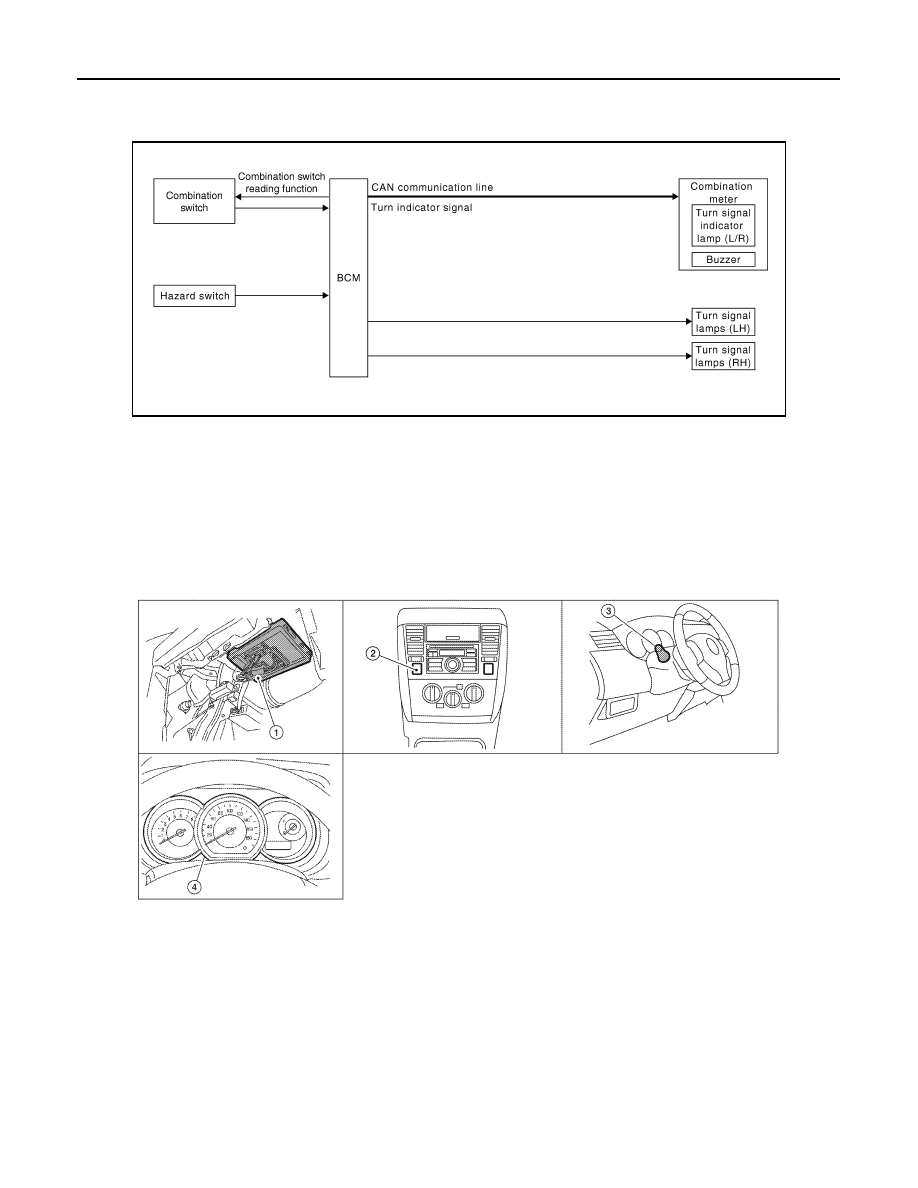

System Diagram

INFOID:0000000001523241

System Description

INFOID:0000000001523242

The BCM (Body Control Module) controls turn signal lamp and hazard warning lamp operation based on input
from the combination switch. The combination meter operates the turn RH and turn LH indicators based on
input from the BCM via the CAN communication lines.

Component Parts Location

INFOID:0000000001523243

AWLIA0006GB

1.

BCM M16, M17, M18, M19 (view with
glove box  removed)

2.

Hazard switch M55

3.

Combination switch M28

4.

Combination meter M24

AWLIA0034GB

TURN SIGNAL AND HAZARD WARNING LAMPS

EXL-23

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

Component Description

INFOID:0000000001523244

Part

Description

BCM

• Monitors the combination switch position.
• Monitors hazard switch position.
• Controls flasher output to the front, side and rear turn signals based on inputs from

the combination and hazard switches.

• Requests the combination meter (via CAN communication lines) to turn the turn RH

and turn LH indicator lamps ON.

Combination switch
(Lighting & turn signal switch)

Refer to

BCS-9, "System Description"

.

Combination meter
(turn LH and turn RH indicator lamp)

Controls the front fog lamp indicator during front fog lamp operation based on input
from the BCM via the CAN communication lines.

EXL-24

< FUNCTION DIAGNOSIS >

PARKING, LICENSE PLATE AND TAIL LAMPS

PARKING, LICENSE PLATE AND TAIL LAMPS

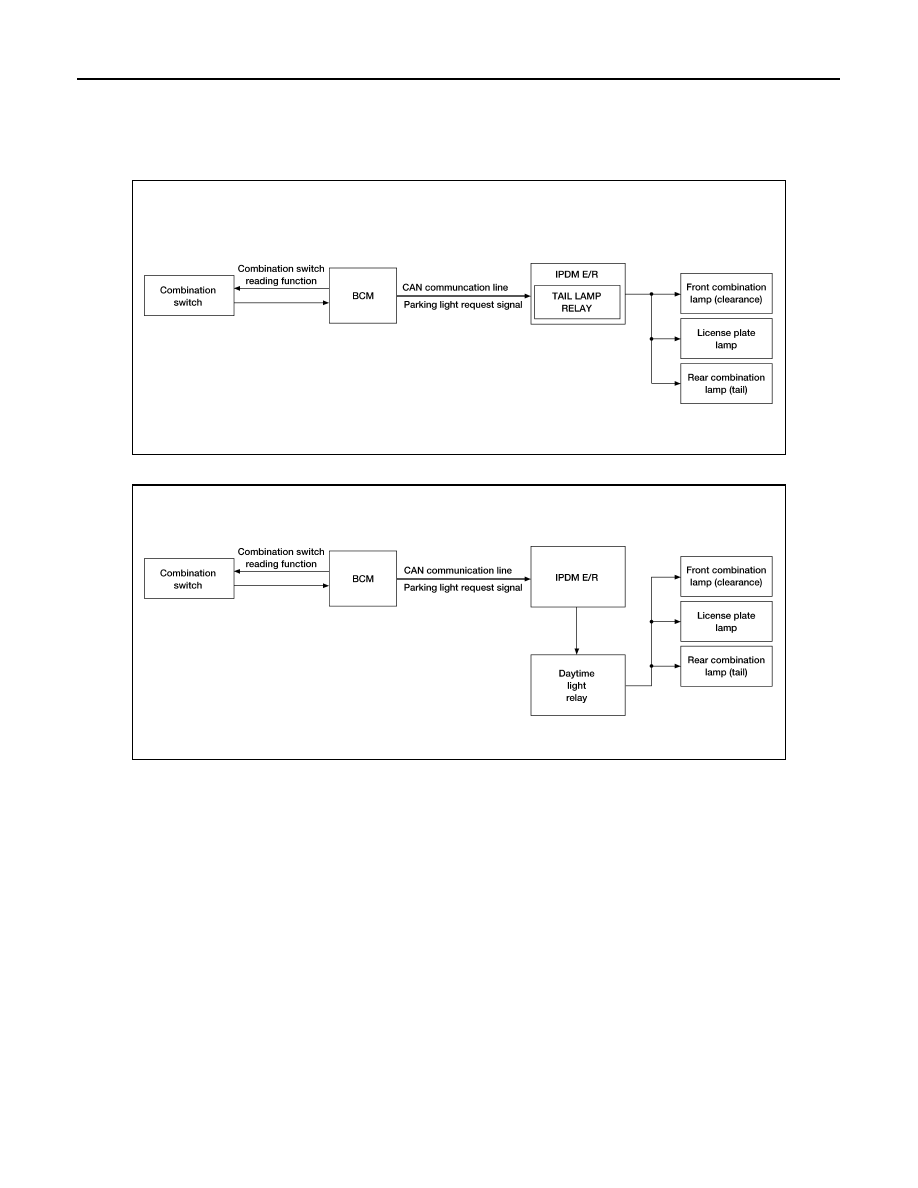

System Diagram

INFOID:0000000001523245

WITHOUT DAYTIME LIGHT SYSTEM

WITH DAYTIME LIGHT SYSTEM

System Description

INFOID:0000000001523246

The BCM (Body Control Module) controls parking, license plate and tail lamps operation based on lighting
switch (combination switch) input. The BCM requests the IPDM E/R (Intelligent Power Distribution Module
Engine Room) (via CAN communication lines) to activate the tail lamp relay (without daytime light system) or
the daytime light relay (with daytime light system).

AWLIA0031GB

AWLIA0035GB

PARKING, LICENSE PLATE AND TAIL LAMPS

EXL-25

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

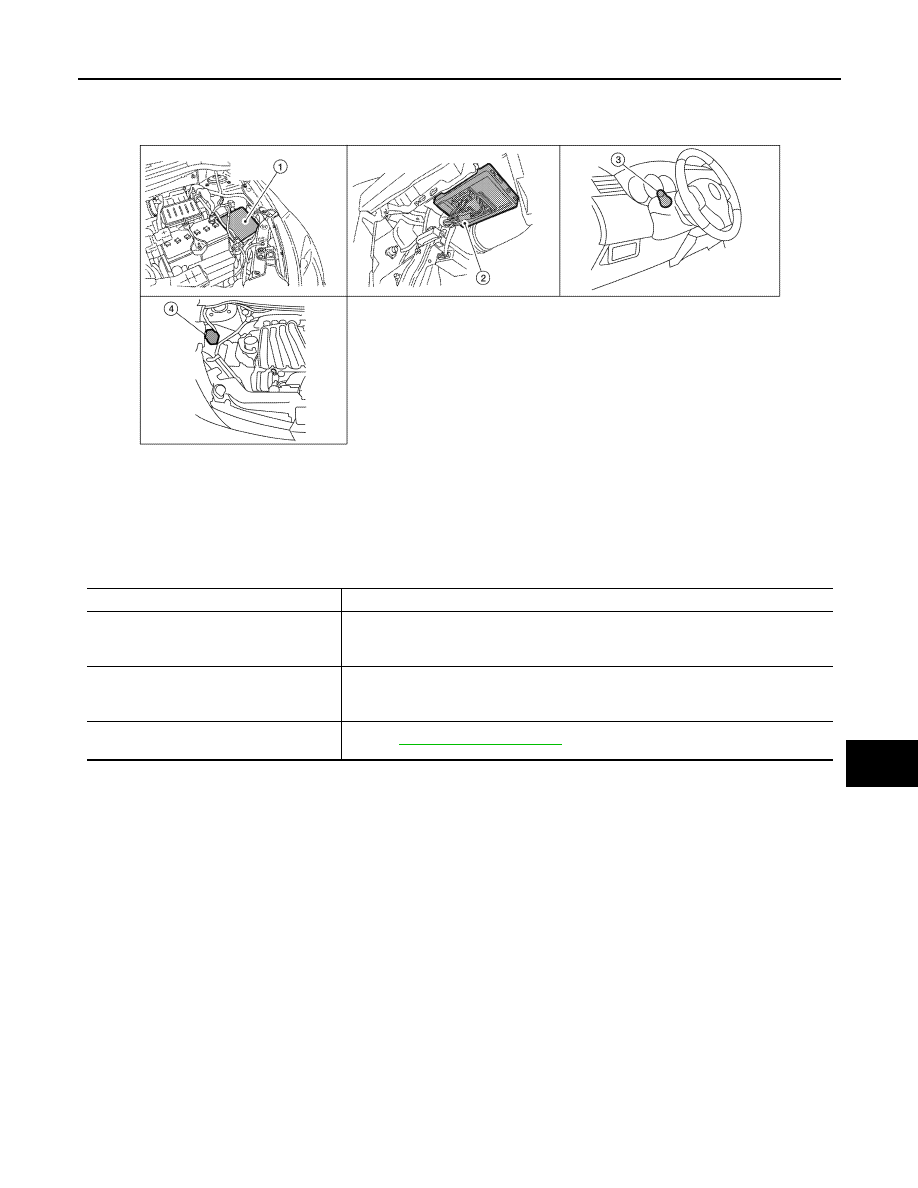

Component Parts Location

INFOID:0000000001523247

Component Description

INFOID:0000000001523248

1.

IPDM E/R E46, E47, E48

2.

BCM M16, M17, M18, M19 (view with
glove box removed)

3.

Combination switch M28

4.

Daytime light relay E67

AWLIA0032GB

Part

Description

BCM

• Monitors the combination switch position.
• Requests the IPDM E/R (via CAN communication lines) to actuate the tail lamp relay

(without daytime light system) or the daytime light relay (with daytime light system.)

IPDM E/R

Controls the integrated tail lamp relay (without daytime light system) or the daytime
light relay (with daytime light system) based on input from the BCM over the CAN com-
munication lines.

Combination switch
(Lighting & turn signal switch)

Refer to

BCS-9, "System Description"

.
