EXL-6

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORKFLOW

DETAILED FLOW

1.

INTERVIEW FOR MALFUNCTION

Find out what the customer's concerns are.

>> GO TO 2

2.

SYMPTOM CHECK

Verify the symptom from the customer's information.

>> GO TO 3

3.

BASIC INSPECTION

Check the operation of each part. Check that any concerns occur other than those mentioned in the customer
interview.

>> GO TO 4

4.

SELF-DIAGNOSIS WITH CONSULT-III

Perform the self diagnosis with CONSULT-III. Check that any DTC is detected.

Is any DTC detected?

YES

>> GO TO 5

NO

>> GO TO 6

5.

TROUBLE DIAGNOSIS BY DTC

Perform the trouble diagnosis for the detected DTC. Specify the malfunctioning part.

>> GO TO 9

6.

FAIL-SAFE ACTIVATION CHECK

Determine if the customer's concern is related to fail-safe activation.

Does the fail-safe activate?

YES

>> GO TO 7

NO

>> GO TO 8

7.

SYSTEM DIAGNOSIS

Perform the system diagnosis for the system in which the fail-safe activates. Specify the malfunctioning part.

>> GO TO 9

8.

SYMPTOM DIAGNOSIS

Perform the symptom diagnosis. Specify the malfunctioning part.

>> GO TO 9

9.

MALFUNCTION PART REPAIR

Repair or replace the malfunctioning part.

>> GO TO 11

10.

REPAIR CHECK (SELF-DIAGNOSIS WITH CONSULT-III)

Perform the self diagnosis with CONSULT-III. Verfied that no DTCs are detected. Erase all DTCs detected
prior to the repair. Verify that DTC is not detected again.
Is any DTC detected?

DIAGNOSIS AND REPAIR WORKFLOW

EXL-7

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

YES

>> GO TO 5

NO

>> GO TO 11

11.

REPAIR CHECK (OPERATION CHECK)

Check the operation of each part.

Does it operate normally?

YES

>> INSPECTION END

NO

>> GO TO 3

EXL-8

< FUNCTION DIAGNOSIS >

HEADLAMP (HALOGEN)

FUNCTION DIAGNOSIS

HEADLAMP (HALOGEN)

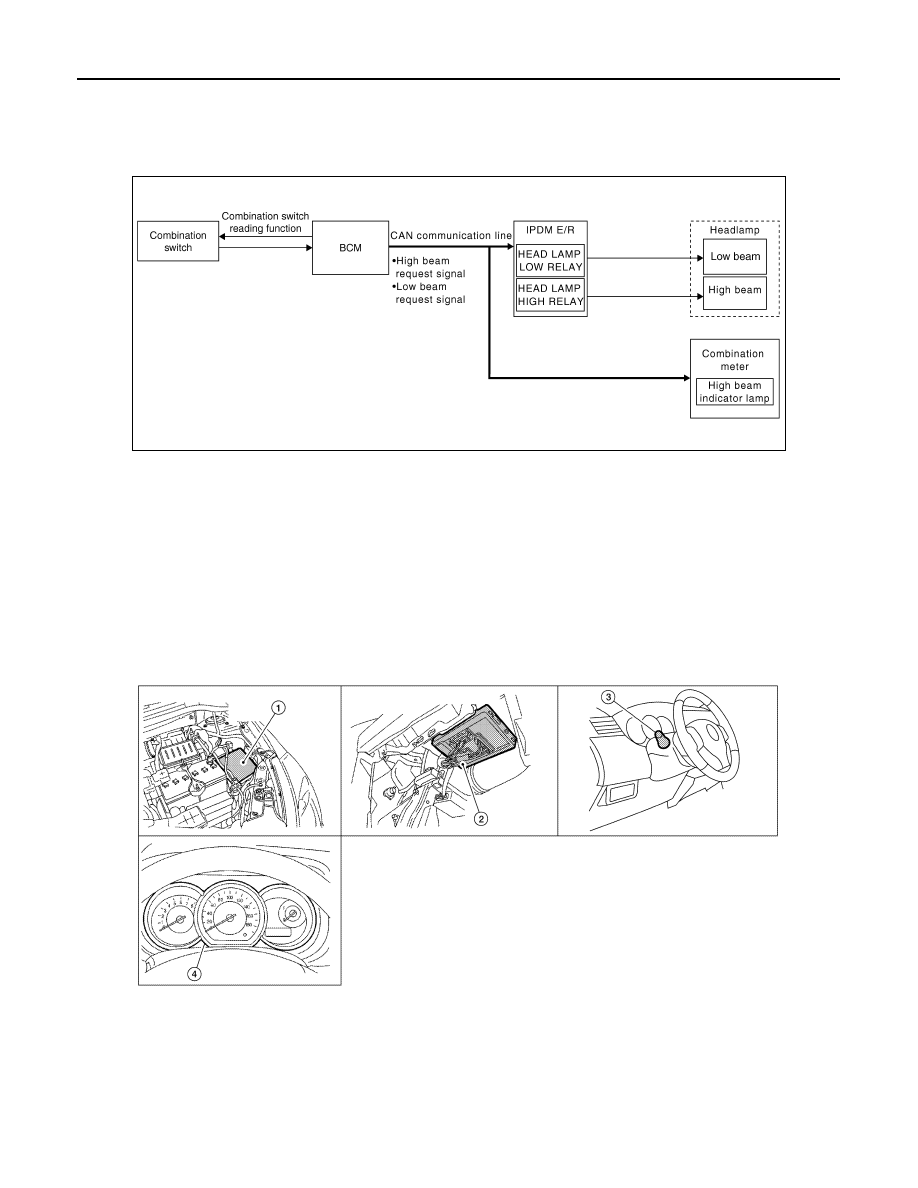

System Diagram

INFOID:0000000001523225

System Description

INFOID:0000000001523226

Control of the headlamp system operation is dependent upon the position of the lighting switch (combination
switch). When the lighting switch is placed in the 2nd position, the BCM (body control module) receives input
requesting the headlamps to illuminate. This input is communicated to the IPDM E/R (intelligent power distri-
bution module engine room) via the CAN communication lines. The CPU (central processing unit) of the IPDM
E/R controls the headlamp high and headlamp low relay coils. When energized, these relays direct power to
the respective headlamps, which then illuminate.

Component Parts Location

INFOID:0000000001523227

Component Description

INFOID:0000000001523228

LOW BEAM OPERATION

AWLIA0002GB

1.

IPDM E/R E46, E47, E48

2.

BCM M16, M17, M18, M19 (view with
glove box removed)

3.

Combination switch M28

4.

Combination meter M24

WKIA5469E

HEADLAMP (HALOGEN)

EXL-9

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

When the lighting switch is in 2nd position, the BCM receives input requesting the headlamps to illuminate.
This input is communicated to the IPDM E/R via the CAN communication lines. The CPU of the IPDM E/R
controls the headlamp low relay coil which supplies power to the low beam headlamps.

HIGH BEAM OPERATION/FLASH-TO-PASS OPERATION

With the lighting switch in the 2nd position and placed in HIGH position, the BCM receives input requesting the
headlamp high beams to illuminate. The flash to pass feature can be used any time and also sends a signal to
the BCM. This input is communicated to the IPDM E/R via the CAN communication lines. The CPU of the
combination meter controls the ON/OFF status off the HIGH BEAM indicator. The CPU of the IPDM E/R con-
trols the headlamp high relay coil which supplies power to the high beam headlamps.
The combination meter receives a high beam request signal (ON) via the CAN communication lines and turns
the high beam indicator lamp ON.

COMBINATION SWITCH READING FUNCTION

Refer to

XX-XX, "*****"

.
