EXHAUST SYSTEM

EX-13

< ON-VEHICLE MAINTENANCE >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EX

N

P

O

ON-VEHICLE MAINTENANCE

EXHAUST SYSTEM

Inspection

INFOID:0000000001696391

Check exhaust pipes, muffler and mounting for improper attachment,
leaks, cracks, damage or deterioration.
• If anything is found, repair or replace damaged parts.

SMA211A

EX-14

< ON-VEHICLE REPAIR >

[K9K]

EXHAUST SYSTEM

ON-VEHICLE REPAIR

EXHAUST SYSTEM

Component

INFOID:0000000001700347

Removal and Installation

INFOID:0000000001696393

CAUTION:

• Be sure to use genuine exhaust system parts or equivalents which are specially designed for heat

resistance, corrosion resistance and shape.

• Perform the operation with the exhaust system fully cooled down because the system is still hot just

after the engine stops.

• Be careful not to cut your hand on the insulator edge.

REMOVAL

• Disconnect each joint and mounting.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Always replace exhaust gaskets and seal bearings with new ones when installing.
• Remove deposits from the sealing surface of each connection. Connect them securely to avoid

exhaust leakage.

• Temporarily tighten nuts on the exhaust manifold side and bolts on the vehicle side. Check each part

for unusual interference, and then tighten them to the specified torque.

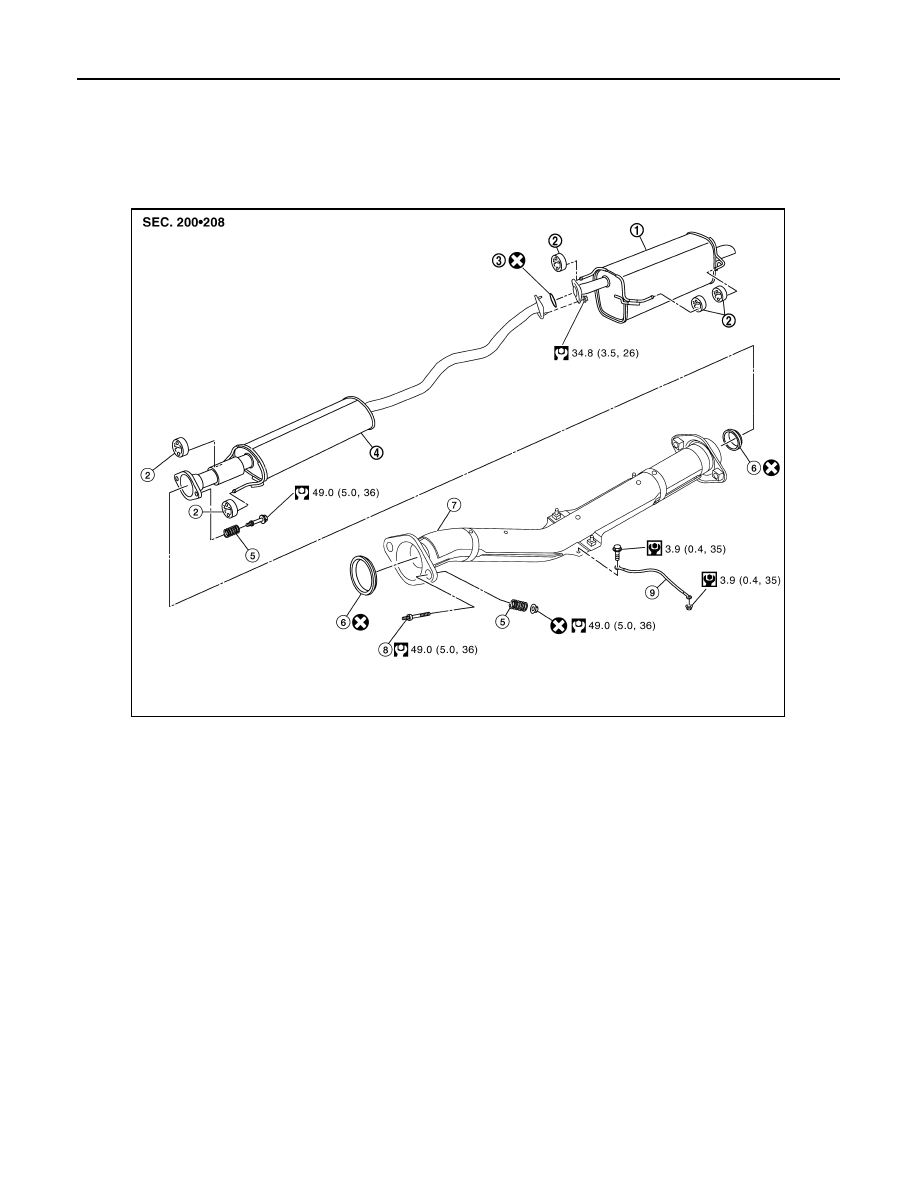

1.

Main muffler

2.

Mounting rubber

3.

Ring gasket

4.

Center muffler

5.

Spring

6.

Seal bearing

7.

Exhaust front tube

8.

Stud bolt

9.

Ground cable

AWBIA0159GB

EXHAUST SYSTEM

EX-15

< ON-VEHICLE REPAIR >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EX

N

P

O

• When installing each mounting rubbers, avoid twisting or unusual extension in up/down and right/

left directions.

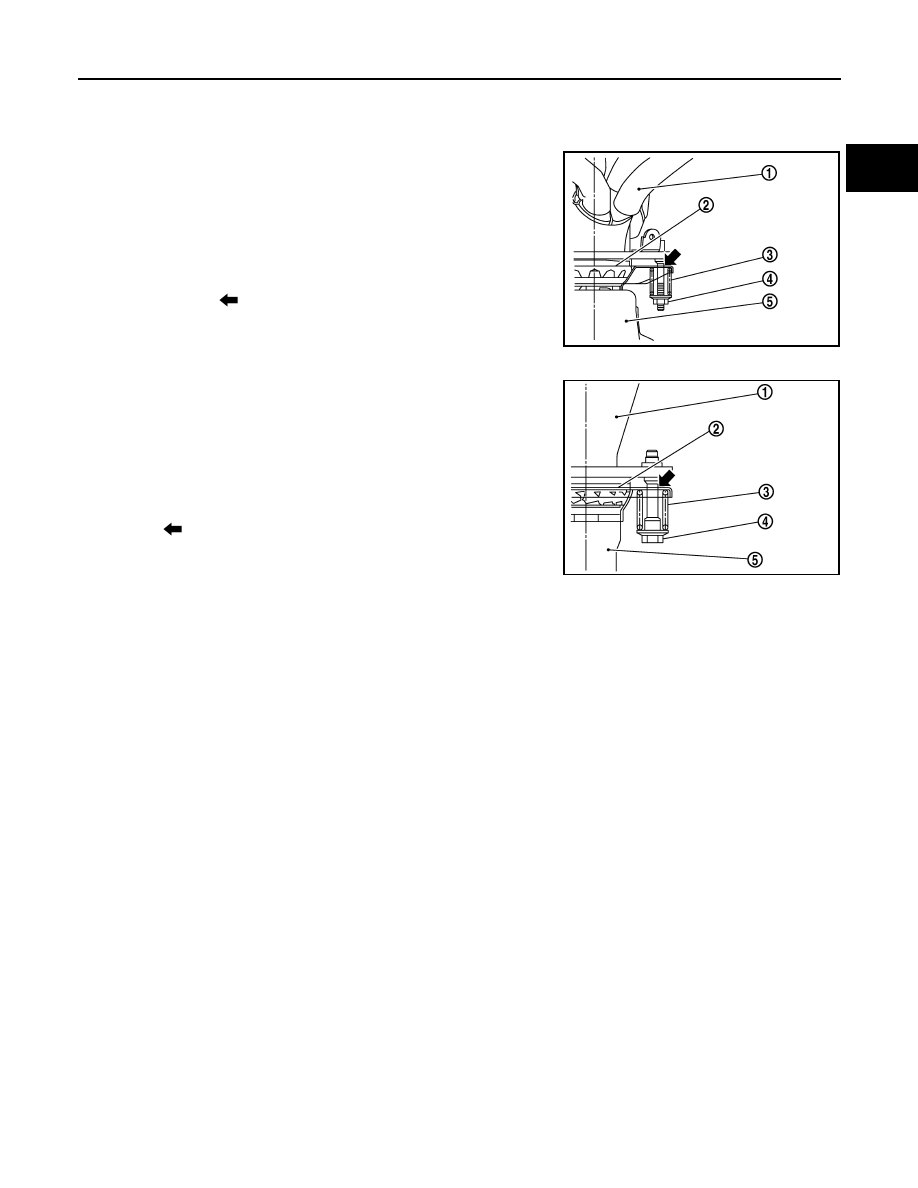

Exhaust Manifold to Exhaust Front Tube

1.

Securely insert seal bearing (2) into catalyst (1) side in the direc-
tion shown.
• Exhaust front tube (5)

CAUTION:

Be careful not to damage seal bearing surface when install-
ing.

2.

Install spring (3), tighten nut (4).
• Be careful that the stud bolt nut does not interfere with the

flanged area (

).

• Make sure the spring (3) sits properly on the flange surface by

aligning it to the locator dimples.

Exhaust Front Tube to Center Muffler

1.

Securely insert seal bearing (2) into exhaust front tube (1) side
in the direction shown.
• Center muffler (5)

CAUTION:

Be careful not to damage seal bearing surface when install-
ing.

2.

With spring (3), tighten bolt (4).
• Be careful that the stud bolt does not interfere with the flanged

area (

).

• Make sure the spring (3) sits properly on the flange surface by

aligning it to the locator dimples.

INSPECTION AFTER INSTALLATION

• With the engine running, check exhaust tube joints for exhaust leakage and unusual noise.
• Check to ensure that brackets and mounting rubbers are installed properly and free from undue stress.

Improper installation could result in excessive noise and vibration.

Inspection

INFOID:0000000001696394

INSPECTION AFTER INSTALLATION

• With the engine running, check exhaust tube joints for gas leakage and unusual noises.
• Check to ensure that mounting brackets and mounting rubbers are installed properly and free from undue

stress. Improper installation could result in excessive noise and vibration.

PBIC3797E

PBIC3798E
