EX-1

ENGINE

C

D

E

F

G

H

I

J

K

L

M

SECTION

EX

A

EX

N

O

P

CONTENTS

EXHAUST SYSTEM

HR16DE

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

General Precautions  .................................................

2

PREPARATION ............................................

3

PREPARATION ...................................................

3

Special Service Tool  .................................................

3

Commercial Service Tool  ..........................................

3

ON-VEHICLE MAINTENANCE .....................

4

EXHAUST SYSTEM  ............................................

4

Checking Exhaust System  ........................................

4

ON-VEHICLE REPAIR ..................................

5

EXHAUST SYSTEM  ............................................

5

Component ................................................................

5

Removal and Installation ...........................................

5

Inspection ..................................................................

6

MR18DE

PRECAUTION ...............................................

7

PRECAUTIONS ...................................................

7

Removal and Installation ...........................................

7

PREPARATION ............................................

8

PREPARATION ..................................................

8

Special Service Tools  ...............................................

8

Commercial Service Tools ........................................

8

ON-VEHICLE MAINTENANCE .....................

9

EXHAUST SYSTEM ...........................................

9

Checking Exhaust System ........................................

9

ON-VEHICLE REPAIR .................................

10

EXHAUST SYSTEM ..........................................

10

Component ..............................................................

10

Removal and Installation  .........................................

10

Inspection ................................................................

11

K9K

PRECAUTION ..............................................

12

PRECAUTIONS .................................................

12

Removal and Installation  .........................................

12

ON-VEHICLE MAINTENANCE ....................

13

EXHAUST SYSTEM ..........................................

13

Inspection ................................................................

13

ON-VEHICLE REPAIR .................................

14

EXHAUST SYSTEM ..........................................

14

Component ..............................................................

14

Removal and Installation  .........................................

14

Inspection ................................................................

15

EX-2

< PRECAUTION >

[HR16DE]

PRECAUTIONS

PRECAUTION

PRECAUTIONS

General Precautions

INFOID:0000000001728590

CAUTION:

• Be sure to use genuine exhaust system parts or equivalents which are specially designed for heat

resistance, corrosion resistance, and shape.

• Perform the operation with the exhaust system fully cooled down because the system will be hot

just after engine stops.

• Be careful not to cut your hand on the heat insulator edge.

PREPARATION

EX-3

< PREPARATION >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EX

N

P

O

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000001337856

Commercial Service Tool

INFOID:0000000001337857

Tool number
Tool name

Description

KV10114400
(J-38365)
Heated oxygen sensor wrench

Loosening or tightening heated oxygen sen-
sor
a: 22 mm (0.87 in)

NT636

Tool name

Description

Heated oxygen sensor thread cleaner

Reconditioning the exhaust system threads
before installing a new heated oxygen sensor
(Use with anti-seize lubricant shown below.)
a: 18 mm (0.71 in) dia. for zirconia heated
oxygen sensor
b: 12 mm (0.47 in) dia. for titania heated ox-
ygen sensor

Anti-seize lubricant (Permatex 133AR
or equivalent meeting MIL specifica-
tion MIL-A-907)

Lubricating heated oxygen sensor thread
cleaner when reconditioning exhaust system
threads

AEM488

AEM489

EX-4

< ON-VEHICLE MAINTENANCE >

[HR16DE]

EXHAUST SYSTEM

ON-VEHICLE MAINTENANCE

EXHAUST SYSTEM

Checking Exhaust System

INFOID:0000000001337858

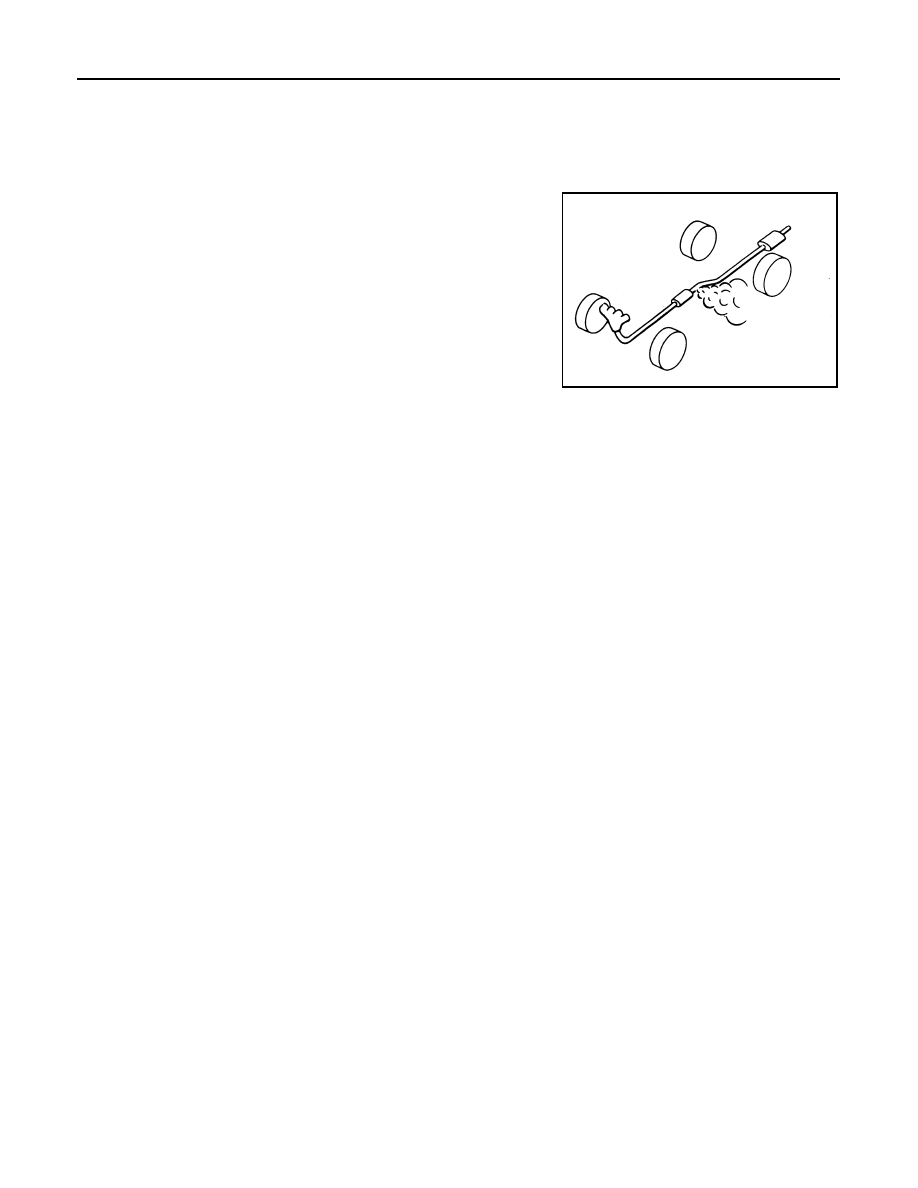

Check exhaust pipes, muffler and mounting for improper attachment,
leaks, cracks, damage or deterioration.
• If necessary, repair or replace damaged parts.

SMA211A
