Nissan Tiida C11. Manual - part 745

EM-332

< DISASSEMBLY AND ASSEMBLY >

[K9K]

CYLINDER BLOCK

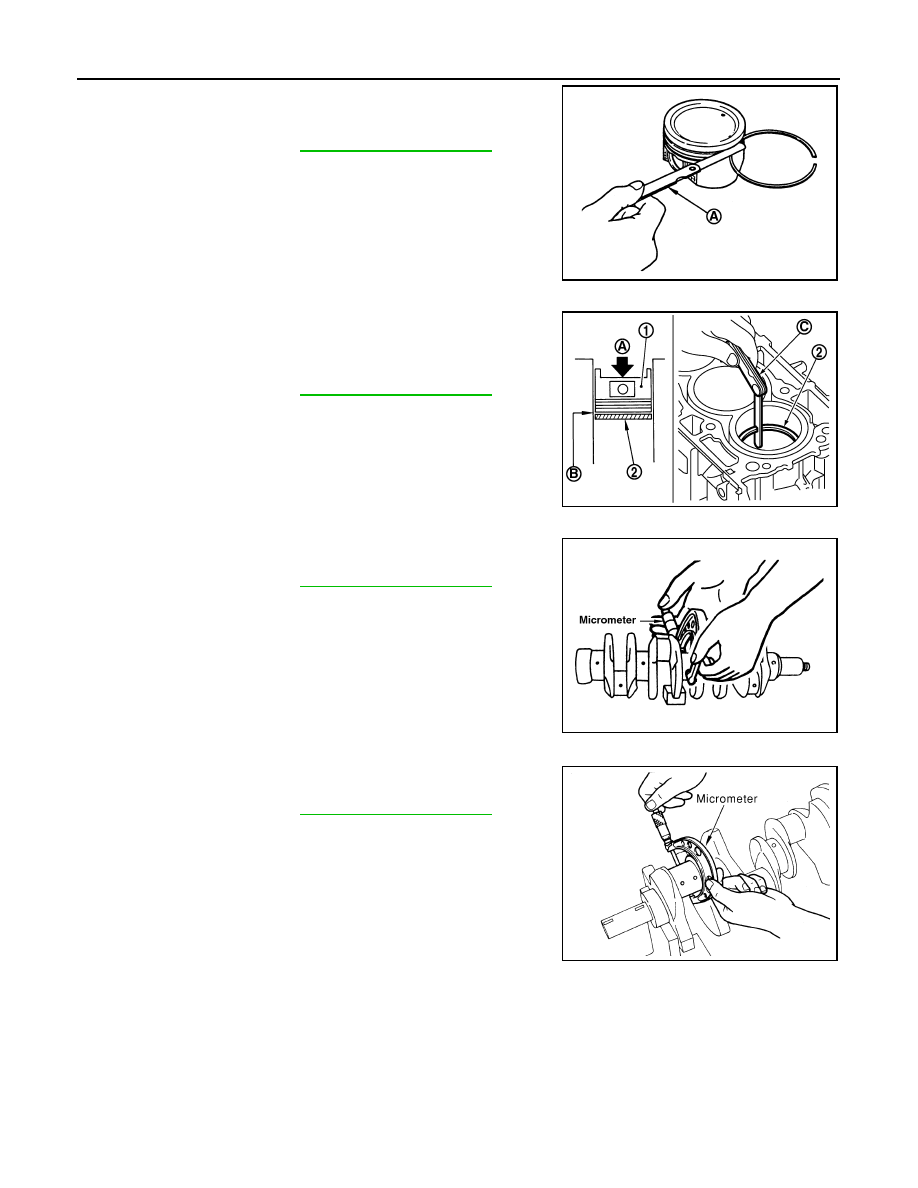

• Measure the side clearance of piston ring and piston ring groove

with a feeler gauge (A).

• If the measured value exceeds the limit, replace piston ring, and

measure again. If it still exceeds the limit, replace piston also.

PISTON RING END GAP

• Lubricate with new engine oil to piston (1) and piston ring (2), and

then insert (A) piston ring until middle of cylinder (B) with piston,
and measure piston ring end gap with a feeler gauge (C).

• If the measured value exceeds the limit, replace piston ring.

CRANKSHAFT MAIN JOURNAL DIAMETER

Use micrometer to measure crankshaft main journal diameter.

CRANKSHAFT PIN JOURNAL DIAMETER

Use micrometer to measure crankshaft pin journal diameter.

Standard

: Refer to

EM-337, "Cylinder Block"

.

PBIC3280J

Standard

: Refer to

EM-337, "Cylinder Block"

.

PBIC3267J

Standard

: Refer to

EM-337, "Cylinder Block"

.

FEM114

Standard

: Refer to

EM-337, "Cylinder Block"

.

PBIC0127E

SERVICE DATA AND SPECIFICATIONS (SDS)

EM-333

< SERVICE DATA AND SPECIFICATIONS (SDS)

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

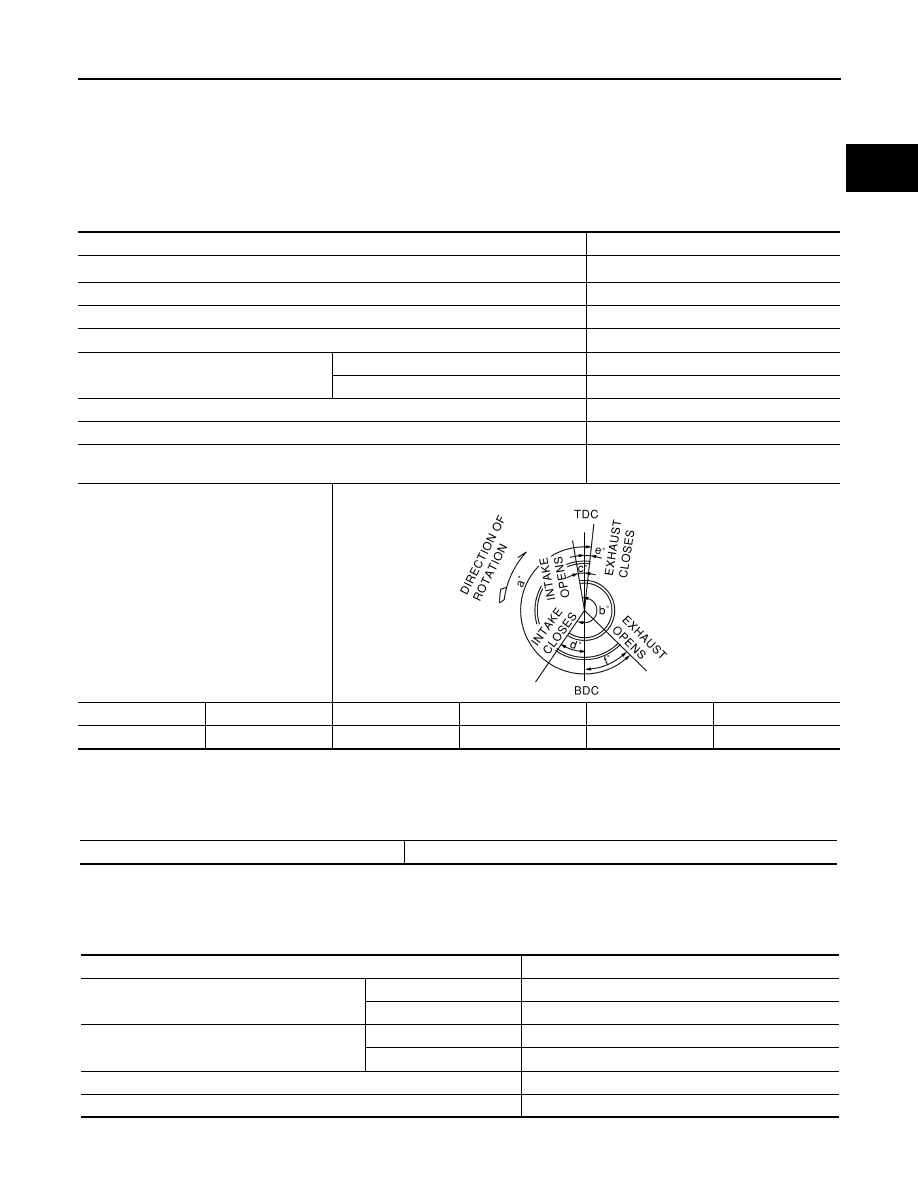

General Specification

INFOID:0000000001381516

GENERAL SPECIFICATIONS

Drive Belt

INFOID:0000000001381517

DRIVE BELT

Camshaft

INFOID:0000000001381518

CAMSHAFT

Unit: mm (in)

Cylinder arrangement

 In-line 4

Displacement

cm

3

 (cu in)

1.461 (89.15)

Bore and stroke

mm (in)

76 x 80.5 (2.99 x 3.17)

Valve arrangement

SOHC

Firing order

1-3-4-2

Number of piston rings

Compression

2

Oil

1

Number of main bearings

5

Compression ratio

15.3

Compression pressure

kPa (bar, kg/cm

2

, psi)

Maximum pressure must be at least 1,800

(18, 18.36, 261)

Valve timing

a

b

c

d

e

f

200

°

191

°

-9

°

20

°

-7

°

27

°

PBIC0187E

Tension of drive belt

Auto adjustment by auto-tensioner

Items

Standard

Camshaft bracket inner diameter

No. 1, 2, 3, 4, 5

25.04 - 25.06 (0.9858 - 0.9866)

No. 6

28.04 - 28.06 (1.1039 - 1.1047)

Camshaft journal diameter

No. 1, 2, 3, 4, 5

24.979 - 25.000 (0.9834 - 0.9843)

No. 6

27.979 - 28.000 (1.1015 - 1.1024)

Camshaft end play

0.080 - 0.178 (0.0031 - 0.0070)

Camshaft runout

Less than 0.05 (0.0020)

EM-334

< SERVICE DATA AND SPECIFICATIONS (SDS)

[K9K]

SERVICE DATA AND SPECIFICATIONS (SDS)

VALVE LIFTER

Unit: mm (in)

VALVE CLEARANCE

Unit: mm (in)

AVAILABLE VALVE LIFTER

Unit: mm (in)

Camshaft cam height “A”

Intake

43.985 - 44.045 (1.7317 - 1.7341)

Exhaust

44.565 - 44.625 (1.7545 - 1.7569)

Items

Standard

SEM671

Items

Standard

Valve lifter outer diameter

34.965 - 34.985 (1.3767 - 1.3774)

Valve lifter hole diameter

35.000 - 35.040 (1.3780 - 1.3795)

Valve lifter clearance

0.015 - 0.075 (0.0006 - 0.0030)

Items

Cold

Intake

0.125 - 0.250 (0.0049 - 0.0098)

Exhaust

0.325 - 0.450 (0.0128 - 0.0177)

Part number

Thickness

13229BN700

7.550 (0.2972)

13229BN701

7.575 (0.2982)

13229BN702

7.600 (0.2992)

13229BN703

7.625 (0.3002)

13229BN704

7.650 (0.3012)

13229BN705

7.675 (0.3022)

13229BN706

7.700 (0.3031)

13229BN707

7.725 (0.3041)

13229BN708

7.750 (0.3051)

13229BN709

7.775 (0.3061)

13229BN710

7.800 (0.3071)

13229BN711

7.825 (0.3081)

13229BN712

7.850 (0.3091)

13229BN713

7.875 (0.3100)

13229BN714

7.900 (0.3110)

13229BN715

7.925 (0.3120)

13229BN716

7.950 (0.3130)

13229BN717

7.975 (0.3140)

SERVICE DATA AND SPECIFICATIONS (SDS)

EM-335

< SERVICE DATA AND SPECIFICATIONS (SDS)

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

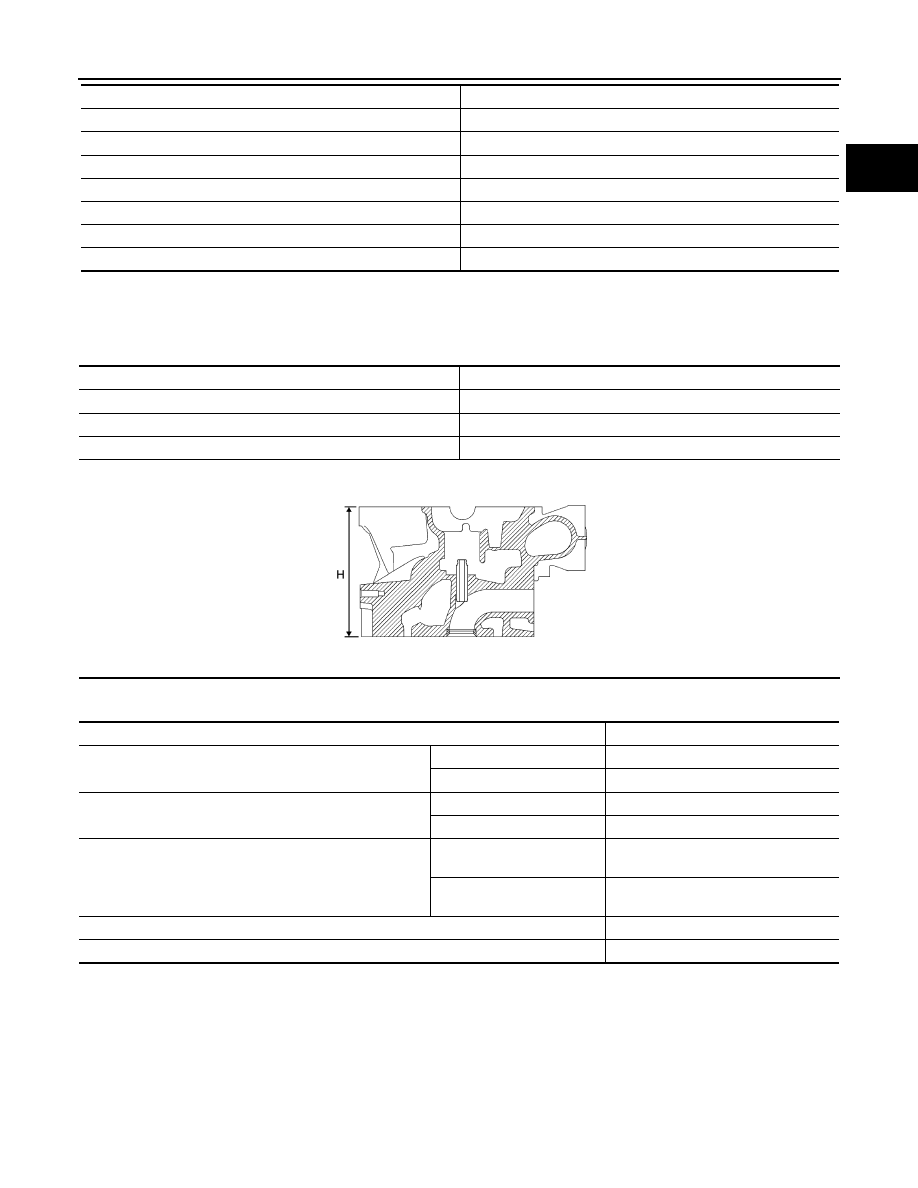

Cylinder Head

INFOID:0000000001381519

CYLINDER HEAD

Unit: mm (in)

VALVE DIMENSIONS

13229BN718

8.000 (0.3150)

13229BN719

8.025 (0.3159)

13229BN720

8.050 (0.3169)

13229BN721

8.075 (0.3179)

13229BN722

8.100 (0.3189)

13229BN723

8.125 (0.3199)

13229BN724

8.150 (0.3209)

Part number

Thickness

Items

Standard

Cylinder head gasket thickness

0.68 - 0.74 (0.0269 - 0.0291)

Head surface distortion

Less than 0.05 (0.002)

Normal cylinder head height “H”

127 (5.000)

E1BIA0063ZZ

Items

Standard

Valve head diameter “D”

mm (in)

Intake

33.38 - 33.62 (1.314 - 1.324)

Exhaust

28.88 - 29.12 (1.137 - 1.146)

Valve length “L”

mm (in)

Intake

100.74 - 101.16 (3.9661 - 3.9827)

Exhaust

100.54 - 100.96 (3.9583 - 3.9748)

Valve stem diameter “d”

mm (in)

Intake

5.969 - 5.985 (0.2350 - 0.2356)

Measuring point (X1) is 41 (1.61)

Exhaust

5.955 - 5.971 (0.2344 - 0.2351)

Measuring point (X1) is 41 (1.61)

Valve seat angle “

α

”

degree

45

°

00

′

 (45.00

°

)

Valve margin “T”

mm (in)

1.0 (0.039)
