EM-96

< DISASSEMBLY AND ASSEMBLY >

[HR16DE]

OIL PAN (UPPER)

OIL PAN (UPPER)

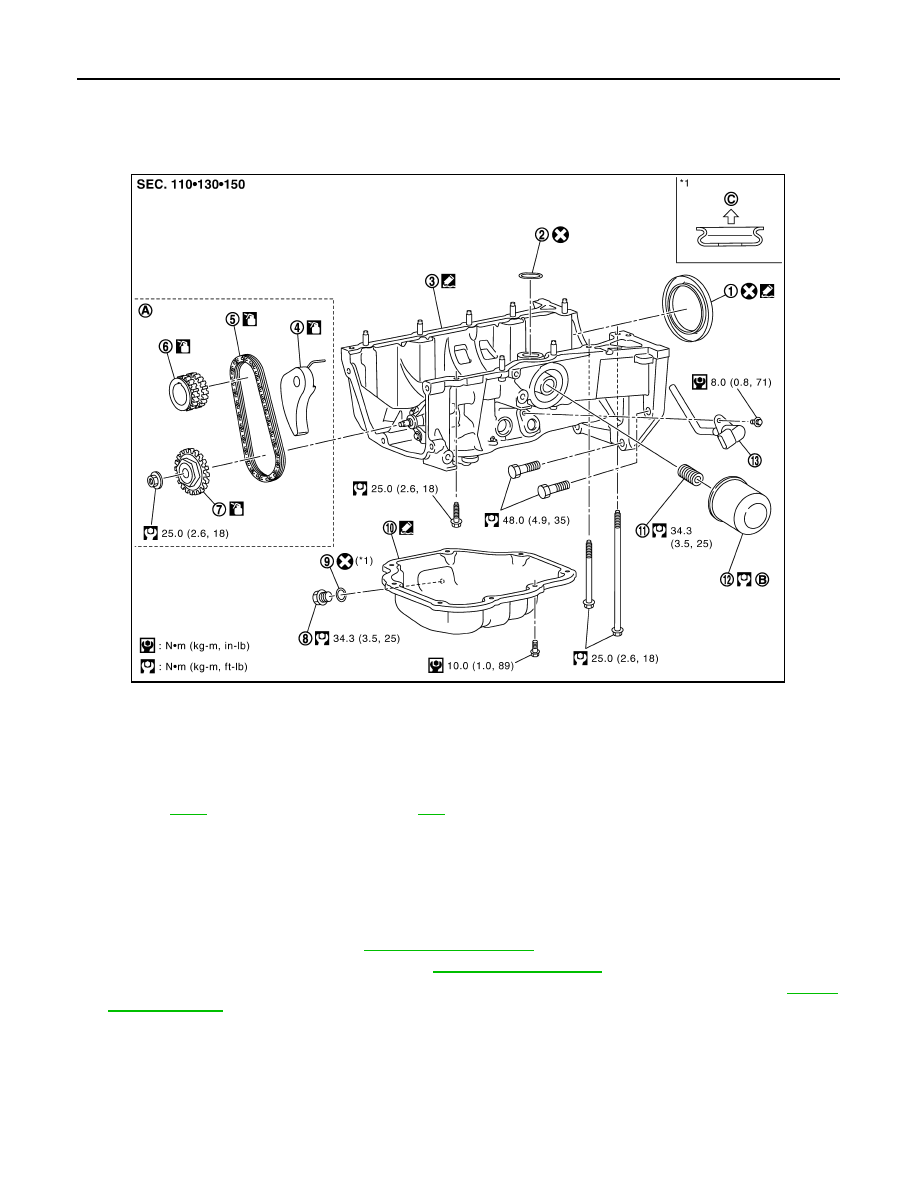

Exploded View

INFOID:0000000001381430

Removal and Installation

INFOID:0000000001381431

NOTE:
The oil strainer and oil pump are included in the oil pan (upper). Individual disassembly is prohibited.

REMOVAL

1.

Remove the oil pan (lower). Refer to

EM-40, "Exploded View"

.

2.

Remove front cover and timing chain. Refer to

EM-50, "Exploded View"

.

3.

Remove oil pump sprocket and crankshaft sprocket together with oil pump drive chain. Refer to

EM-50,

"Exploded View"

.

4.

Remove oil pan (upper) with the following procedure.

1.

Rear oil seal

2.

O-ring

3.

Oil pan (upper)

4.

Chain tensioner

5.

Oil pump drive chain

6.

Crankshaft sprocket

7.

Oil pump sprocket

8.

Oil pan drain plug

9.

Washer

10.

Oil pan (lower)

11.

Oil filter stud bolt

12.

Oil filter

13.

Oil level sensor

A.

Refer to

EM-50

B.

Refer to

LU-9

C.

Oil pan side

JPBIA0553GB

OIL PAN (UPPER)

EM-97

< DISASSEMBLY AND ASSEMBLY >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

a.

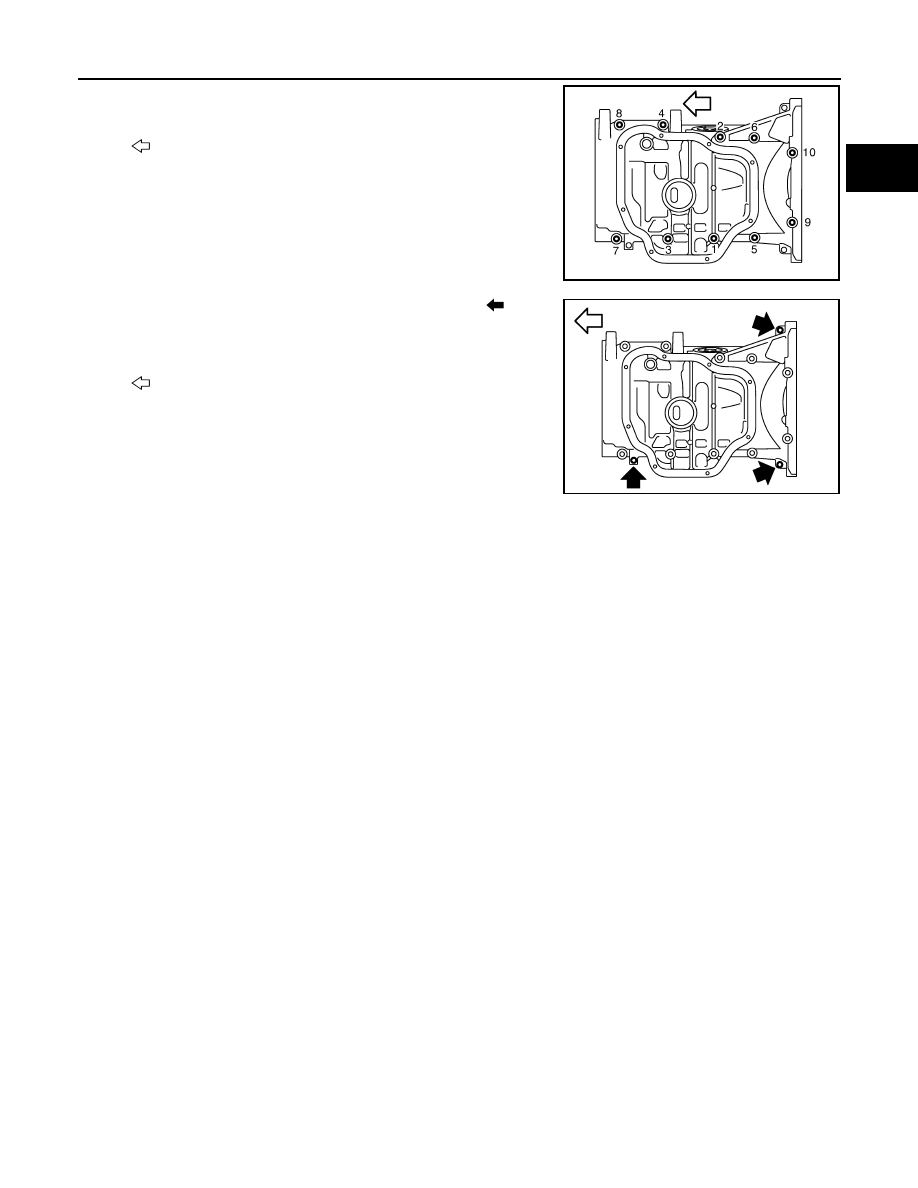

Loosen oil pan (upper) mounting bolts in the reverse of the order
shown in the figure.

b.

Insert a flat-bladed offset screwdriver into the arrow (

) in the

figure and open up a crack between the oil pan (upper) cylinder
block.

c.

Insert the seal cutter [SST: KV10111100] between remove the oil
pan (upper) and cylinder block. Slide seal cutter by tapping on
the side of tool with a hammer.

CAUTION:

• Be careful not to damage the mating surface.
• A more adhesive liquid gasket is applied compared to pre-

vious types when shipped, so it should not be forced off using a screwdriver, etc. outside the
indicated location.

• Never remove oil pump and oil strainer from oil pan (upper).

5.

Remove oil level sensor, if necessary.

6.

Remove rear oil seal from crankshaft.

INSTALLATION

1.

Install the oil pan (upper) in the following procedure.

a.

Use scraper to remove old liquid gasket from mating surfaces.
• Also remove the old liquid gasket from mating surface of cylinder block.
• Remove old liquid gasket from the bolt holes and threads.

CAUTION:

Never scratch or damage the mating surfaces when cleaning off old liquid gasket.

b.

Install O-ring to the cylinder block.

: Engine front

MBIB1374E

: Engine front

MBIB1375E

EM-98

< DISASSEMBLY AND ASSEMBLY >

[HR16DE]

OIL PAN (UPPER)

c.

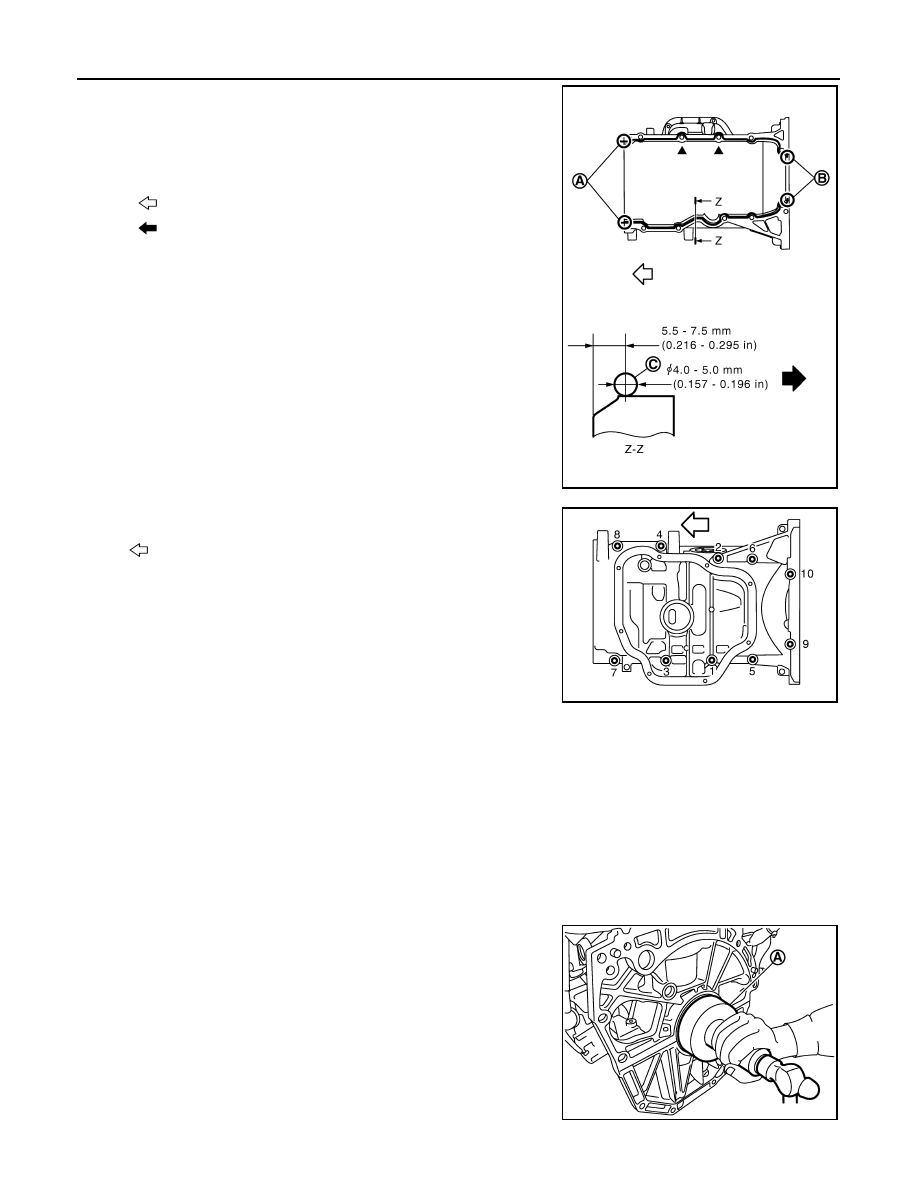

Apply a continuous bead of liquid gasket (C) with the tube
presser (commercial service tool) to areas shown.
Use Genuine Liquid Gasket or equivalent.

CAUTION:

Attaching should be done within 5 minutes after coating.

d.

Tighten bolts in the numerical order shown in the figure.

CAUTION:

Install avoiding misalignment of both oil pan gasket and O-
ring.
• The bolts are different according to the installation position.

Follow the numbers shown.

2.

Install rear oil seal.

CAUTION:

• The installation of rear oil seal should be completed within 5 minutes after installing oil pan

(upper).

• Never touch oil seal lip.

a.

Wipe off any liquid gasket protruding to the rear oil seal mounting part of oil pan (upper) and cylinder block
using a spatula.

b.

Apply the liquid gasket lightly to entire outside area of new rear oil seal.
Use Genuine Liquid Gasket or equivalent.

c.

Press-fit the rear oil seal using a drift with outer diameter 113
mm (4.45 in) and inner diameter 90 mm (3.54 in) (commercial
service tool) (A).

A

: 2 mm (0.08 in) protruded to outside

B

: 2 mm (0.08 in) protruded to rear oil seal mounting side

: Engine front

: Oil pan out side

PBIC4344E

: Engine front

M8

×

 179 mm (7.05 in)

: No. 9, 10

M8

×

 25 mm (0.98 in)

: No. 4, 7, 8

M8

×

 90 mm (3.54 in)

: No. 1, 2, 3, 5, 6

MBIB1374E

PBIC3660E

OIL PAN (UPPER)

EM-99

< DISASSEMBLY AND ASSEMBLY >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

• Press-fit to the dimensions specified in the figure.

CAUTION:

• Never touch the grease applied to the oil seal lip.
• Be careful not to damage the rear oil seal mounting part

of oil pan (upper) and cylinder block or the crankshaft.

• Press-fit straight make sure that oil seal does not curl or

tilt.

d.

After press-fitting the rear oil seal, completely wipe off any liquid
gasket protruding to rear end surface side.

3.

Install crankshaft sprocket, oil pump sprocket, oil pump drive chain, and chain tensioner. Refer to

EM-50,

"Removal and Installation"

.

4.

Install timing chain and related parts. Refer to

EM-50, "Removal and Installation"

.

5.

Install front cover and related parts. Refer to

EM-50, "Removal and Installation"

.

6.

Install in the reverse order of removal, for the rest of parts.

CAUTION:

Pour engine oil at least 30 minutes after oil pan is installed.

Inspection

INFOID:0000000001381432

INSPECTION AFTER INSTALLATION

1.

Check the engine oil level and adjust engine oil. Refer to

LU-6, "Inspection"

.

2.

Start engine, and check there is no leak of engine oil.

3.

Stop engine and wait for 10 minutes.

4.

Check the engine oil level again. Refer to

LU-6, "Inspection"

.

1.

Rear oil seal

A.

Rear end surface of cylinder block

PBIC3761E
