EM-52

< ON-VEHICLE REPAIR >

[HR16DE]

TIMING CHAIN

9.

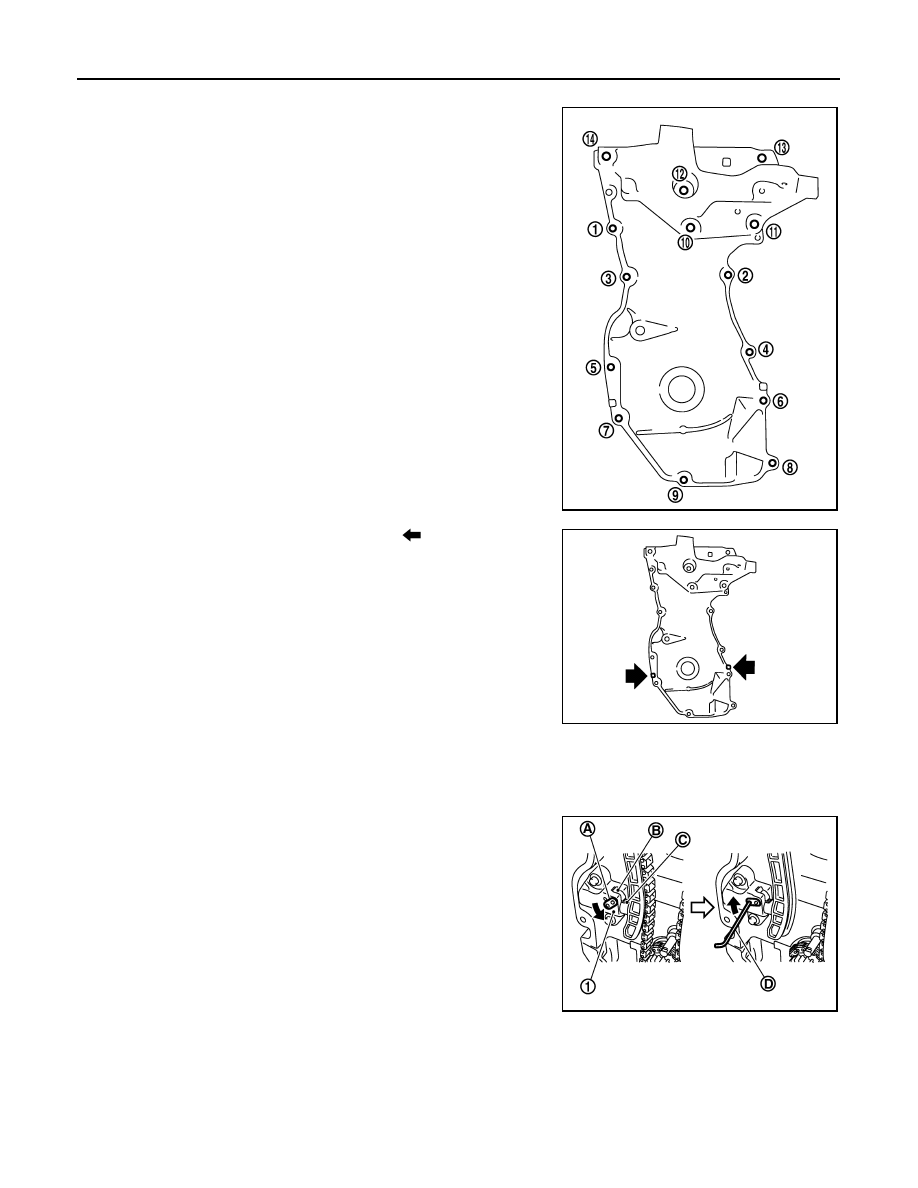

Remove front cover with the following procedure:

a.

Loosen bolts in the reverse of the order shown.

b.

Cut liquid gasket by prying the position (

) shown, and then

remove the front cover.

10. Remove front oil seal from front cover.

• Remove by lifting it up using a suitable tool.

CAUTION:

Be careful not to damage the front cover.

11. Remove chain tensioner (1) with the following procedure.
a.

Fully push down the chain tensioner lever (A), and then push the
plunger (C) into the inside of tensioner.
• The tab (B) is released by fully pushing the lever down. As a

result, the plunger can be moved.

b.

Pull up the lever to align its hole position with the body hole posi-
tion.
• When the lever hole is aligned with the body hole position, the

plunger is fixed.

• When the protrusion parts of the plunger ratchet and the tab

face each other, both hole positions are not aligned. At that
time, correctly engage them and align these hole positions by
slightly moving the plunger.

c.

Insert the stopper pin (D) into the body hole through the lever hole, and then fix the lever at the upper
position.
• The example that a hexagonal wrench for 2.5 mm (0.098 in) is used as shown.

d.

Remove chain tensioner.

KBIA3429J

PBIC3712E

PBIC3713E

TIMING CHAIN

EM-53

< ON-VEHICLE REPAIR >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

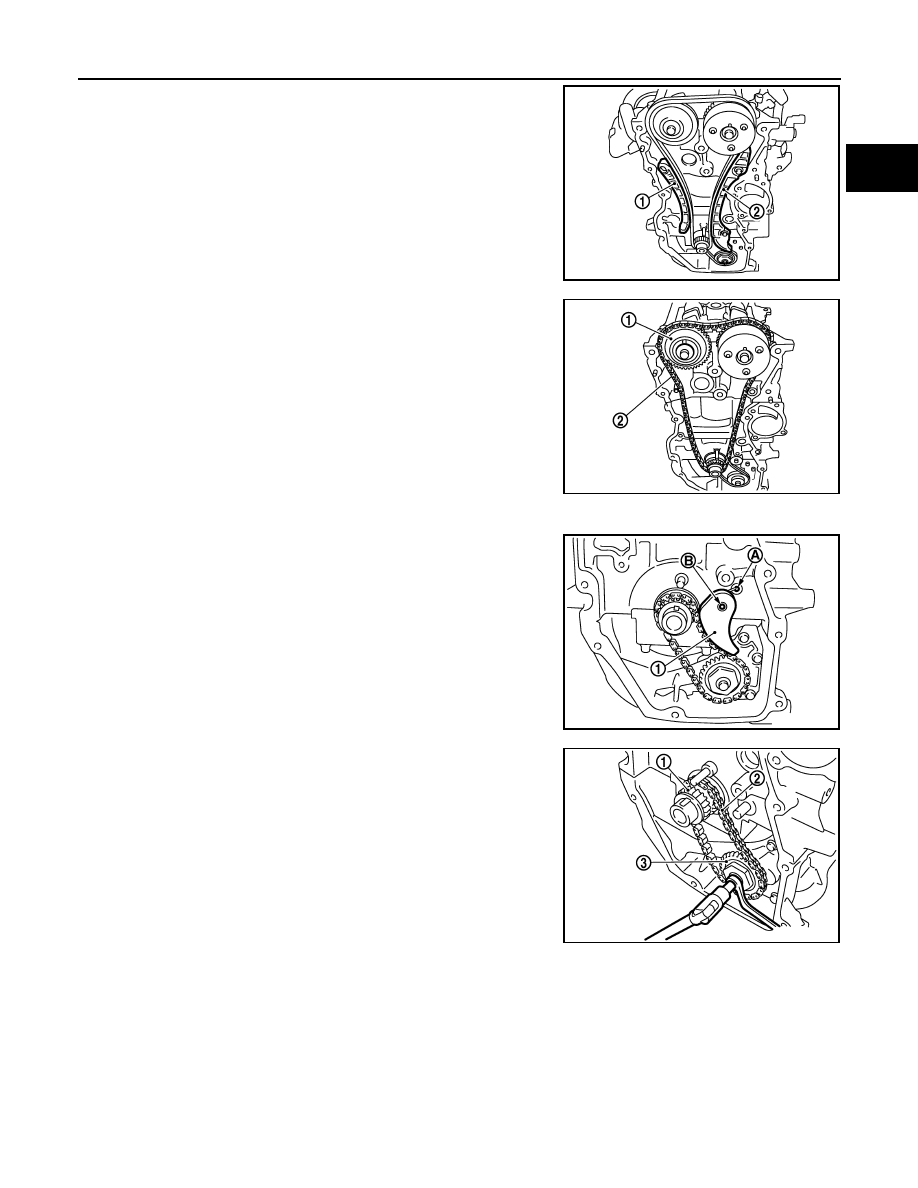

12. Remove the timing chain tension guide (2) and the timing chain

slack guide (1).

13. Remove the timing chain (2).

• Pull the looseness of timing chain toward the camshaft

sprocket (EXH) (1), and then remove the timing chain and
start the removal from camshaft sprocket (EXH) side.

CAUTION:

Never rotate crankshaft or camshaft while timing chain is
removed. It causes interference between valve and piston.

14. Remove the crankshaft sprocket and the oil pump drive related parts with the following procedure.

a.

Remove chain tensioner (1).
• Pull out from the shaft (B) and spring fixing holes (A).

b.

Hold the top of the oil pump shaft using the TORX socket (size:
E8), and then loosen the oil pump sprocket nuts and remove
them.

c.

Remove the crankshaft sprocket (1), the oil pump drive chain
(2), and the oil pump sprocket (3) at the same time.

INSTALLATION

NOTE:

PBIC3714E

PBIC3715E

PBIC3716E

PBIC3720E

EM-54

< ON-VEHICLE REPAIR >

[HR16DE]

TIMING CHAIN

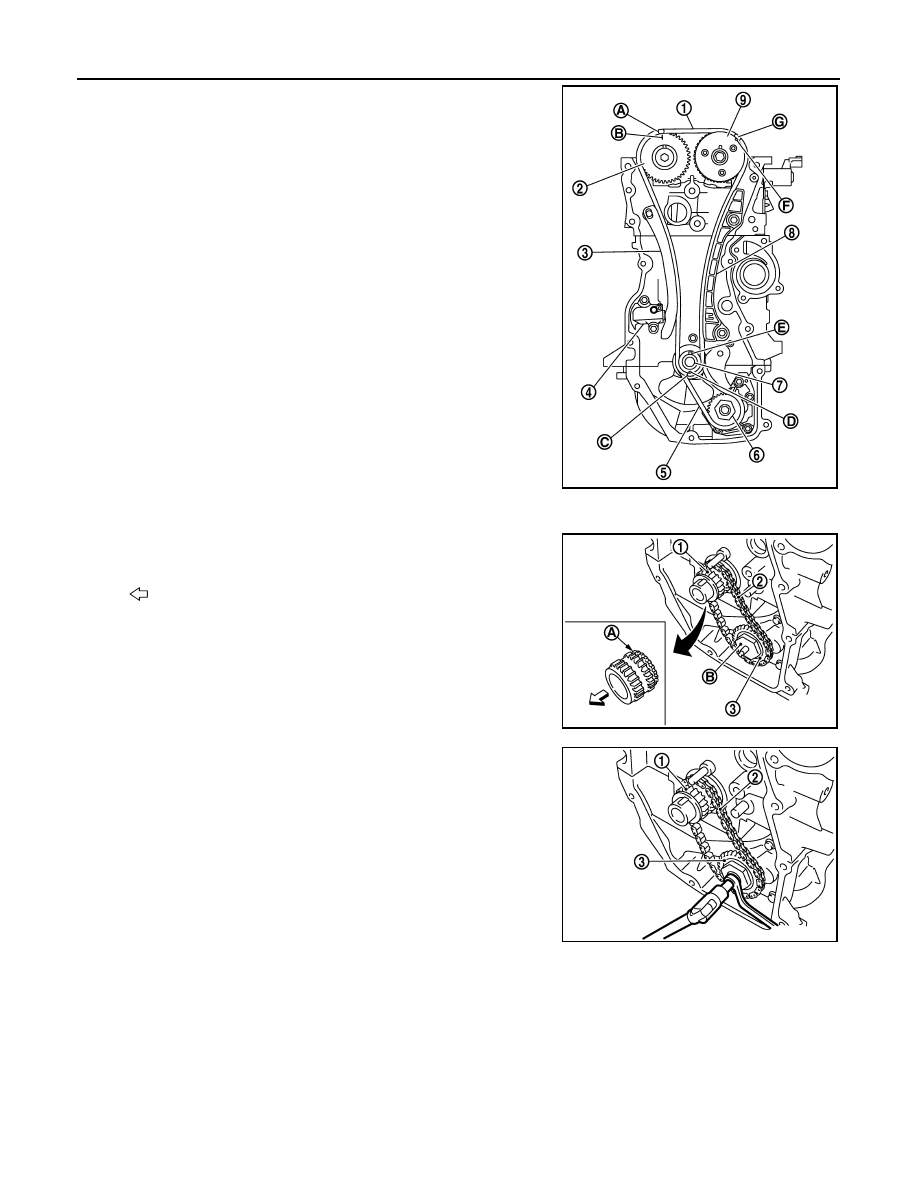

The illustration shows the relationship between the matching mark
on each timing chain and that on the corresponding sprocket, with
the components installed.

1.

Install the crankshaft sprocket and the oil pump drive related parts with the following procedure:

a.

Install the crankshaft sprocket (1), the oil pump drive chain (2),
and the oil pump sprocket (3) at the same time.

• Install the crankshaft sprocket so that its invalid gear area (A)

is towards the back of the engine.

• Install the oil pump sprocket so that its hexagonal surface

faces (B) the front of engine.

NOTE:
There is no matching mark in the oil pump drive related parts.

b.

Hold the top of the oil pump shaft using the TORX socket (size:
E8), and then tighten the oil pump sprocket nuts.

1

: Timing chain

2

: Camshaft sprocket (EXH)

3

: Timing chain slack guide

4

: Chain tensioner

5

: Oil pump drive chain

6

: Oil pump sprocket

7

: Crankshaft sprocket

8

: Timing chain tension guide

9

: Camshaft sprocket (INT)

A

: Dark blue link

B

: Matching mark (stamp)

C

: Orange link

D

: Matching mark (stamp)

E

: Crankshaft key (point straight up)

F

: Matching mark (peripheral stamp line)

G

: Dark blue link

PBIC3718E

: Engine front

PBIC3719E

1

: Crankshaft sprocket

2

: Oil pump drive chain

3

: Oil pump sprocket

PBIC3720E

TIMING CHAIN

EM-55

< ON-VEHICLE REPAIR >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

c.

Install chain tensioner (1).
• Insert the body into the shaft (B) while inserting the spring into

the fixing hole (A) of cylinder block front surface.

• Make sure that the tension is applied to the oil pump drive

chain after installing.

2.

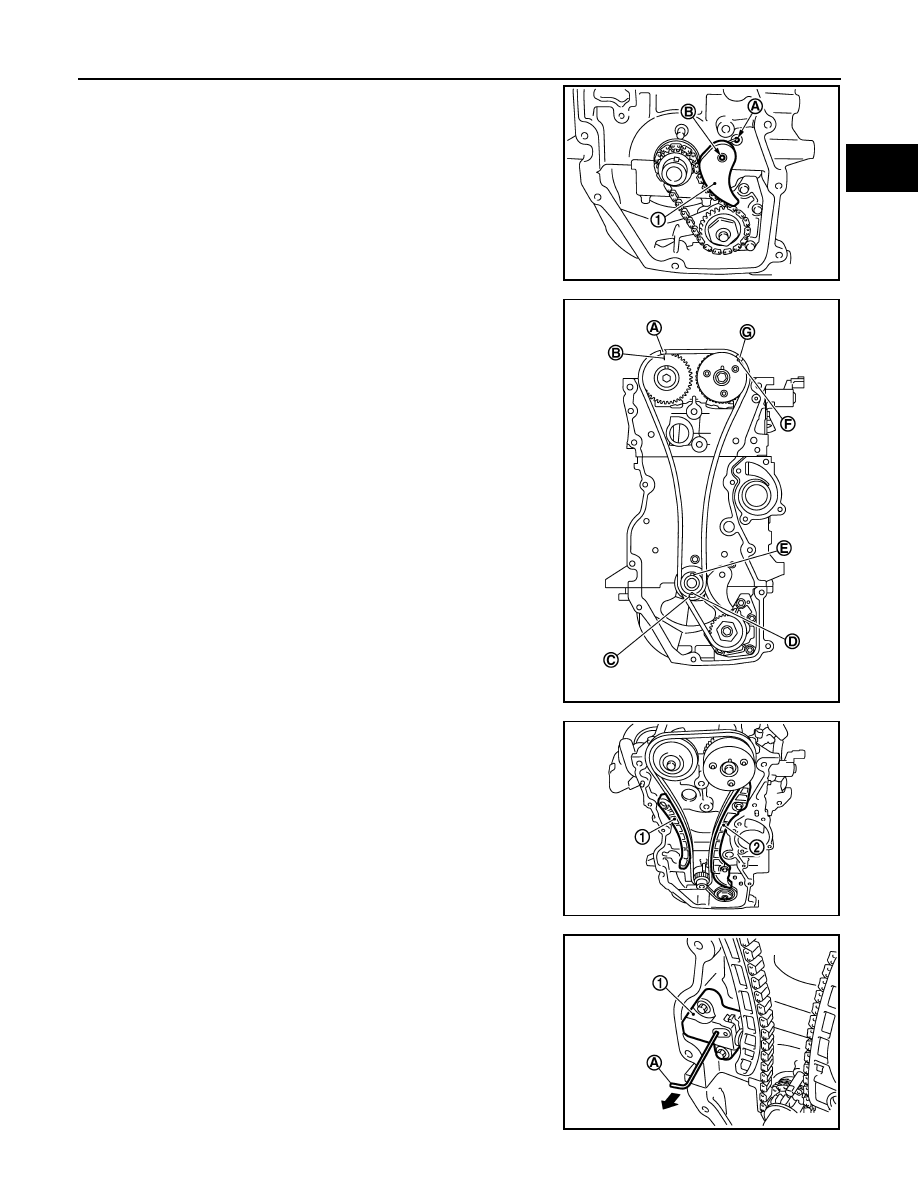

Install timing chain with the following procedure.

• Install by aligning matching marks on each sprocket and tim-

ing chain.

• If these matching marks are not aligned, rotate the camshaft

slightly to correct the position.

CAUTION:

• Check matching mark position of each sprocket and tim-

ing chain again after installing the timing chain, keep
matching marks aligned by holding them with a hand.

• To avoid skipped teeth, never rotate crankshaft and cam-

shaft until front cover is installed.

3.

Install timing chain tension guide (2) and timing chain slack
guide (1).

4.

Install chain tensioner (1).
• Fix the plunger at the most compressed position using a stop-

per pin (A), and then install it.

• Securely pull out the stopper pin after installing the chain ten-

sioner.

PBIC3716E

A

: Dark blue link

B

: Matching mark (stamp)

C

: Orange link

D

: Matching mark (stamp)

E

: Crankshaft key (point straight up)

F

: Matching mark (peripheral stamp line)

G

: Dark blue link

PBIC3721E

PBIC3714E

PBIC3722E
