Nissan Tiida C11. Manual - part 676





EM-56

< ON-VEHICLE REPAIR >

[HR16DE]

TIMING CHAIN

5.

Check matching mark position of timing chain and each sprocket again.

6.

Install the front oil seal to the front cover. Refer to

EM-78, "FRONT OIL SEAL : Removal and Installation"

7.

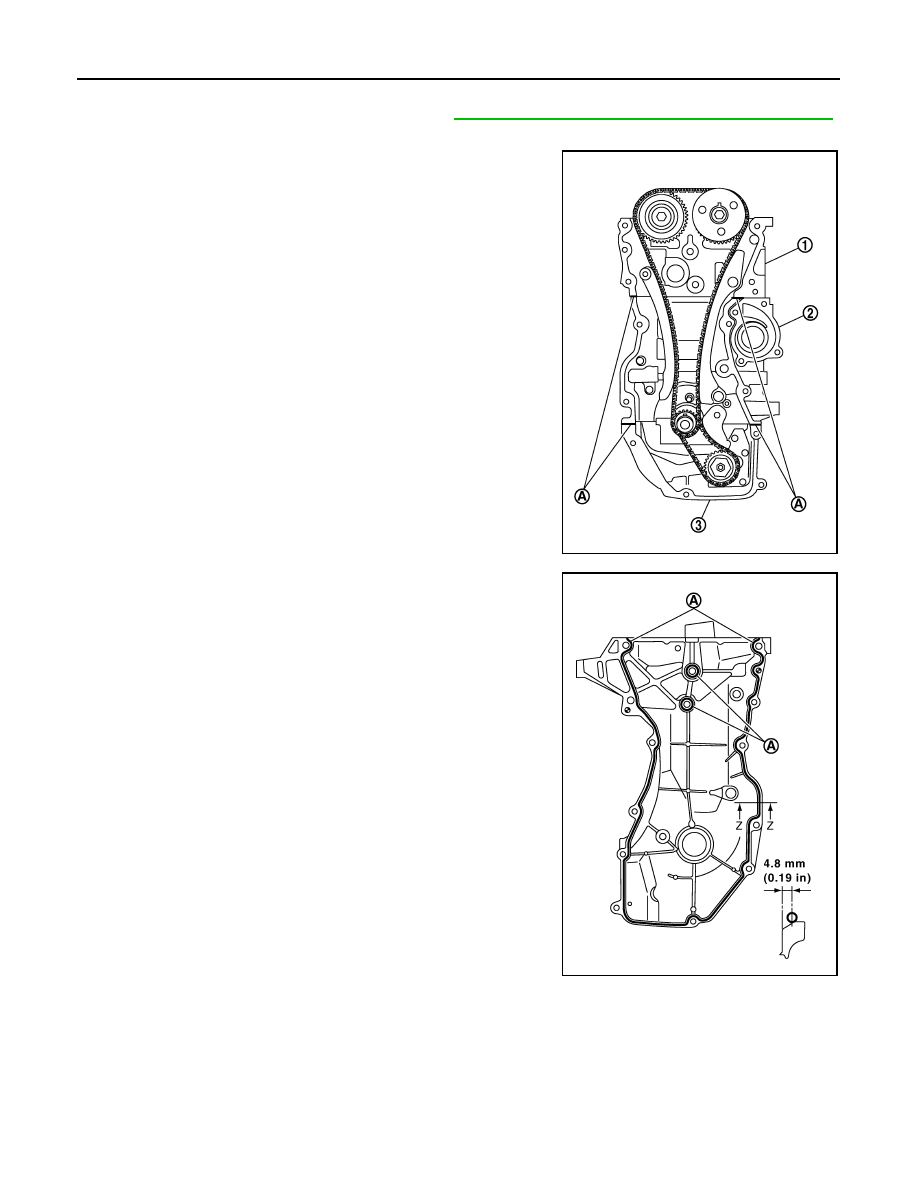

Install front cover with the following procedure:

a.

Apply a continuous bead of liquid gasket with tube presser
(commercial service tool) to front cover as shown.
Use Genuine Liquid Gasket or equivalent.

b.

Apply a continuous bead of liquid gasket with suitable tool to
front cover as shown.
Use Genuine Liquid Gasket or equivalent.

1

: Cylinder head

2

: Cylinder block

3

: Oil pan (upper)

A

: Liquid gasket application area

φ

 3.0 - 4.0 mm (0.12 - 0.16 in)

PBIC3724E

A

: Liquid gasket application area

φ

 3.0 - 4.0 mm (0.12 - 0.16 in)

PBIC3725E

TIMING CHAIN

EM-57

< ON-VEHICLE REPAIR >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

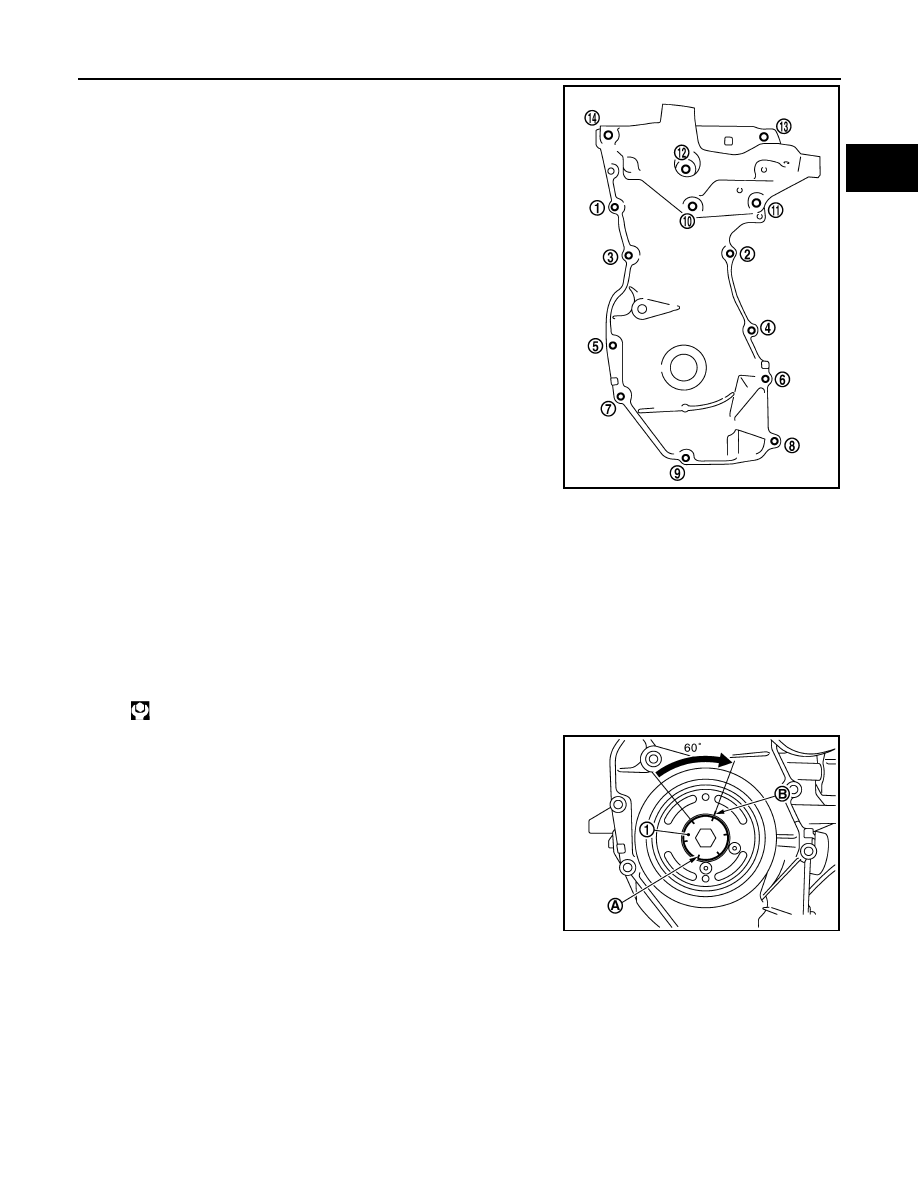

c.

Tighten bolts in the numerical order shown.

d.

After all bolts are tightened, retighten them to specified torque in
numerical order as shown.

CAUTION:

Be sure to wipe off any excessive liquid gasket leaking to
surface.

8.

Insert crankshaft pulley by aligning with crankshaft key.
• When inserting crankshaft pulley with a plastic hammer, tap on its center portion (not circumference).

CAUTION:

Never damage front oil seal lip section.

9.

Tighten crankshaft pulley bolt with the following procedure:
• Secure crankshaft pulley with a suitable tool, and tighten crankshaft pulley bolt.

a.

Apply new engine oil to thread and seat surfaces of crankshaft pulley bolt.

b.

Tighten crankshaft pulley bolt.

c.

Put a paint mark (B) on crankshaft pulley, mating with any one of
six easy to recognize angle marks (A) on crankshaft bolt flange
(1).

d.

Turn another 60 degrees clockwise (angle tightening).
• Check the tightening angle with movement of one angle mark.

10. Make sure that crankshaft turns smoothly by rotating by hand clockwise.
11. Installation is in the reverse order of removal, for the remaining parts.

Inspection

INFOID:0000000001381413

INSPECTION AFTER REMOVAL

Timing Chain

KBIA3429J

: 35.0 N·m (3.6 kg-m, 26 ft-lb)

PBIC3726E

E

M

- 5

8

< ON-VEHICLE REPAIR >

[HR16DE]

TIMING CHAIN

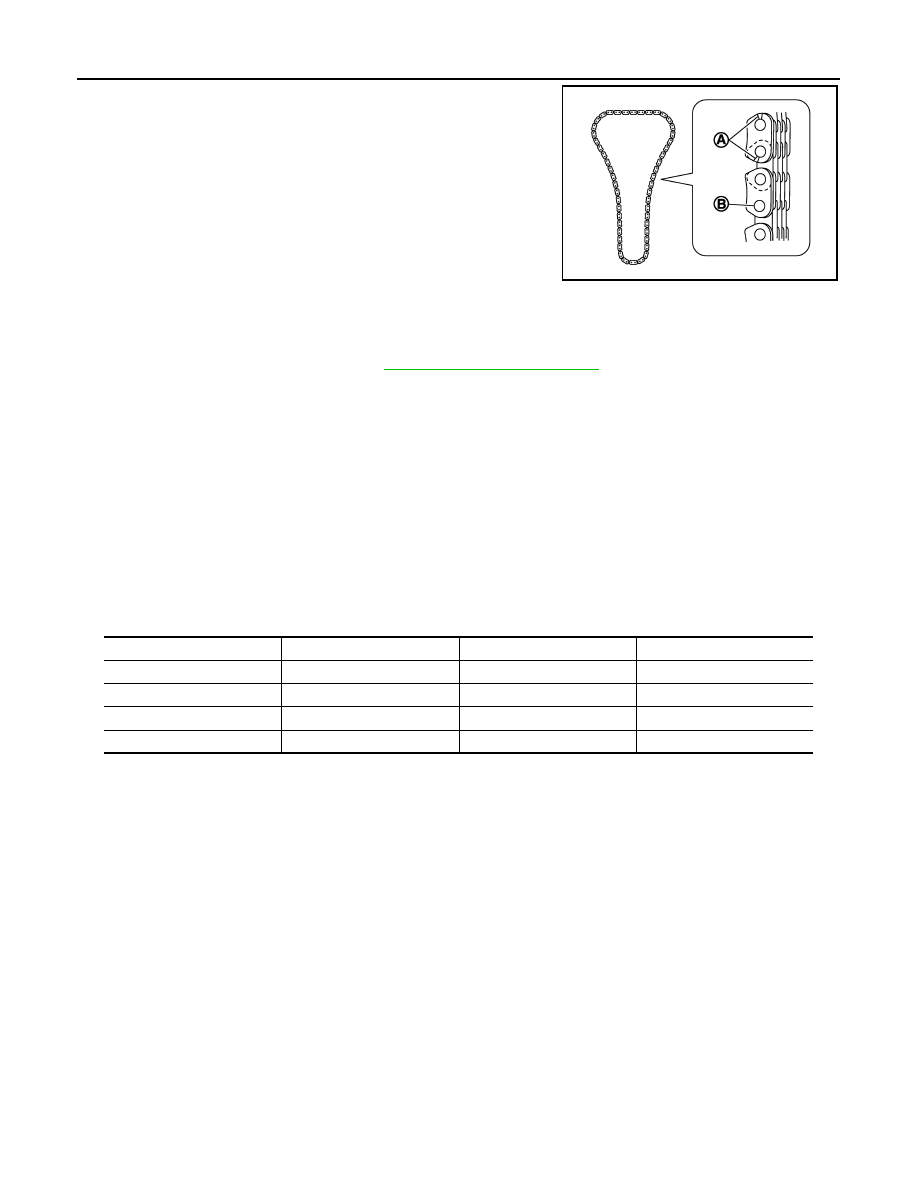

Check for cracks and any excessive wear at link plates and roller
links of timing chain. Replace timing chain as necessary.

INSPECTION AFTER INSTALLATION

Inspection for Leaks

• Before starting engine, check oil/fluid levels including engine coolant and engine oil. If less than required

quantity, fill to the specified level. Refer to

MA-19, "Fluids and Lubricants"

.

• Use procedure below to check for fuel leakage.
- Turn ignition switch “ON” (with engine stopped). With fuel pressure applied to fuel piping, check for fuel leak-

age at connection points.

- Start engine. With engine speed increased, check again for fuel leakage at connection points.
• Run engine to check for unusual noise and vibration.

NOTE:
If hydraulic pressure inside chain tensioner drops after removal/installation, slack in guide may generate a
pounding noise during and just after the engine start. However, this does not indicate an unusualness. Noise
will stop after hydraulic pressure rises.

• Warm up engine thoroughly to make sure there is no leakage of fuel, or any oil/fluids including engine oil and

engine coolant.

• Bleed air from lines and hoses of applicable lines, such as in cooling system.
• After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to the

specified level, if necessary.

Summary of the inspection items:

* Transmission/transaxle/CVT fluid, power steering fluid, brake fluid, etc.

A

:  Crack

B

:  Wear

JPBIA0091ZZ

Items

Before starting engine

Engine running

After engine stopped

Engine coolant

Level

Leakage

Level

Engine oil

Level

Leakage

Level

Other oils and fluid*

Level

Leakage

Level

Fuel

Leakage

Leakage

Leakage

CAMSHAFT

EM-59

< ON-VEHICLE REPAIR >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

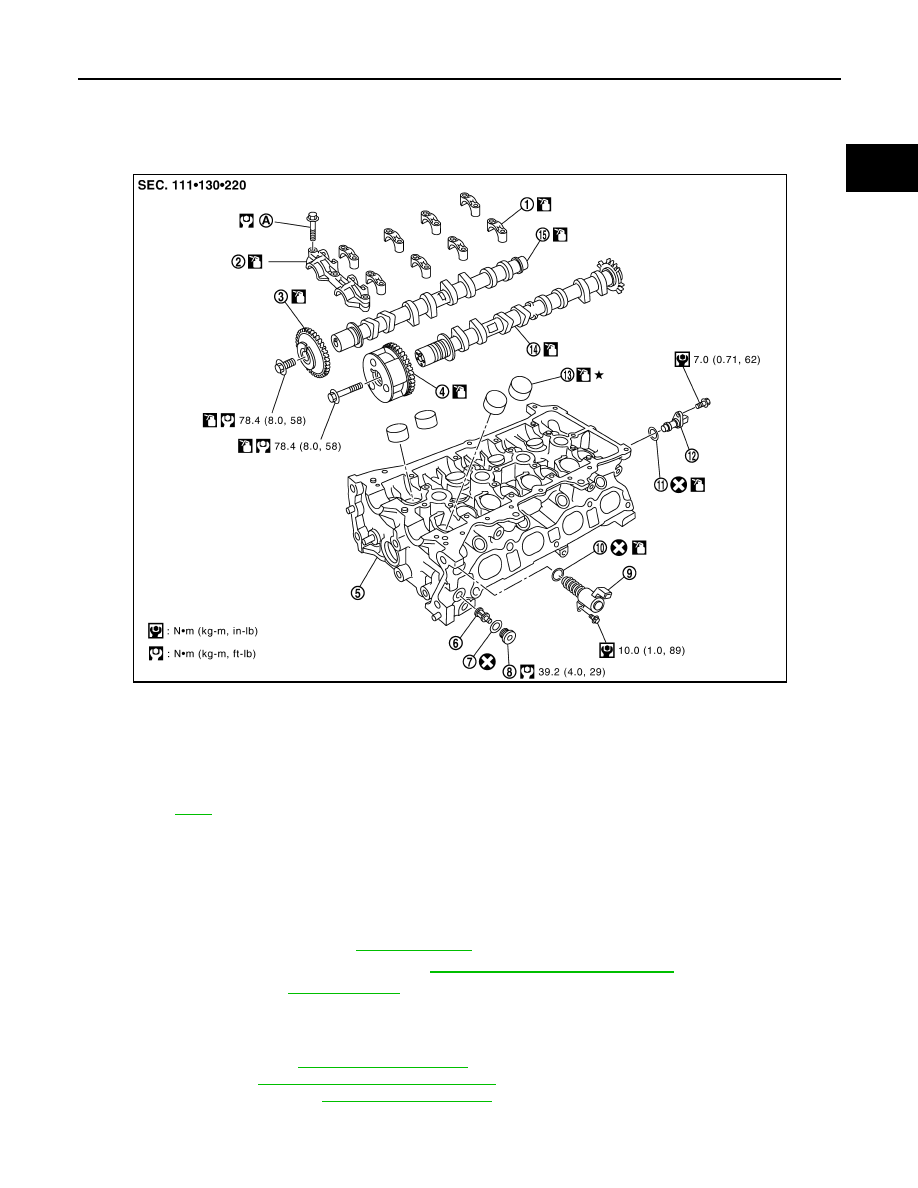

CAMSHAFT

Exploded View

INFOID:0000000001381414

Removal and Installation

INFOID:0000000001381415

CAUTION:

The rotation direction in the text indicates all directions seen from the engine front.

REMOVAL

1.

Remove front wheel (RH). Refer to

WT-6, "Rotation"

.

2.

Remove front fender protector (RH). Refer to

EXT-22, "Removal and Installation"

.

3.

Drain engine oil. Refer to

LU-7, "Draining"

.

CAUTION:

Be sure to perform this step when engine is cold.

4.

Remove the following parts.
• Intake manifold: Refer to

EM-29, "Exploded View"

.

• Drive belt: Refer to

EM-16, "Removal and Installation"

.

• Water pump pulley: Refer to

CO-20, "Exploded View"

.

• Ground cable (RH)

1.

Camshaft bracket (No. 2 to 5)

2.

Camshaft bracket (No.1)

3.

Camshaft sprocket (EXH)

4.

Camshaft sprocket (INT)

5.

Cylinder head

6.

Oil filter (for intake valve timing control)

7.

Washer

8.

Plug

9.

Intake valve timing control solenoid valve

10. O-ring

11.

O-ring

12. Camshaft position sensor (PHASE)

13. Valve lifter

14.

Camshaft (INT)

15. Camshaft (EXH)

A.

Refer to

EM-59

PBIC3672E
