Nissan Tiida C11. Manual - part 673





EM-44

< ON-VEHICLE REPAIR >

[HR16DE]

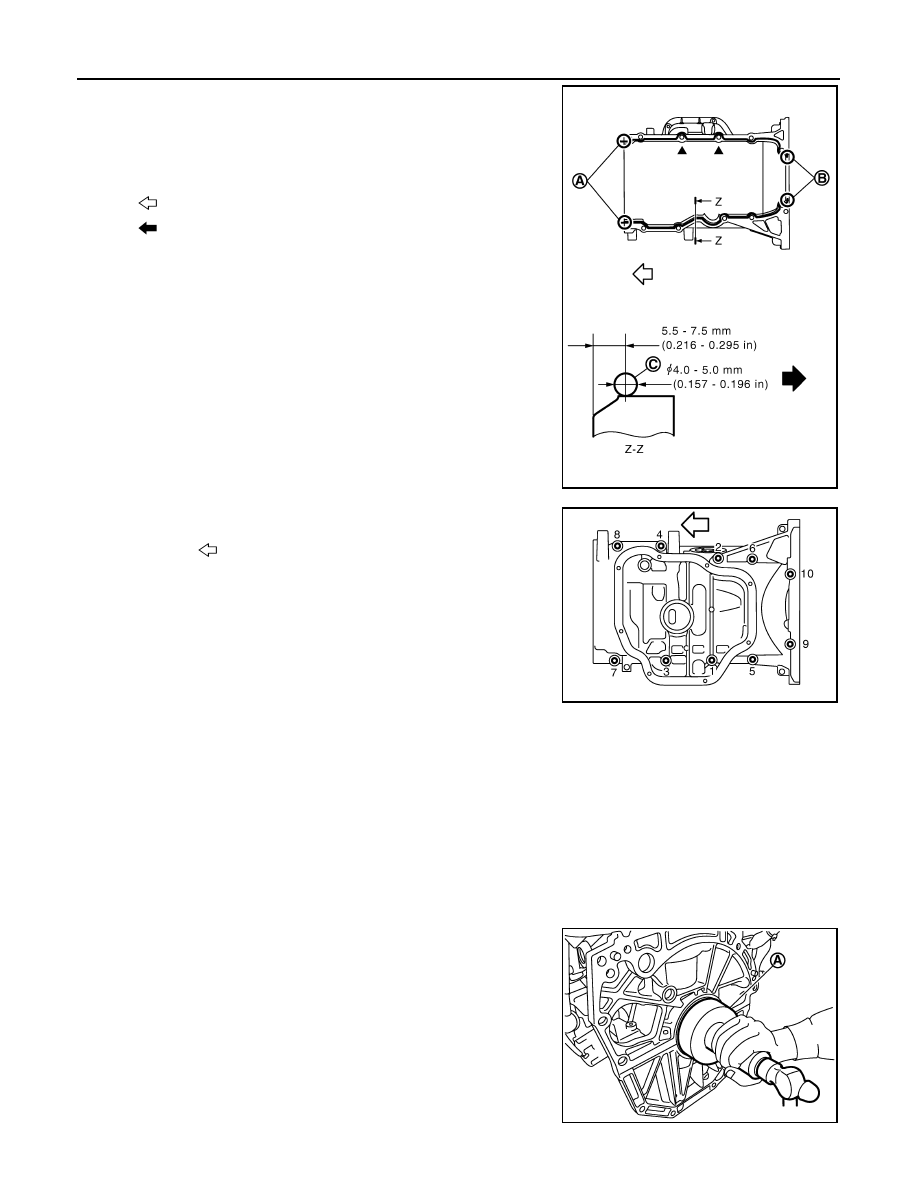

OIL PAN (UPPER) AND OIL STRAINER

c.

Apply a continuous bead of liquid gasket (C) with the tube
presser (SST: WS39930000) to areas shown.
Use Genuine Liquid Gasket or equivalent.

CAUTION:

Installation should be done within 5 minutes after coating.

d.

Tighten bolts in the numerical order shown.

CAUTION:

Install avoiding misalignment of both oil pan gasket and O-
ring.
• The bolts are different according to the installation position.

Follow the numbers shown.

2.

Install rear oil seal with the following procedure:

CAUTION:

• The installation of rear oil seal should be completed within 5 minutes after installing oil pan

(upper).

• Do not touch oil seal lip.

a.

Wipe off any liquid gasket protruding to the rear oil seal mounting part of oil pan (upper) and cylinder block
using a spatula.

b.

Apply the liquid gasket lightly to entire outside area of new rear oil seal.
Use Genuine Liquid Gasket or equivalent.

c.

Press-fit the rear oil seal using a drift with outer diameter 113
mm (4.45 in) and inner diameter 90 mm (3.54 in) (commercial
service tool) (A).

A

: 2 mm (0.07 in) protruded to outside

B

: 2 mm (0.07 in) protruded to rear oil seal mounting side

: Engine front

: Engine out side

PBIC4344E

: Engine front

M8

×

 179 mm (7.09 in)

: No. 9, 10

M8

×

 25 mm (0.98 in)

: No. 4, 7, 8

M8

×

 90 mm (3.54 in)

: No. 1, 2, 3, 5, 6

MBIB1374E

PBIC3660E

OIL PAN (UPPER) AND OIL STRAINER

EM-45

< ON-VEHICLE REPAIR >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

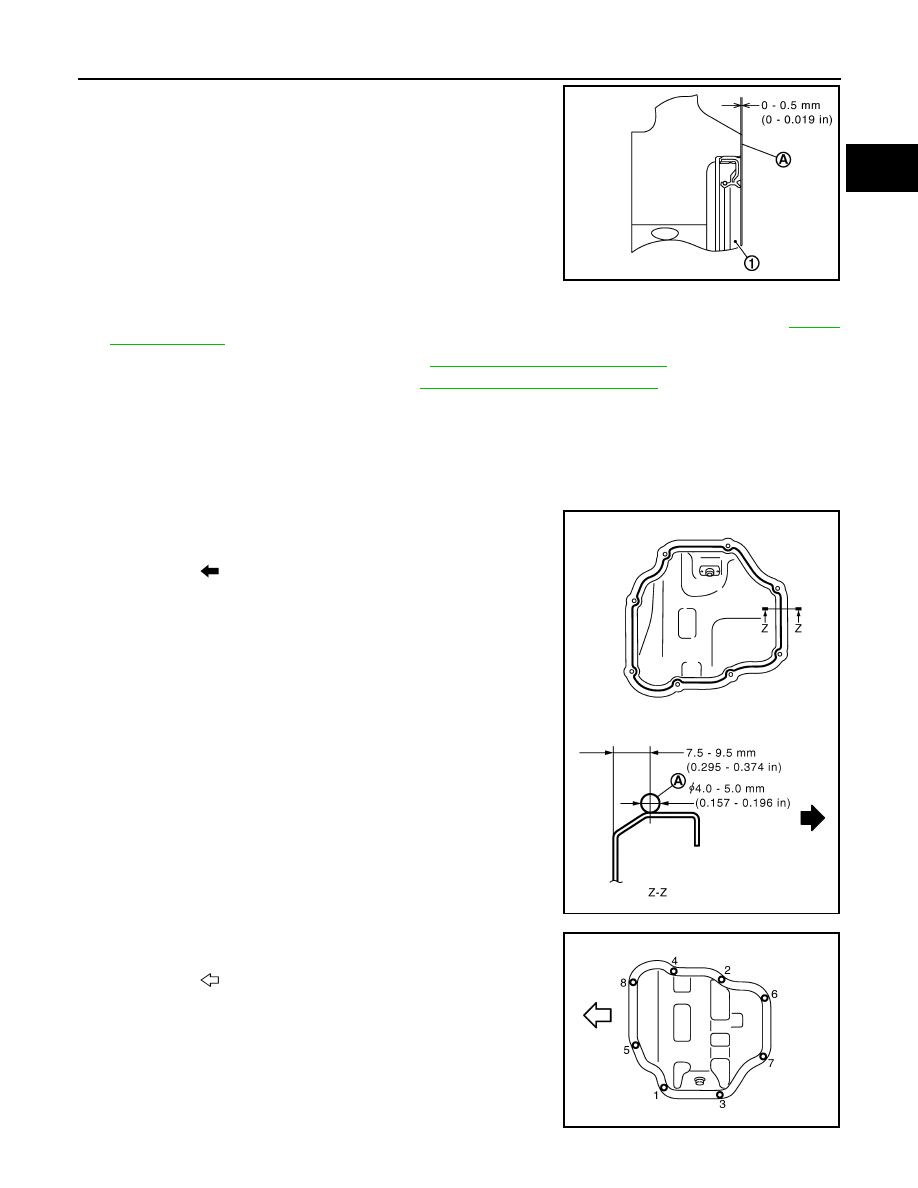

• Press-fit to the dimensions specified.

CAUTION:

• Do not touch the grease applied to the oil seal lip.
• Be careful not to damage the rear oil seal mounting part

of oil pan (upper) and cylinder block or the crankshaft.

• Install straight to make sure that oil seal does not curl or

tilt.

d.

After press-fitting the rear oil seal, completely wipe off any liquid
gasket protruding to rear end surface side.

3.

Install crankshaft sprocket, oil pump sprocket, oil pump drive chain, and chain tensioner. Refer to

EM-50,

"Exploded View"

.

4.

Install timing chain and related parts. Refer to

EM-50, "Removal and Installation"

.

5.

Install front cover and related parts. Refer to

EM-50, "Removal and Installation"

.

6.

Install oil pan (lower) with the following procedure.

a.

Use scraper to remove old liquid gasket from mating surfaces.
• Also remove the old liquid gasket from mating surface of oil pan (upper).
• Remove old liquid gasket from the bolt holes and threads.

CAUTION:

Do not scratch or damage the mating surfaces when cleaning off old liquid gasket.

b.

Apply a continuous bead of liquid gasket (A) with the tube
presser (SST: WS39930000) to areas shown in the figure.

Use Genuine Liquid Gasket or equivalent.

CAUTION:

Installation should be done within 5 minutes after coating.

c.

Tighten bolts in the numerical order shown.

1.

Rear oil seal

A.

Rear end surface of cylinder block

: Engine out side

PBIC3761E

PBIC5006E

: Engine front

PBIC4345E

EM-46

< ON-VEHICLE REPAIR >

[HR16DE]

OIL PAN (UPPER) AND OIL STRAINER

7.

Install oil pan drain plug.
• For installation direction of washer. Refer to

EM-42, "Component"

.

8.

Installation is in the reverse order of removal.

CAUTION:

Do not fill engine with engine oil until at least 30 minutes after oil pan is installed.

INSPECTION AFTER INSTALLATION

1.

Check engine oil level and adjust engine oil. Refer to

LU-6, "Inspection"

.

2.

Check for leakage of engine oil when engine is warmed.

3.

Stop engine and wait for 10 minutes.

4.

Check engine oil level again. Refer to

LU-6, "Inspection"

.

IGNITION COIL, SPARK PLUG AND ROCKER COVER

EM-47

< ON-VEHICLE REPAIR >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

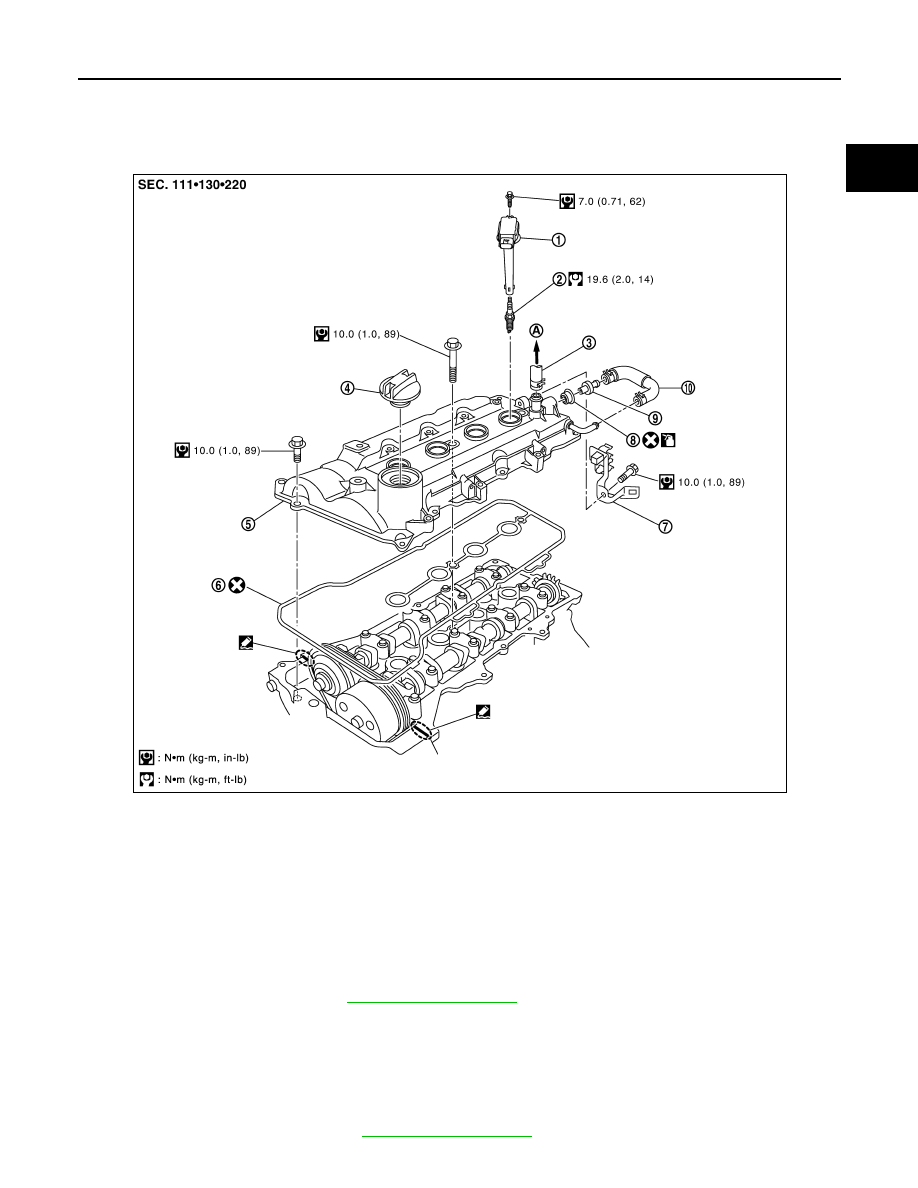

IGNITION COIL, SPARK PLUG AND ROCKER COVER

Exploded View

INFOID:0000000001381409

Removal and Installation

INFOID:0000000001381410

REMOVAL

1.

Remove intake manifold. Refer to

EM-29, "Exploded View"

.

2.

Remove ignition coil.

CAUTION:

• Handle ignition coil carefully and avoid impacts.
• Never disassemble.

3.

Remove ground cable (RH).

4.

Support the bottom surface of engine using a transmission jack, and then remove the engine mounting
bracket and insulator (RH). Refer to

EM-89, "Exploded View"

.

1.

Ignition coil

2.

Spark plug

3.

PCV hose

4.

Oil filler cap

5.

Rocker cover

6.

Gasket

7.

Bracket

8.

Grommet

9.

PCV valve

10.

PCV hose

A.

To air duct

PBIC4257E
