Nissan Tiida C11. Manual - part 663





EM-4

DRIVE BELTS ..................................................

263

Exploded View  .......................................................

263

Inspection and Adjustment  ....................................

263

Removal and Installation  .......................................

263

AIR CLEANER FILTER  ...................................

265

Removal and Installation  .......................................

265

CAMSHAFT VALVE CLEARANCE .................

266

Inspection and Adjustment  ....................................

266

COMPRESSION PRESSURE ..........................

267

Inspection ..............................................................

267

ON-VEHICLE REPAIR ...............................

268

DRIVE BELT AUTO-TENSIONER ...................

268

Exploded View  .......................................................

268

Removal and Installation  .......................................

268

AIR CLEANER AND AIR DUCT  ......................

269

Exploded View  .......................................................

269

Removal and Installation  .......................................

269

CHARGE AIR COOLER  ..................................

270

Exploded View  .......................................................

270

Removal and Installation  .......................................

270

Inspection ..............................................................

271

EGR SYSTEM  ..................................................

272

Exploded View  .......................................................

272

Removal and Installation  .......................................

272

CATALYST ......................................................

274

Exploded View  .......................................................

274

Removal and Installation  .......................................

274

Inspection ..............................................................

274

TURBOCHARGER ..........................................

275

Exploded View  .......................................................

275

Removal and Installation  .......................................

275

Inspection ..............................................................

276

EXHAUST MANIFOLD  ....................................

277

Exploded View  .......................................................

277

Removal and Installation  .......................................

277

Inspection ..............................................................

278

GLOW PLUG  ...................................................

279

Exploded View  .......................................................

279

Removal and Installation  .......................................

279

VACUUM PUMP  ..............................................

280

Exploded View  .......................................................

280

Removal and Installation  .......................................

280

Inspection ..............................................................

280

INJECTION TUBE AND FUEL INJECTOR  .....

281

Exploded View  .......................................................

281

Removal and Installation  .......................................

281

OIL PAN ............................................................

284

Exploded View  ......................................................

284

Removal and Installation .......................................

284

Inspection ..............................................................

286

HIGH PRESSURE SUPPLY PUMP ..................

287

Exploded View  ......................................................

287

Removal and Installation .......................................

287

ROCKER COVER .............................................

289

Exploded View  ......................................................

289

Removal and Installation .......................................

289

TIMING BELT  ...................................................

291

Exploded View  ......................................................

291

Removal and Installation .......................................

291

CAMSHAFT ......................................................

298

Exploded View  ......................................................

298

Removal and Installation .......................................

298

Inspection ..............................................................

300

REMOVAL AND INSTALLATION .............

302

ENGINE ASSEMBLY .......................................

302

Exploded View  ......................................................

302

Removal and Installation .......................................

302

Inspection ..............................................................

304

DISASSEMBLY AND ASSEMBLY ...........

305

ENGINE STAND SETTING  ..............................

305

Setting ...................................................................

305

CYLINDER HEAD .............................................

306

Exploded View  ......................................................

306

Removal and Installation .......................................

306

Disassembly and Assembly  ..................................

307

Cleaning ................................................................

310

Inspection ..............................................................

310

CYLINDER BLOCK  ..........................................

314

Exploded View  ......................................................

314

Disassembly and Assembly  ..................................

314

Inspection ..............................................................

330

SERVICE DATA AND SPECIFICATIONS
(SDS) .........................................................

333

SERVICE DATA AND SPECIFICATIONS
(SDS) ................................................................

333

General Specification ...........................................

333

Drive Belt  ..............................................................

333

Camshaft ...............................................................

333

Cylinder Head ......................................................

335

Cylinder Block ......................................................

337

Turbocharger ........................................................

339

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

EM-5

< SYMPTOM DIAGNOSIS >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

SYMPTOM DIAGNOSIS

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

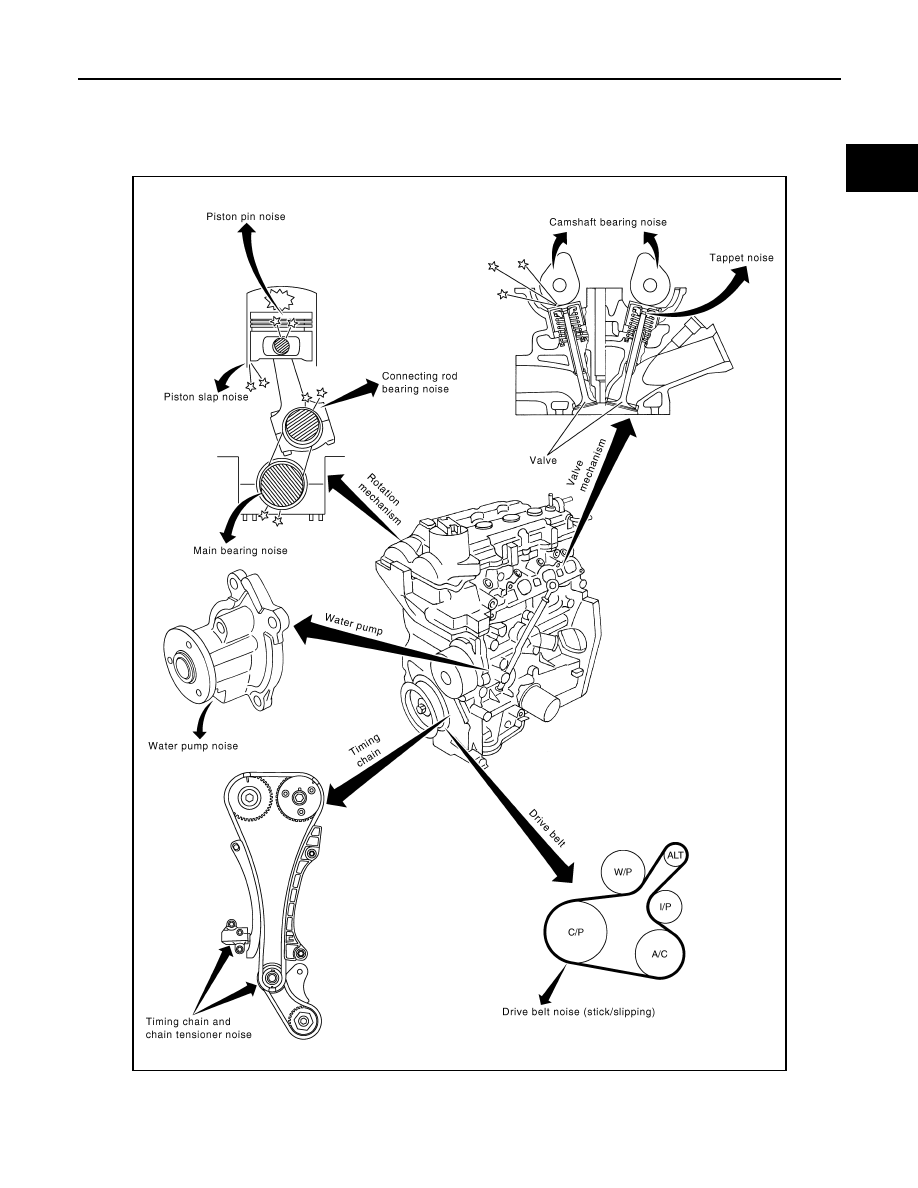

NVH Troubleshooting - Engine Noise

INFOID:0000000001381371

PBIC3870E

EM-6

< SYMPTOM DIAGNOSIS >

[HR16DE]

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

Use the Chart Below to Help You Find the Cause of the Symptom

INFOID:0000000001381372

1.

Locate the area where noise occurs.

2.

Confirm the type of noise.

3.

Specify the operating condition of engine.

4.

Check specified noise source.

If necessary, repair or replace these parts.

A: Closely related

B: Related

C: Sometimes related

—: Not related

Location

of noise

Type of

noise

Operating condition of engine

Source of

noise

Check item

Refer-

ence page

Before

warm-

up

After

warm-

up

When

start-

ing

When

idling

When

racing

While

driving

Top of en-
gine
Rocker
cover
Cylinder
head

Ticking or
clicking

C

A

A

B

Tappet
noise

Valve clearance

EM-21

Rattle

C

A

A

B

C

Camshaft
bearing
noise

Camshaft journal oil
clearance
Camshaft runout

EM-123
EM-123

Crank-
shaft pul-
ley
Cylinder
block
(Side of
engine)
Oil pan

Slap or
knock

A

B

B

Piston pin
noise

Piston to piston pin oil
clearance
Connecting rod small
end clearance

EM-127
EM-130

Slap or
rap

A

B

B

A

Piston
slap noise

Piston to cylinder bore
clearance
Piston ring side clear-
ance
Piston ring end gap
Connecting rod bend
and torsion

EM-127
EM-127
EM-127
EM-130

Knock

A

B

C

B

B

B

Connect-
ing rod
bearing
noise

Connecting rod small
end clearance
Connecting rod bearing
oil clearance

EM-127
EM-130

Knock

A

B

A

B

C

Main bear-
ing noise

Main bearing oil clear-
ance
Crankshaft runout

EM-131
EM-127

Front of
engine
Front cov-
er

Tapping or
ticking

A

A

B

B

B

Timing
chain and
chain ten-
sioner
noise

Timing chain cracks
and wear
Timing chain tensioner
operation

EM-57

Front of
engine

Squeak-
ing or fizz-
ing

A

B

B

C

Drive belt
(Sticking
or slip-
ping)

Drive belt deflection

EM-122

Creaking

A

B

A

B

A

B

Drive belt
(Slipping)

Idler pulley bearing op-
eration

Squall
Creak

A

B

B

A

B

Water
pump
noise

Water pump operation

CO-21

PRECAUTIONS

EM-7

< PRECAUTION >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000001527642

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SR and SB section of
this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

Precaution for Procedure without Cowl Top Cover

INFOID:0000000001527633

When performing the procedure after removing cowl top cover, cover
the lower end of windshield.

Precaution Necessary for Steering Wheel Rotation After Battery Disconnect

INFOID:0000000001527634

NOTE:
• This Procedure is applied only to models with Intelligent Key system and NATS (NISSAN ANTI-THEFT SYS-

TEM).

• Remove and install all control units after disconnecting both battery cables with the ignition knob in the

LOCK

 position.

• Always use CONSULT-II to perform self-diagnosis as a part of each function inspection after finishing work.

If DTC is detected, perform trouble diagnosis according to self-diagnostic results.

For models equipped with the Intelligent Key system and NATS, an electrically controlled steering lock mech-
anism is adopted on the key cylinder.
For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and
steering wheel rotation will become impossible.
If steering wheel rotation is required when battery power is interrupted, follow the procedure below before
starting the repair operation.

OPERATION PROCEDURE

1.

Connect both battery cables.
NOTE:
Supply power using jumper cables if battery is discharged.

2.

Use the Intelligent Key or mechanical key to turn the ignition switch to the

ACC

 position. At this time, the

steering lock will be released.

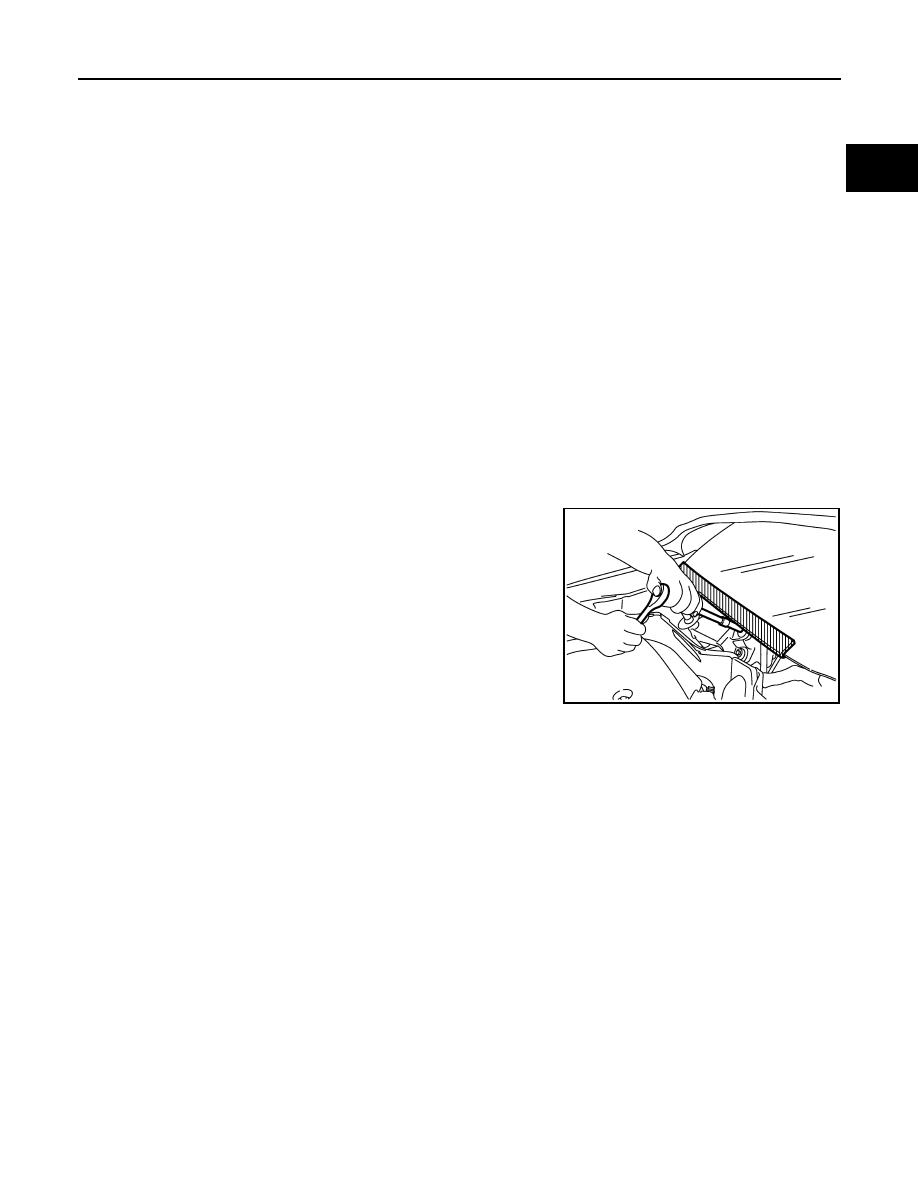

PIIB3706J















содержание   ..  661  662  663  664   ..
