EM-8

< PRECAUTION >

[HR16DE]

PRECAUTIONS

3.

Disconnect both battery cables. The steering lock will remain released and the steering wheel can be
rotated.

4.

Perform the necessary repair operation.

5.

When the repair work is completed, return the ignition switch to the

LOCK

 position before connecting

the battery cables. (At this time, the steering lock mechanism will engage.)

6.

Perform a self-diagnosis check of all control units using CONSULT-II.

Precaution for Drain Coolant

INFOID:0000000001527635

• Drain coolant when engine is cooled.

Precaution for Disconnecting Fuel Piping

INFOID:0000000001527636

• Before starting work, make sure no fire or spark producing items are in the work area.
• Release fuel pressure before disassembly.
• After disconnecting pipes, plug openings to stop fuel leakage.

Precaution for Removal and Disassembly

INFOID:0000000001527637

• When instructed to use special service tools, use the specified tools. Always be careful to work safely, avoid

forceful or uninstructed operations.

• Exercise maximum care to avoid damage to mating or sliding surfaces.
• Cover openings of engine system with tape or the equivalent, if necessary, to seal out foreign materials.
• Mark and arrange disassembly parts in an organized way for easy troubleshooting and assembly.
• When loosening nuts and bolts, as a basic rule, start with the one furthest outside, then the one diagonally

opposite, and so on. If the order of loosening is specified, do exactly as specified. Power tools may be used
where noted in the step.

Precaution for Inspection, Repair and Replacement

INFOID:0000000001527638

• Before repairing or replacing, thoroughly inspect parts. Inspect new replacement parts in the same way, and

replace if necessary.

Precaution for Assembly and Installation

INFOID:0000000001527639

• Use torque wrench to tighten bolts or nuts to specification.
• When tightening nuts and bolts, as a basic rule, equally tighten in several different steps starting with the

ones in center, then ones on inside and outside diagonally in this order. If the order of tightening is specified,
do exactly as specified.

• Replace with new gasket, packing, oil seal or O-ring.
• Thoroughly wash, clean, and air-blow each part. Carefully check oil or coolant passages for any restriction

and blockage.

• Avoid damaging sliding or mating surfaces. Completely remove foreign materials such as cloth lint or dust.

Before assembly, oil sliding surfaces well.

• Release air within route after draining coolant.
• Before starting engine, apply fuel pressure to fuel lines with turning ignition switch ON (with engine stopped).

Then make sure that there are no leaks at fuel line connections.

• After repairing, start engine and increase engine speed to check coolant, fuel, oil, and exhaust systems for

leakage.

Parts Requiring Angular Tightening

INFOID:0000000001527640

• Use an angle wrench for the final tightening of the following engine parts:
- Cylinder head bolts
- Camshaft sprocket (INT)
- Main bearing cap bolts
- Connecting rod cap nuts
- Crankshaft pulley bolt (No angle wrench is required as the bolt flange is provided with notches for angular

tightening)

• Do not use a torque value for final tightening.

Tool number

: KV10112100 (BT-8653-A)

PRECAUTIONS

EM-9

< PRECAUTION >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

• The torque value for these parts are for a preliminary step.
• Ensure thread and seat surfaces are clean and coated with engine oil.

Precaution for Liquid Gasket

INFOID:0000000001527641

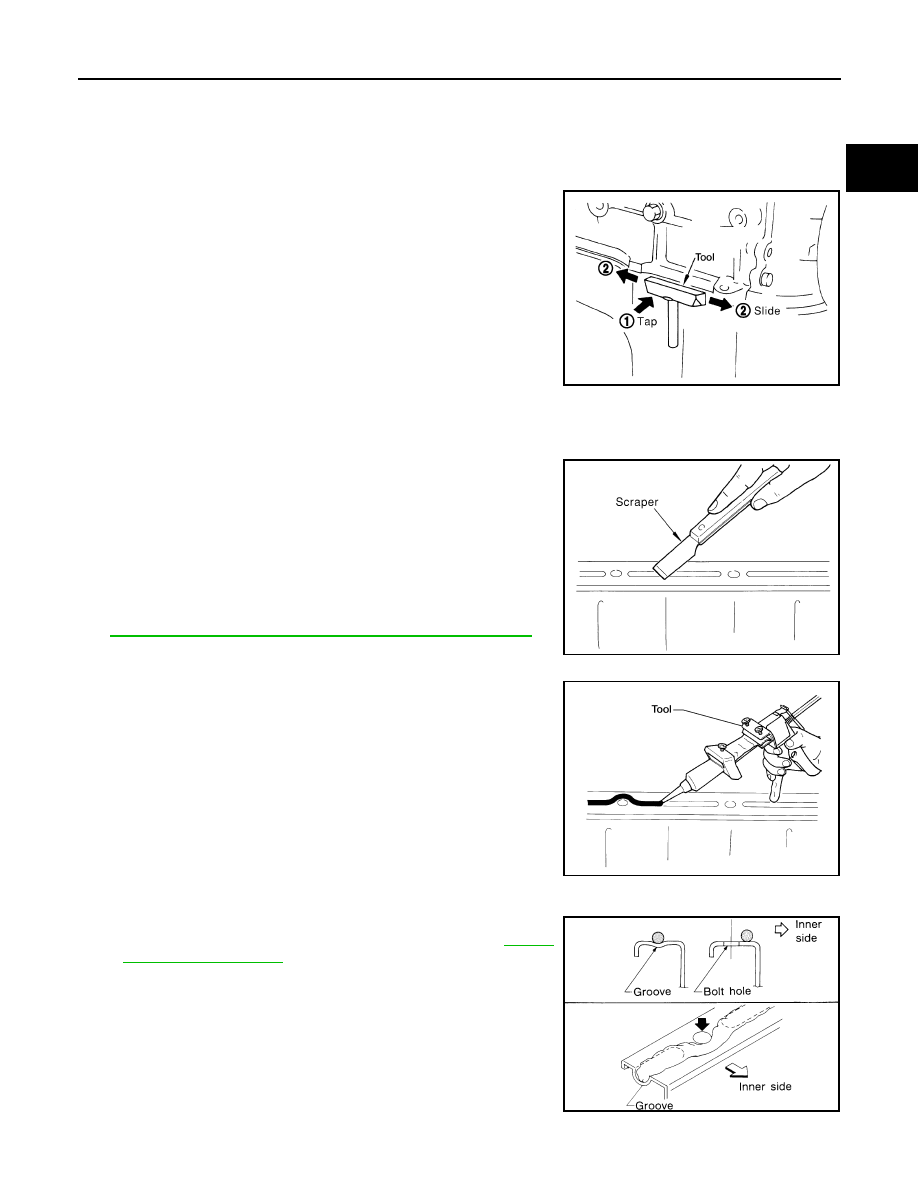

REMOVAL OF LIQUID GASKET SEALING

• After removing the bolts and nuts, separate the mating surface and

remove the sealant using Tool.

CAUTION:

Be careful not to damage the mating surfaces.

• In areas where the cutter is difficult to use, use a plastic hammer to

lightly tap (1) the cutter where the RTV Silicone Sealant is applied.
Use a plastic hammer to slide the cutter (2) by tapping on the side.

CAUTION:

If for some unavoidable reason a tool such as a flat-bladed
screwdriver is used, be careful not to damage the mating sur-
faces.

LIQUID GASKET APPLICATION PROCEDURE

1.

Using a scraper, remove the old Silicone RTV Sealant adhering
to the gasket application surface and the mating surface.
• Remove the sealant completely from the groove of the gasket

application surface, bolts, and bolt holes.

2.

Thoroughly clean the gasket application surface and the mating
surface and remove adhering moisture, grease and foreign
materials.

3.

Attach the sealant tube to the tube presser.
Use Genuine Silicone RTV Sealant or equivalent. Refer to

GI-27, "Recommended Chemical Products and Sealants"

.

4.

Apply the sealant without breaks to the specified location using
Tool.

• If there is a groove for the sealant application, apply the seal-

ant to the groove.

• As for the bolt holes, normally apply the sealant inside the

holes. If specified, it should be applied outside the holes. Make
sure to read the text of this manual.

• Within five minutes of the sealant application, install the mat-

ing component.

• If the sealant protrudes, wipe it off immediately.
• Do not retighten after the installation.
• After 30 minutes or more have passed from the installation, fill

the engine with the specified oil and coolant. Refer to

MA-19,

"Fluids and Lubricants"

.

CAUTION:

Tool number

: KV10111100 (J-37228)

WBIA0566E

PBIC0003E

Tool number

WS39930000 (

)

WBIA0567E

SEM159F

EM-10

< PRECAUTION >

[HR16DE]

PRECAUTIONS

Follow all specific instructions in this manual.

PREPARATION

EM-11

< PREPARATION >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

PREPARATION

PREPARATION

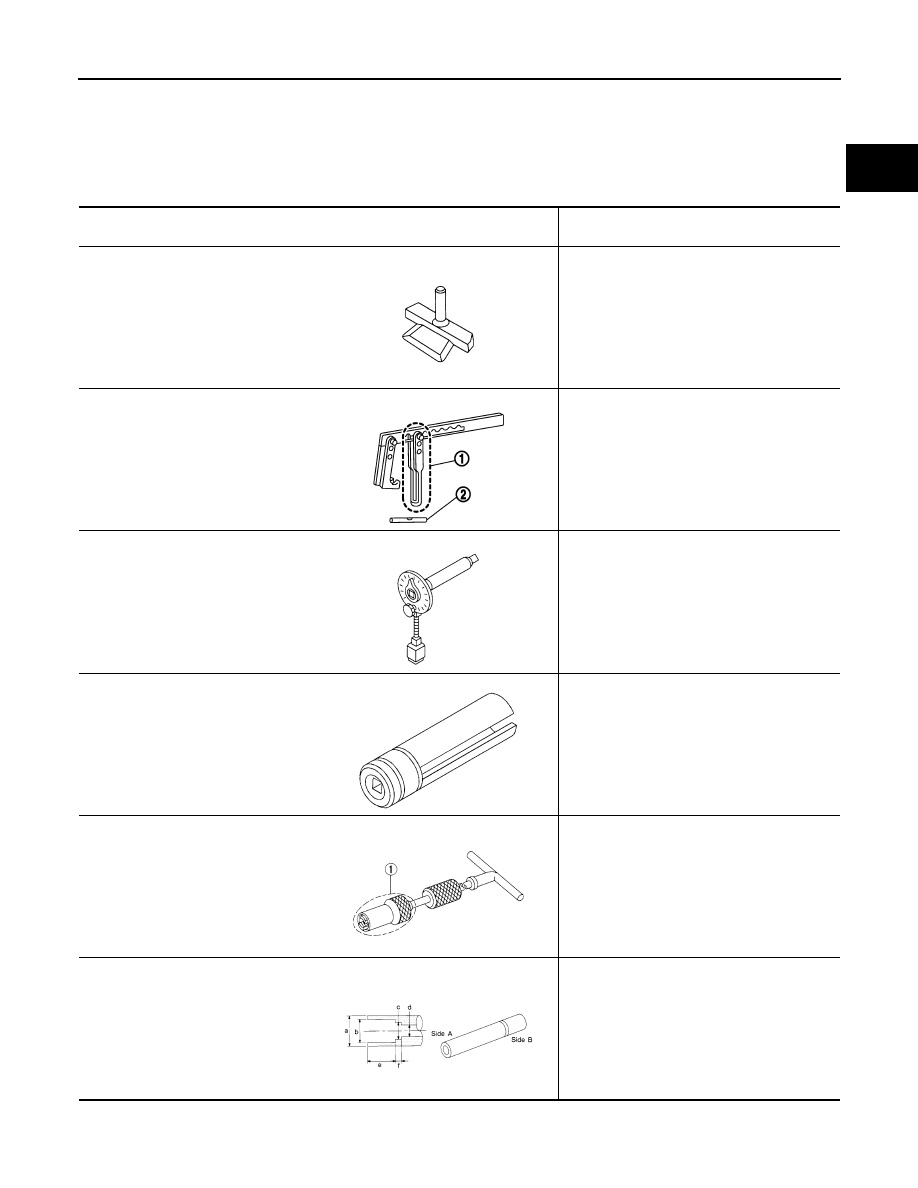

Special Service Tools

INFOID:0000000001381382

Tool number
Tool name

Description

KV10111100
Seal cutter

Removing oil pan (lower and upper) etc.

KV10116200
Valve spring compressor
1. KV10115900
Attachment
2. KV10109220
Adapter

Disassembling and assembling valve mecha-
nism
Part (1) is a component of KV10116200, but
Part (2) is not so.

KV10112100
Angle wrench

Tightening bolts for bearing cap, cylinder
head, etc. in angle

KV10117100
Heated oxygen sensor wrench

Loosening or tightening heated oxygen sen-
sor 1
For 22 mm (0.87 in) width hexagon nut

KV10107902
Valve oil seal puller
1. KV10116100
Valve oil seal puller adapter

Removing valve oil seal

KV10115600
Valve oil seal drift

Installing valve oil seal
Use side A.
a: 20 (0.79) dia.             d: 8 (0.31) dia.
b: 13 (0.51) dia.             e: 10.7 (0.421)
c: 10.3 (0.406) dia.         f: 5 (0.20)
                                                   Unit: mm (in)

S-NT046

PBIC1650E

S-NT014

NT379

SZNT605

S-NT603
