P0090 FUEL PUMP

P0090 FUEL PUMP

DTC Logic

INFOID:0000000001162566

DTC DETECTION LOGIC

NOTE:
• Conditions for applying the diagnostic procedure to the stored DTCs:

 The DTC becomes present after the engine is started.

• If the DTC is present:
- Malfunction indicator (Red) lights up.

Diagnosis Procedure

INFOID:0000000001162567

1.

CHECK HIGH PRESSURE SUPPLY PUMP (PRESSURE CONTROL VALVE) POWER SUPPLY

1.

Turn ignition switch OFF.

2.

Disconnect high pressure supply pump (pressure control valve) harness connector.

3.

Turn ignition switch ON.

4.

Check the voltage between high pressure supply pump (pressure control valve) harness connector and
ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

DETECT MALFUNCTIONING PART

Check the following.
• IPDM E/R
• Harness for open or short between IPDM E/R and high pressure supply pump (pressure control valve)
• Harness for open or short between ECM and high pressure supply pump (pressure control valve)

>> Repair open circuit or short to ground or short to power in harness or connectors.

3.

CHECK HIGH PRESSURE SUPPLY PUMP (PRESSURE CONTROL VALVE) OUTPUT SIGNAL CIRCUIT

FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check the continuity between high pressure supply pump (pressure control valve) harness connector and
ECM harness connector.

4.

Also check harness for short to ground and short to power.

DTC No.

Trouble diagnosis name

Possible cause

P0090

HIGH PRESSURE SUPPLY PUMP (PRESSURE CONTROL VALVE)
CIRCUIT
• CO: Open circuit
• CO.0: Short circuit to ground
• CC.1: Short circuit to +12V
• 1.DEF: Parameter at maximum level

• Harness or connectors

[High pressure supply pump (pressure
control valve) circuit is open or shorted.]

• High pressure supply pump (pressure

control valve)

High pressure supply pump

(Pressure control valve)

Ground

Voltage

Connector

Terminal

F53

3

Ground

Battery voltage

High pressure supply pump

(Pressure control valve)

ECM

Continuity

Connector

Terminal

Connector

Terminal

F53

4

F11

49

Existed

P0090 FUEL PUMP

EC-1123

< COMPONENT DIAGNOSIS >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair open circuit or short to ground or short to power in harness or connectors.

4.

HIGH PRESSURE SUPPLY PUMP (PRESSURE CONTROL VALVE) CHECK

Refer to

EC-1123, "Component Inspection"

.

Is the inspection result normal?

Yes

>> GO TO 5.

No

>> Replace high pressure supply pump.

5.

CHECK INTERMITTENT INCIDENT

Refer to

GI-55, "Intermittent Incident"

.

>> INSPECTIO END

Component Inspection

INFOID:0000000001162568

1.

CHECK HIGH PRESSURE SUPPLY PUMP (PRESSURE CONTROL VALVE)

1.

Turn ignition switch OFF.

2.

Disconnect high pressure supply pump (pressure control valve) harness connector.

3.

Check resistance between high pressure supply pump (pressure control valve) terminals as follows.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace high pressure supply pump.

Terminals

Resistance

3 and 4

1.5 - 15

Ω

EC-1124

< COMPONENT DIAGNOSIS >

[K9K]

P0100 MAF SENSOR

P0100 MAF SENSOR

Description

INFOID:0000000001162569

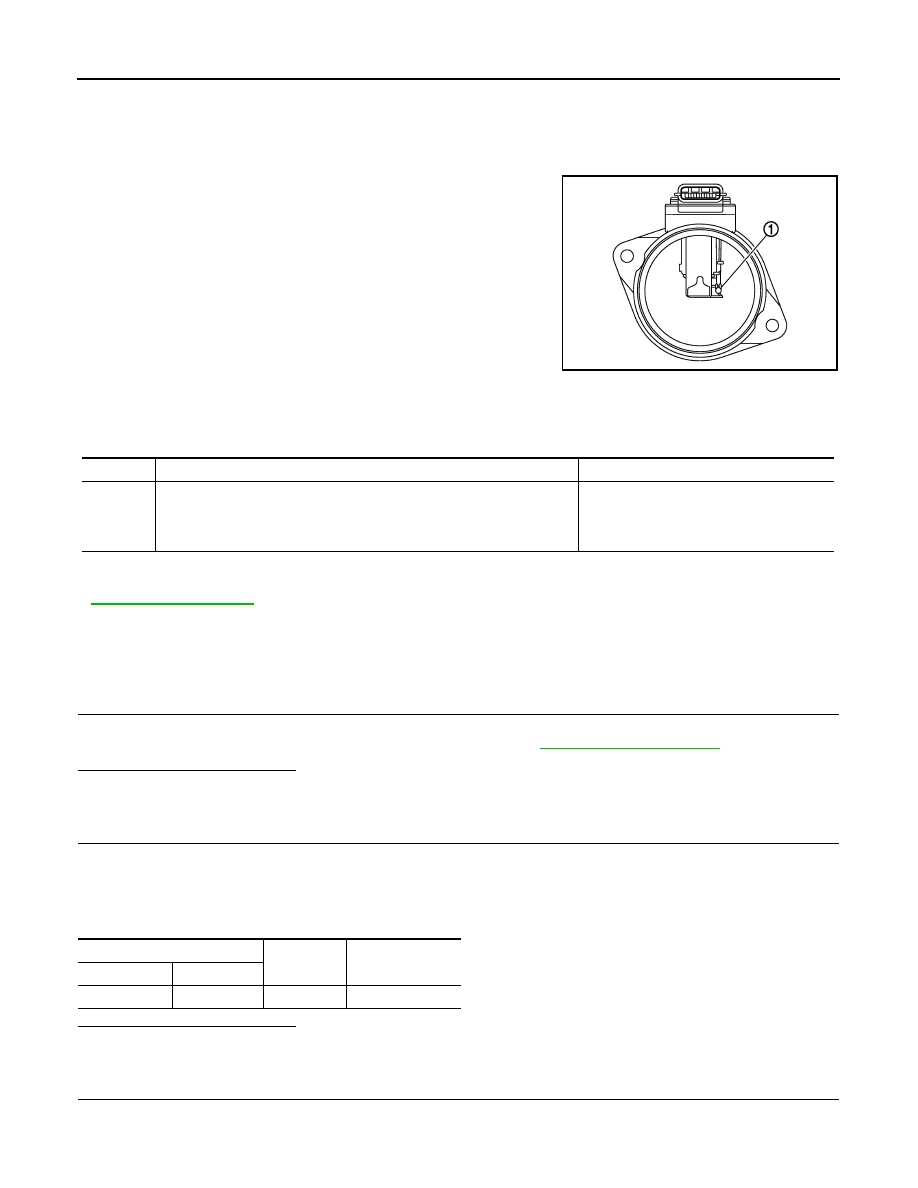

The mass air flow sensor is placed in the stream of intake air.
• Intake air temperature sensor (1)

DTC Logic

INFOID:0000000001162570

DTC DETECTION LOGIC

NOTE:
• If DTC P0100 is displayed with DTC P0641, first perform trouble diagnosis for DTC P0641. Refer to

EC-1180, "DTC Logic"

.

• Conditions for applying the diagnostic procedure to the stored DTCs:

The DTC is declared present after the ignition has been switched on.

Diagnosis Procedure

INFOID:0000000001162571

1.

CHECK GROUND CONNECTIONS

1.

Turn ignition switch OFF.

2.

 Check ground connection E15. Refer to Ground inspection in

GI-58, "Circuit Inspection"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace ground connection.

2.

CHECK MASS AIR FLOW SENSOR POWER SUPPLY CIRCUIT-I

1.

Turn ignition switch OFF.

2.

Disconnect mass air flow sensor harness connector.

3.

Turn ignition switch ON.

4.

Check the voltage between mass air flow sensor harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> GO TO 3.

3.

DETECT MALFUNCTIONING PART

Check the following.
• Harness connectors E8, F8

MBIB1523E

DTC No.

Trouble diagnosis name

Possible cause

P0100

MASS AIR FLOW SENSOR CIRCUIT
• CC.0: Short circuit to ground
• CO.1: Open circuit or short circuit to +12V

• Harness or connectors

(Mass air flow sensor circuit is open or
shorted.)

• Mass air flow sensor

Mass air flow sensor

Ground

Voltage

Connector

Terminal

F31

4

Ground

Battery voltage

P0100 MAF SENSOR

EC-1125

< COMPONENT DIAGNOSIS >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

• Harness for open or short between IPDM E/R and mass air flow sensor
• Harness for open or short between ECM and mass air flow sensor

>> Repair open circuit or short to ground or short to power in harness or connectors.

4.

CHECK MASS AIR FLOW SENSOR POWER SUPPLY CIRCUIT-II

Check the voltage between mass air flow sensor harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair open circuit or short to ground or short to power in harness or connectors.

5.

CHECK MASS AIR FLOW SENSOR GROUND CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connectors.

3.

Check the continuity between mass air flow sensor harness connector and ECM harness connector.

4.

Also check harness for short to ground and short to power.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Repair open circuit or short to ground or short to power in harness or connectors.

6.

CHECK MASS AIR FLOW SENSOR NPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Check the continuity between mass air flow sensor harness connector and ECM harness connector.

2.

Also check harness for short to ground and short to power.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> Repair open circuit or short to ground or short to power in harness or connectors.

7.

CHECK MASS AIR FLOW SENSOR

Refer to

EC-1125, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 8.

NO

>> Replace mass air flow sensor.

8.

CHECK INTERMITTENT INCIDENT

Refer to

GI-55, "Intermittent Incident"

.

>> INSPECTION END

Component Inspection

INFOID:0000000001162572

1.

CHECK MASS AIR FLOW SENSOR

Mass air flow sensor

Ground

Voltage

Connector

Terminal

F31

5

Ground

Approx. 5V

Mass air flow sensor

ECM

Continuity

Connector

Terminal

Connector

Terminal

F31

2

F10

30

Existed

Mass air flow sensor

ECM

Continuity

Connector

Terminal

Connector

Terminal

F31

6

F10

35

Existed
