P0100 MAF SENSOR

1.

Turn ignition switch OFF.

2.

Reconnect all harness connectors disconnected.

3.

Turn ignition switch ON.

4.

Check the voltage between mass air flow sensor harness connector.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace mass air flow sensor.

Mass air flow sensor

Voltage

Connector

Terminal

F31

2

(Mass air flow sensor

ground)

6

(Mass air flow sensor sig-

nal)

0.3 - 0.7V

P0101 MAF SENSOR

EC-1127

< COMPONENT DIAGNOSIS >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

P0101 MAF SENSOR

Description

INFOID:0000000001162573

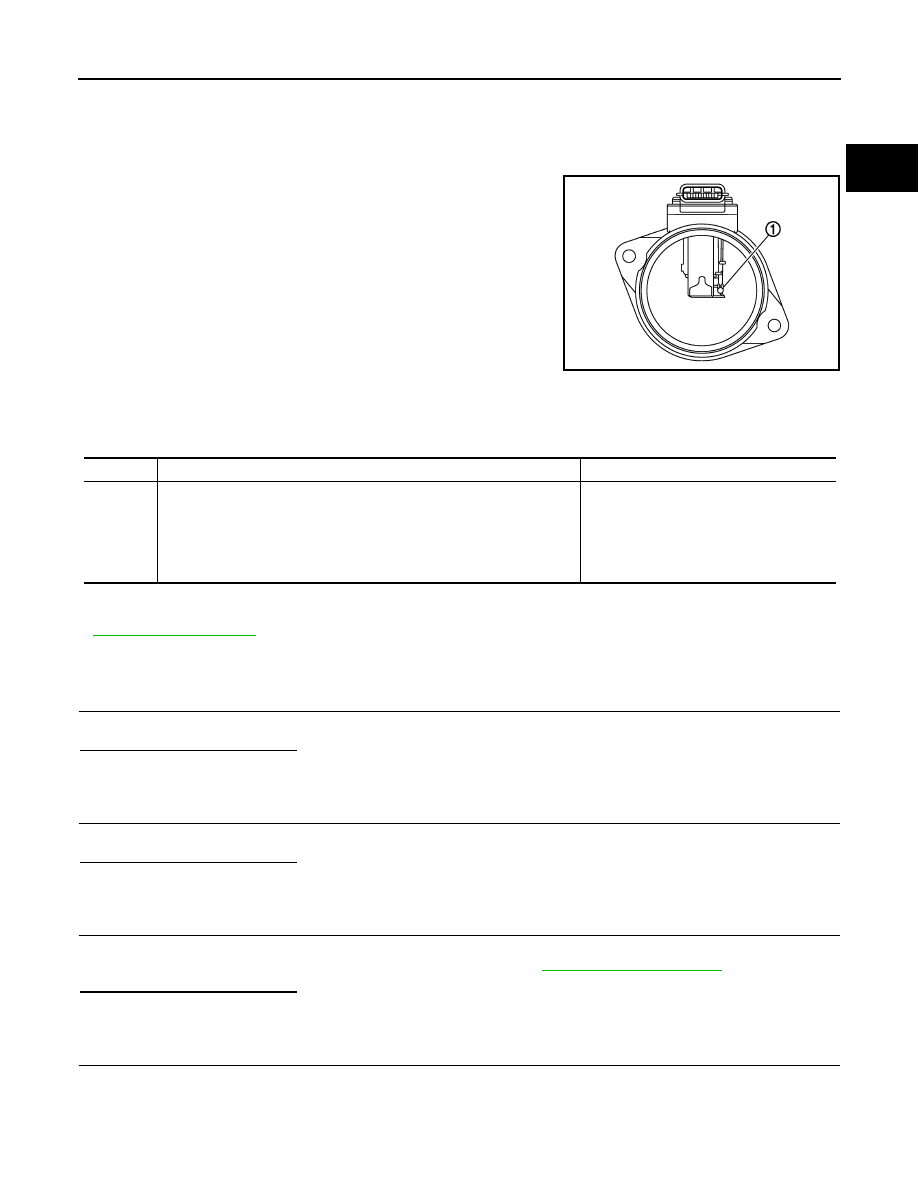

The mass air flow sensor is placed in the stream of intake air.
• Intake air temperature sensor (1)

DTC Logic

INFOID:0000000001162574

DTC DETECTION LOGIC

NOTE:
• If DTC P0101 is displayed with DTC P0641, first perform trouble diagnosis for DTC P0641. Refer to

EC-1180, "DTC Logic"

.

Diagnosis Procedure

INFOID:0000000001162575

1.

CHECK AIR FILTER

Check that air filter is not obstructed.
Is the inspection result normal?

Yes

>> Repair or replace.

No

>> GO TO 2.

2.

CHECK INTAKE AIR DUCT

Check that intake air duct is not obstructed.

Is the inspection result normal?

Yes

>> Repair or replace.

No

>> GO TO 3.

3.

CHECK GROUND CONNECTIONS

1.

Turn ignition switch OFF.

2.

 Check ground connection E15. Refer to Ground inspection in

GI-58, "Circuit Inspection"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace ground connection.

4.

CHECK MASS AIR FLOW SENSOR POWER SUPPLY CIRCUIT-I

1.

Turn ignition switch OFF.

2.

Disconnect mass air flow sensor harness connector.

3.

Turn ignition switch ON.

4.

Check the voltage between mass air flow sensor harness connector and ground.

MBIB1523E

DTC No.

Trouble diagnosis name

Possible cause

P0101

REQUESTED AIR FLOW
• 1.DEF: Signal outside lower level
• 2.DEF: Signal outside upper level

• Harness or connectors

(The sensor circuit is open or shorted.)

• Mass air flow sensor
• Intake air leaks
• Intake air duct obstructed
• Air filter obstructed

EC-1128

< COMPONENT DIAGNOSIS >

[K9K]

P0101 MAF SENSOR

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair open circuit or short to ground or short to power in harness or connectors.

5.

CHECK MASS AIR FLOW SENSOR POWER SUPPLY CIRCUIT-II

Check the voltage between mass air flow sensor harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Repair open circuit or short to ground or short to power in harness or connectors.

6.

CHECK MASS AIR FLOW SENSOR GROUND CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check the continuity between mass air flow sensor harness connector and ECM harness connector.

4.

Also check harness for short to ground and short to power.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> Repair open circuit or short to ground or short to power in harness or connectors.

7.

CHECK MASS AIR FLOW SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Check the continuity between mass air flow sensor harness connector and ECM harness connector.

2.

Also check harness for short to ground and short to power.

Is the inspection result normal?

YES

>> GO TO 8.

NO

>> Repair open circuit or short to ground or short to power in harness or connectors.

8.

CHECK MASS AIR FLOW SENSOR

Refer to

EC-1129, "Component Inspection"

Is the inspection result normal?

YES

>> GO TO 9.

NO

>> Replace mass air flow sensor.

9.

CHECK INTERMITTENT INCIDENT

Refer to

GI-55, "Intermittent Incident"

.

>> INSPECTION END

Mass air flow sensor

Ground

Voltage

Connector

Terminal

F31

4

Ground

Battery voltage

Mass air flow sensor

Ground

Voltage

Connector

Terminal

F31

5

Ground

Approx. 5V

Mass air flow sensor

ECM

Continuity

Connector

Terminal

Connector

Terminal

F31

2

F10

30

Existed

Mass air flow sensor

ECM

Continuity

Connector

Terminal

Connector

Terminal

F31

6

F10

35

Existed

P0101 MAF SENSOR

EC-1129

< COMPONENT DIAGNOSIS >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Component Inspection

INFOID:0000000001162576

1.

CHECK MASS AIR FLOW SENSOR

1.

Turn ignition switch OFF.

2.

Reconnect all harness connectors disconnected.

3.

Turn ignition switch ON.

4.

Check the voltage between mass air flow sensor harness connector.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace mass air flow sensor.

Mass air flow sensor

Voltage

Connector

Terminal

F31

2

(Mass air flow sensor

ground)

6

(Mass air flow sensor sig-

nal)

0.3 - 0.7V
