EC-1066

< FUNCTION DIAGNOSIS >

[K9K]

FUEL INJECTION CONTROL

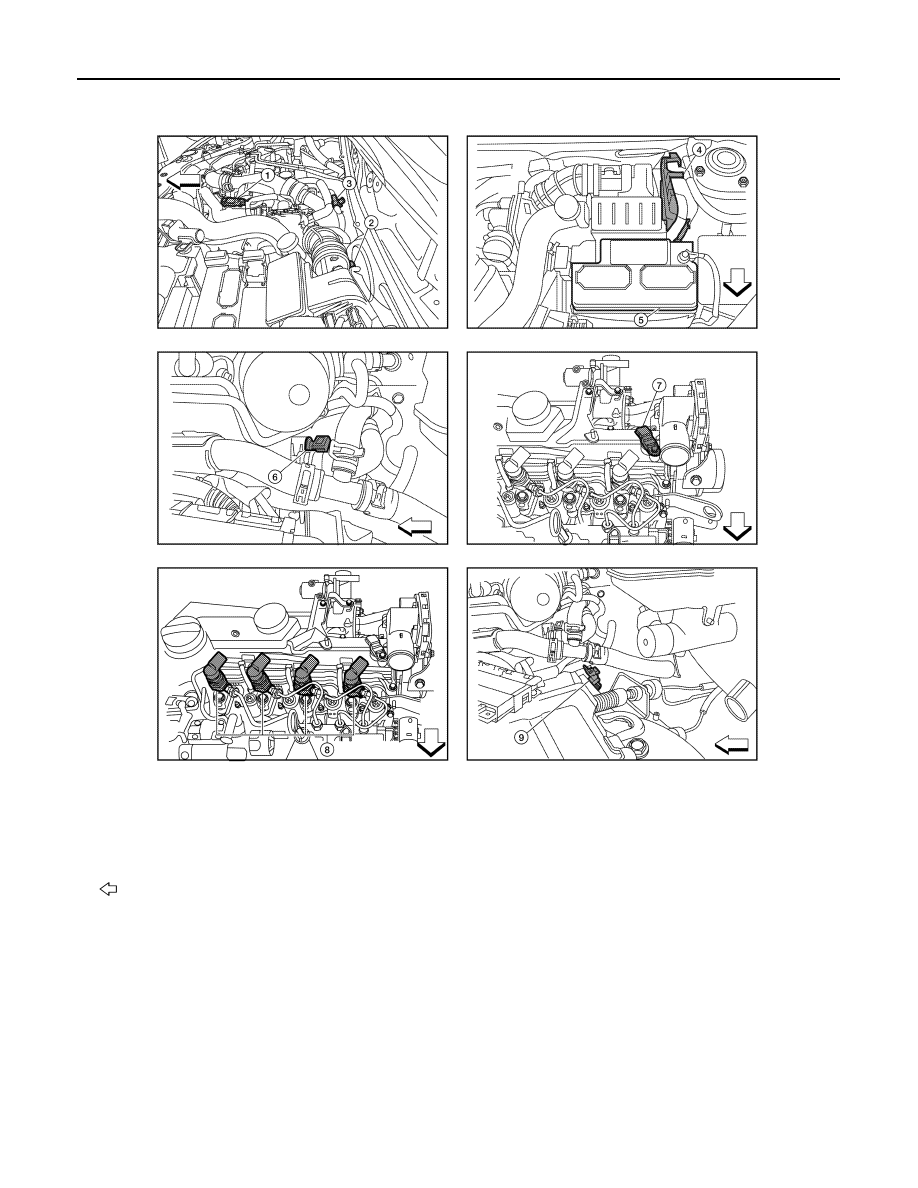

1.

Turbocharger boost sensor

2.

Mass air flow sensor

3.

EGR volume control valve

4.

ECM

5.

Battery

6.

Engine coolant temperature sensor

7.

Camshaft position sensor

8.

Fuel injector

9.

Crankshaft position sensor

: Vehicle front

ALBIA0297ZZ

FUEL INJECTION CONTROL

EC-1067

< FUNCTION DIAGNOSIS >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

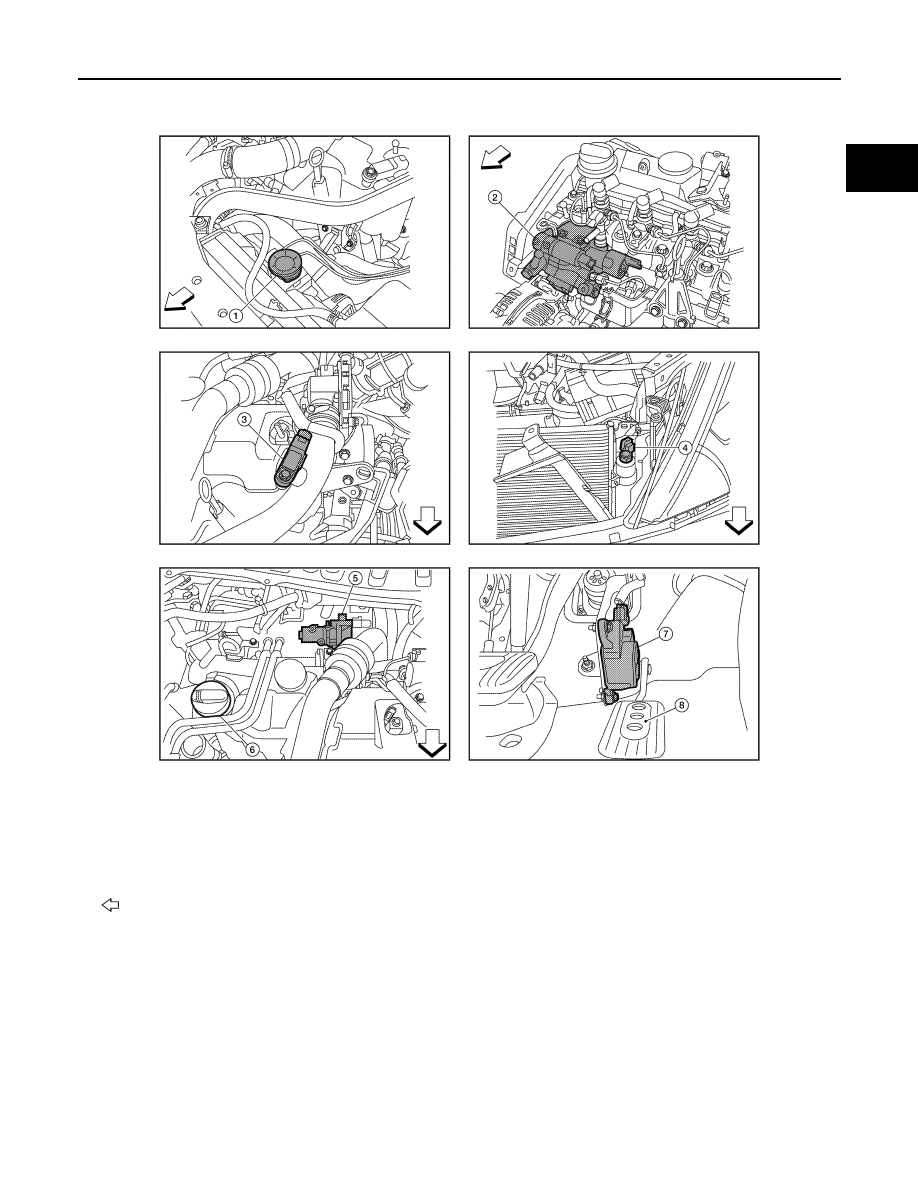

1.

Turbocharger boost control solenoid
valve

2.

Fuel pump

3.

Turbocharger boost sensor

4.

Refrigerant pressure sensor

5.

EGR volume control valve

6.

Engine oil filler cap

7.

Accelerator pedal position sensor

8.

Accelerator pedal

: Vehicle front

ALBIA0301ZZ

EC-1068

< FUNCTION DIAGNOSIS >

[K9K]

FUEL INJECTION CONTROL

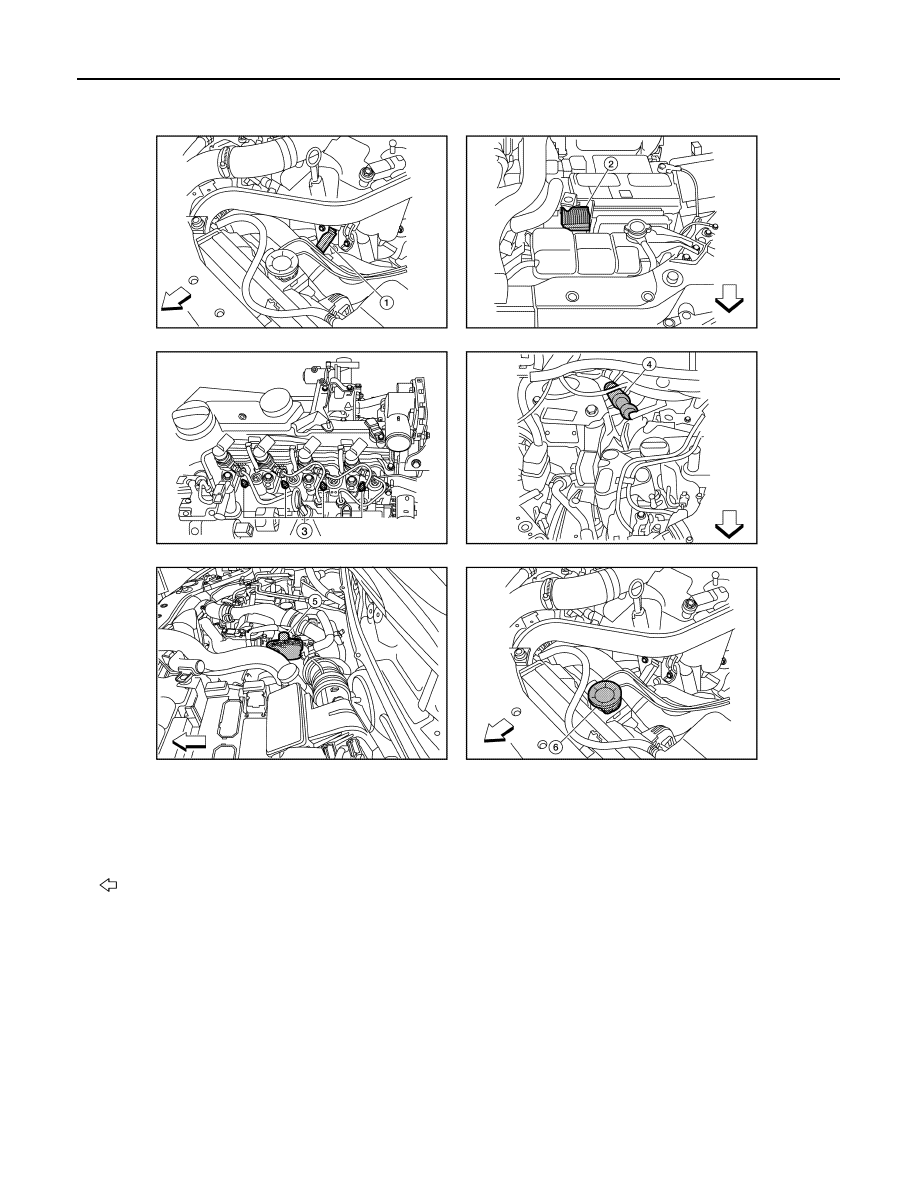

1.

Fuel rail pressure sensor

2.

Glow relay

3.

Glow plug

4.

Priming pump

5.

Electronic throttle control actuator

6.

Turbocharger boost control solenoid
valve

: Vehicle front

ALBIA0303ZZ

FUEL INJECTION CONTROL

EC-1069

< FUNCTION DIAGNOSIS >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

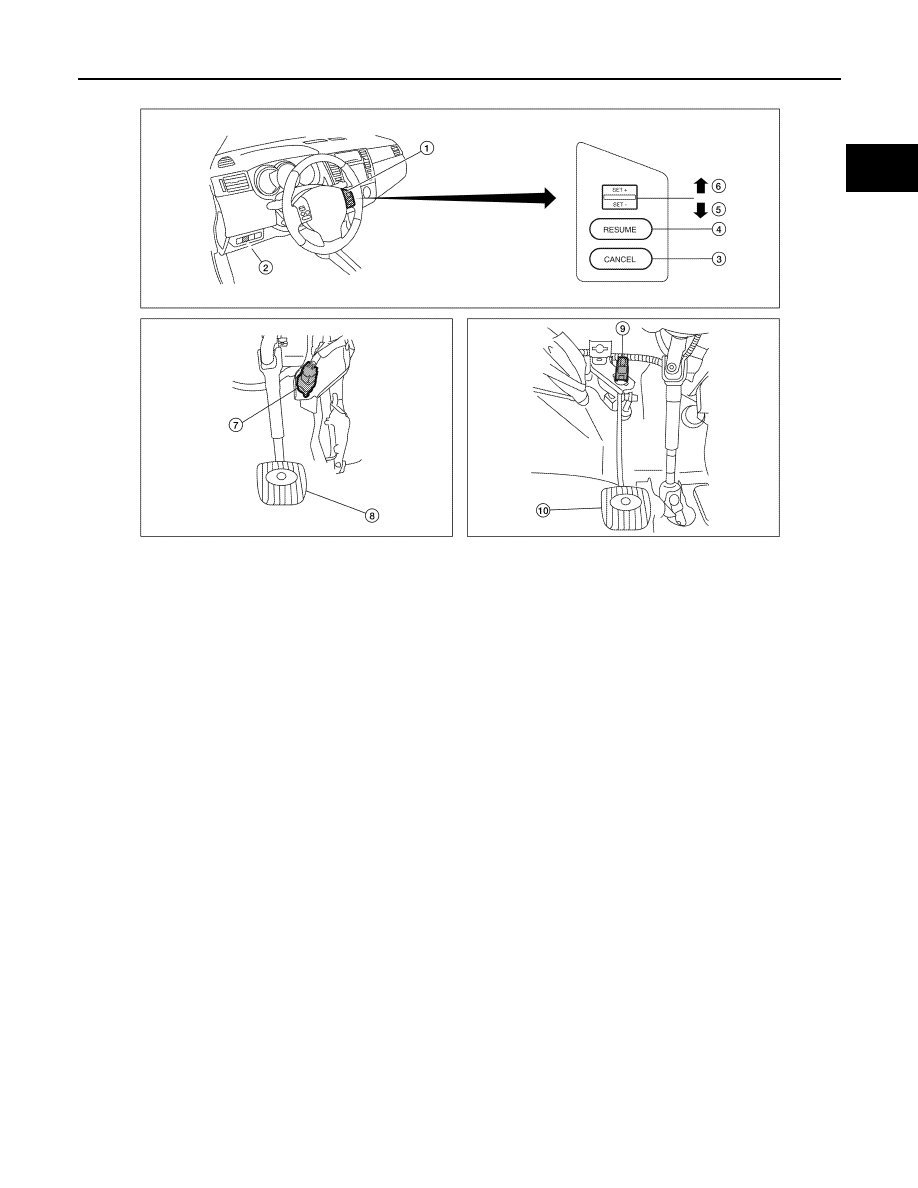

1.

ASCD steering switch

2.

ASCD switch

3.

CANCEL switch

4.

RESUME switch

5.

SET - switch

6.

SET + switch

7.

Stop lamp switch

8.

Brake pedal

9.

ASCD clutch switch

10. Clutch pedal

AWBIA0056ZZ
