EC-1058

< FUNCTION DIAGNOSIS >

[K9K]

ENGINE CONTROL SYSTEM

System Description

INFOID:0000000001162527

ECM performs various controls such as fuel injection control and furl pressure control.

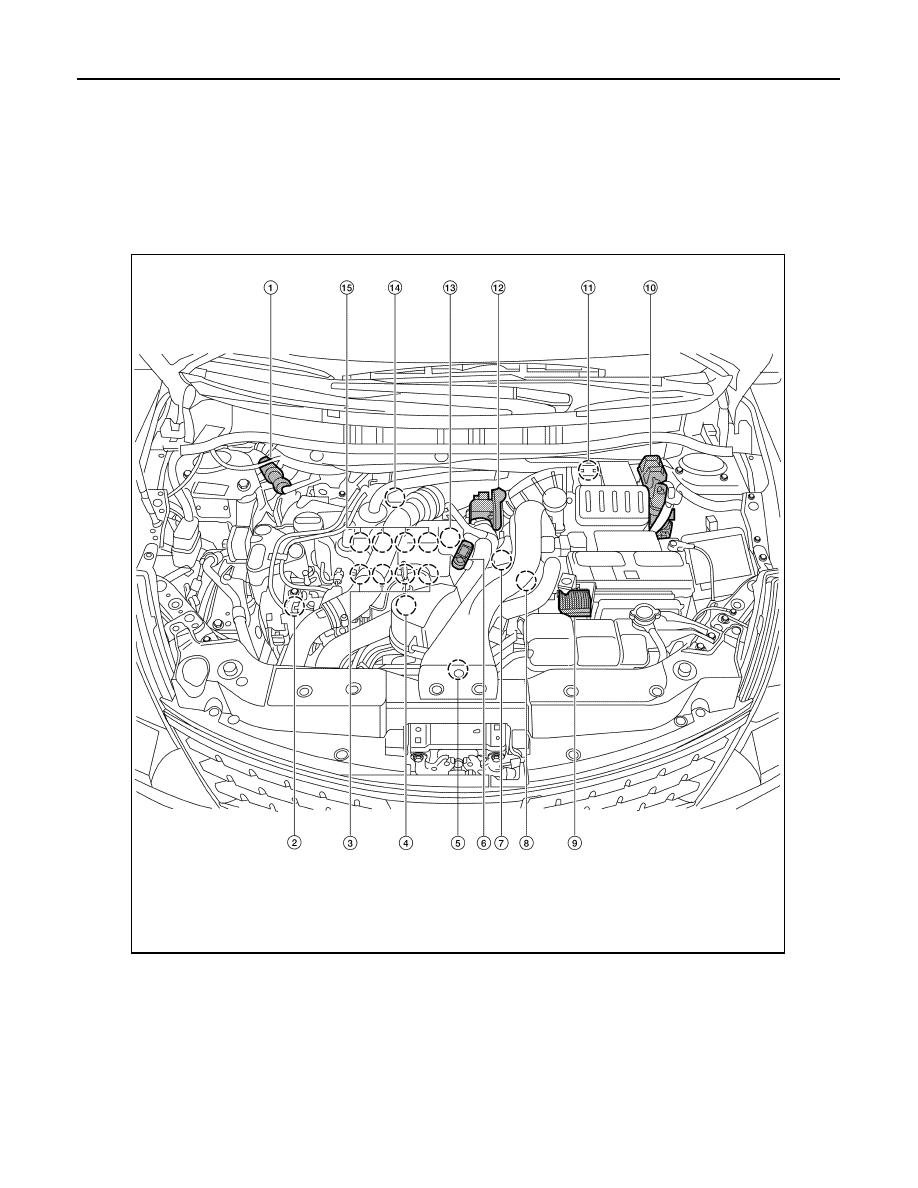

Component Parts Location

INFOID:0000000001162528

34. ECM

35. EGR volume control valve

36. Fuel rail

37. Fuel injector

38. EGR cooler

1.

Priming pump

2.

Fuel pump

3.

Glow plug

4.

Fuel rail

5.

Turbocharger boost control solenoid
valve

6.

Turbocharger boost sensor

7.

Engine coolant temperature sensor

8.

Crankshaft position sensor

9.

Glow relay

10. ECM

11.

Mass air flow sensor

12. Electric throttle control actuator

13. Camshaft position sensor

14. EGR volume control valve

15. Fuel injector

ALBIA0296ZZ

ENGINE CONTROL SYSTEM

EC-1059

< FUNCTION DIAGNOSIS >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

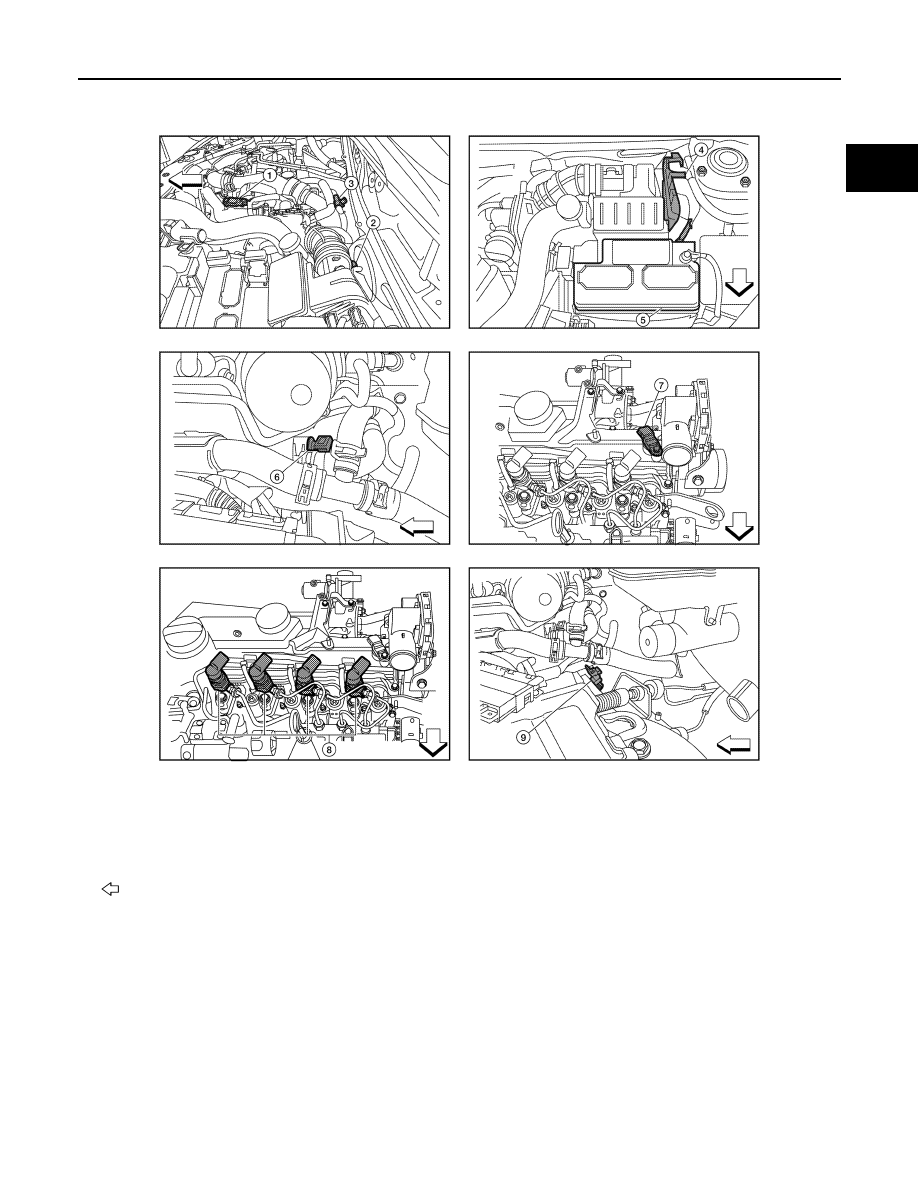

1.

Turbocharger boost sensor

2.

Mass air flow sensor

3.

EGR volume control valve

4.

ECM

5.

Battery

6.

Engine coolant temperature sensor

7.

Camshaft position sensor

8.

Fuel injector

9.

Crankshaft position sensor

: Vehicle front

ALBIA0297ZZ

EC-1060

< FUNCTION DIAGNOSIS >

[K9K]

ENGINE CONTROL SYSTEM

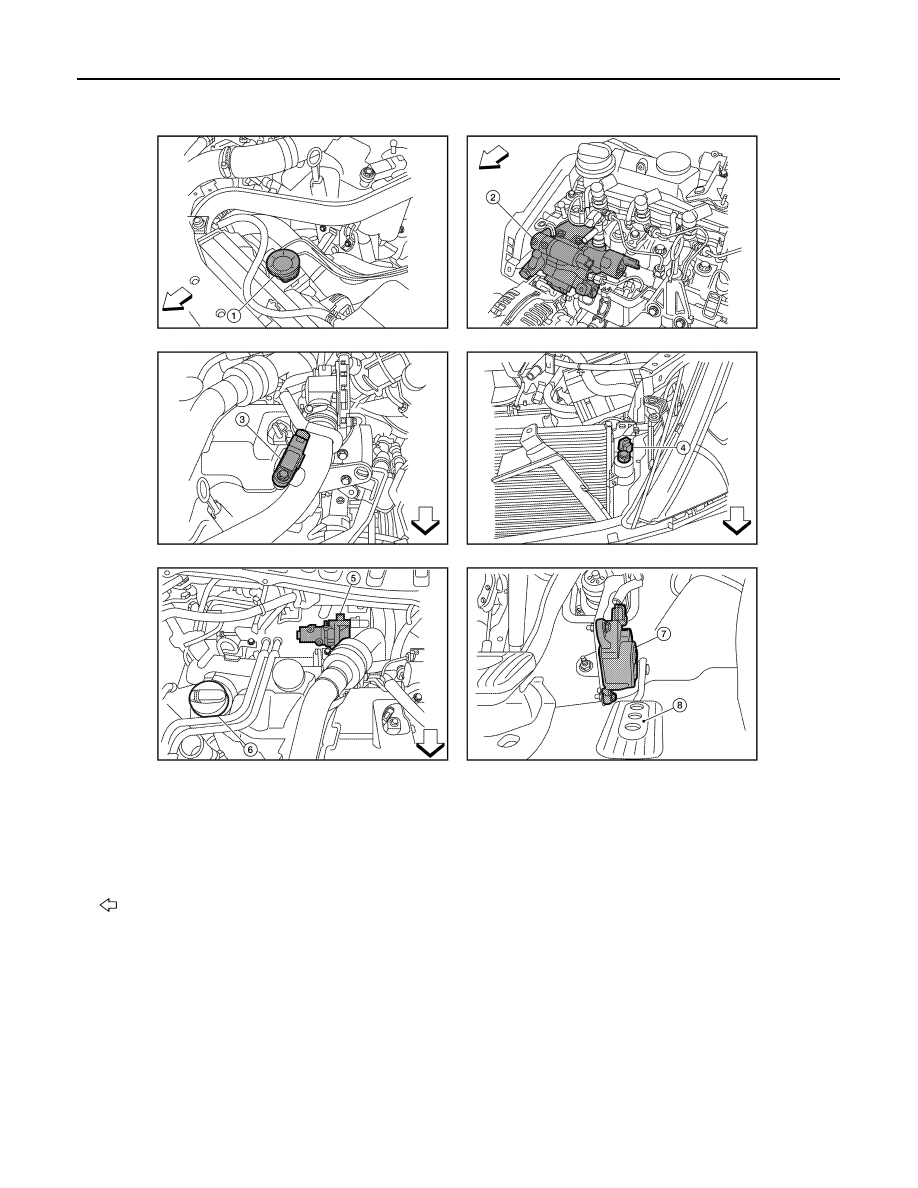

1.

Turbocharger boost control solenoid
valve

2.

Fuel pump

3.

Turbocharger boost sensor

4.

Refrigerant pressure sensor

5.

EGR volume control valve

6.

Engine oil filler cap

7.

Accelerator pedal position sensor

8.

Accelerator pedal

: Vehicle front

ALBIA0301ZZ

ENGINE CONTROL SYSTEM

EC-1061

< FUNCTION DIAGNOSIS >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

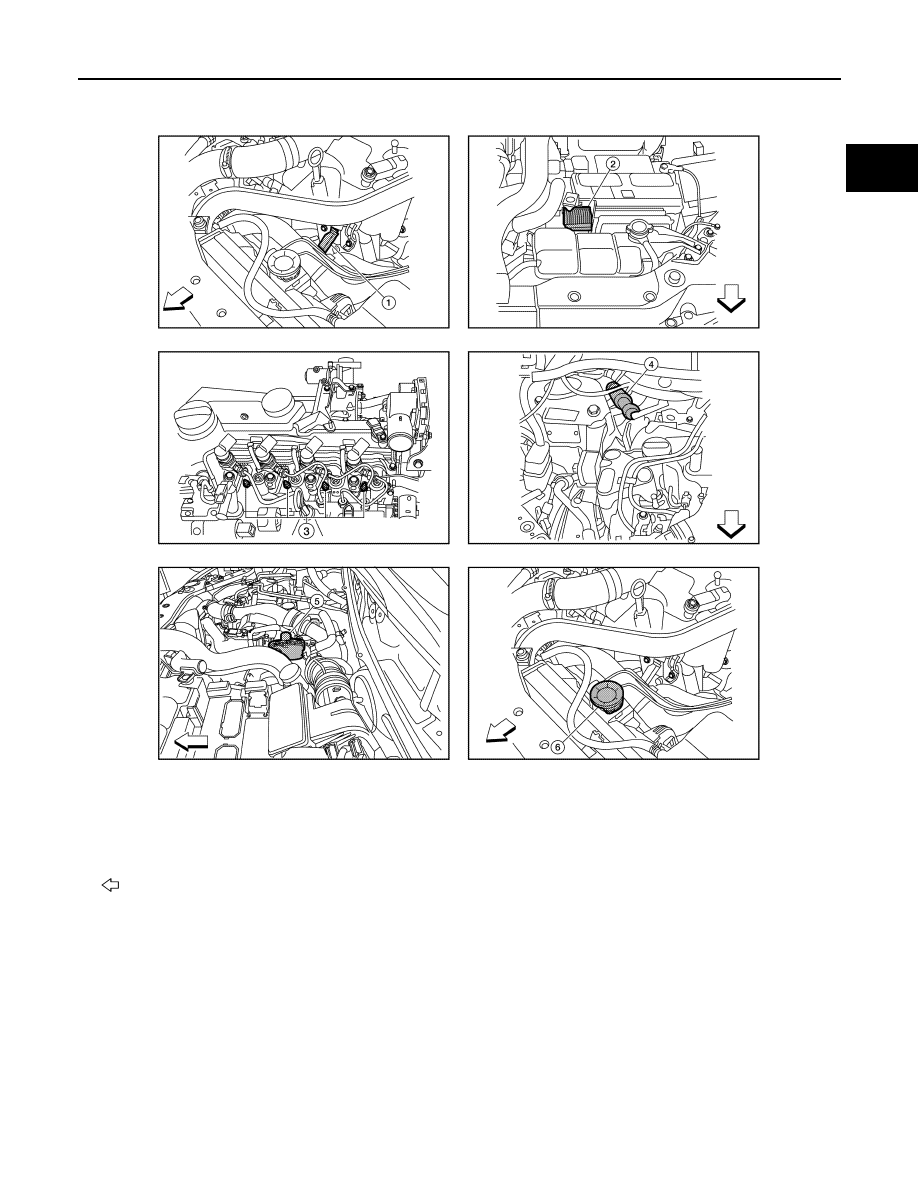

1.

Fuel rail pressure sensor

2.

Glow relay

3.

Glow plug

4.

Priming pump

5.

Electronic throttle control actuator

6.

Turbocharger boost control solenoid
valve

: Vehicle front

ALBIA0303ZZ
