Nissan Tiida C11. Manual - part 605

EC-1070

< FUNCTION DIAGNOSIS >

[K9K]

TURBOCHARGER BOOST CONTROL

TURBOCHARGER BOOST CONTROL

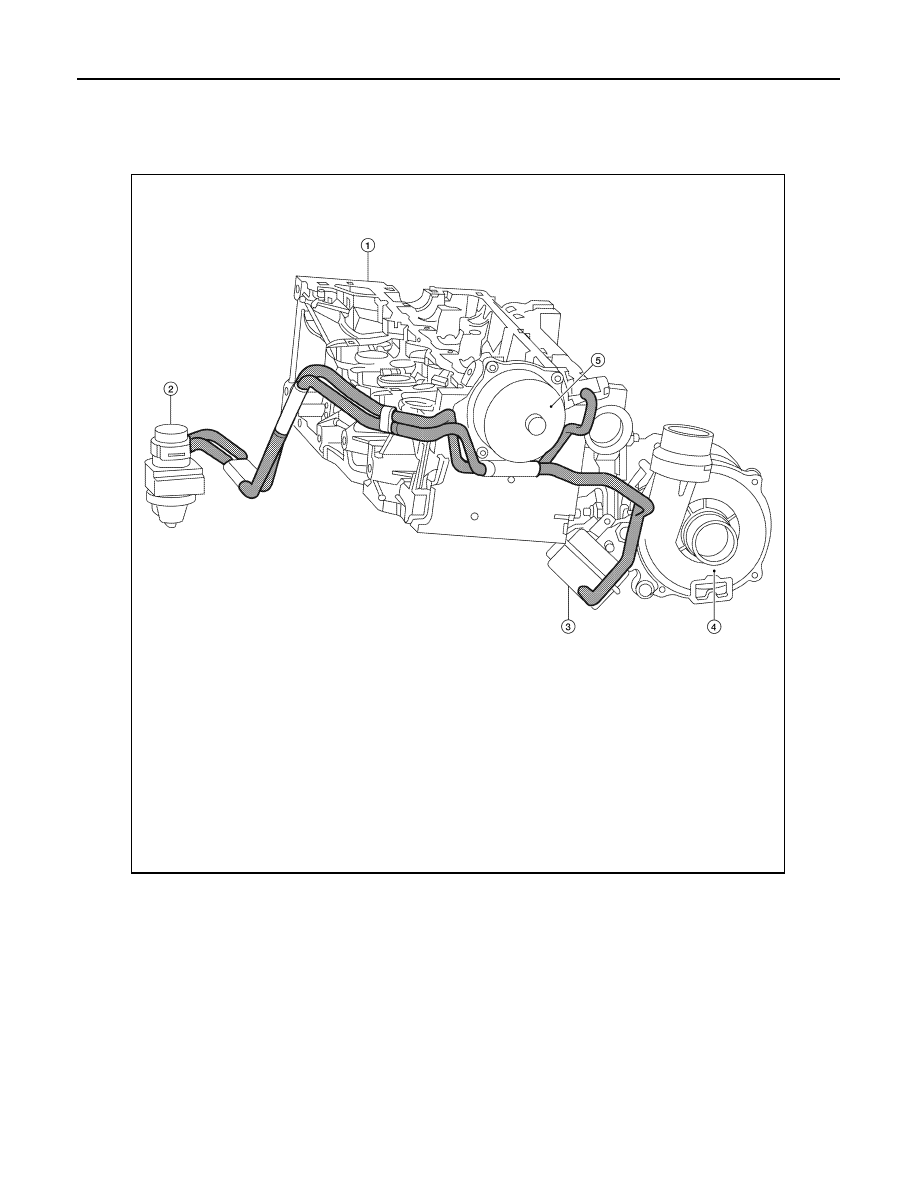

Vacuum Hose Drawing

INFOID:0000000001162532

System Description

INFOID:0000000001162533

The turbocharger system consists of a solenoid valve connected to the vacuum pump circuit; this enables the
vanes to be controlled by means of a diaphragm so as to create either an overpressure or a vacuum in the
fresh air inlet circuit.

1.

Cylinder head

2.

Turbocharger boost control solenoid
valve

3.

Turbocharger boost control actuator

4.

Turbocharger

5.

Vacuum pump

NOTE: Do not use soapy water or any type of solvent while installing vacuum hose.

ALBIA0305ZZ

TURBOCHARGER BOOST CONTROL

EC-1071

< FUNCTION DIAGNOSIS >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

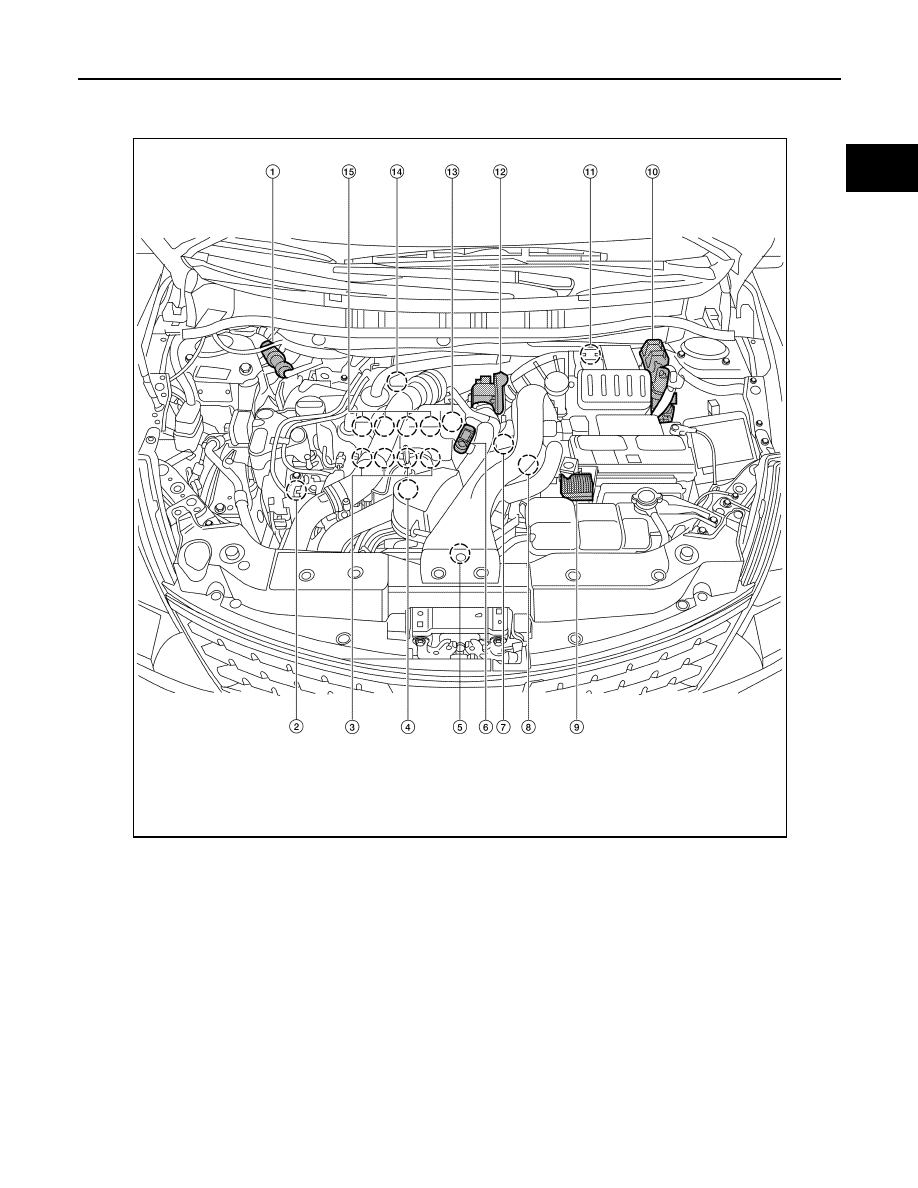

Component Parts Location

INFOID:0000000001611145

1.

Priming pump

2.

Fuel pump

3.

Glow plug

4.

Fuel rail

5.

Turbocharger boost control solenoid
valve

6.

Turbocharger boost sensor

7.

Engine coolant temperature sensor

8.

Crankshaft position sensor

9.

Glow relay

10. ECM

11.

Mass air flow sensor

12. Electric throttle control actuator

13. Camshaft position sensor

14. EGR volume control valve

15. Fuel injector

ALBIA0296ZZ

EC-1072

< FUNCTION DIAGNOSIS >

[K9K]

TURBOCHARGER BOOST CONTROL

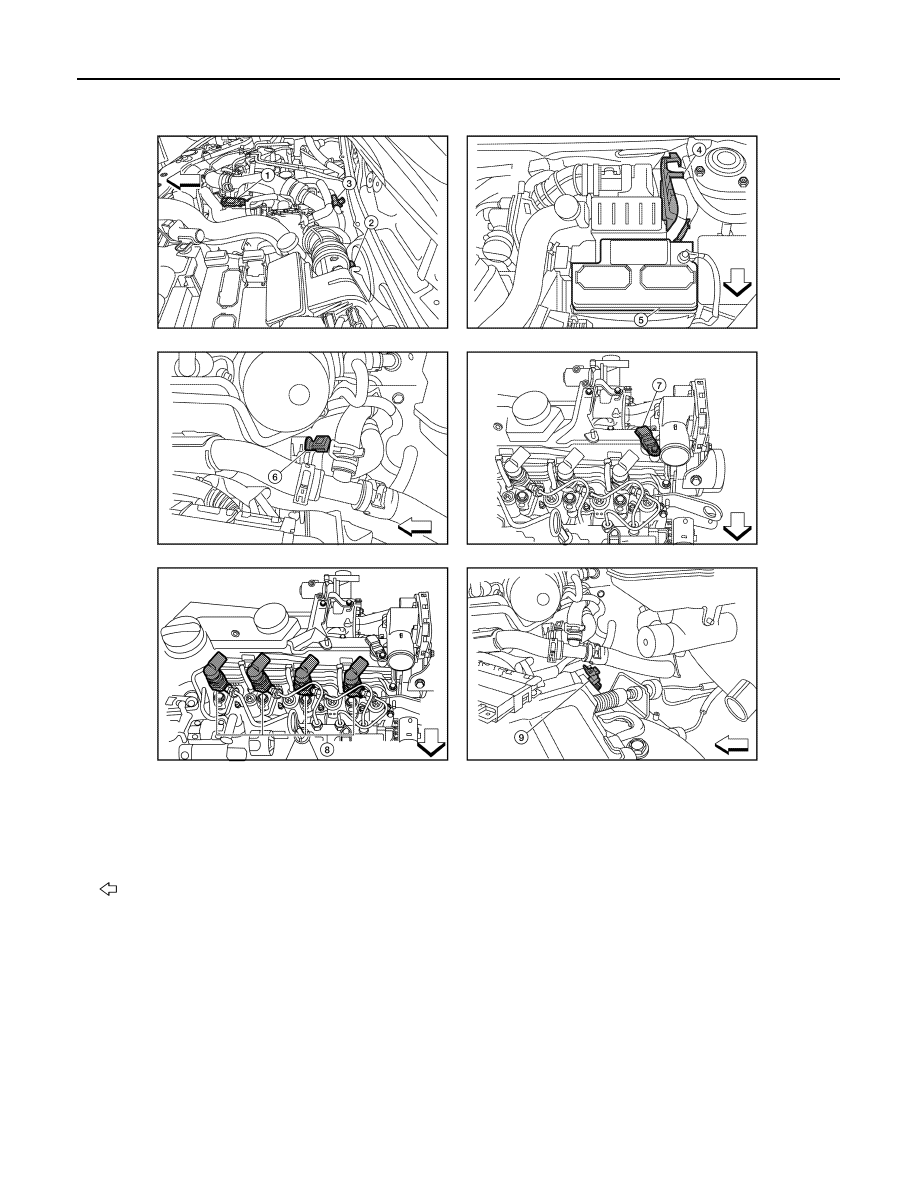

1.

Turbocharger boost sensor

2.

Mass air flow sensor

3.

EGR volume control valve

4.

ECM

5.

Battery

6.

Engine coolant temperature sensor

7.

Camshaft position sensor

8.

Fuel injector

9.

Crankshaft position sensor

: Vehicle front

ALBIA0297ZZ

TURBOCHARGER BOOST CONTROL

EC-1073

< FUNCTION DIAGNOSIS >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

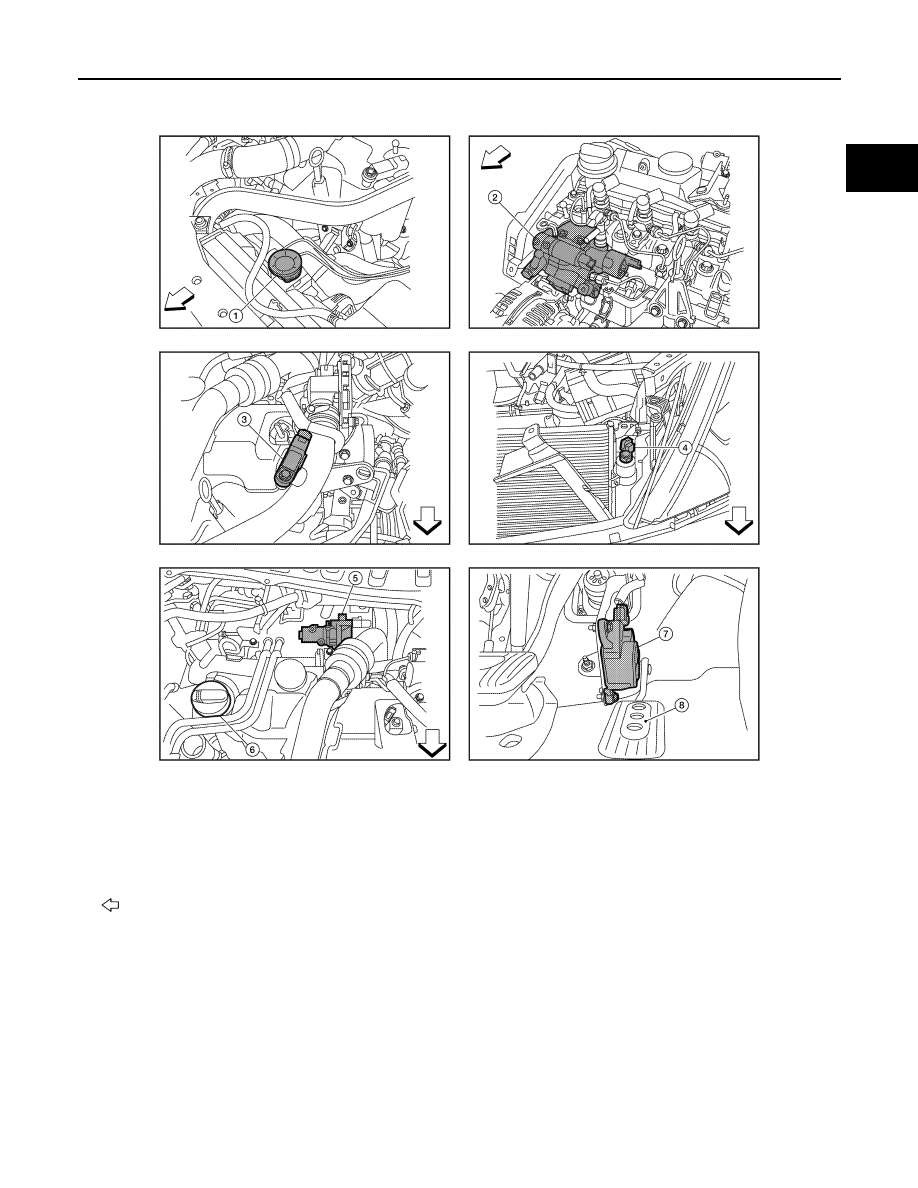

1.

Turbocharger boost control solenoid
valve

2.

Fuel pump

3.

Turbocharger boost sensor

4.

Refrigerant pressure sensor

5.

EGR volume control valve

6.

Engine oil filler cap

7.

Accelerator pedal position sensor

8.

Accelerator pedal

: Vehicle front

ALBIA0301ZZ
