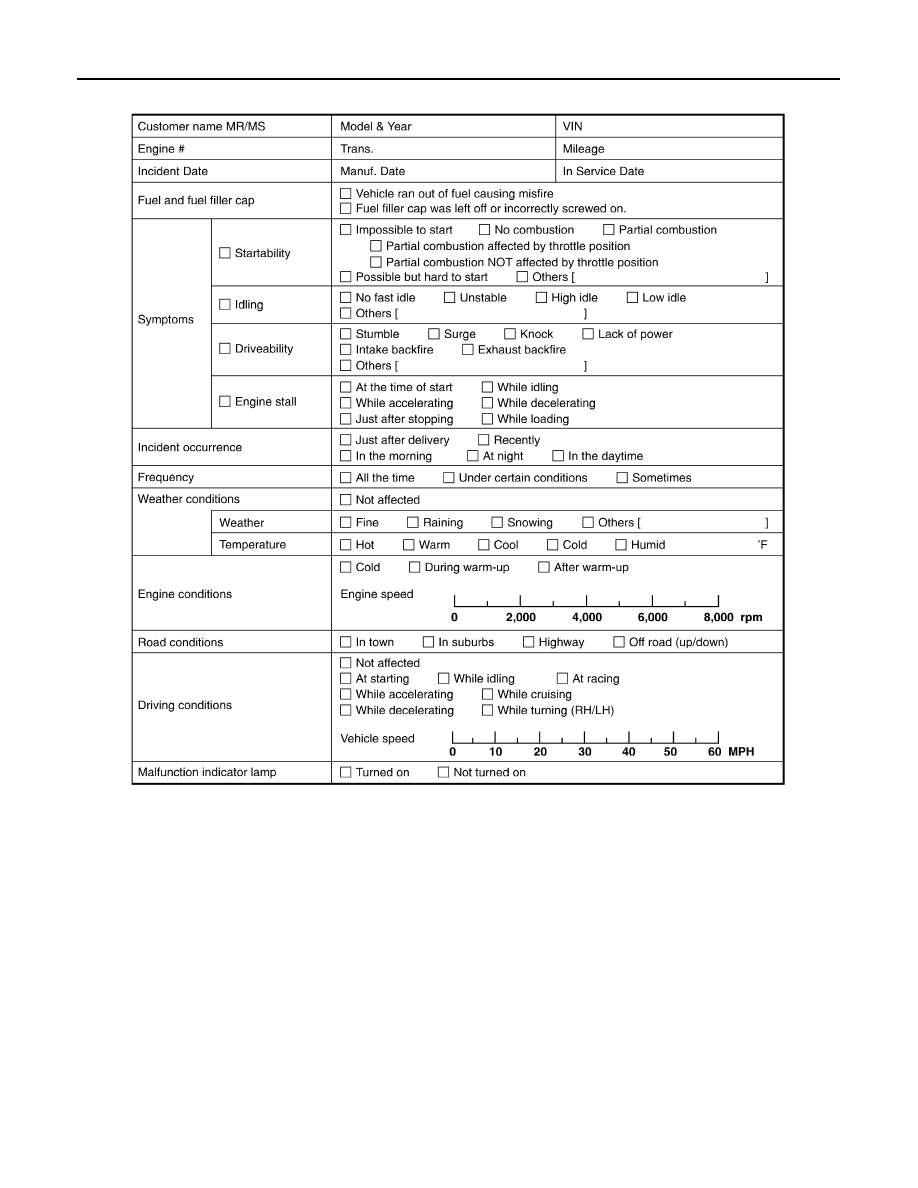

WORKSHEET SAMPLE

MTBL0017

INSPECTION AND ADJUSTMENT

EC-1043

< BASIC INSPECTION >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

INSPECTION AND ADJUSTMENT

BASIC INSPECTION

BASIC INSPECTION : Description

INFOID:0000000001162514

NOTE:
Only consult the tests after following the diagnostic procedure chart.
Some specific checks are grouped under the “tests” heading and are used as required in different diagnostic
charts.

BASIC INSPECTION : Special Repair Requirement (TEST 1: Low Pressure Fuel Sup-
ply System Check)

INFOID:0000000001162515

NOTE:
• CAUSE
- No fuel can be seen in the transparent supply pipe leading to the pump or large air bubbles can be seen

(small air bubbles are permitted).

- engine does not start.

1.

CHECK CONFORMITY

Check the conformity and presence of the fuel (gasoline instead of diesel, contaminated fuel).

Is the inspection result normal?

Yes

>> GO TO 2.

No

>> Bleed the fuel supply system with the manual priming pump.

Basic test

Trouble diagnosis

Reference page

Low pressure fuel supply system check

TEST 1

EC-1043, "BASIC INSPEC-

TION : Special Repair Re-

quirement (TEST 1: Low

Pressure Fuel Supply System

Check)"

Internal fuel transfer pump check

TEST 2

EC-1044, "BASIC INSPEC-

TION : Special Repair Re-

quirement (TEST 2: Internal

Fuel Transfer Pump Check)"

High pressure supply pump (Pressure control valve) check

TEST 3

EC-1044, "BASIC INSPEC-

TION : Special Repair Re-

quirement [TEST 3: High

Pressure Supply Pump (Pres-

sure Control Valve) Check]"

High pressure supply pump (Volumetric control valve) check

TEST 4

EC-1045, "BASIC INSPEC-

TION : Special Repair Re-

quirement [TEST 4: High

Pressure Supply Pump (Volu-

metric Control Valve) Check]"

Rail high pressure regulation check

TEST 5

EC-1048, "BASIC INSPEC-

TION : Special Repair Re-

quirement (TEST 5: Rail High

Pressure Regulation Check)"

Major leak in fuel injectors/fuel injectors open

TEST 6

EC-1052, "BASIC INSPEC-

TION : Special Repair Re-
quirement (TEST 6: Major

Leak in Fuel Injectors/Fuel In-

jectors Open)"

Incorrect fuel injection quantity

TEST 7

EC-1053, "BASIC INSPEC-

TION : Special Repair Re-

quirement (TEST 7: Incorrect

Fuel Injection Quantity)"

EC-1044

< BASIC INSPECTION >

[K9K]

INSPECTION AND ADJUSTMENT

2.

CHECK FUEL CIRCUIT

Does the fuel circulate correctly when pumped manually?
Yes or No

Yes

>> GO TO 5.

No

>> GO TO 3.

3.

CHECK FOR LEAK

Look for leaks on the unions.

Are there leaks in the hoses and unions?

Yes

>> Carry out the required repairs.

No

>> GO TO 4.

4.

CHECK FUEL FILTER

Check the correctness of the fuel filter.

Is the fuel filter correct?

Yes

>> GO TO 5.

No

>> Replace the fuel filter with a genuine part.

5.

INSPECTION END

Low pressure circuit OK.

>> INSPECTION END

BASIC INSPECTION : Special Repair Requirement (TEST 2: Internal Fuel Transfer
Pump Check)

INFOID:0000000001162516

NOTE:
• CONDITIONS PRIOR TO TEST
- Test 1 Low pressure fuel supply system check has been carried out previously and results are satisfactory.
• CAUSE
- Fuel can be seen in the transparent supply pipe leading to the pump.
- However, fuel does not move during starting.

1.

CHECK INTERNAL FUEL TRANSFER PUMP

1.

Disconnect high pressure supply pump (volumetric control valve) harness connector

2.

Remove fuel return pipe from the pump and block it so that it is sealed. Connect a pipe to the pump to
measure the flow of diesel.

3.

To authorise a 15 second cranking engine and carry out this test it is essential to carry out the following
procedure: measure the flow of diesel.

-

Turn ignition switch ON.

-

Perform “SAVE DATA FOR CPU REPLC” in WORK SUPPORT mode with CONSULT-III.

-

Perform “PRGRM REINITIALIZE” in WORK SUPPORT mode with CONSULT-III.

-

Cranking engine for at least 15 seconds (starting speed 250 rpm)

-

Check the flow rate of the fuel being collected in a graduated measuring cylinder (500 ml minimum).The
minimum flow rate must be 25 ml every 15 sec.

-

Perform “WRT DATA AFTR REPLC CPU” in WORK SUPPORT mode with CONSULT-III.

Does the flow measure less than 25ml?

Yes

>> Replace high pressure supply pump.

No

>> GO TO 2.

2.

INSPECTION END

Low pressure system OK.

>> INSPECTION END

BASIC INSPECTION : Special Repair Requirement [TEST 3: High Pressure Supply

INSPECTION AND ADJUSTMENT

EC-1045

< BASIC INSPECTION >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Pump (Pressure Control Valve) Check]

INFOID:0000000001162517

NOTE:
• CONDITIONS PRIOR TO TEST
- The entire low pressure system must be in good condition.
- Check the sealing of the high pressure pipes and unions.
• CAUSE
- Rail pressure approximately 5000 kPa(50 bar, 51 kg/cm

2

, 725 psi) during starting.

1.

CHECK HIGH PRESSURE SUPPLY PUMP (PRESSURE CONTROL VALVE) POWER SUPPLY

1.

Turn ignition switch OFF.

2.

Disconnect high pressure supply pump (pressure control valve) harness connector.

3.

Turn ignition switch ON.

4.

Check the voltage between high pressure supply pump (pressure control valve) harness connector and
ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

DETECT MALFUNCTIONING PART

Check the following.
• IPDM E/R
• Harness for open or short between IPDM E/R and high pressure supply pump (pressure control valve)
• Harness for open or short between ECM and high pressure supply pump (pressure control valve)

>> Repair open circuit or short to ground or short to power in harness or connectors.

3.

CHECK HIGH PRESSURE SUPPLY PUMP (PRESSURE CONTROL VALVE) OUTPUT SIGNAL CIRCUIT

FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check the continuity between high pressure supply pump (pressure control valve) harness connector and
ECM harness connector.

4.

Also check harness for short to ground and short to power.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair open circuit or short to ground or short to power in harness or connectors.

4.

HIGH PRESSURE SUPPLY PUMP (PRESSURE CONTROL VALVE) CHECK

Refer to

EC-1123, "Component Inspection"

.

Is the inspection result normal?

Yes

>> INSPECTION END

No

>> Replace high pressure supply pump.

BASIC INSPECTION : Special Repair Requirement [TEST 4: High Pressure Supply

High pressure supply pump

(Pressure control valve)

Ground

Voltage

Connector

Terminal

F53

3

Ground

Battery voltage

High pressure supply pump

(Pressure control valve)

ECM

Continuity

Connector

Terminal

Connector

Terminal

F53

4

F11

49

Existed
