EC-710

< FUNCTION DIAGNOSIS >

[MR18DE]

MULTIPORT FUEL INJECTION SYSTEM

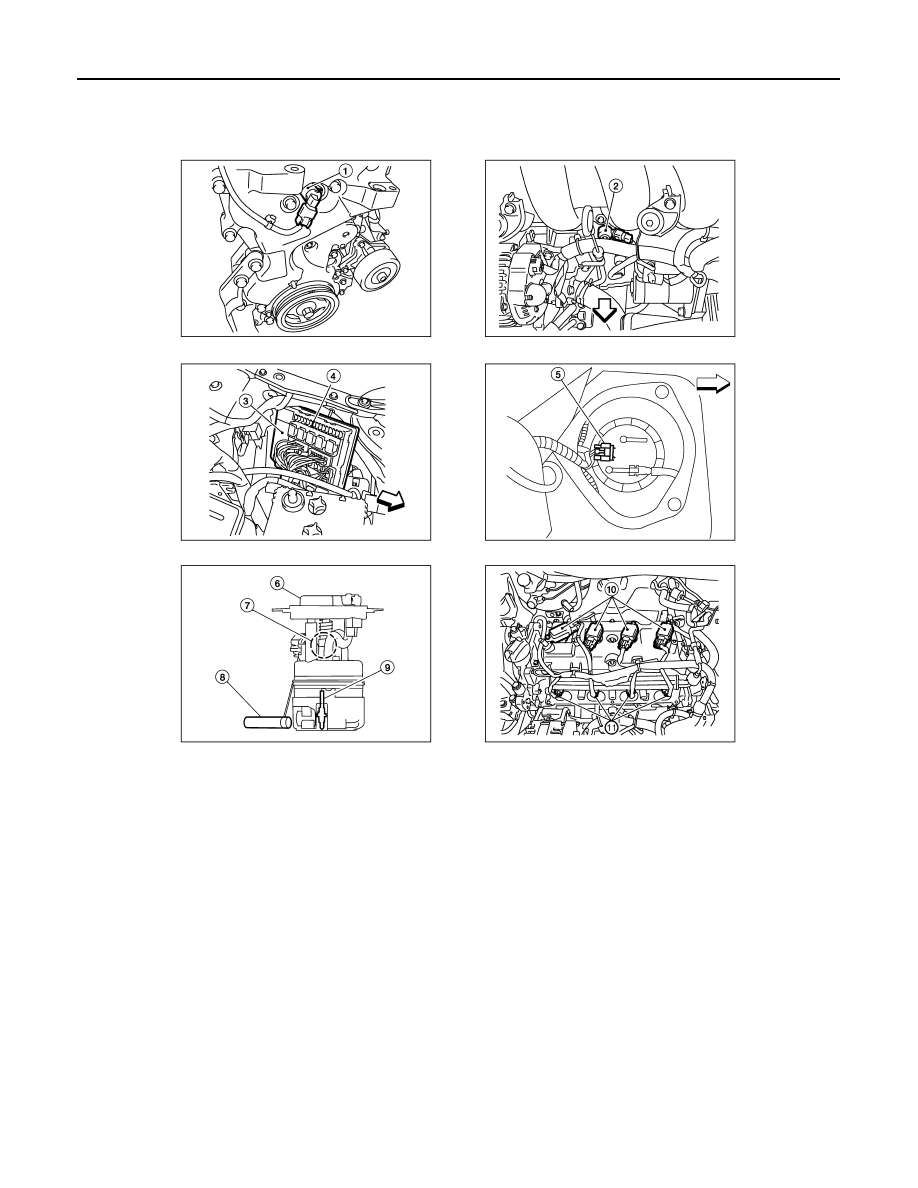

1.

Intake valve timing control solenoid
valve

2.

Knock sensor

3.

IPDM E/R

4.

Fuel pump fuse

5.

Fuel level sensor unit and fuel pump
harness connector
(view with inspection hole cover re-
moved)

6.

Fuel level sensor unit and fuel pump

7.

Fuel pressure regulator

8.

Fuel level sensor

9.

Fuel tank temperature sensor

10. Ignition coil

11.

Fuel injector

BBIA0735E

MULTIPORT FUEL INJECTION SYSTEM

EC-711

< FUNCTION DIAGNOSIS >

[MR18DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

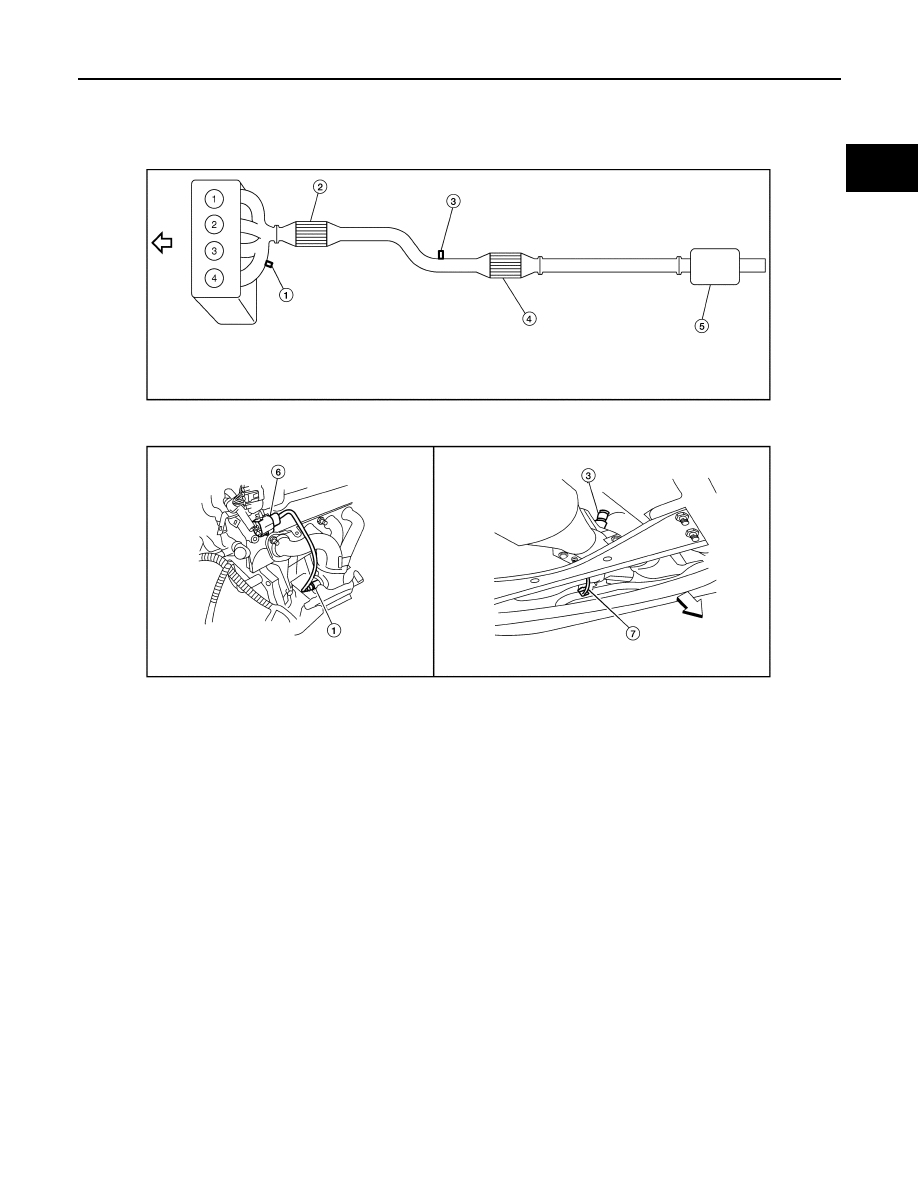

1.

Heated oxygen sensor 1

2.

Three way catalyst (Manifold)

3.

Heated oxygen sensor 2

4.

Three way catalyst (Under floor)

5.

Muffler

6.

Heated oxygen sensor 1 harness
connector

7.

Heated oxygen sensor 2 harness
connector

BBIA0733E

EC-712

< FUNCTION DIAGNOSIS >

[MR18DE]

MULTIPORT FUEL INJECTION SYSTEM

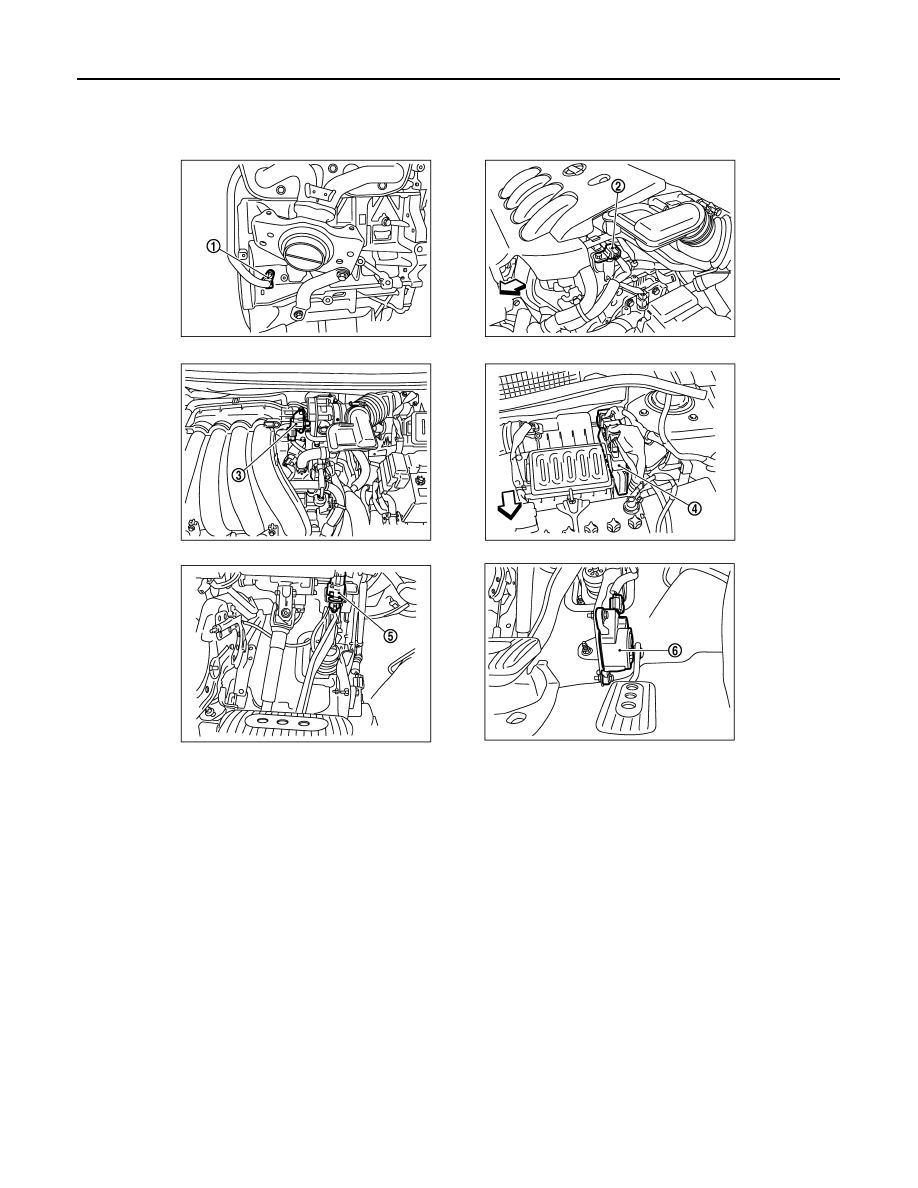

1.

Crankshaft position sensor (POS)

2.

Comshaft position sensor (PHASE)

3.

EVAP canistor purge volume control
solenoid valve

4.

ECM

5.

Stop lamp switch

6.

Accelerator pedal position sensor

PBIA9902J

MULTIPORT FUEL INJECTION SYSTEM

EC-713

< FUNCTION DIAGNOSIS >

[MR18DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Component Description

INFOID:0000000001161726

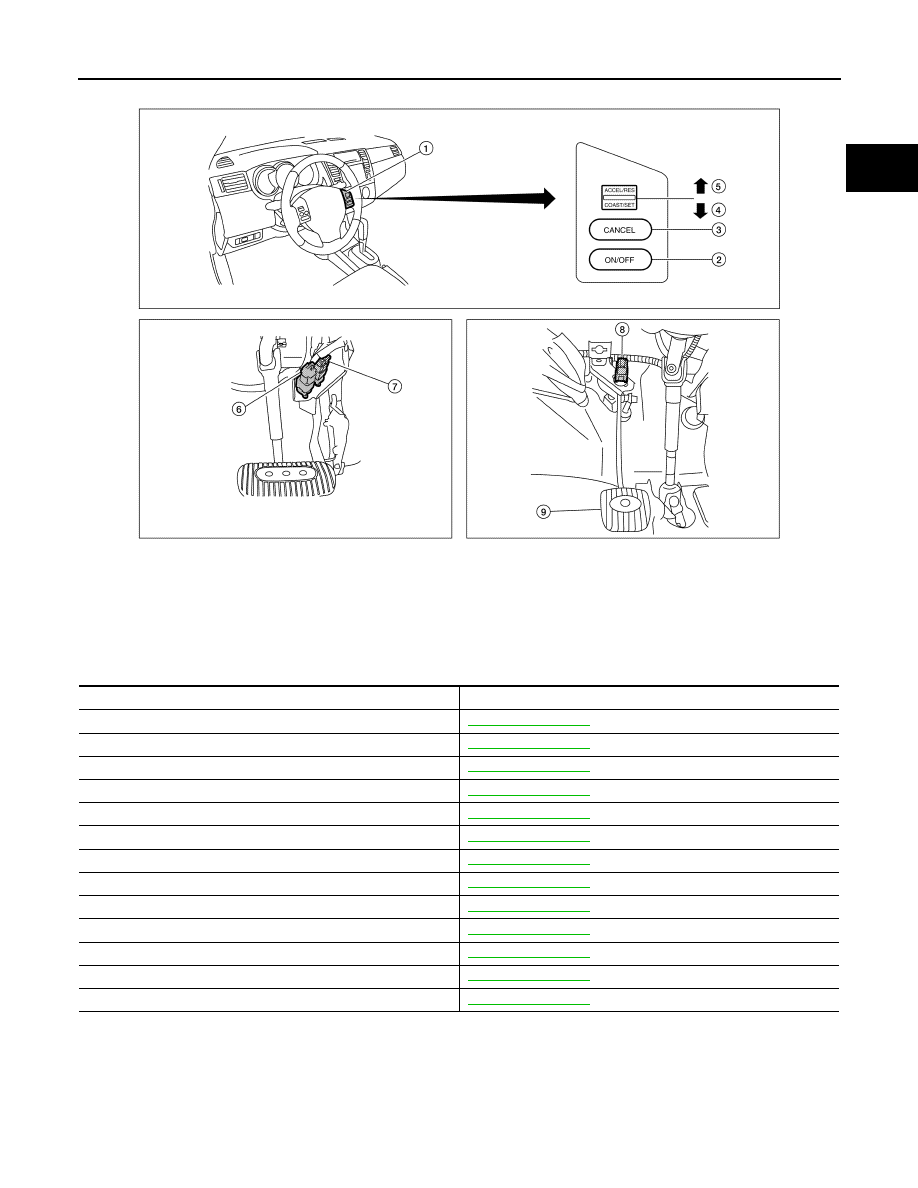

1.

ASCD steering switch

2.

MAIN switch

3.

CANCEL switch

4.

SET/COAST switch

5.

RESUME/ACCELEATE switch

6.

Stop lamp switch

7.

ASCD brake switch

8.

ASCD clutch switch

9.

Cluch pedal

ALBIA0273ZZ

Component

Reference

Accelerator pedal position sensor

EC-959, "Description"

Camshaft position sensor (PHASE)

EC-866, "Description"

Crankshaft position sensor (POS)

EC-862, "Description"

Engine coolant temperature sensor

EC-807, "Description"

Fuel injector

EC-975, "Description"

Heated oxygen sensor 1

EC-813, "Description"

Heated oxygen sensor 2

EC-831, "Description"

Intake air temperature sensor

EC-804, "Description"

Knock sensor

EC-860, "Description"

Mass air flow sensor

EC-799, "Description"

Park/neutral position (PNP) switch

EC-942, "Description"

Throttle position sensor

EC-810, "Description"

Vehicle speed sensor

EC-878, "Description"
