Nissan Tiida C11. Manual - part 331





DLK-734

< REMOVAL AND INSTALLATION >

[WITHOUT I-KEY, WITH SUPER LOCK]

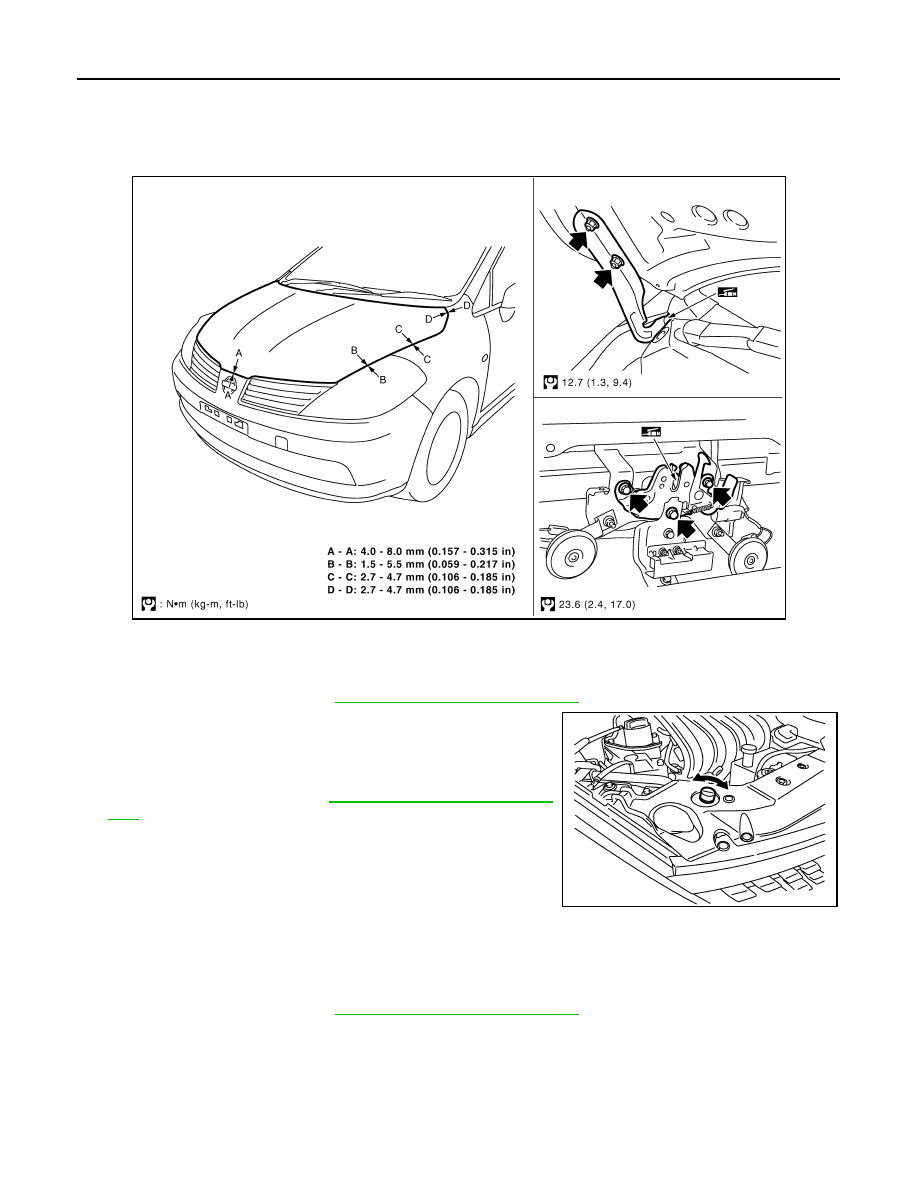

HOOD

REMOVAL AND INSTALLATION

HOOD

Fitting Adjustment

INFOID:0000000001732053

FRONT END HEIGHT ADJUSTMENT AND LATERAL/LONGITUDINAL CLEARANCE ADJUST-
MENT

1.

Remove the front grille. Refer to

EXT-19, "Removal and Installation"

.

2.

Remove hood lock. Rotate bumper rubber to adjust height until
hood becomes 1.0 to 1.5 mm lower than the fender.

3.

Position hood lock and engage striker. Check hood lock and
striker for looseness. Tighten lock bolts to the specified torque.

4.

Install the front grille. Refer to

EXT-19, "Removal and Installa-

tion"

.

CAUTION:

Adjust the clearance between hood and other parts so that the
dimensional difference left and right is as follows.

SURFACE MISMATCH ADJUSTMENT

1.

Remove the front grille. Refer to

EXT-19, "Removal and Installation"

.

2.

Release hood lock, and adjust surface level difference of hood, fender, and headlamp according to the fit-
ting standard dimension, using RH and LH bumper rubbers.

3.

Install and align the hood lock until the center of the striker and the hood lock are vertically aligned.

PIIB6508E

Hood and headlamp (B - B)

: Less than 2.0 mm (0.08 in)

Hood and fender (C - C)

: Less than 1.5 mm (0.06 in)

Hood and fender (D - D)

: Less than 1.5 mm (0.06 in)

PIIB2526J

Hood and front bumper (A - A)

: -1.3 - 2.7 mm (-0.05 - 0.11 in)

Hood and fender (D - D)

: -0.4 - 1.7 mm (-0.16 - 0.07 in)

HOOD

DLK-735

< REMOVAL AND INSTALLATION >

[WITHOUT I-KEY, WITH SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

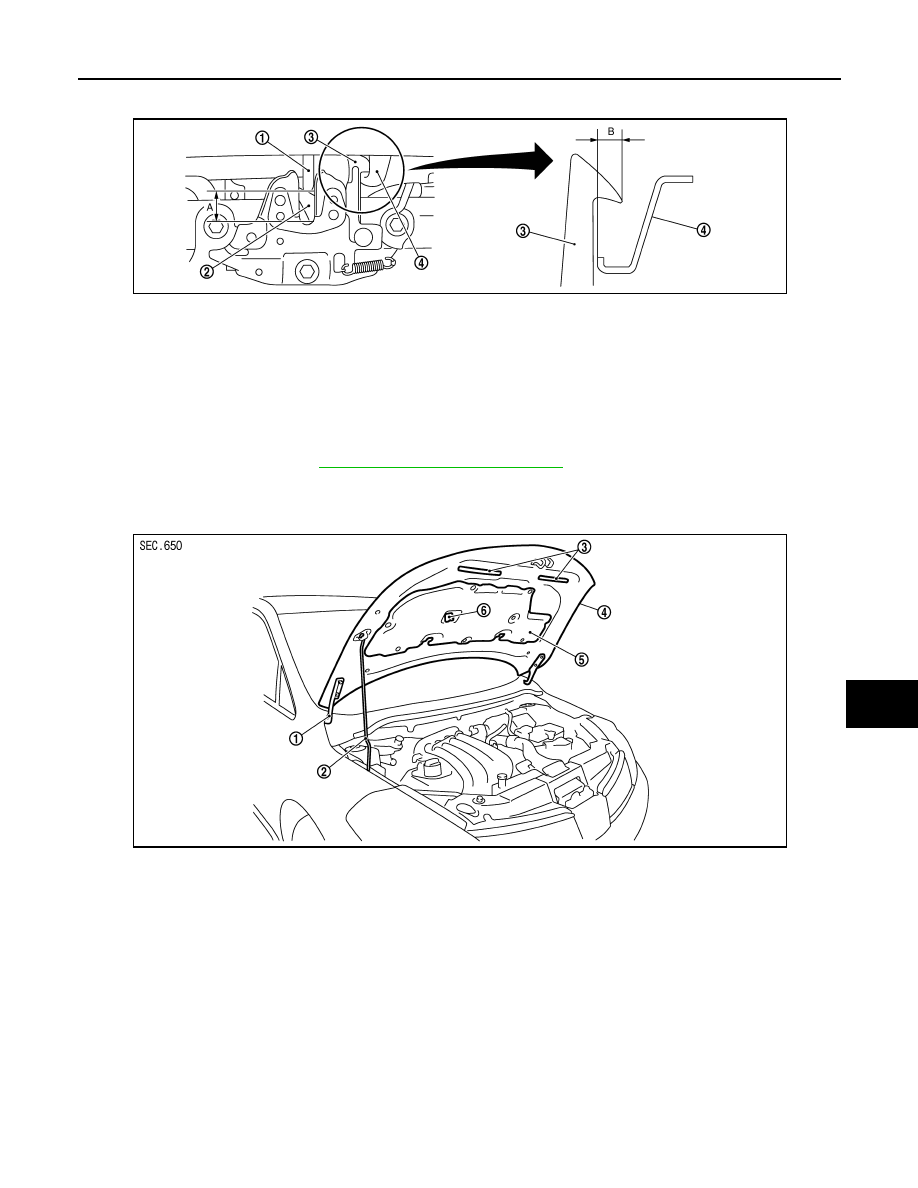

4.

Press the hood lightly with [approx. 29 N (3 kg] of force and adjust A and B as shown.

5.

After adjustment tighten lock bolts to the specified torque.

6.

Install the front grille. Refer to

EXT-19, "Removal and Installation"

.

Removal and Installation

INFOID:0000000001732054

HOOD ASSEMBLY

Removal

1.

Hood striker

2.

Primary latch

3.

Secondary striker

4.

Secondary latch

A

: 20 mm (0.79 in)

B

: 6.8 mm (0.268 in) min.

PIIB5794E

1.

Hood hinge

2.

Hood stay

3.

Radiator core seal rubber

4.

Hood assembly

5.

Hood insulator

6.

Hood stay holder

PIIB2528J

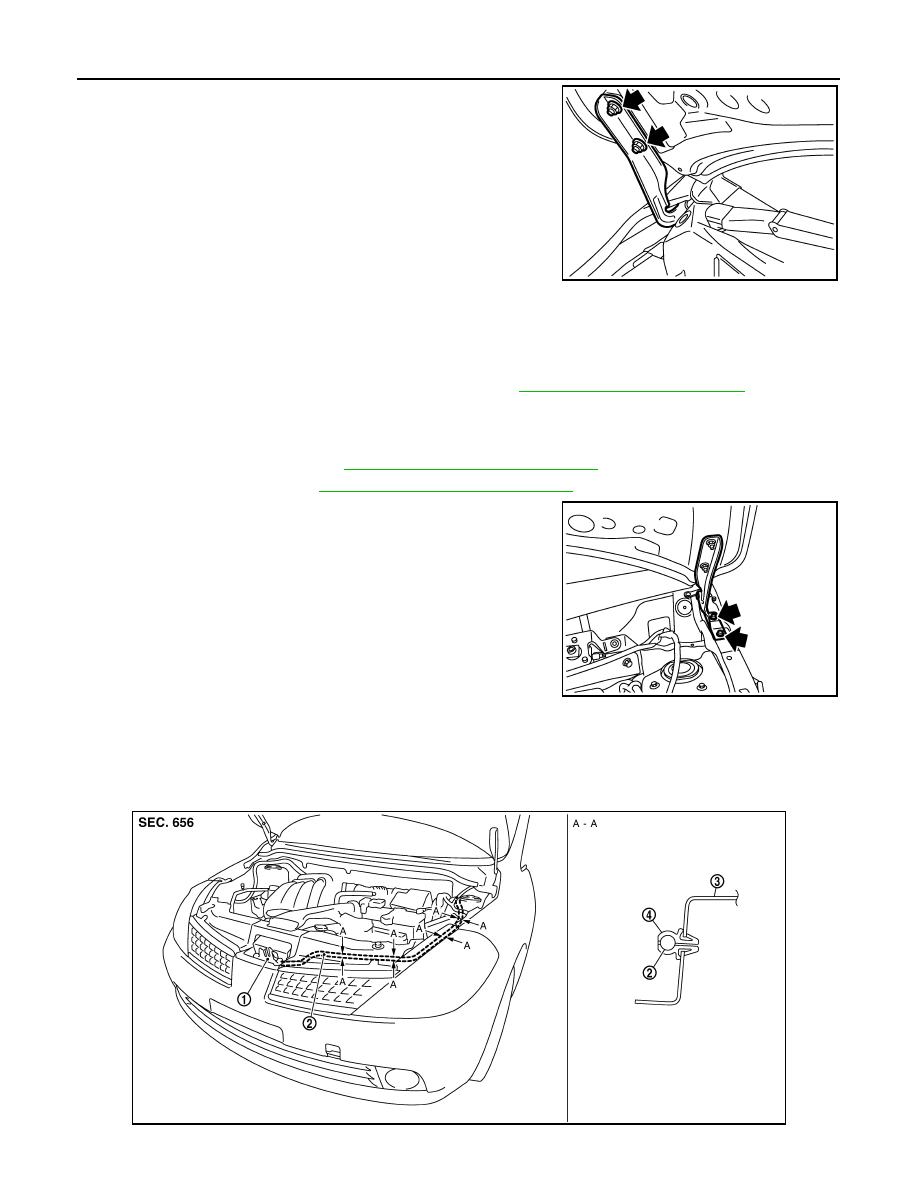

DLK-736

< REMOVAL AND INSTALLATION >

[WITHOUT I-KEY, WITH SUPER LOCK]

HOOD

1.

Remove hinge nuts on hood and remove hood assembly.

CAUTION:

Two technicians should be used to avoid damaging the
hood during removal.

Installation

Installation is in the reverse order of removal.

CAUTION:

• Before installing hood hinge, apply anticorrosive agent onto the surfaces that make contact with the

vehicle body.

• After installing, perform hood fitting adjustment. Refer to

DLK-734, "Fitting Adjustment"

.

HOOD HINGE

Removal

1.

Remove hood assembly. Refer to

DLK-735, "Removal and Installation"

.

2.

Remove front fender. Refer to

DLK-742, "Removal and Installation"

.

3.

Remove bolts and the hood hinge.

Installation

Installation is in the reverse order of removal.

Removal and Installation of Hood Lock Control

INFOID:0000000001732055

LH Drive

 12.7 N·m (1.3 kg-m, 9.4 ft-lb)

PIIB2529J

  12.7 N·m (1.3 kg-m, 9.4 ft-lb)

PIIB2530J

PIIB6509E

HOOD

DLK-737

< REMOVAL AND INSTALLATION >

[WITHOUT I-KEY, WITH SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

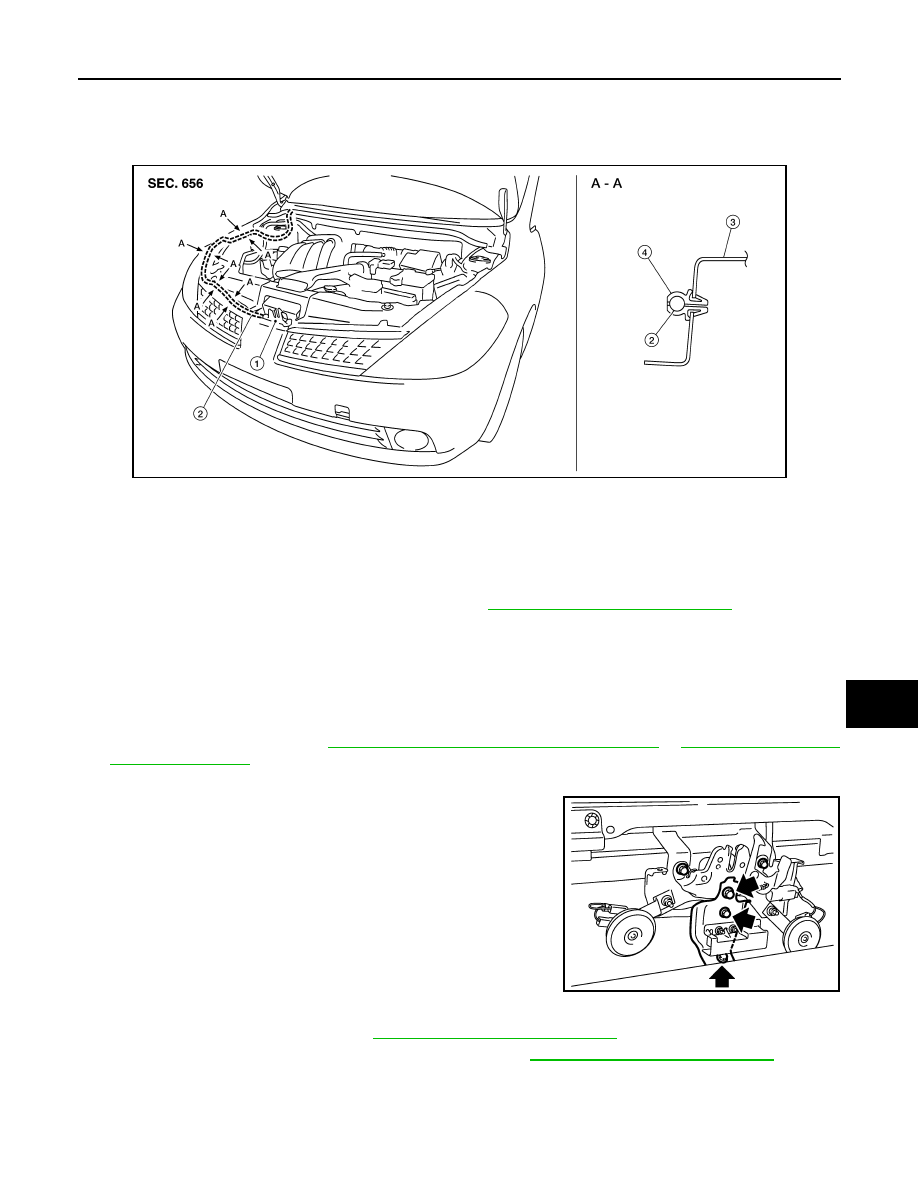

RH Drive

REMOVAL

Hood Lock

1.

Remove front grille (LH or RH as necessary). Refer to

EXT-19, "Removal and Installation"

.

2.

Remove hood lock bolts.

3.

Remove hood lock from hood lock cable.

Hood Lock Reinforcement

1.

Remove front bumper. Refer to

EXT-15, "Removal and Installation - Hatchback"

 or

EXT-17, "Removal and

Installation - Sedan"

.

2.

Remove crash zone sensor.

3.

Remove bolts, and the hood lock reinforcement.

Hood Lock Cable

1.

Remove front grille (LH/RH). Refer to

EXT-19, "Removal and Installation"

.

2.

Remove fender protector (LH or RH as necessary). Refer to

EXT-22, "Removal and Installation"

.

3.

Remove hood lock, and remove hood lock cable from hood lock.

4.

Remove radiator core upper support, hood ledge, and then remove hood lock cable.

1.

Hood lock

2.

Hood lock cable

3.

Hood ledge upper front

4.

Clip

ALKIA0638GB

1.

Hood lock

2.

Hood lock cable

3.

Hood ledge upper front

4.

Clip

 23.6 N·m (2.4 kg-m, 17 ft-lb)

 23.6 N·m (2.4 kg-m, 17 ft-lb)

PIIB6511E
