DLK-730

< PRECAUTION >

[WITHOUT I-KEY, WITH SUPER LOCK]

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000001530409

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SR and SB section of
this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

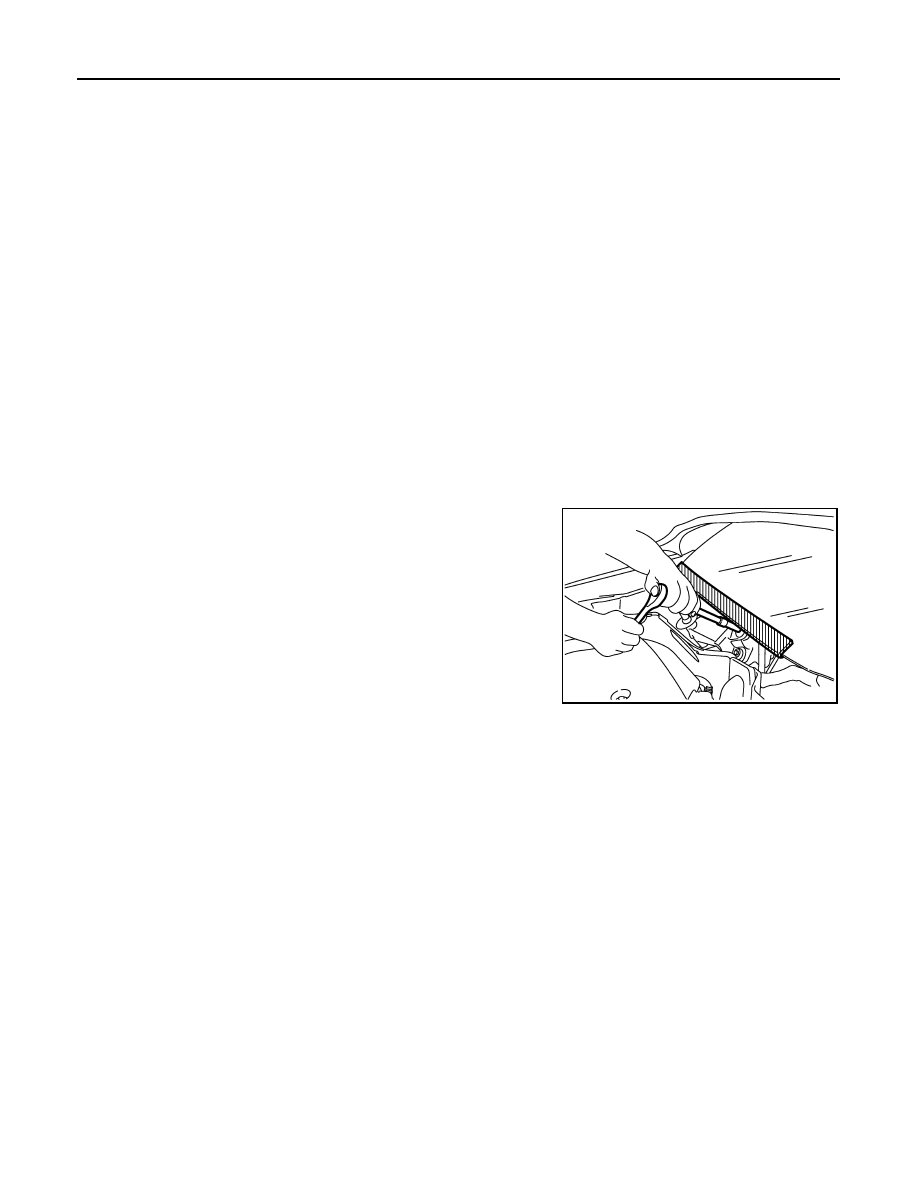

Procedure without Cowl Top Cover

INFOID:0000000001397343

When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc.

Steering Wheel Rotation after Battery Disconnect

INFOID:0000000001397344

NOTE:
• Before removing and installing any control units, first turn the push-button ignition switch to the LOCK posi-

tion, then disconnect both battery cables.

• After finishing work, confirm that all control unit connectors are connected properly, then re-connect both

battery cables.

• Always use CONSULT-III to perform self-diagnosis as a part of each function inspection after finishing work.

If a DTC is detected, perform trouble diagnosis according to self-diagnosis results.

This vehicle is equipped with a push-button ignition switch and a steering lock unit.
If the battery is disconnected or discharged, the steering wheel will lock and cannot be turned.
If turning the steering wheel is required with the battery disconnected or discharged, follow the procedure
below before starting the repair operation.

OPERATION PROCEDURE

1.

Connect both battery cables.
NOTE:
Supply power using jumper cables if battery is discharged.

2.

Carry the Intelligent Key or insert it to the key slot and turn the push-button ignition switch to ACC position.
(At this time, the steering lock will be released.)

3.

Disconnect both battery cables. The steering lock will remain released with both battery cables discon-
nected and the steering wheel can be turned.

4.

Perform the necessary repair operation.

PIIB3706J

PRECAUTIONS

DLK-731

< PRECAUTION >

[WITHOUT I-KEY, WITH SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

5.

When the repair work is completed, re-connect both battery cables. With the brake pedal released, turn
the push-button ignition switch from ACC position to ON position, then to LOCK position. (The steering
wheel will lock when the push-button ignition switch is turned to LOCK position.)

6.

Perform self-diagnosis check of all control units using CONSULT-III.

Work

INFOID:0000000001397345

• After removing and installing the opening/closing parts, be sure to carry out fitting adjustments to check their

operational.

• Check the lubrication level, damage, and wear of each part. If necessary, grease or replace it.

DLK-732

< PREPARATION >

[WITHOUT I-KEY, WITH SUPER LOCK]

PREPARATION

PREPARATION

PREPARATION

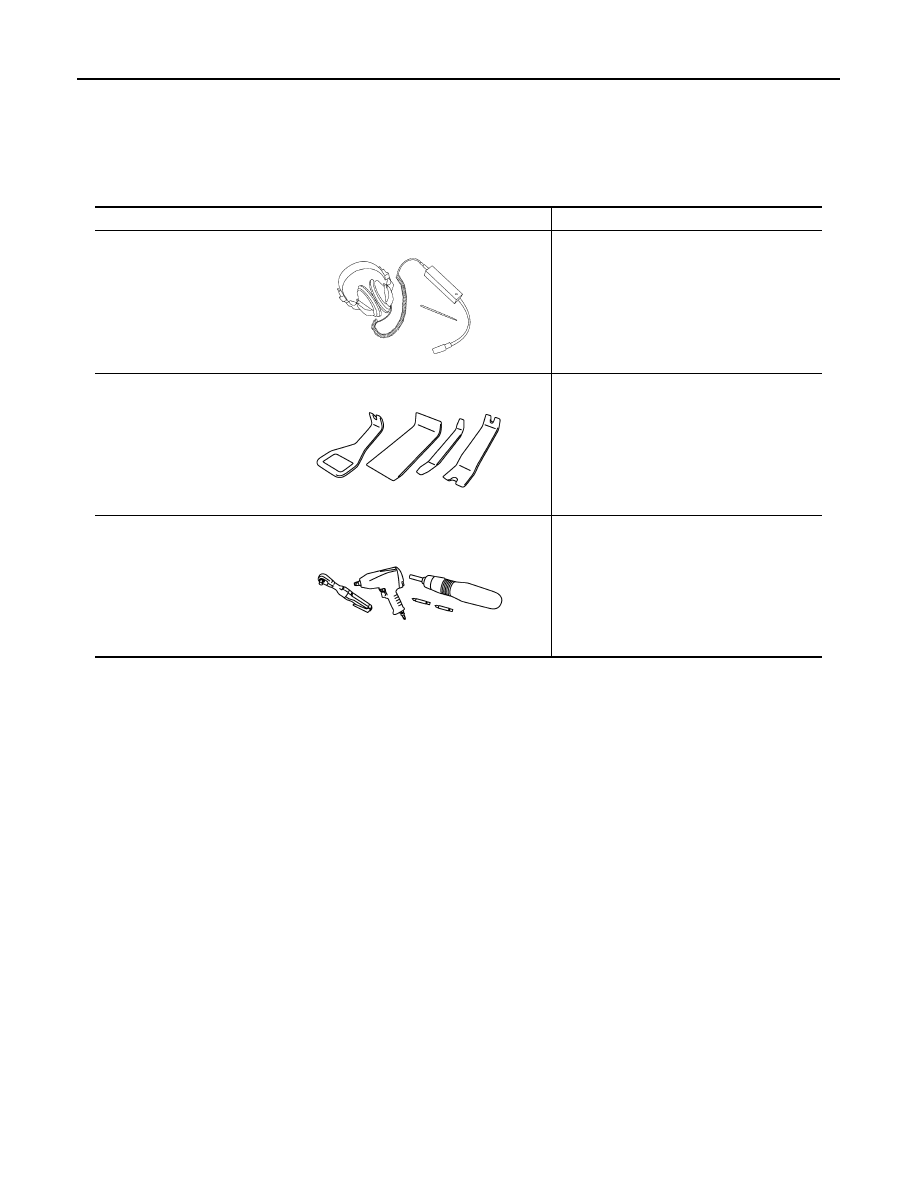

Commercial Service Tool

INFOID:0000000001536766

Tool name

Description

Engine ear

Locating the noise

Remover tool

Remove the clips, pawls, and metal clips

Power tool

Removing nuts and bolts

SIIA0995E

PIIB7923J

PIIB1407E

PRE-INSPECTION FOR DIAGNOSTIC

DLK-733

< ON-VEHICLE MAINTENANCE >

[WITHOUT I-KEY, WITH SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

ON-VEHICLE MAINTENANCE

PRE-INSPECTION FOR DIAGNOSTIC

Basic Inspection

INFOID:0000000001397347

BASIC INSPECTION

1.

CHECK DOOR LOCK AND UNLOCK SWITCH OPERATION

Check door lock and unlock operation by operating door lock and unlock switch.
Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Refer to

DLK-718, "DOOR LOCK AND UNLOCK SWITCH : Symptom Table"

.

2.

CHECK KEYFOB OPERATION

Check door lock and unlock operation by operationg lock and unlock button of keyfob.
Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Refer to

DLK-719, "KEYFOB : Symptom Table"

.

3.

CHECK AUTO DOOR LOCK OPERATION

Check auto door lock operation. Refer to

XX-XX, "*****"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Refer to

XX-XX, "*****"

.

4.

CHECK VEHICLE SPEED SENSING AUTO DOOR LOCK OPERATION

Check vehicle speed sensing auto door lock. Refer to

XX-XX, "*****"

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Refer to

XX-XX, "*****"

.

5.

CHECK BACK DOOR OPENER SWITCH OPERATION

Check back door opener operation by operating back door opener switch.
Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Refer to

DLK-720, "BACK DOOR OPENER SWITCH : Symptom Table"

.

6.

CHECK HAZARD REMINDER FUNCTION

Check hazard reminder function by operating the following switches.
• Lock and unlock button of keyfob.
Is the inspection result normal?

YES

>> GO TO 7.

NO

>> Refer to

DLK-723, "HAZARD WARNING LAMP : Symptom Table"

.

7.

CHECK WARNING FUNCTION

Check that warning function operate properly. Refer to

DLK-623, "System Description"

.

Is the inspection result normal?

YES

>> GO TO 8.

NO

>> Refer to

DLK-723, "HAZARD WARNING LAMP : Symptom Table"

.

8.

CHECK OUT

CHECK OUT.

>> INSPECTION END
