Nissan Tiida C11. Manual - part 328

DLK-722

< SYMPTOM DIAGNOSIS >

[WITHOUT I-KEY, WITH SUPER LOCK]

WARNING FUNCTION SYMPTOMS

WARNING FUNCTION SYMPTOMS

BACK DOOR

BACK DOOR : Symptom Table

INFOID:0000000001397337

BACK DOOR OPEN WARNING OPERATION MALFUNCTION

NOTE:
• Before performing the diagnosis in the following table, check “Work Flow”. Refer to

DLK-610, "Work Flow"

.

• Check that vehicle is under the condition shown in “Conditions of Vehicle” before starting diagnosis, and

check each symptom.

• If the following symptoms are detected, check systems shown in the “Diagnosis/service procedure” column

in this order.

Conditions of Vehicle (Operating Conditions)

• Door lock function and back door opener function is normal.

Symptom Table

Symptom

Diagnosis/service procedure

Reference

page

Back door open warning does not operate properly.

1.

Check back door opener switch.

XX-XX, "*****"

2.

Check intermittent incident.

XX-XX, "*****"

HAZARD REMINDER FUNCTION

DLK-723

< SYMPTOM DIAGNOSIS >

[WITHOUT I-KEY, WITH SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

HAZARD REMINDER FUNCTION

HAZARD WARNING LAMP

HAZARD WARNING LAMP : Symptom Table

INFOID:0000000001397338

HAZARD REMINDER OPERATION MALFUNCTION

NOTE:
• Before performing the diagnosis in the following table, check “Work Flow”. Refer to

DLK-610, "Work Flow"

.

• Check that vehicle is under the condition shown in “Conditions of Vehicle” before starting diagnosis, and

check each symptom.

• If the following symptoms are detected, check systems shown in the “Diagnosis/service procedure” column

in this order.

Conditions of Vehicle (Operating Conditions)

• “HAZARD LAMP SET” is ON when setting on CONSULT-III.
• Door lock function is normal.

Symptom Table

Symptom

Diagnosis/service procedure

Reference page

Buzzer reminder operation dose not operate
properly.

1.

Check setting of “HAZARD LAMP SET” with CONSULT-
III.

DLK-628

2.

Check intermittent incident.

XX-XX, "*****"

DLK-724

< SYMPTOM DIAGNOSIS >

[WITHOUT I-KEY, WITH SUPER LOCK]

SQUEAK AND RATTLE TROUBLE DIAGNOSES

SQUEAK AND RATTLE TROUBLE DIAGNOSES

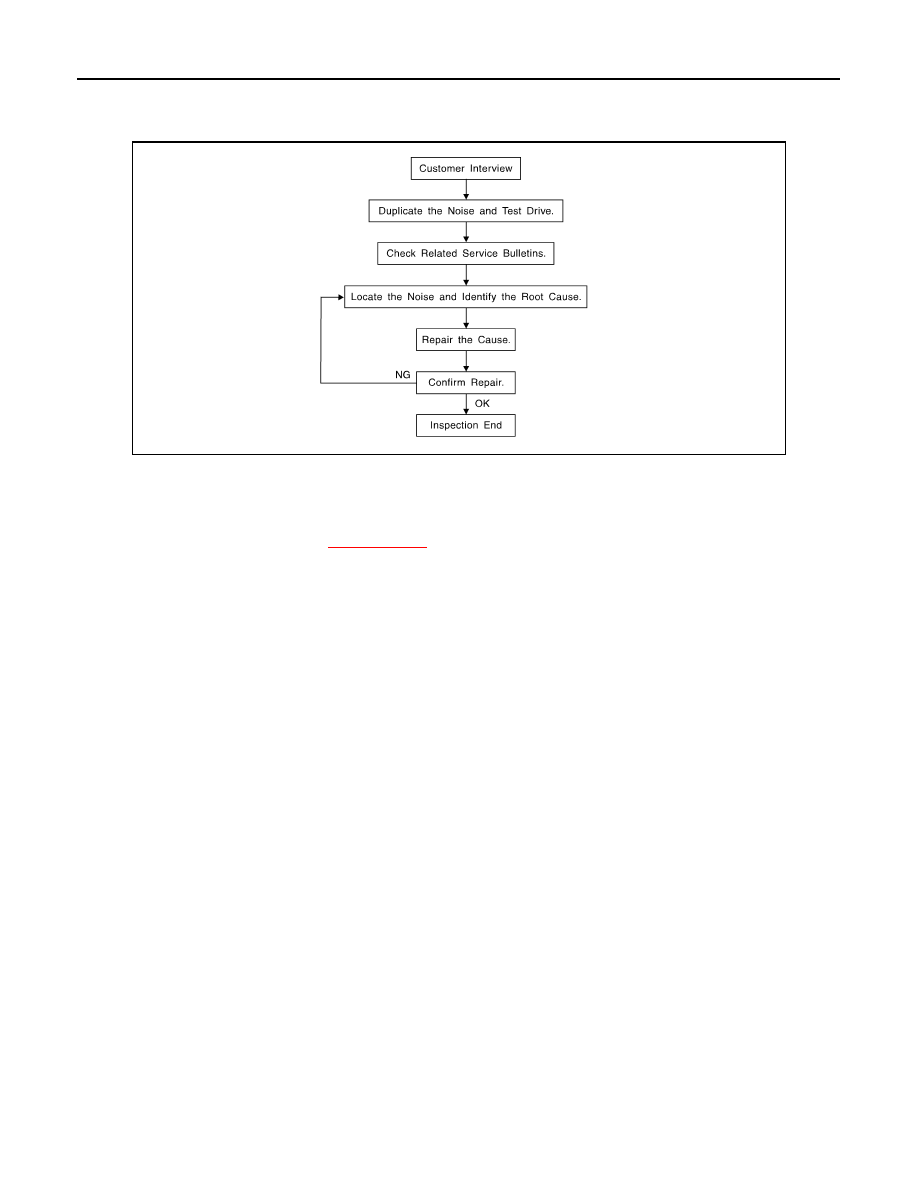

Work Flow

INFOID:0000000001397339

CUSTOMER INTERVIEW

Interview the customer if possible, to determine the conditions that exist when the noise occurs. Use the Diag-
nostic Worksheet during the interview to document the facts and conditions when the noise occurs and any of
the customer's comments; refer to

XX-XX, "*****"

. This information is necessary to duplicate the conditions

that exist when the noise occurs.
• The customer may not be able to provide a detailed description or the location of the noise. Attempt to obtain

all the facts and conditions that exist when the noise occurs (or does not occur).

• If there is more than one noise in the vehicle, be sure to diagnose and repair the noise that the customer is

concerned about. This can be accomplished by a test drive with the customer.

• After identifying the type of noise, isolate the noise in terms of its characteristics. The noise characteristics

are provided so the customer, service adviser and technician are all speaking the same language when
defining the noise.

• Squeak – (Like tennis shoes on a clean floor)

Squeak characteristics include the light contact/fast movement/brought on by road conditions/hard surfaces
= higher pitch noise/softer surfaces = lower pitch noises/edge to surface = chirping

• Creak – (Like walking on an old wooden floor)

Creak characteristics include firm contact/slow movement/twisting with a rotational movement/pitch depen-
dent on materials/often brought on by activity.

• Rattle – (Like shaking a baby rattle)

Rattle characteristics include the fast repeated contact/vibration or similar movement/loose parts/missing
clip or fastener/incorrect clearance.

• Knock – (Like a knock on a door)

Knock characteristics include hollow sounding/sometimes repeating/often brought on by driver action.

• Tick – (Like a clock second hand)

Tick characteristics include gentle contacting of light materials/loose components/can be caused by driver
action or road conditions.

• Thump – (Heavy, muffled knock noise)

Thump characteristics include softer knock/dead sound often brought on by activity.

• Buzz – (Like a bumble bee)

Buzz characteristics include high frequency rattle/firm contact.

• Often the degree of acceptable noise level will vary depending upon the person. A noise that you may judge

as acceptable may be very irritating to the customer.

• Weather conditions, especially humidity and temperature, may have a great effect on noise level.

DUPLICATE THE NOISE AND TEST DRIVE

If possible, drive the vehicle with the customer until the noise is duplicated. Note any additional information on
the Diagnostic Worksheet regarding the conditions or location of the noise. This information can be used to
duplicate the same conditions when you confirm the repair.

SBT842

SQUEAK AND RATTLE TROUBLE DIAGNOSES

DLK-725

< SYMPTOM DIAGNOSIS >

[WITHOUT I-KEY, WITH SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

If the noise can be duplicated easily during the test drive, to help identify the source of the noise, try to dupli-
cate the noise with the vehicle stopped by doing one or all of the following:
1) Close a door.
2) Tap or push/pull around the area where the noise appears to be coming from.
3) Rev the engine.
4) Use a floor jack to recreate vehicle “twist”.
5) At idle, apply engine load (electrical load, half-clutch on M/T model, drive position on A/T model).
6) Raise the vehicle on a hoist and hit a tire with a rubber hammer.
• Drive the vehicle and attempt to duplicate the conditions the customer states exist when the noise occurs.
• If it is difficult to duplicate the noise, drive the vehicle slowly on an undulating or rough road to stress the

vehicle body.

CHECK RELATED SERVICE BULLETINS

After verifying the customer concern or symptom, check ASIST for Technical Service Bulletins (TSB) related to
that concern or symptom.
If a TSB relates to the symptom, follow the procedure to repair the noise.

LOCATE THE NOISE AND IDENTIFY THE ROOT CAUSE

1.

Narrow down the noise to a general area. To help pinpoint the source of the noise, use a listening tool
(Engine Ear or mechanics stethoscope).

2.

Narrow down the noise to a more specific area and identify the cause of the noise by:

• removing the components in the area that you suspect the noise is coming from.

Do not use too much force when removing clips and fasteners, otherwise clips and fastener can be broken
or lost during the repair, resulting in the creation of new noise.

• tapping or pushing/pulling the component that you suspect is causing the noise.

Do not tap or push/pull the component with excessive force, otherwise the noise will be eliminated only tem-
porarily.

• feeling for a vibration with your hand by touching the component(s) that you suspect is (are) causing the

noise.

• placing a piece of paper between components that you suspect are causing the noise.
• looking for loose components and contact marks.

Refer to

XX-XX, "*****"

.

REPAIR THE CAUSE

• If the cause is a loose component, tighten the component securely.
• If the cause is insufficient clearance between components:
- separate components by repositioning or loosening and retightening the component, if possible.
- insulate components with a suitable insulator such as urethane pads, foam blocks, felt cloth tape or urethane

tape are available through your authorized Nissan Parts Department.

CAUTION:

Do not use excessive force as many components are constructed of plastic and may be damaged.
NOTE:
• URETHANE PADS

Insulates connectors, harness, etc.

• INSULATOR (Foam blocks)

Insulates components from contact. Can be used to fill space behind a panel.

• INSULATOR (Light foam block)
• FELT CLOTHTAPE

Used to insulate where movement does not occur. Ideal for instrument panel applications.
The following materials, not available through NISSAN Parts Department, can also be used to repair
squeaks and rattles.

• UHMW(TEFLON) TAPE

Insulates where slight movement is present. Ideal for instrument panel applications.

• SILICONE GREASE

Used in place of UHMW tape that will be visible or not fit.
Note: Will only last a few months.

• SILICONE SPRAY

Use when grease cannot be applied.

• DUCT TAPE

Use to eliminate movement.

CONFIRM THE REPAIR
