DLK-482

< FUNCTION DIAGNOSIS >

[WITHOUT I-KEY & SUPER LOCK]

WARNING FUNCTION

WARNING FUNCTION

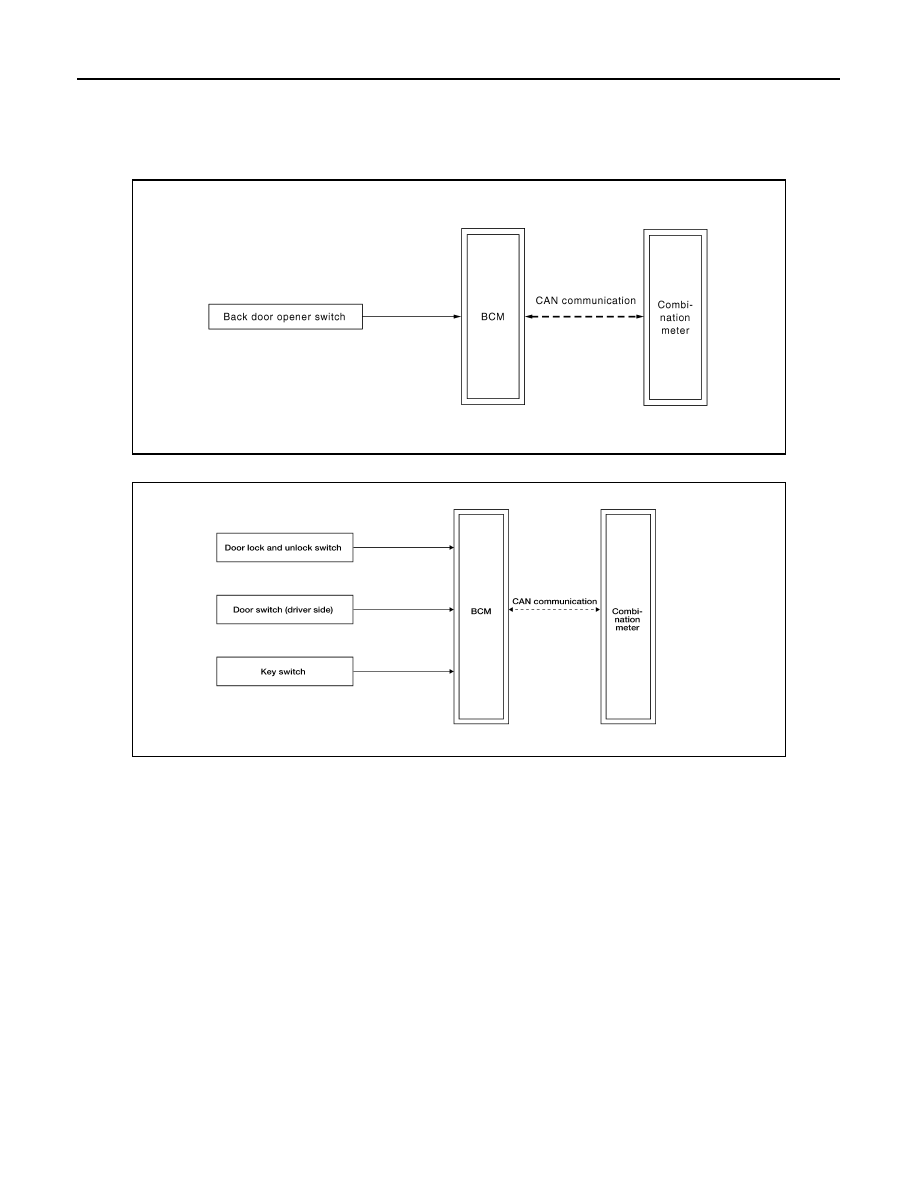

System Diagram

INFOID:0000000001397012

BACK DOOR OPEN WARNING

KEY REMINDER OPERATION

System Description

INFOID:0000000001397013

BACK DOOR OPEN WARNING OPERATION

Back door opener switch is operated, when door lock is locked with door lock and unlock switch, by speed
sensing lock or when only the driver side is unlocked by the anti-hijack function, the buzzer (built in combina-
tion meter) will sound.

KEY REMINDER OPERATION

• The buzzer (combination meter) will sound and the doors will not lock if the door lock and unlock switch is

pressed while the driver door is open and mechanical key is inserted ignition key cylinder.

• The buzzer (combination meter) will sound and the doors will not lock if the door lock and unlock switch is

pressed while any door other than the driver door is open.

JMKIA0410GB

ALKIA0837GB

WARNING FUNCTION

DLK-483

< FUNCTION DIAGNOSIS >

[WITHOUT I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

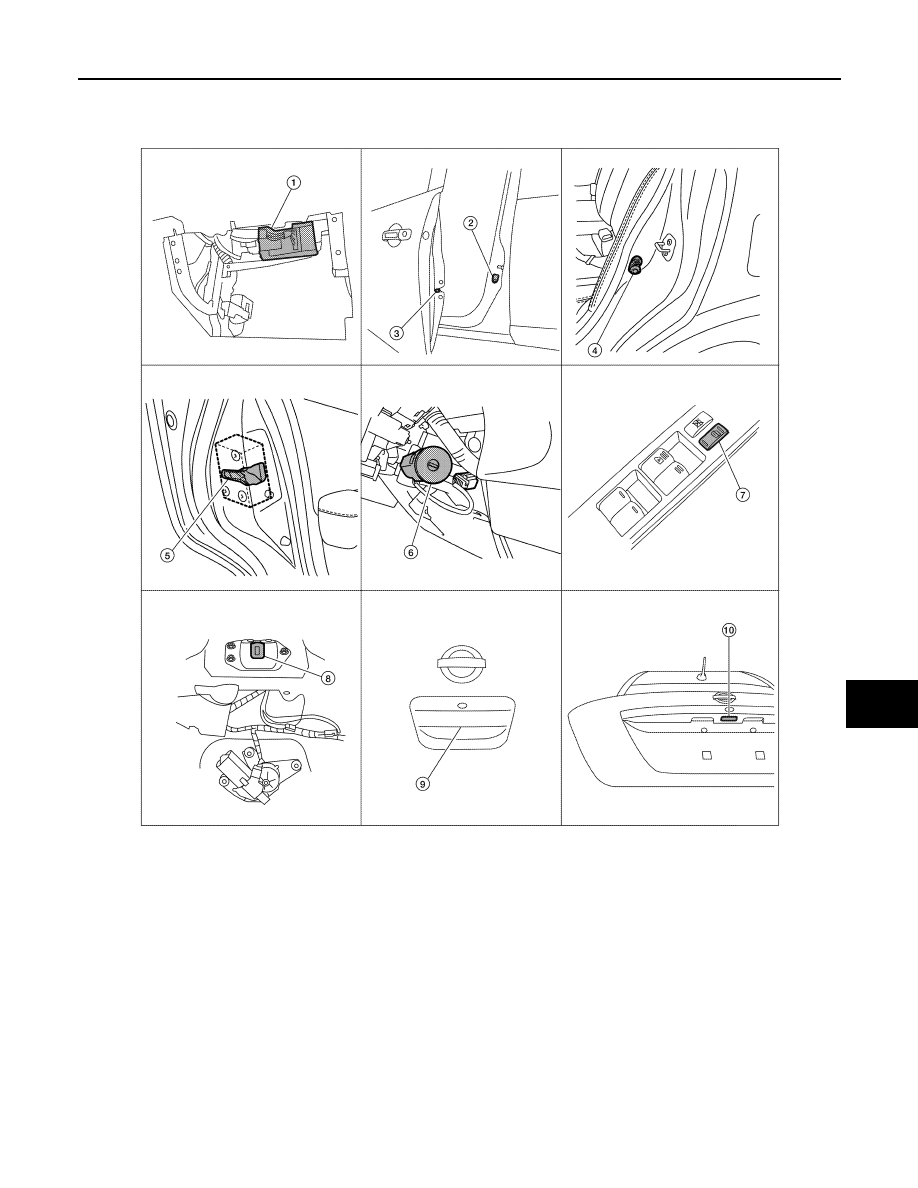

Component Parts Location

INFOID:0000000001397014

ALKIA0812ZZ

1.

BCM M18, M19, M20
(view with glove box removed)

2.

Front door switch (driver side) B34
(Passenger side) B27

3.

Front door lock actuator (driver side)
D14
(Passenger side) D114
Door unlock sensor (driver side) D14

4.

Rear door switch LH B71
RH B53

5.

Rear door lock actuator LH D205
RH D305

6.

Key switch and key lock solenoid
M27

7.

Main power window and door lock/unlock
switch D7, D8

8.

Back door lock assembly (back
door switch) D405 (hatchback view
with back door open)

9.

Back door opener switch (hatchback)
D408

10. Trunk lid opener switch (sedan) B61

DLK-484

< FUNCTION DIAGNOSIS >

[WITHOUT I-KEY & SUPER LOCK]

WARNING FUNCTION

Component Description

INFOID:0000000001397015

Item

Function

BCM

Controls the warning function.

Combination meter

Sounds the buzzer by the request signal from BCM via CAN communication.

Back door opener switch

Transmit back door open signal to BCM

HAZARD REMINDER FUNCTION

DLK-485

< FUNCTION DIAGNOSIS >

[WITHOUT I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

HAZARD REMINDER FUNCTION

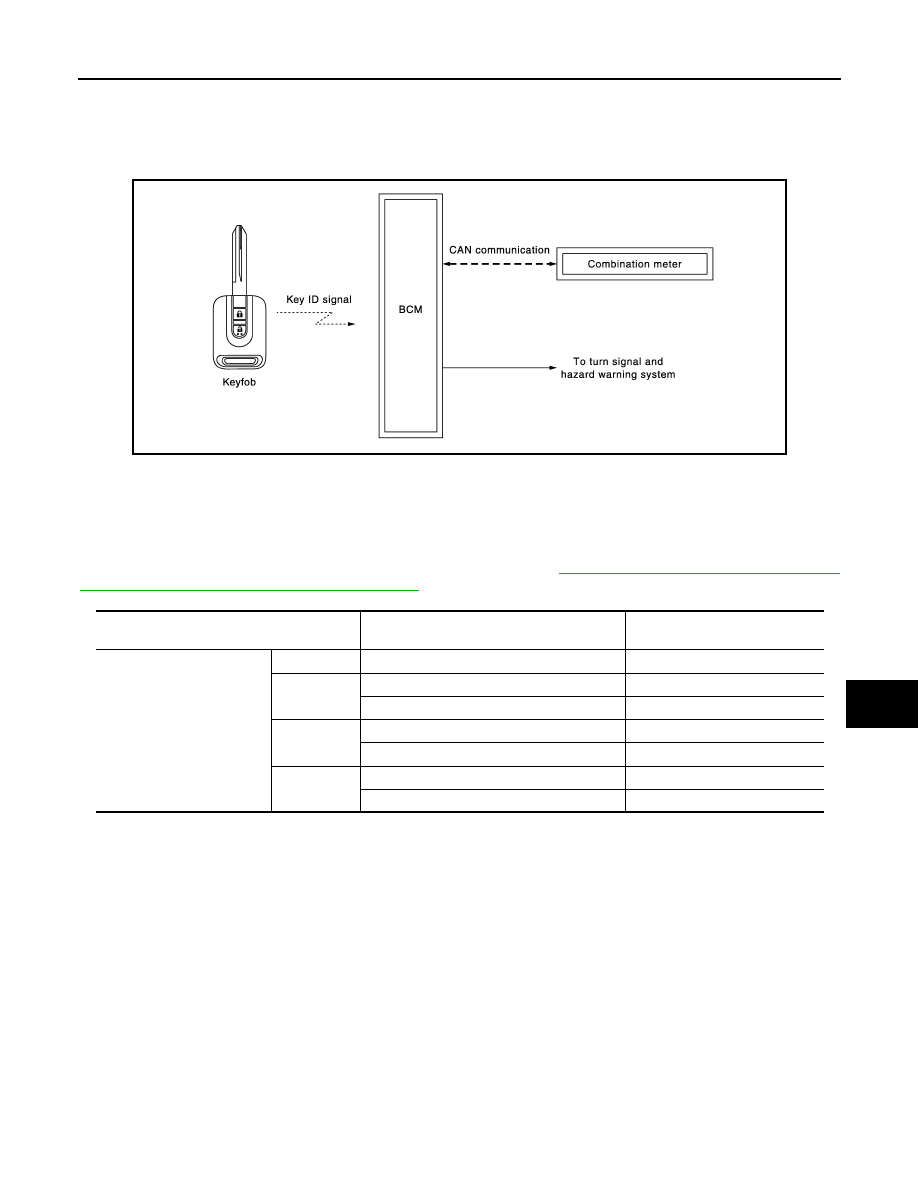

System Diagram

INFOID:0000000001397016

HAZARD REMINDER FUNCTION

System Description

INFOID:0000000001397017

HAZARD REMINDER OPERATION

When door is locked or unlocked by keyfob, then BCM flashes hazard warning lamp as a reminder.
NOTE:
Hazard reminder mode can be changed with CONSULT-III. Refer to

DLK-490, "MULTIREMOTE ENT : CON-

SULT-III Function (BCM - MULTIREMOTE ENT)"

.

JMKIA0510GB

Hazard reminder setting

(With CONSULT-III)

Door lock operation

(with keyfob)

Hazard warning lamp flash

HAZARD LAMP SET

MODE 1

—

—

MODE 2

Lock

Once

Unlock

—

MODE 3

Lock

—

Unlock

Twice

MODE 4

Lock

Once

Unlock

Twice
