DLK-474

< FUNCTION DIAGNOSIS >

[WITHOUT I-KEY & SUPER LOCK]

DOOR LOCK FUNCTION

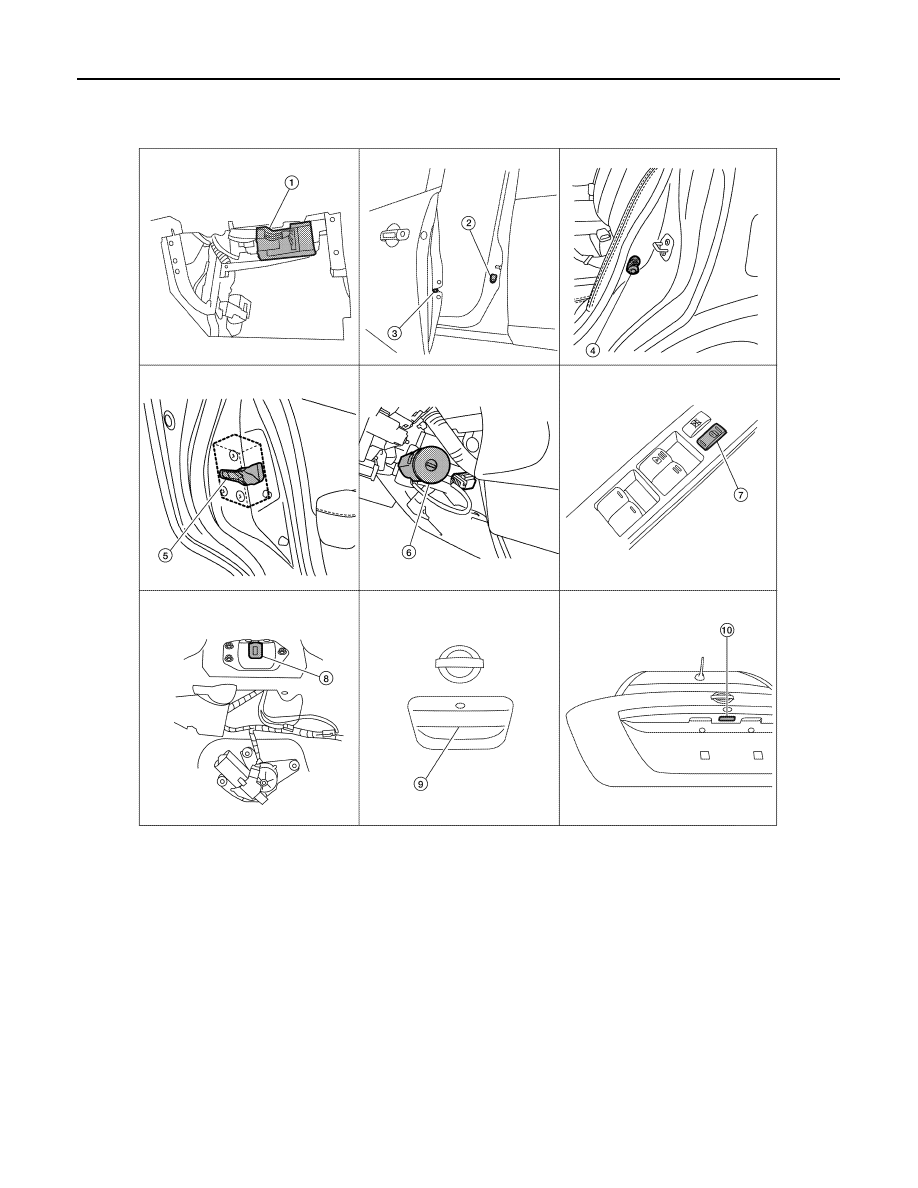

DOOR LOCK AND UNLOCK SWITCH : Component Parts Location

INFOID:0000000001396990

ALKIA0812ZZ

1.

BCM M18, M19, M20
(view with glove box removed)

2.

Front door switch (driver side) B34
(Passenger side) B27

3.

Front door lock actuator (driver side)
D14
(Passenger side) D114
Door unlock sensor (driver side) D14

4.

Rear door switch LH B71
RH B53

5.

Rear door lock actuator LH D205
RH D305

6.

Key switch and key lock solenoid
M27

7.

Main power window and door lock/unlock
switch D7, D8

8.

Back door lock assembly (back
door switch) D405 (hatchback view
with back door open)

9.

Back door opener switch (hatchback)
D408

10. Trunk lid opener switch (sedan) B61

DOOR LOCK FUNCTION

DLK-475

< FUNCTION DIAGNOSIS >

[WITHOUT I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

DOOR LOCK AND UNLOCK SWITCH : Component Description

INFOID:0000000001396991

REMOTE KEYLESS ENTRY

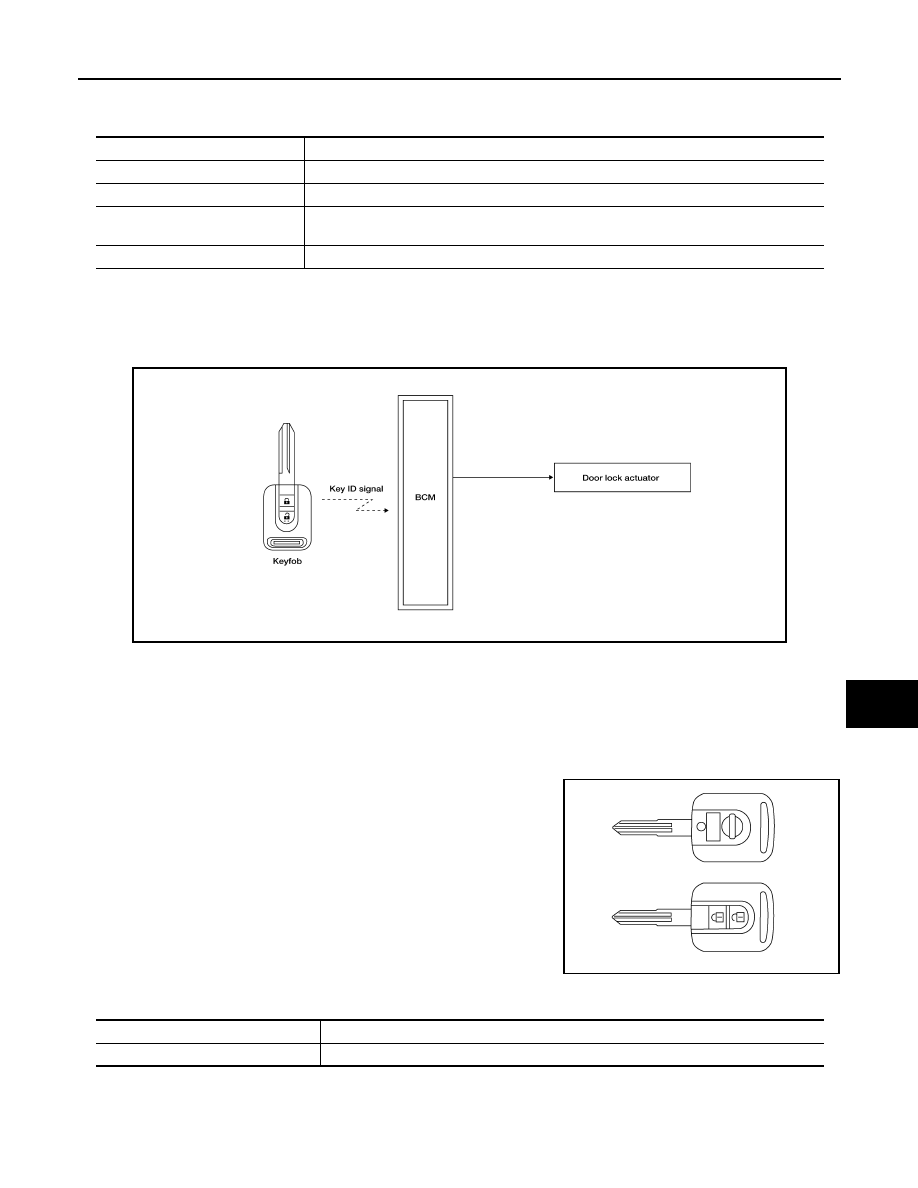

REMOTE KEYLESS ENTRY : System Diagram

INFOID:0000000001396992

KEYFOB OPERATION

REMOTE KEYLESS ENTRY : System Description

INFOID:0000000001396993

KEYFOB OPERATION

The multi remote control system can be locked and unlocked by pressing door lock and unlock button of key-
fob.

DOOR LOCK AND UNLOCK OPERATION

When door lock and unlock button of keyfob is pressed, door lock
and unlock signal transmits from keyfob to BCM. When BCM
receives the door lock and unlock signal, it operates door lock actua-
tor.
1.

Integrated door lock keyfob.

2.

Integrated ignition key/emergency key.

3.

Key number plate.

OPERATION CONDITION

OPERATION AREA

To ensure that the keyfob works effectively, use within 100 cm range of each door, however the operable
range may differ according to surroundings.

Item

Function

BCM

Controls the door lock and unlock function.

Door switch

Detects door state (open or closed).

Door lock and unlock switch

Transmits door lock and unlock signal to BCM. Door lock and unlock switch indicator is built
in door lock and unlock switch.

Door lock actuator

Receives door lock and unlock signal from BCM and locks and unlocks each door.

ALKIA0836GB

ALKIA0821ZZ

Remote controller operation

Operation condition

Lock/unlock

Key switch is OFF (key is removed from ignition key cylinder).

DLK-476

< FUNCTION DIAGNOSIS >

[WITHOUT I-KEY & SUPER LOCK]

DOOR LOCK FUNCTION

ANTI-HIJACK MODE

When door lock is unlocked, pressing LOCK button on keyfob once will lock all doors. When door lock is
locked, pressing UNLOCK button on keyfob will unlock driver side door. Pressing UNLOCK button on keyfob
second time within 5 seconds from the first time will unlock all doors and back door can be opened with back
door opener switch.
NOTE:
Anti-hijack mode can be set to ON or OFF with CONSULT-III. For the setting information, refer to

DLK-490,

"MULTIREMOTE ENT : CONSULT-III Function (BCM - MULTIREMOTE ENT)"

.

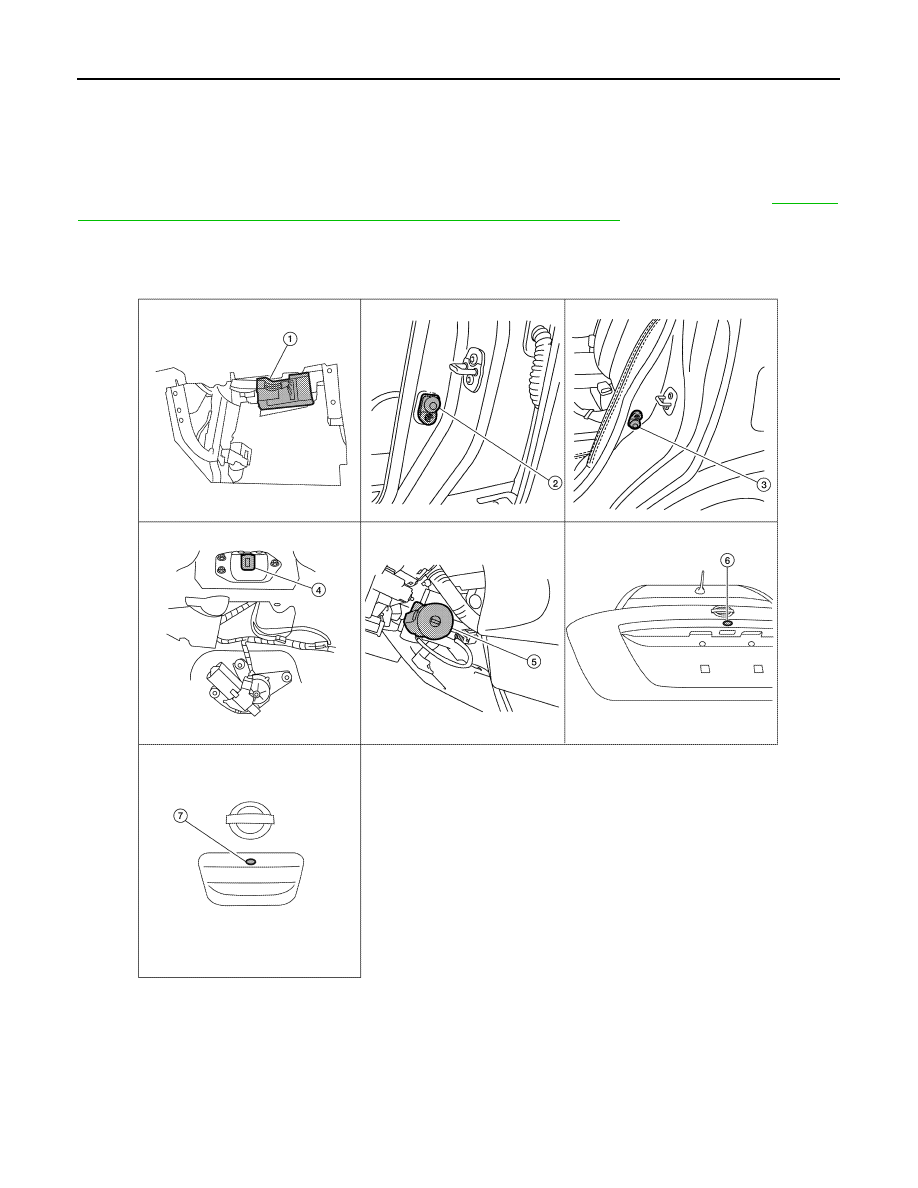

REMOTE KEYLESS ENTRY : Component Parts Location

INFOID:0000000001396994

ALKIA0817ZZ

1.

BCM M18, M19, M20
(view with glove box removed)

2.

Front door switch (driver side) B34
(Passenger side) B27

3.

Rear door switch LH B71
RH B53

4.

Back door lock assembly (back door switch)
D405 (hatchback view with back door open)

5.

Key switch and key lock solenoid
M27

6.

Trunk lid opener switch (sedan) B61

7.

Back door opener switch (hatchback) D408

DOOR LOCK FUNCTION

DLK-477

< FUNCTION DIAGNOSIS >

[WITHOUT I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

REMOTE KEYLESS ENTRY : Component Description

INFOID:0000000001396995

Item

Function

BCM

Controls the door lock function.

Key switch

Detects that ignition key is inserted into ignition key cylinder.

Door lock actuator

Receives lock and unlock signal from BCM and locks and unlocks each door.
