Nissan Tiida C11. Manual - part 233

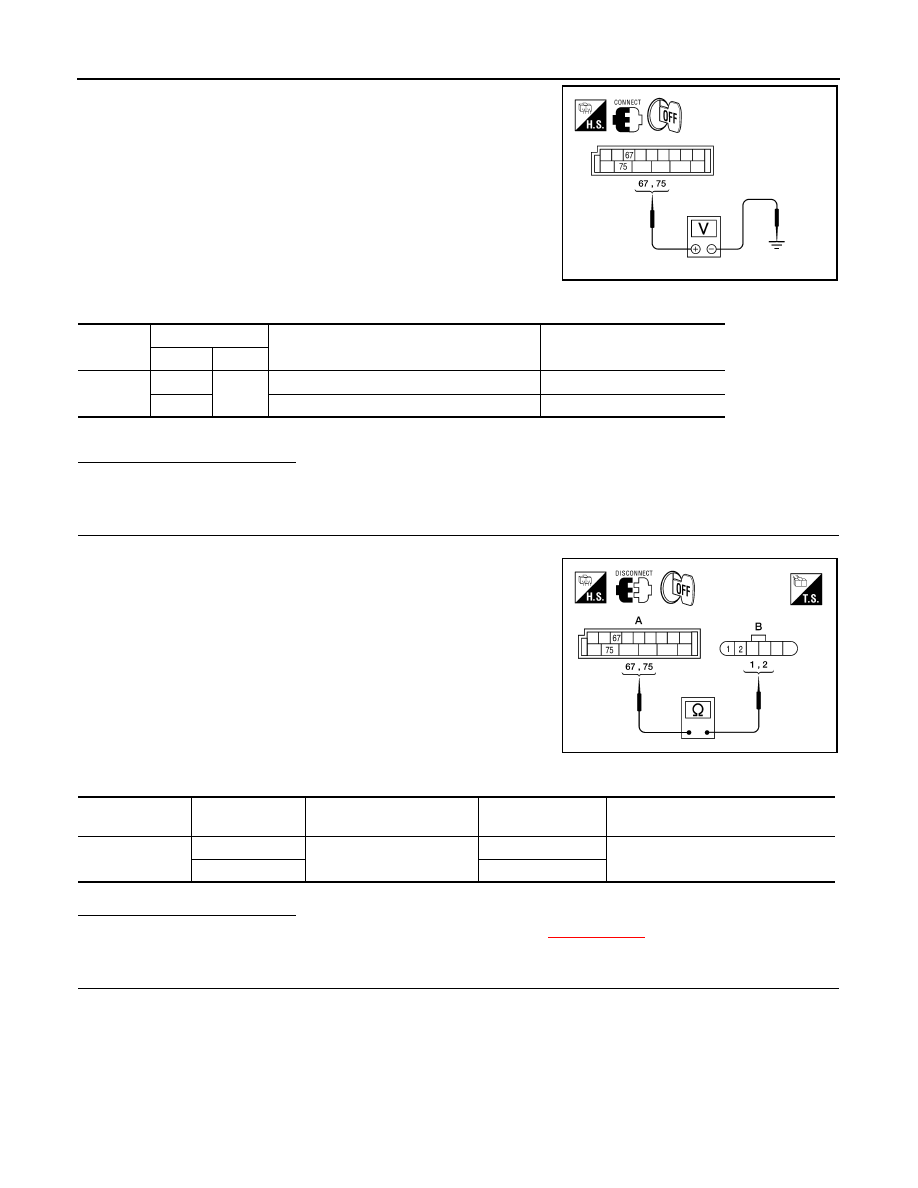

DLK-342

< COMPONENT DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

SUPER LOCK ACTUATOR

2.

Check voltage between BCM connector M20 terminals 67, 75
and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

CHECK SUPER LOCK ACTUATOR HARNESS

1.

Disconnect BCM and front door lock actuator (passenger side).

2.

Check continuity between BCM connector (A) M20 terminals 67,
75 and front door lock actuator (passenger side) (B) D114 termi-
nals 1, 2.

Is the inspection result normal?

YES

>> Replace super lock actuator (passenger side). Refer to

XX-XX, "*****"

.

NO

>> Repair or replace harness.

3.

CHECK SUPER LOCK ACTUATOR HARNESS

1.

Disconnect BCM and front door lock actuator (passenger side).

ALKIA0825ZZ

Connector

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(-)

M20

75

Ground

Door lock/unlock switch is turned to LOCK

0

→

 Battery voltage

→

 0

67

Door lock/unlock switch is turned to UNLOCK

0

→

 Battery voltage

→

 0

ALKIA0826ZZ

BCM connector

Terminal

Front door lock actuator

(passenger side) connector

Terminal

Continuity

M20

67

D114

2

Yes

75

1

SUPER LOCK ACTUATOR

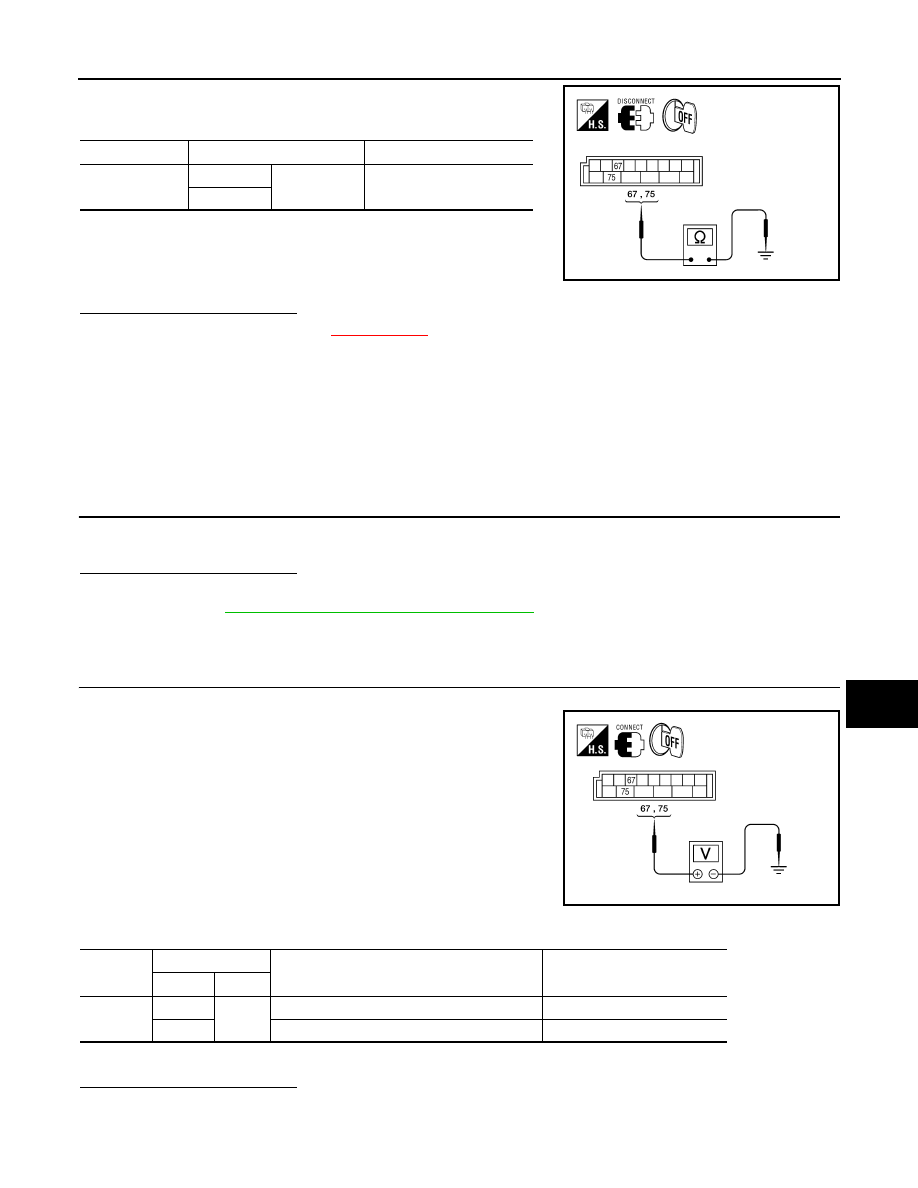

DLK-343

< COMPONENT DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

2.

Check continuity between BCM connector M19 terminals 67, 75
and ground.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

XX-XX, "*****"

.

NO

>> Repair or replace harness.

REAR LH

REAR LH : Description

INFOID:0000000001530417

Locks/unlocks the door with the signal from BCM.

REAR LH : Component Function Check

INFOID:0000000001530418

1.

CHECK FUNCTION

1.

Use CONSULT-III to perform Active Test "DOOR LOCK".

2.

Touch “LOCK” or “UNLOCK” to check that it works normally.

Is the inspection result normal?

YES

>> Rear super lock actuator LH is OK.

NO

>> Refer to

DLK-343, "REAR LH : Diagnosis Procedure"

.

REAR LH : Diagnosis Procedure

INFOID:0000000001530419

1.

CHECK DOOR LOCK ACTUATOR SIGNAL

1.

Turn ignition switch OFF.

2.

Check voltage between BCM connector M20 terminals 67, 75
and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> GO TO 3.

BCM connector

Terminals

Continuity

M20

67

Ground

No

75

ALKIA0827ZZ

ALKIA0825ZZ

Connector

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(-)

M20

75

Ground

Door lock/unlock switch is turned to LOCK

0

→

 Battery voltage

→

 0

67

Door lock/unlock switch is turned to UNLOCK

0

→

 Battery voltage

→

 0

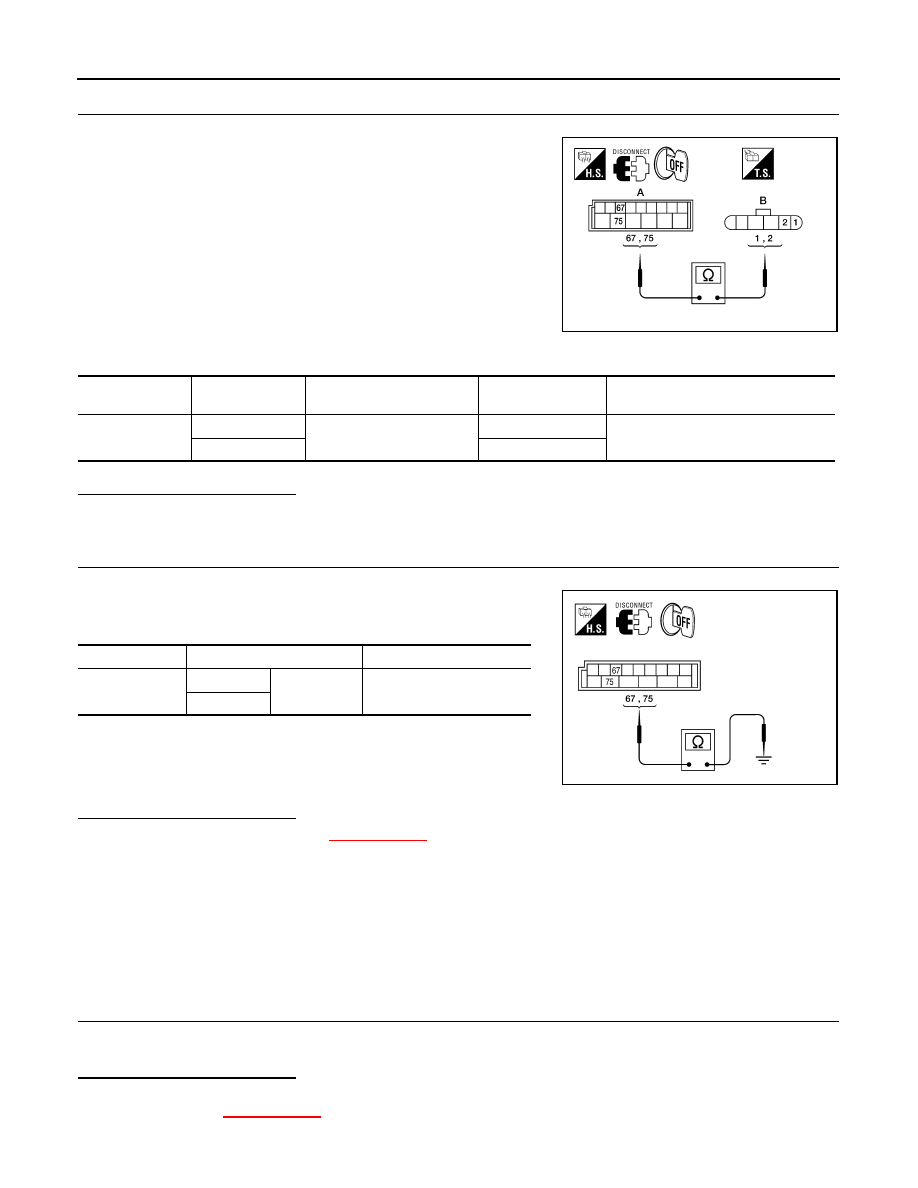

DLK-344

< COMPONENT DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

SUPER LOCK ACTUATOR

2.

CHECK SUPER LOCK ACTUATOR HARNESS

1.

Disconnect BCM and rear door lock actuator LH.

2.

Check continuity between BCM connector (A) M20 terminals 67,
75 and rear door lock actuator LH connector (B) D205 terminals
1, 2.

Is the inspection result normal?

YES

>> Replace rear super lock actuator LH.

NO

>> Repair or replace harness.

3.

CHECK SUPER LOCK ACTUATOR HARNESS

1.

Disconnect BCM and each door lock actuator.

2.

Check continuity between BCM connector M20 terminals 67, 75
and ground.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

XX-XX, "*****"

.

NO

>> Repair or replace harness.

REAR RH

REAR RH : Description

INFOID:0000000001530420

Locks/unlocks the door with the signal from BCM.

REAR RH : Component Function Check

INFOID:0000000001530421

1.

CHECK FUNCTION

1.

Use CONSULT-III to perform Active Test "DOOR LOCK".

2.

Touch “LOCK” or “UNLOCK” to check that it works normally.

Is the inspection result normal?

YES

>> Rear super lock actuator RH is OK.

NO

>> Refer to

XX-XX, "*****"

.

ALKIA0828ZZ

BCM connector

Terminal

Rear door lock actuator LH

connector

Terminal

Continuity

M20

67

D205

2

Yes

75

1

BCM connector

Terminals

Continuity

M20

67

Ground

No

75

ALKIA0827ZZ

SUPER LOCK ACTUATOR

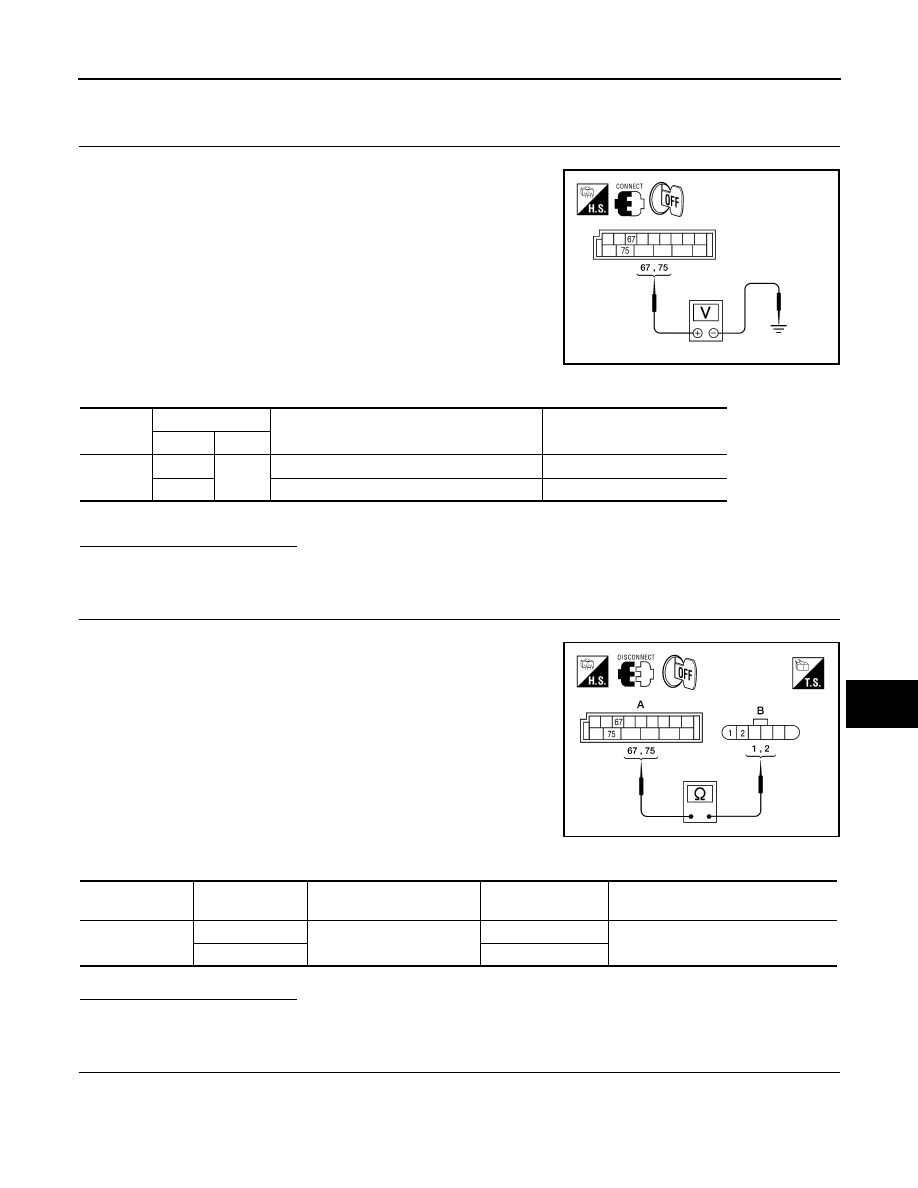

DLK-345

< COMPONENT DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

REAR RH : Diagnosis Procedure

INFOID:0000000001530422

1.

CHECK DOOR LOCK ACTUATOR SIGNAL

1.

Turn ignition switch OFF.

2.

Check voltage between BCM connector M20 terminals 67, 75
and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

CHECK SUPER LOCK ACTUATOR HARNESS

1.

Disconnect BCM and rear door lock actuator RH.

2.

Check continuity between BCM connector (A) M20 terminals 67,
75 and rear door lock actuator RH connector (B) D305 terminals
2, 1.

Is the inspection result normal?

YES

>> Replace rear super lock actuator RH.

NO

>> Repair or replace harness.

3.

CHECK SUPER LOCK ACTUATOR HARNESS

1.

Disconnect BCM and rear door lock actuator RH.

ALKIA0825ZZ

Connector

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(-)

M20

75

Ground

Door lock/unlock switch is turned to LOCK

0

→

 Battery voltage

→

 0

67

Door lock/unlock switch is turned to UNLOCK

0

→

 Battery voltage

→

 0

ALKIA0826ZZ

BCM connector

Terminal

Rear door lock actuator RH

connector

Terminal

Continuity

M20

67

D305

2

Yes

75

1
